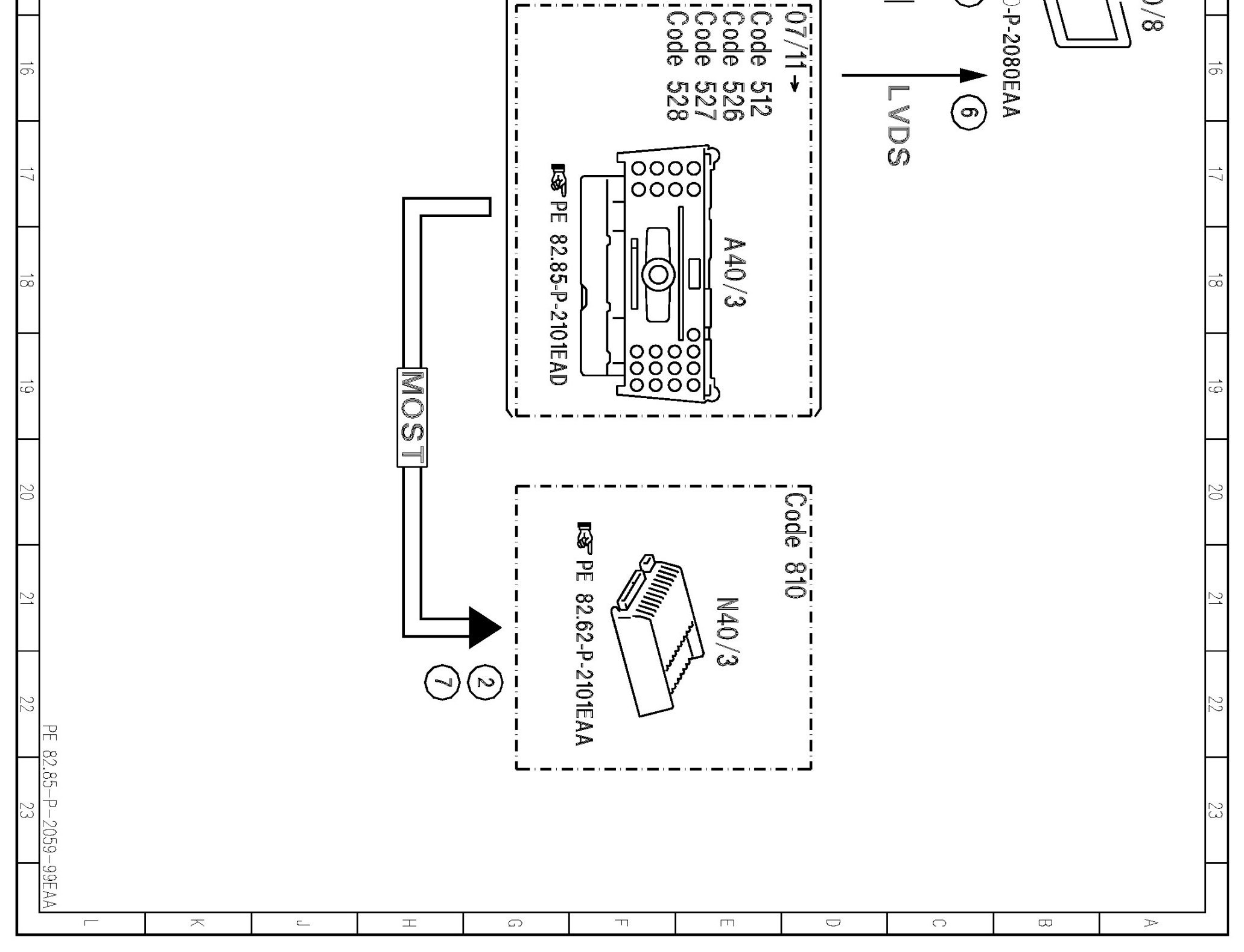

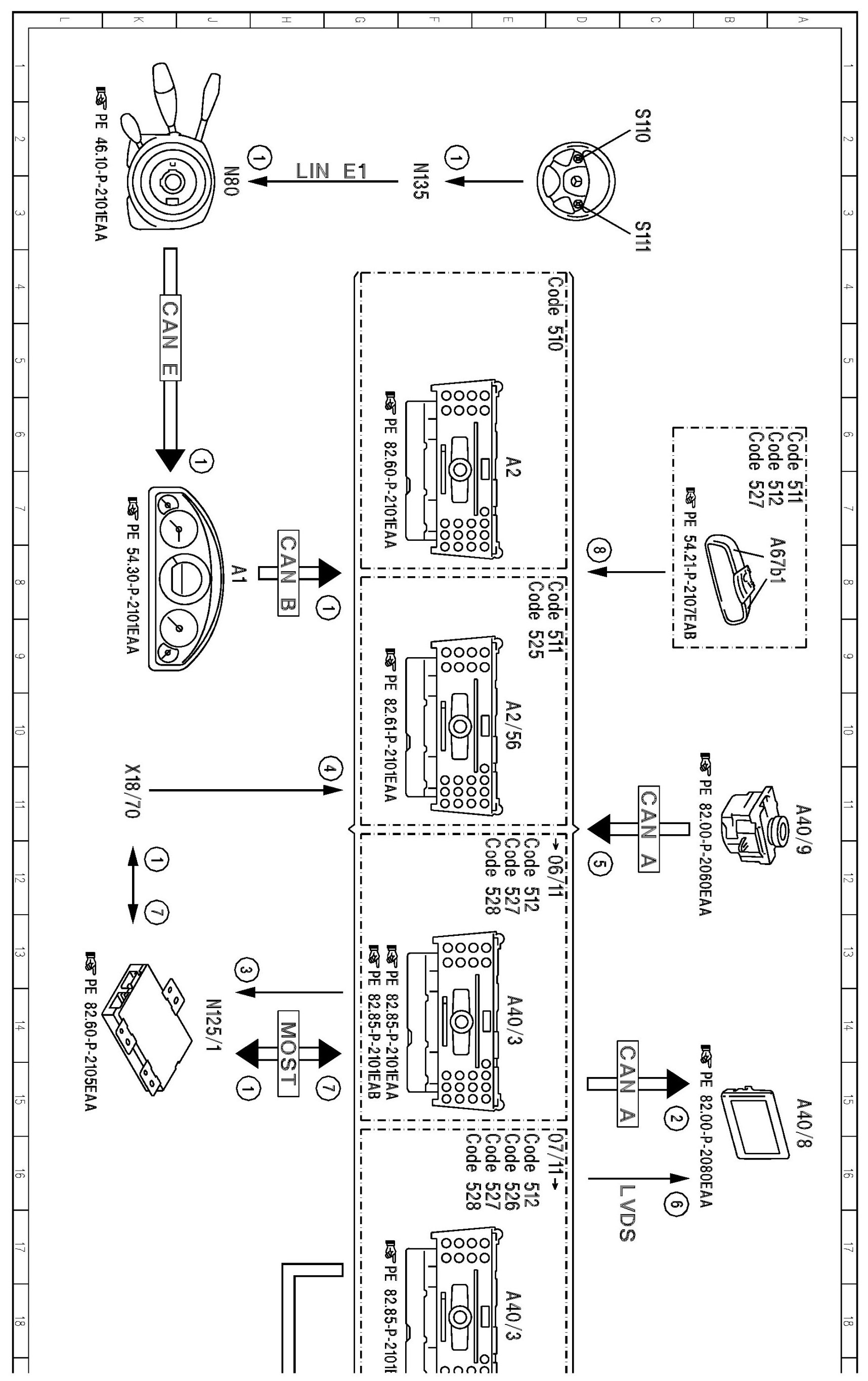

PE82.85-P-2059EAA Electrical Function Diagram For Media Interface, Function

PE82.85-P-2059EAA Electrical Function Diagram For Media Interface, Function

MODEL 207.3 /4
- with CODE (518) Media interface














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
