AP42.00-P-4280EW Replace Brake Fluid




AP42.00-P-4280EW Replace Brake Fluid
MODEL 207, 212, 218

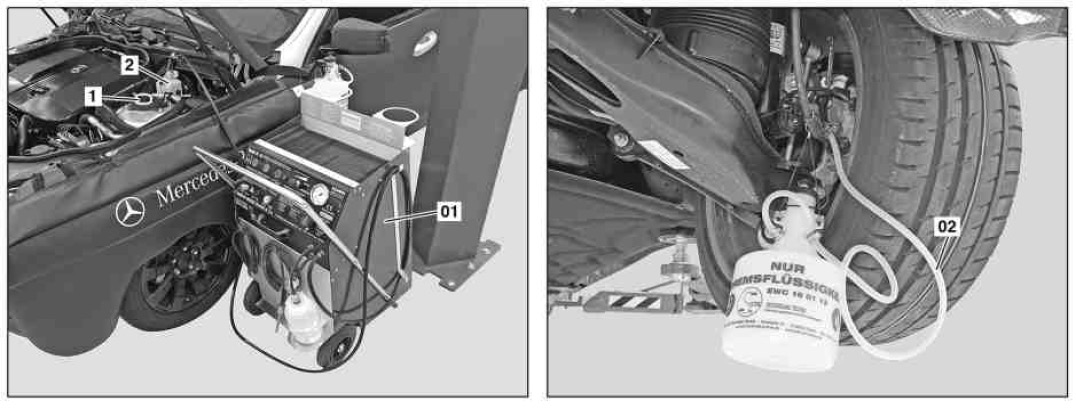

Shown on model 212

01 Filling and bleeding device
02 Vent hose
1 Cap
2 Brake fluid reservoir
