FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Power Brake Assist
>>
Vacuum Brake Booster
>>
Service and Repair
>>
AR43.10-P-0355CW Remove/Install Brake Booster Vacuum Line
AR43.10-P-0355CW Remove/Install Brake Booster Vacuum Line
AR43.10-P-0355CW Remove/install brake booster vacuum line

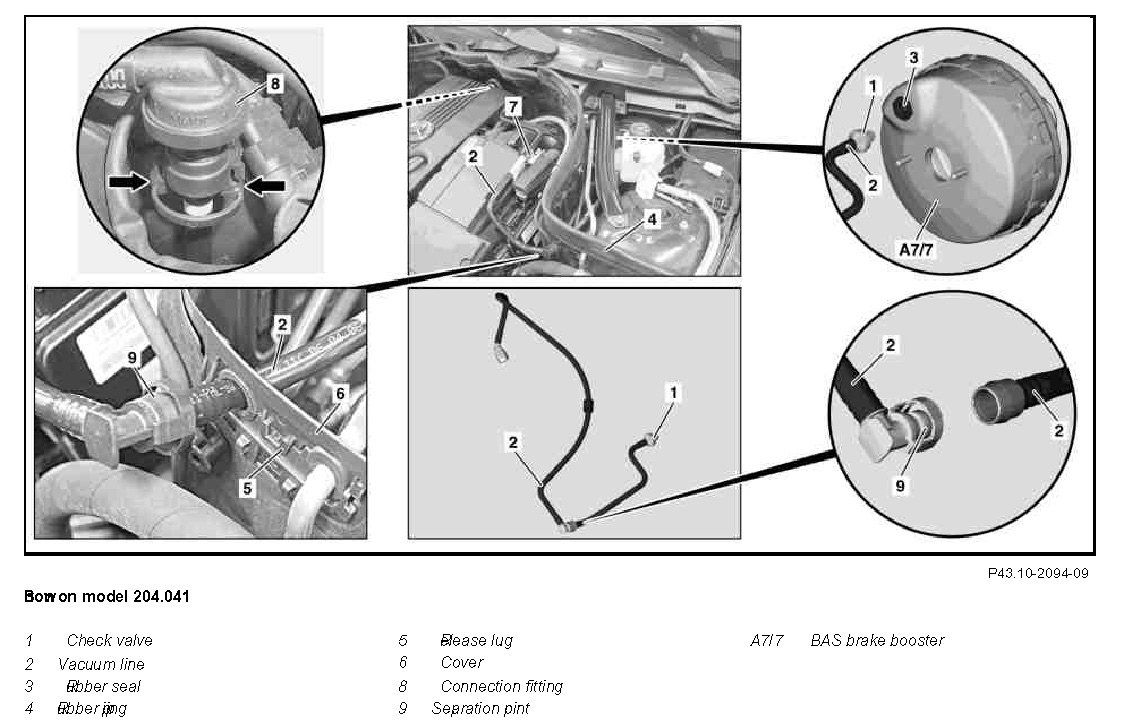

Component Identification:
Modification notes:

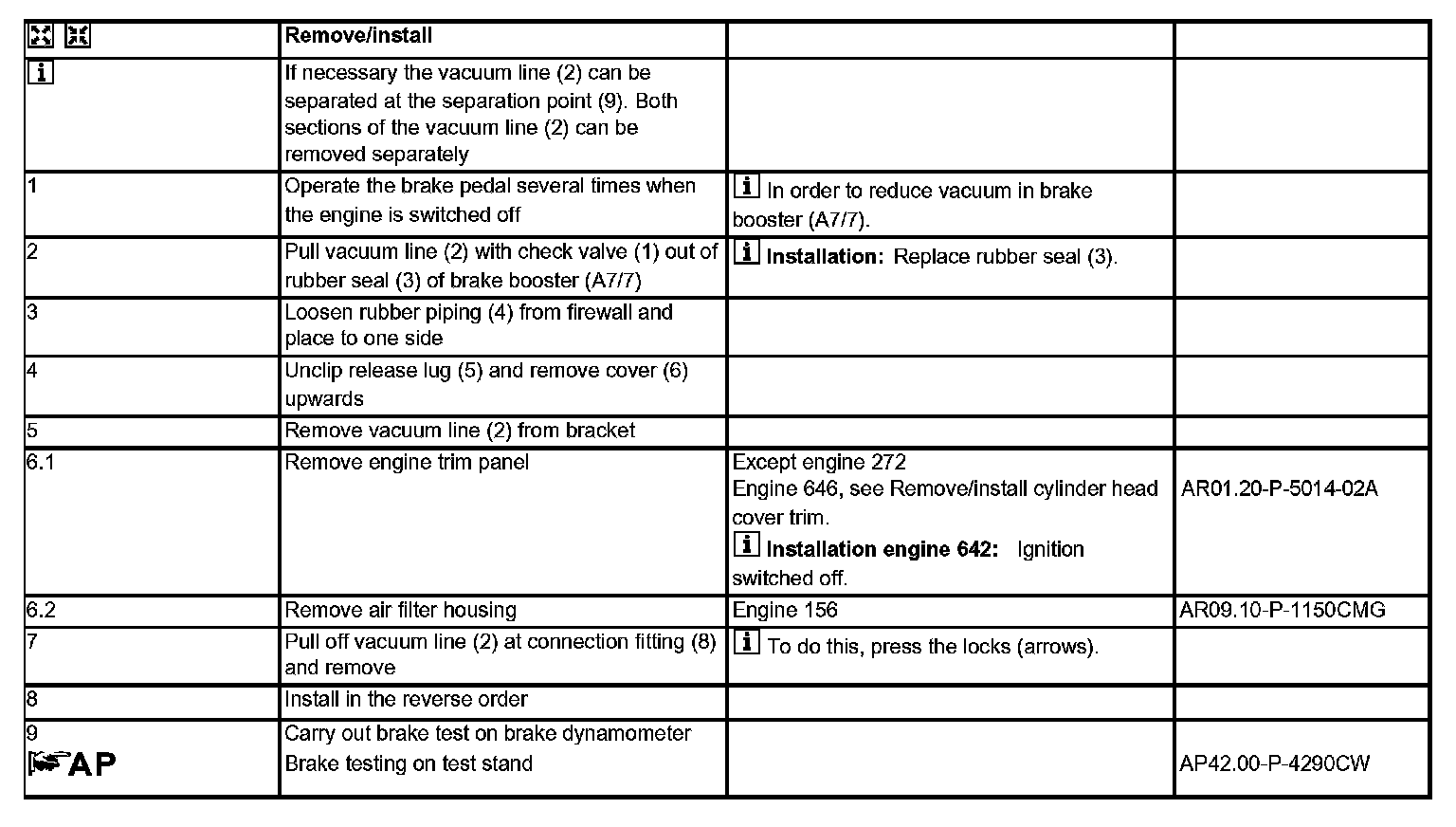

Remove/install Steps 1-9:
