AR43.10-P-0350CW Remove/Install Brake Booster

AR43.10-P-0350CW Remove/Install Brake Booster
MODEL 204, 207

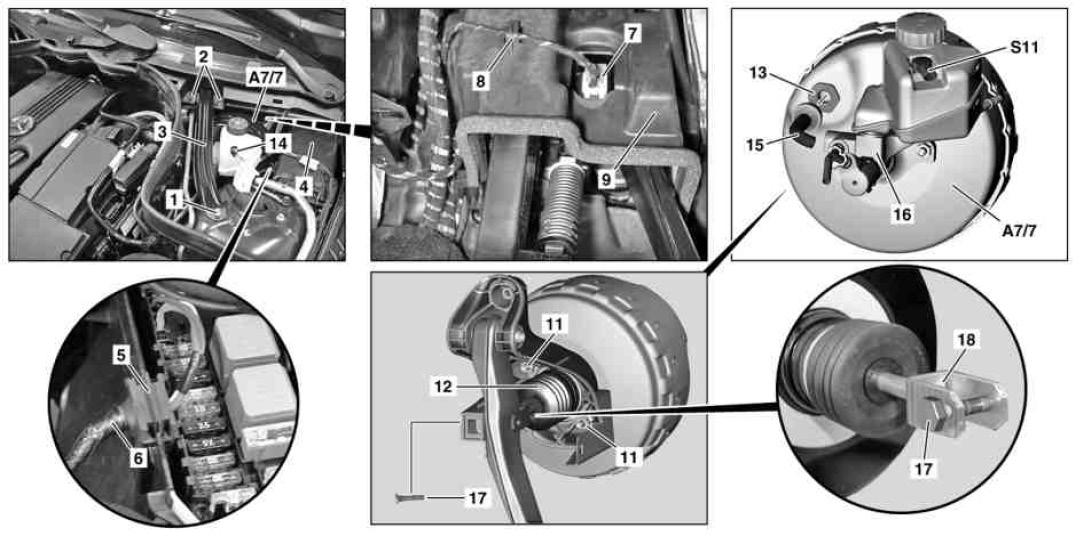

1 Screw
2 Expansion clips
3 Strut
4 Cover
5 Rubber grommet
6 Wiring harness
7 Electrical connector
8 Bracket
9 Cover
11 Nuts
12 Rubber boot
13 Rubber seal
14 Electrical connector
15 Vacuum line
16 Master brake cylinder
17 Security bolt
18 Clevis

A7/7 BAS brake booster
S11 Brake fluid level switch




















129 589 00 91 00
Set of stop plugs
