Parking Brake Shoe: Adjustments
AR42.20-P-0540EW Adjust parking brake

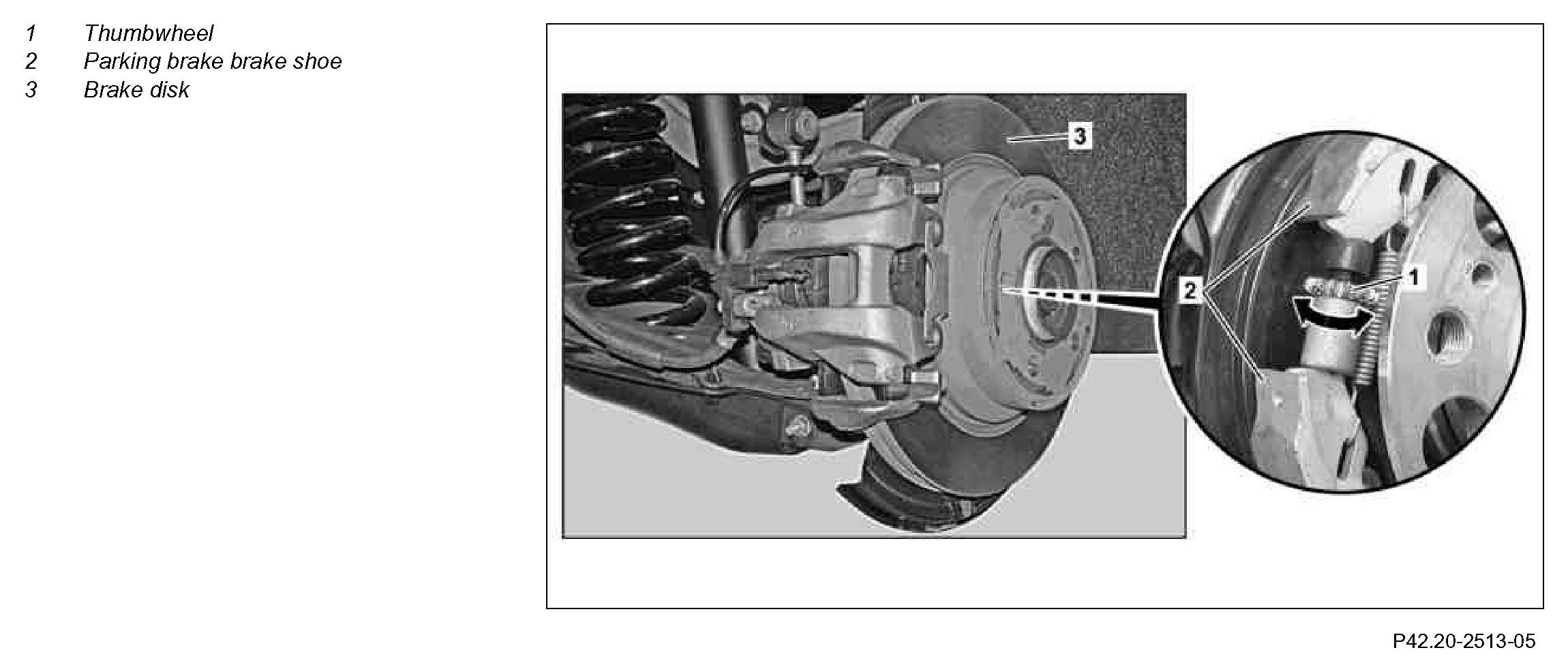

Component Identification:

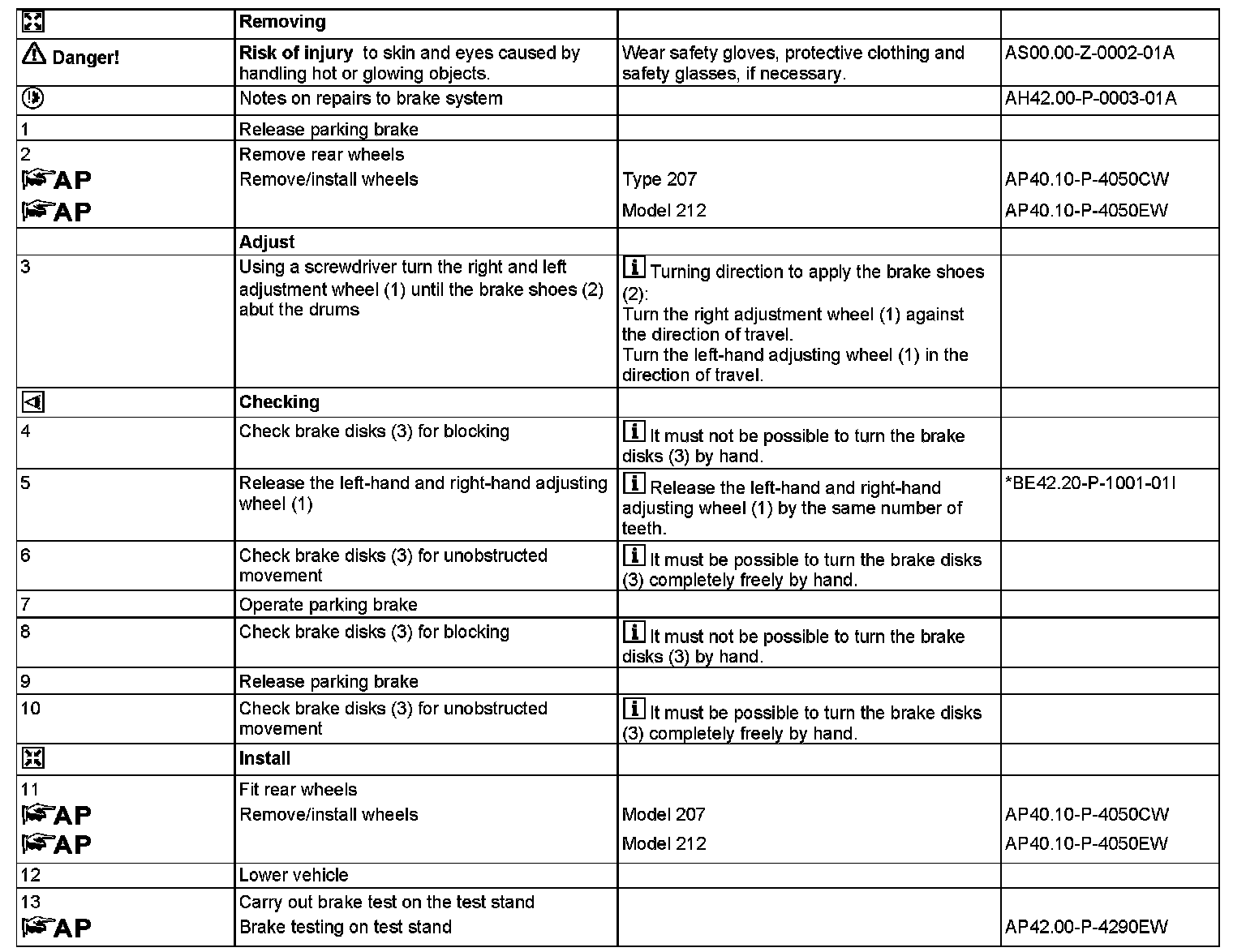

Steps 1-13:

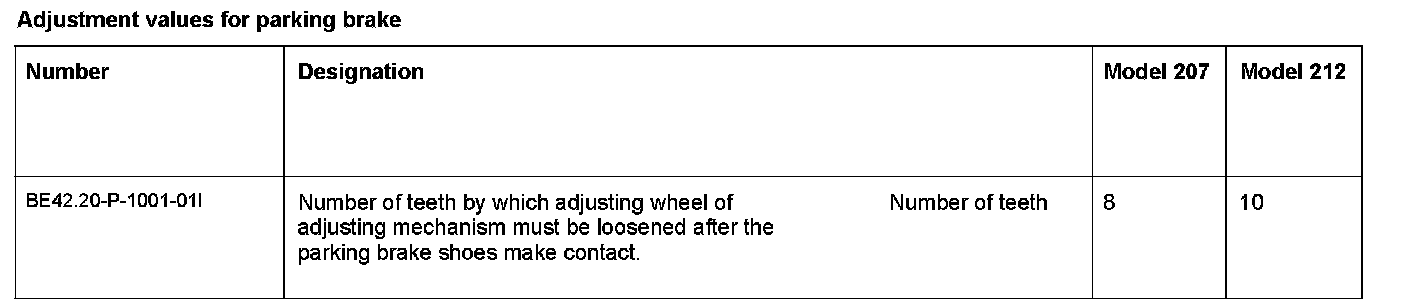

Adjustment Values For Parking Brake:
