AR42.20-P-0525EW Remove/Install Rear Brake Control Cable
AR42.20-P-0525EW Remove/Install Rear Brake Control Cable
AR42.20-P-0525EW Remove/install rear brake control cable

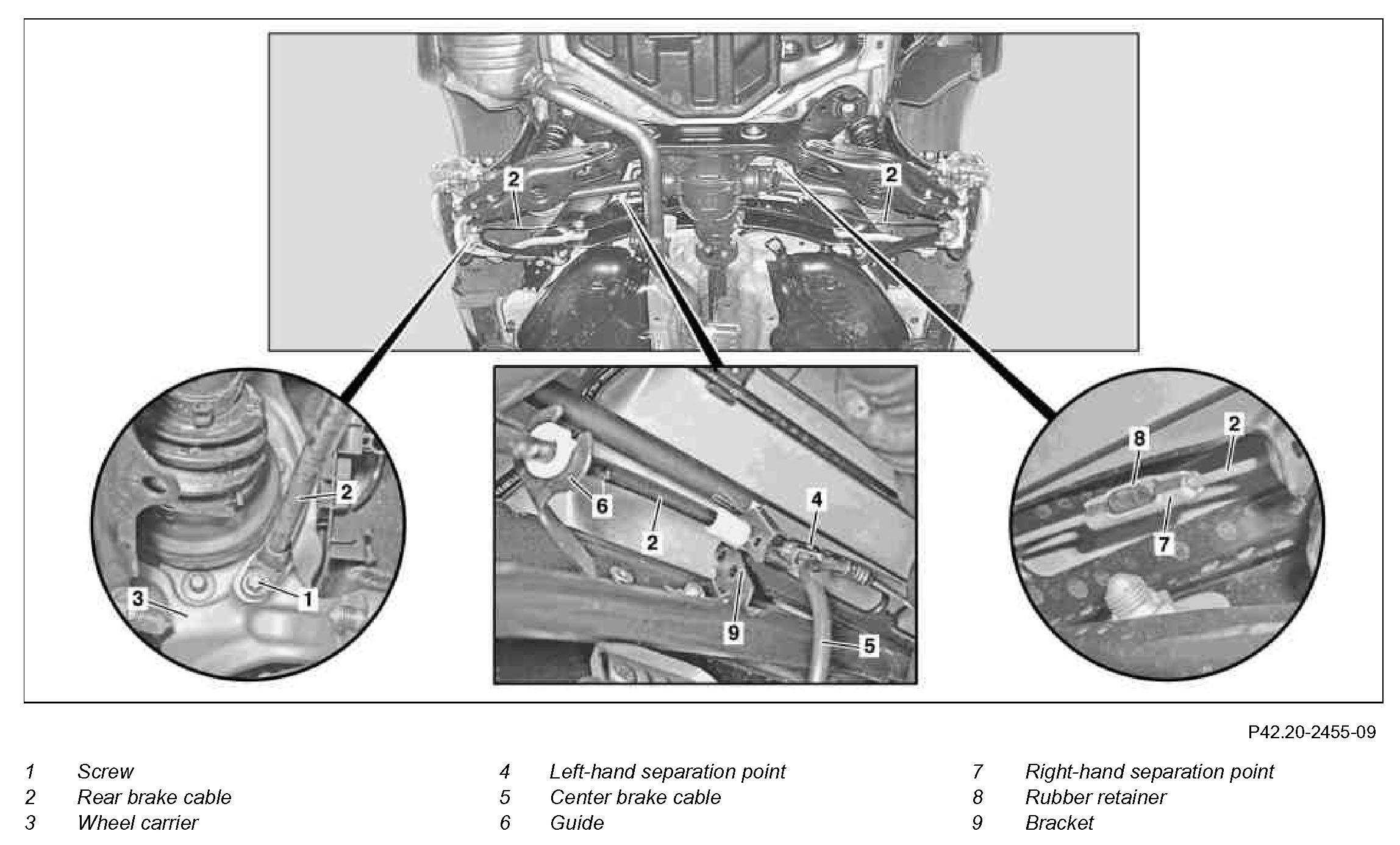

Component Identification:

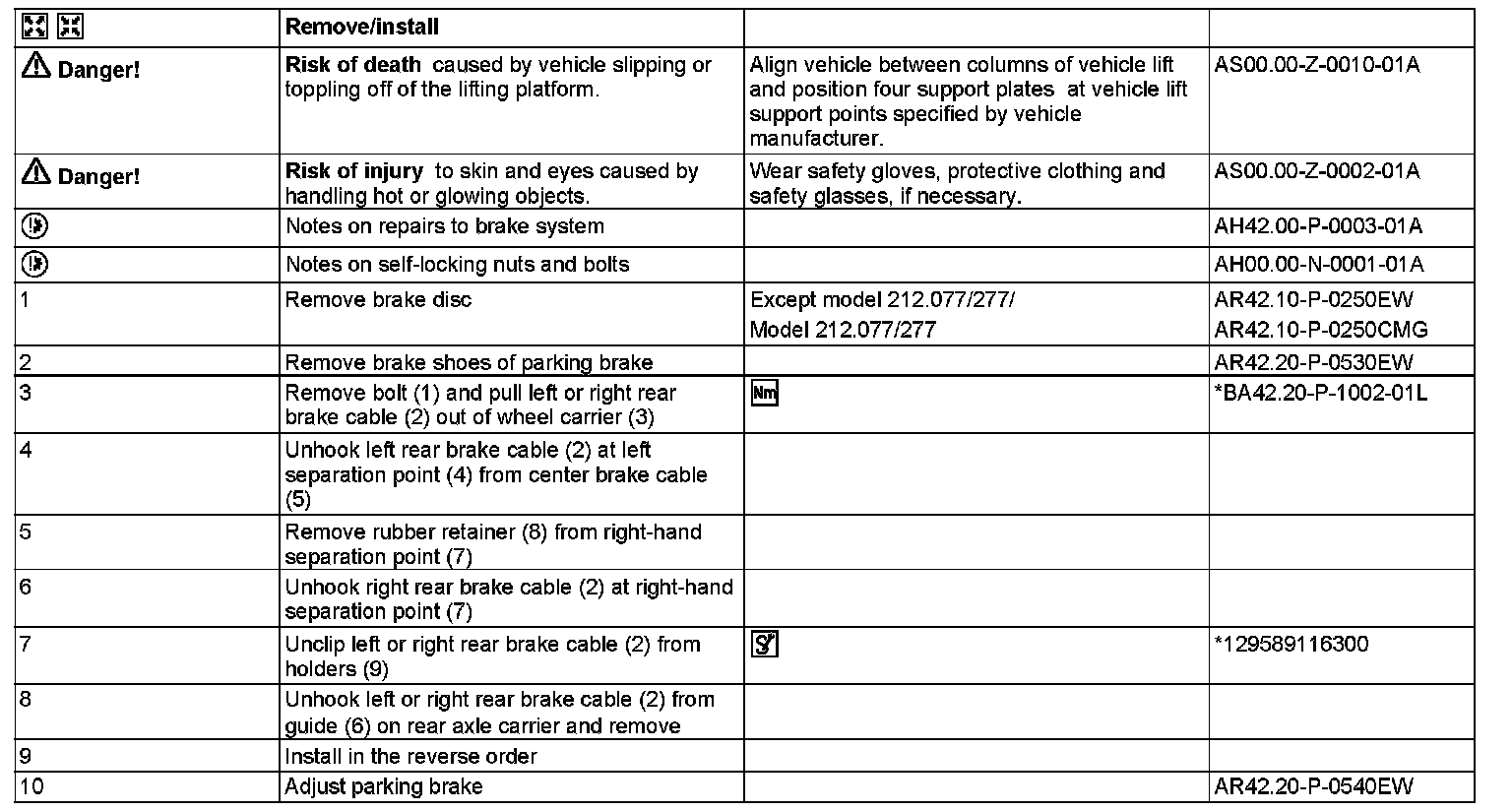

Steps 1-10:

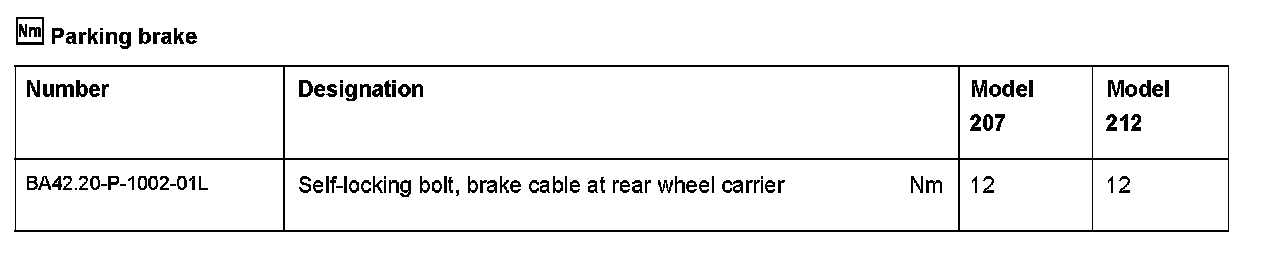

Parking Brake:

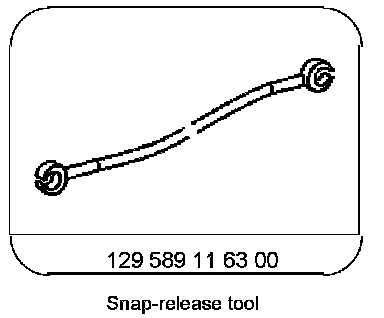

Special Tools:
