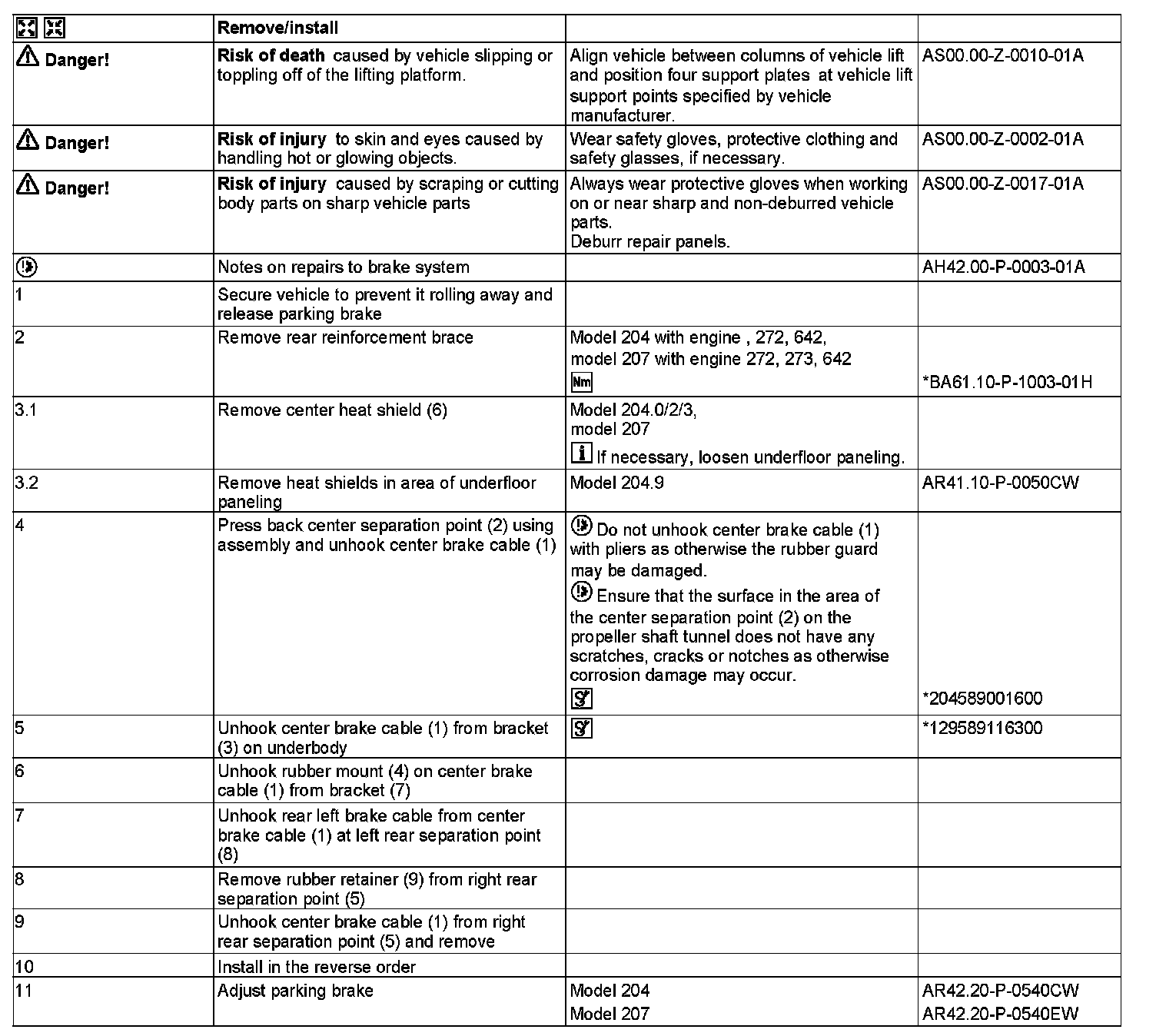

AR42.20-P-0523CW Remove/Install Center Brake Cable

AR42.20-P-0523CW Remove/Install Center Brake Cable
MODEL 204, 207

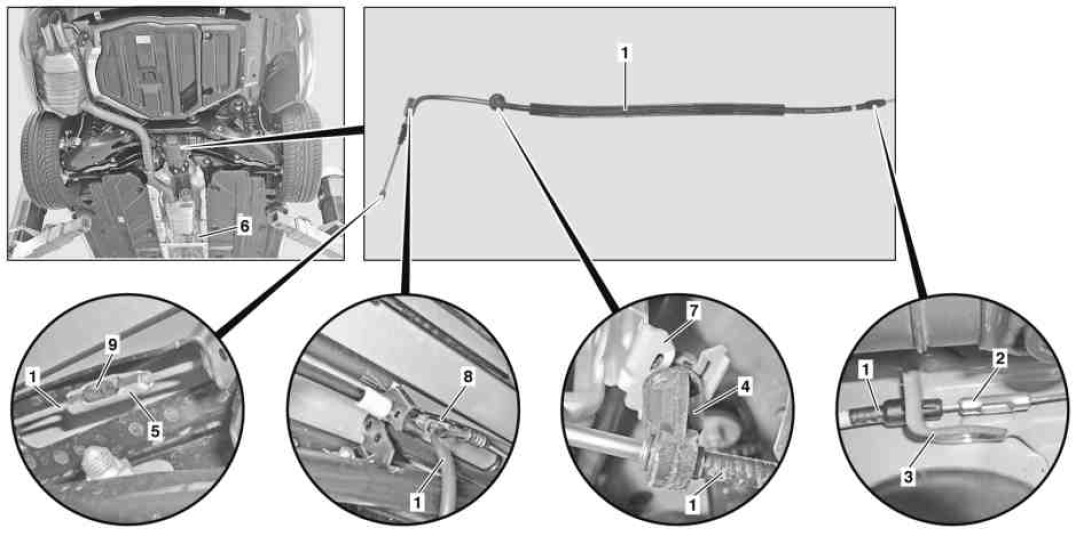

1 Center brake cable
2 Center separation point
3 Bracket
4 Rubber mount
5 Right rear separation point
6 Heat shield
7 Bracket
8 Left rear separation point
9 Rubber retainer











129 589 11 63 00
Snap-release tool





204 589 00 16 00
Assembly tool
