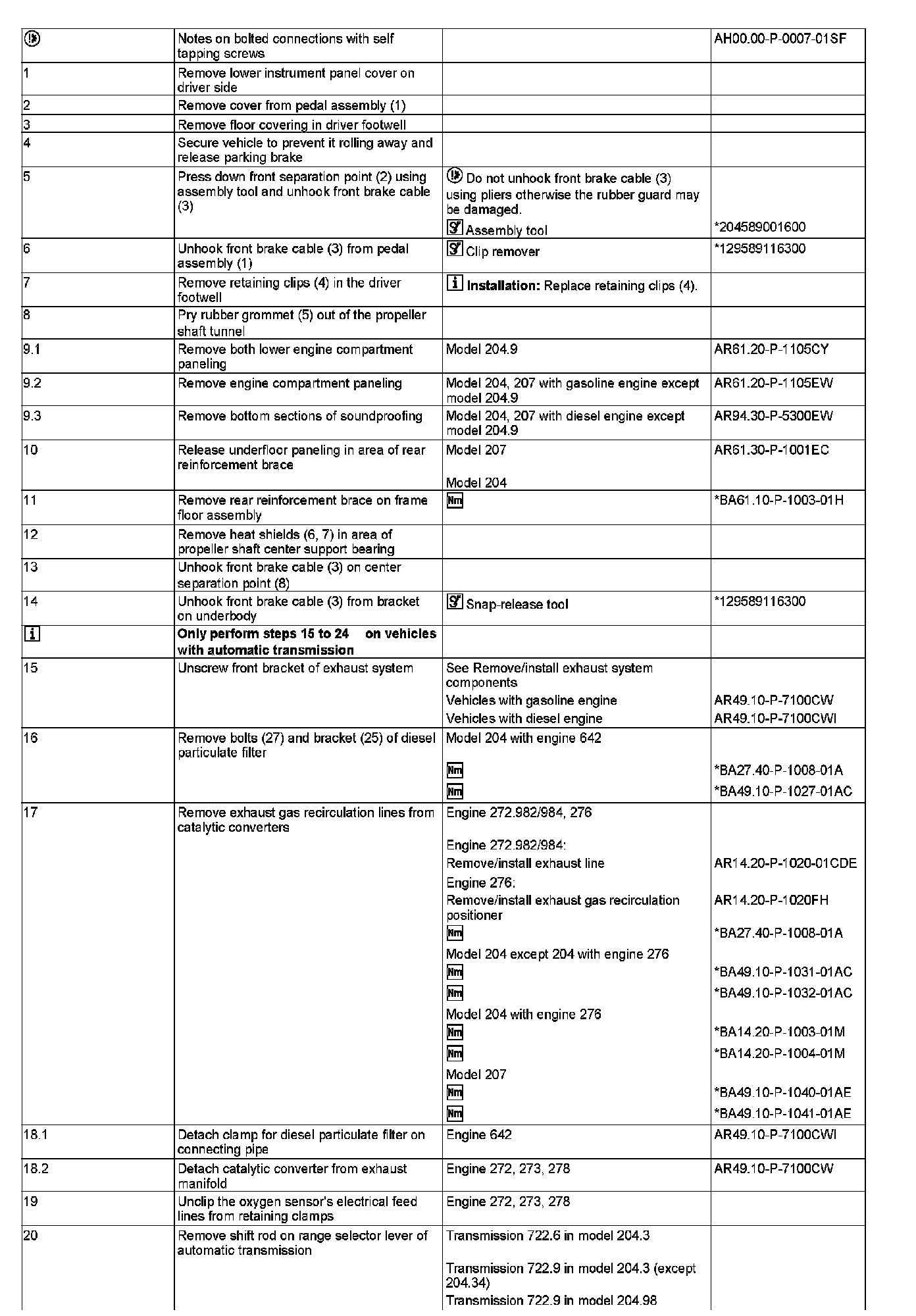

AR42.20-P-0520CW Remove/Install Front Brake Control Cable

AR42.20-P-0520CW Remove/Install Front Brake Control Cable
MODEL 204, 207

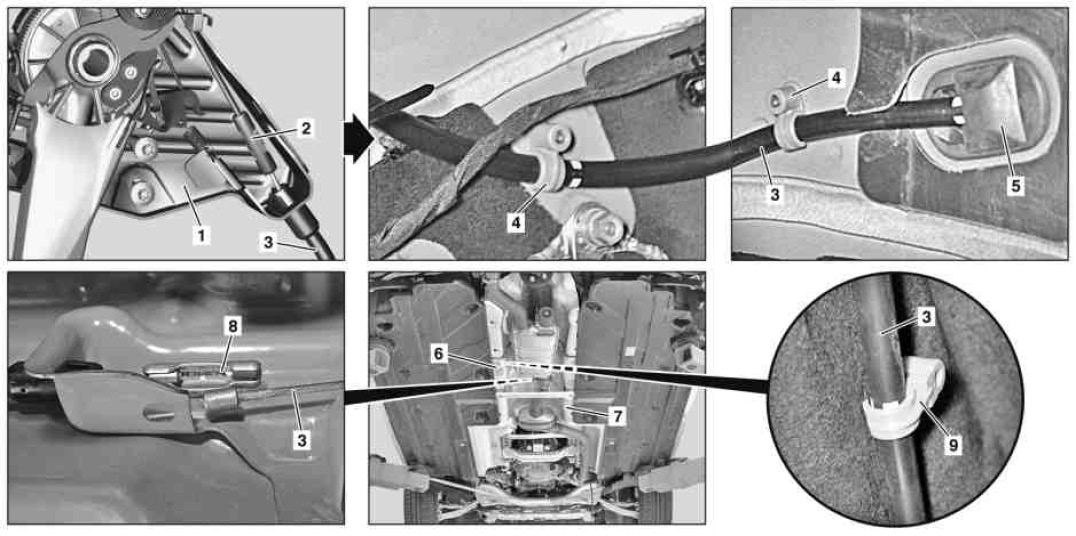

1 Pedal assembly
2 Front separation point
3 Front brake cable
4 Retaining clip
5 Rubber grommet
6, 7 Heat shield
8 Center separation point
9 Retaining clip

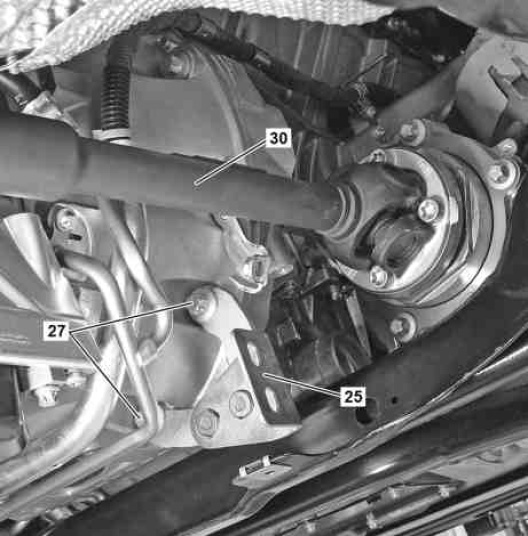

25 Bracket
27 Screw





























129 589 11 63 00
Snap-release tool





204 589 00 16 00
Assembly tool
