AR91.12-P-1720EC Remove/Install Tilting Rear Seat
AR91.12-P-1720EC Remove/Install Tilting Rear Seat
AR91.12-P-1720EC Remove/Install Tilting Rear Seat

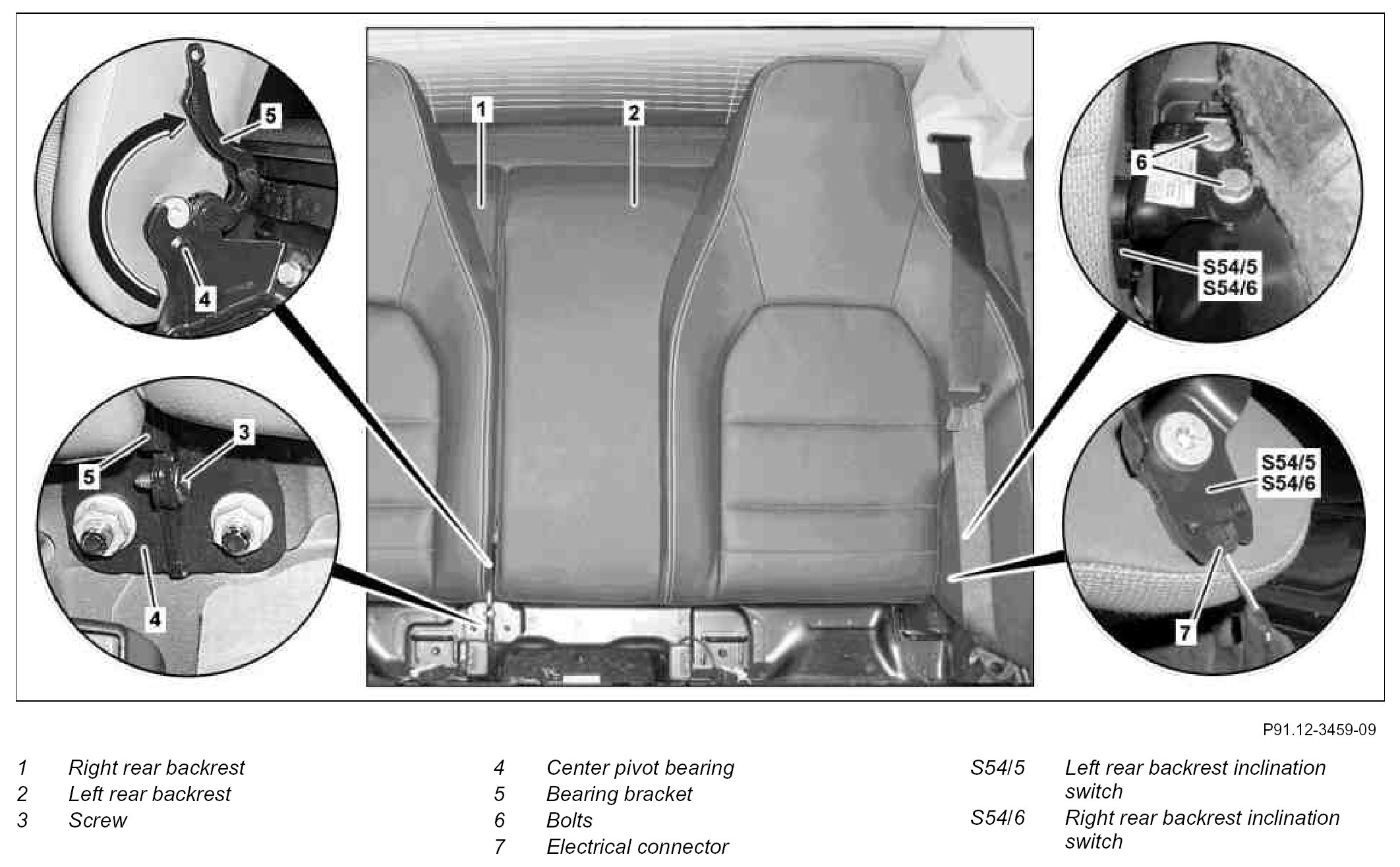

Component Identification:

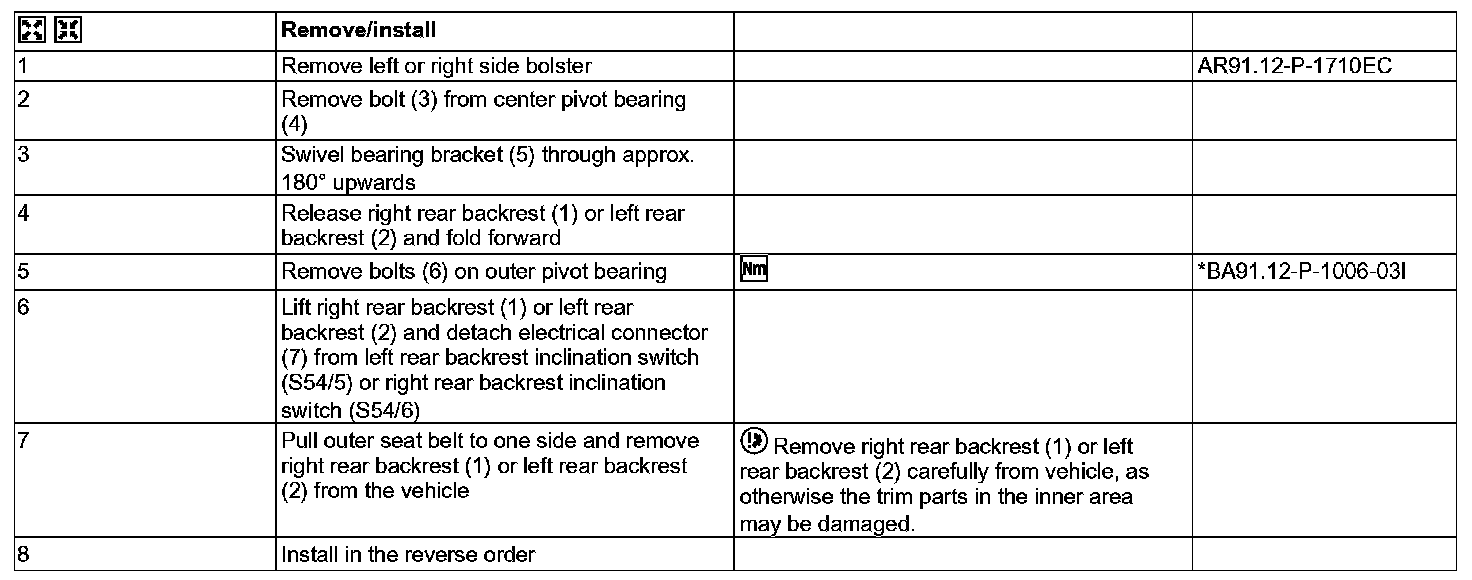

Steps 1 - 8:

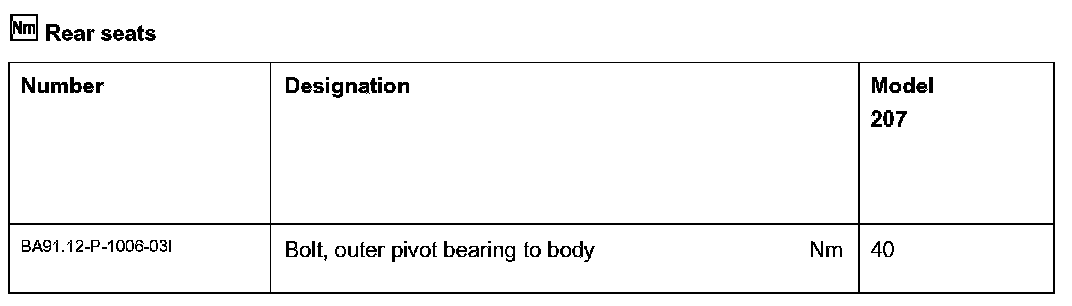

Rear Seats:
