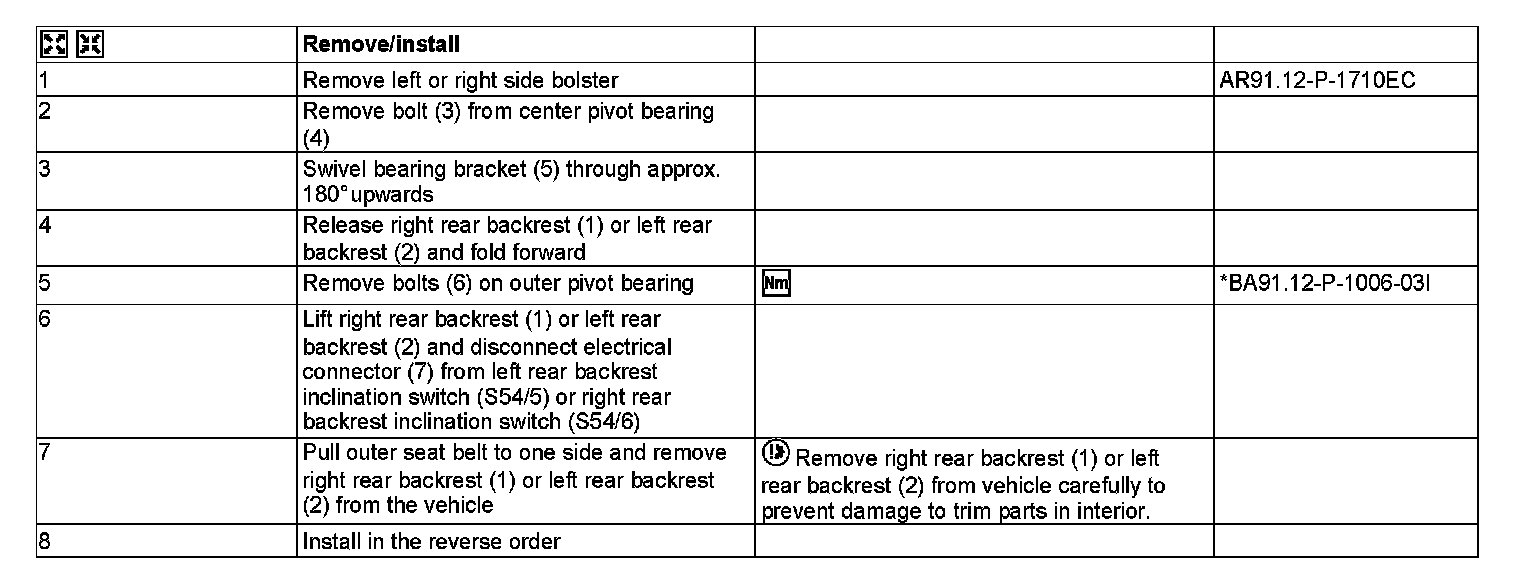

AR91.12-P-1720EC Remove/Install Folding Rear Seat

AR91.12-P-1720EC Remove/Install Folding Rear Seat
MODEL 204.3
- with CODE (287) Through-loading feature
MODEL 207.3





Shown on model 207.3

1 Right rear backrest
2 Left rear backrest
3 Screw
4 Center pivot bearing
5 Bearing bracket
6 Bolts
7 Electrical connector

S54/5 Left rear backrest inclination switch
S54/6 Right rear backrest inclination switch
