Seat Cushion: Service and Repair
AR91.10-P-3310CW Remove/Install
Seat Cushion

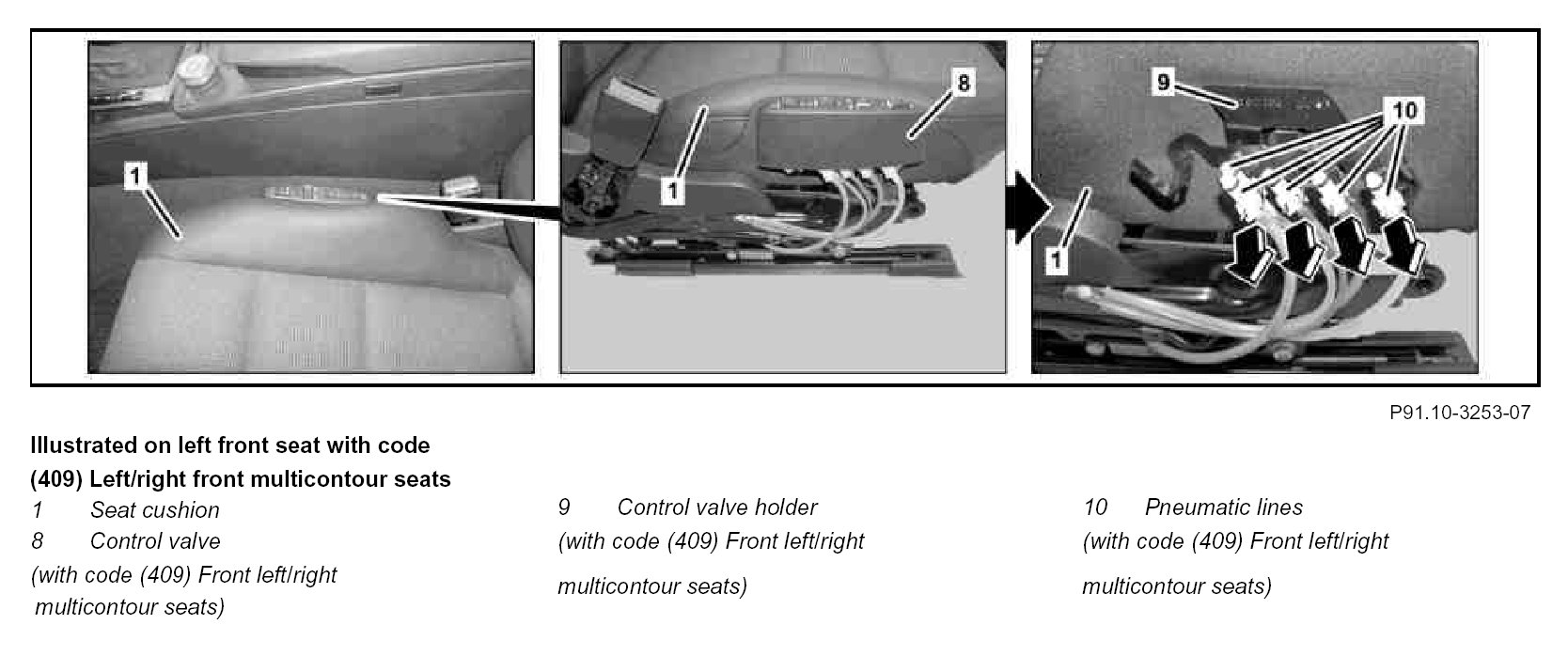

Component Identification:

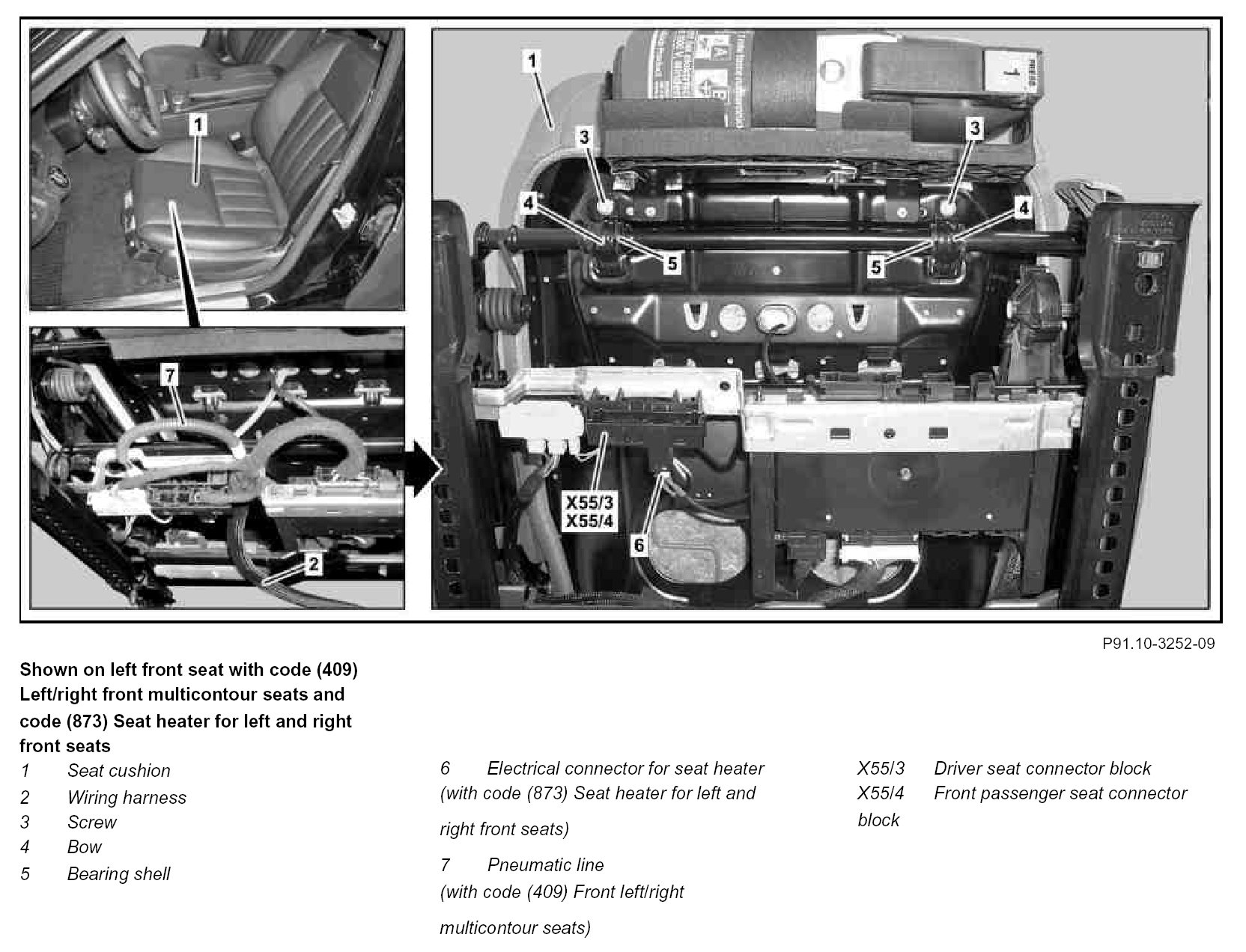

Component Identification:

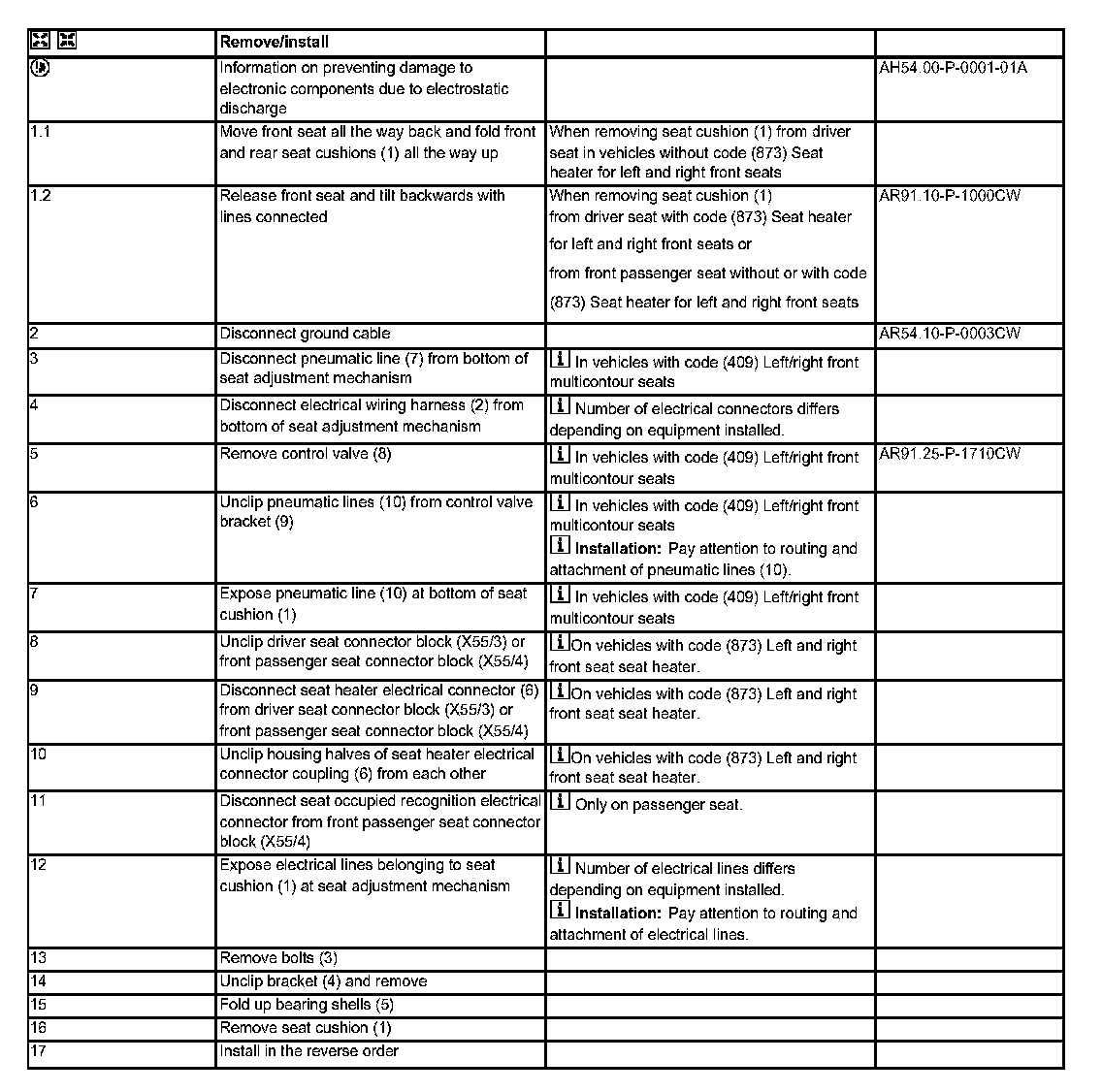

Steps 1.1 - 17:
