Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Bladder >> Service and Repair >> AR91.25-P-1680EC Remove/Install Driver and Passenger Side Multicontour Backrest Air Cushion

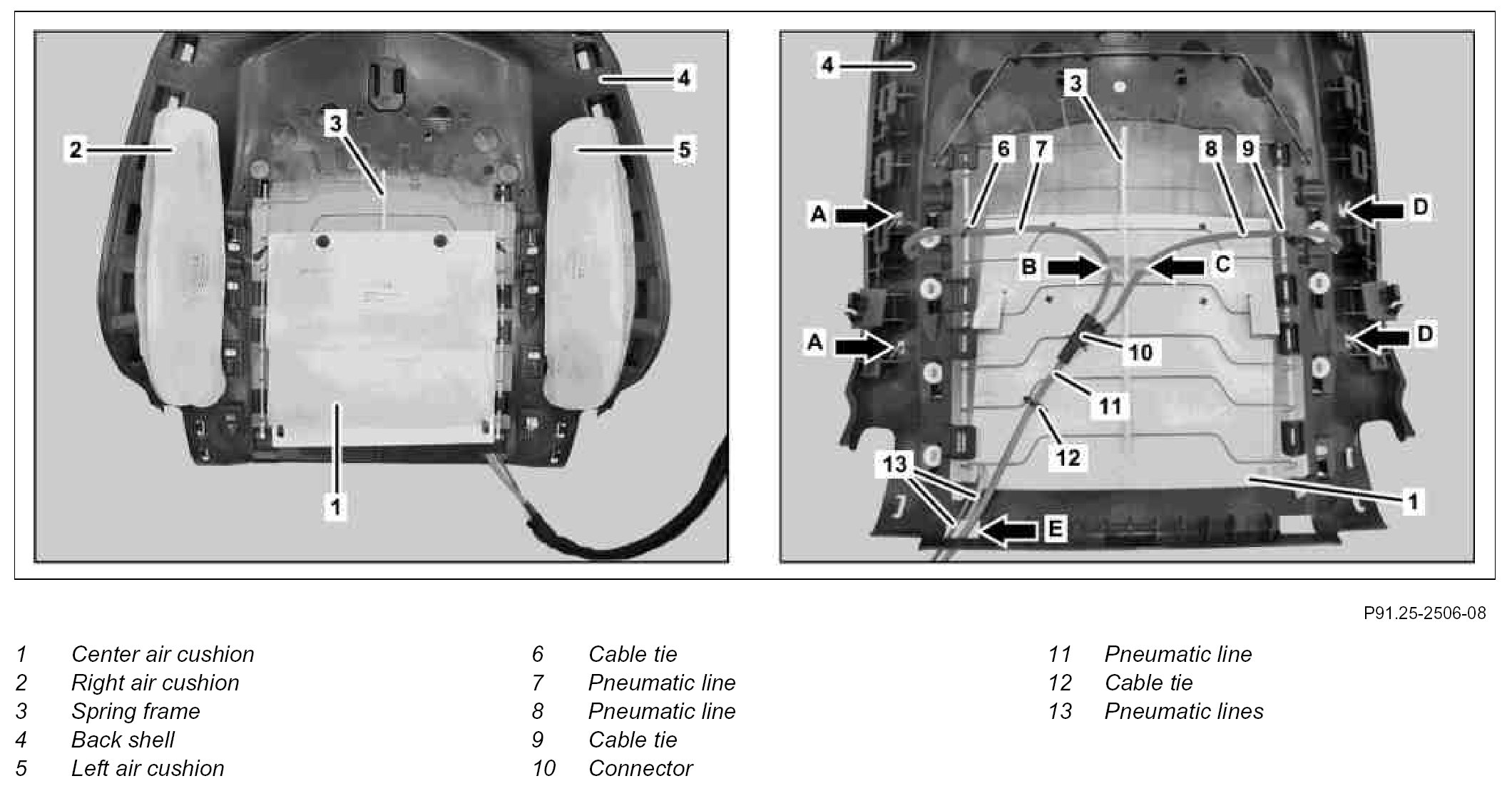

AR91.25-P-1680EC Remove/Install Driver and Passenger Side Multicontour Backrest Air Cushion



AR91.25-P-1680EC Remove/Install Driver And Passenger Side Multicontour Backrest Air Cushion
- with CODE (409) Left/right front multicontour seat

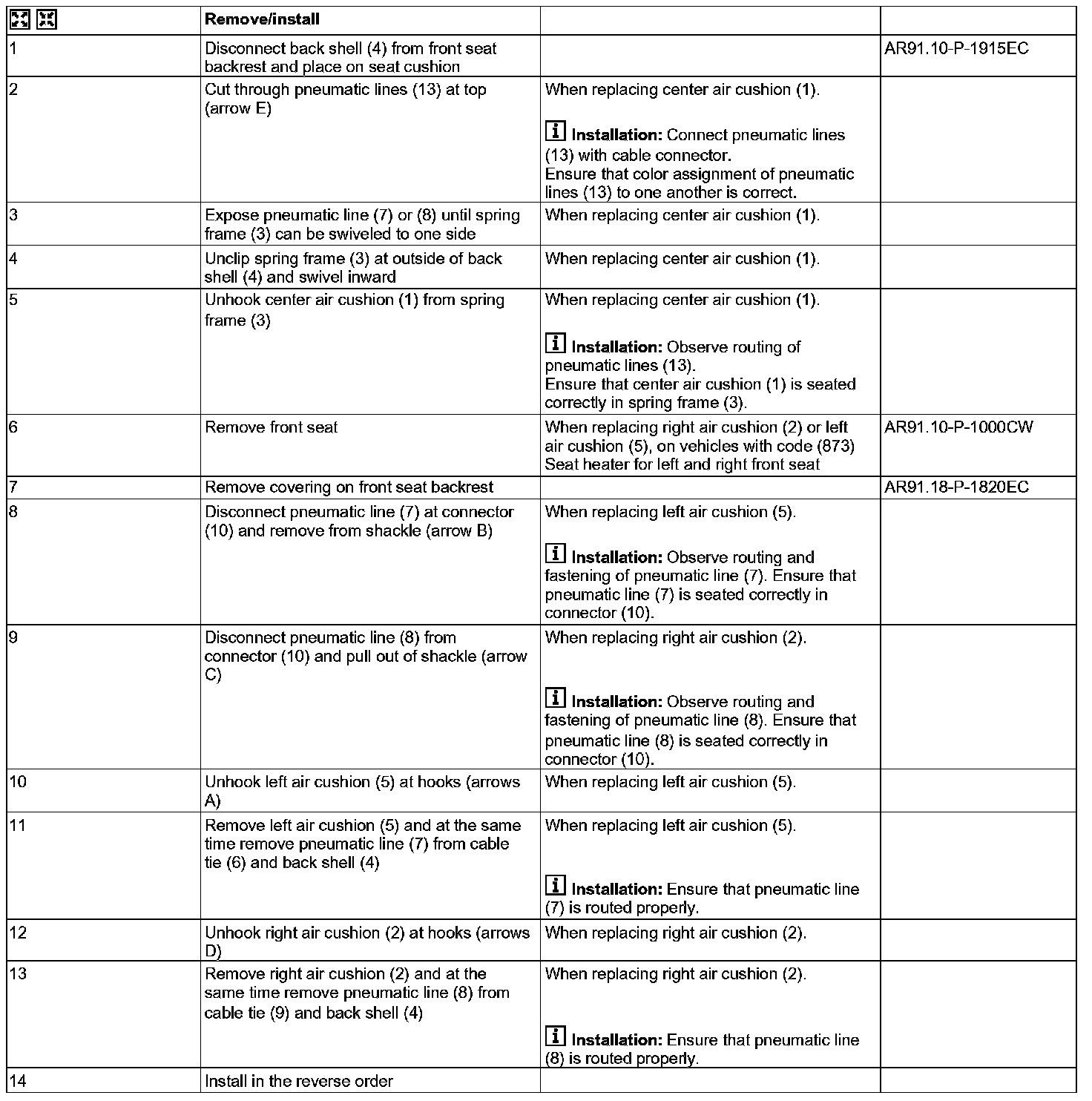

Steps 1 - 14:
