Seat Back: Service and Repair
AR91.10-P-1060CW Remove/Install Front Seat Backrest

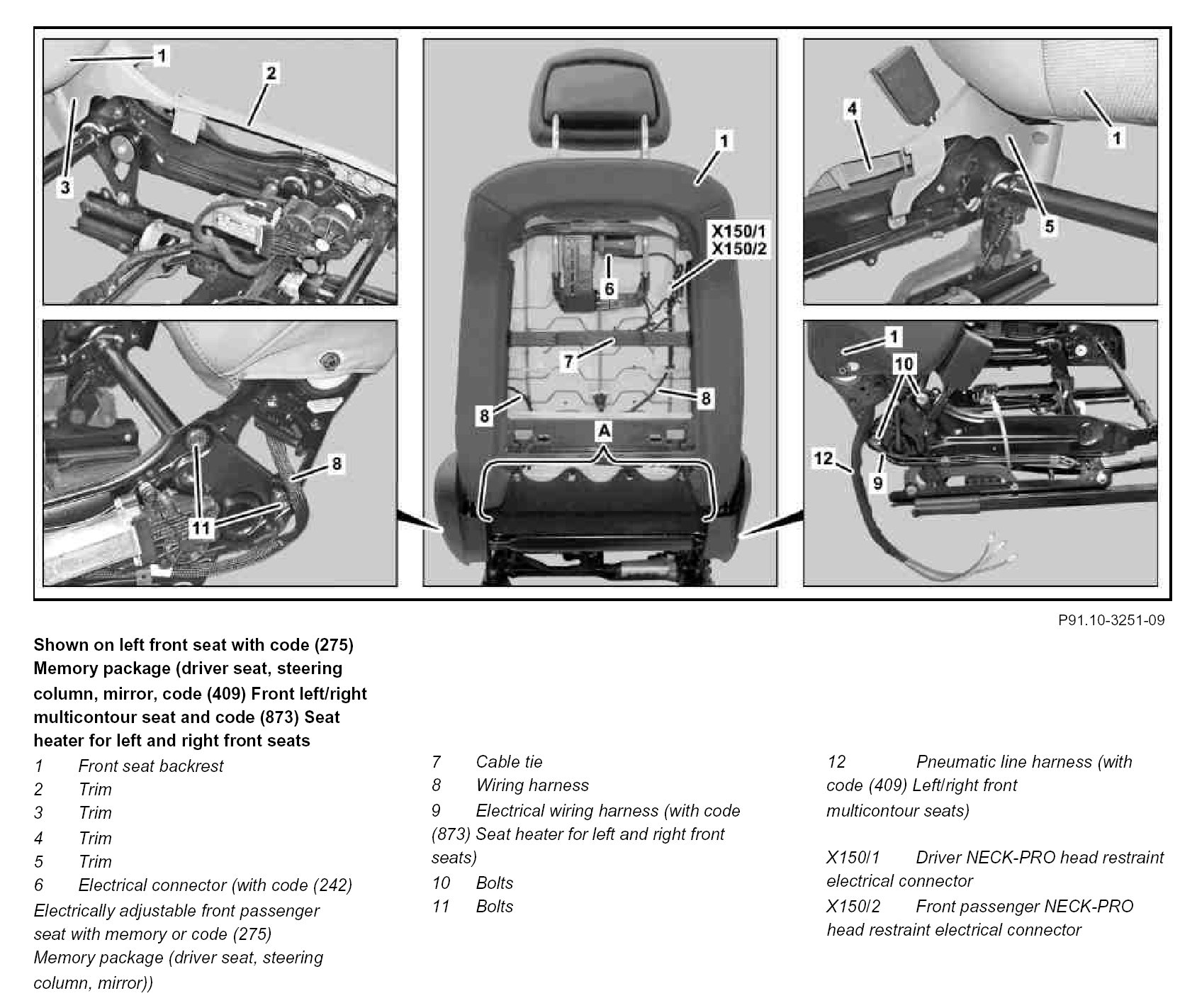

Component Identification:

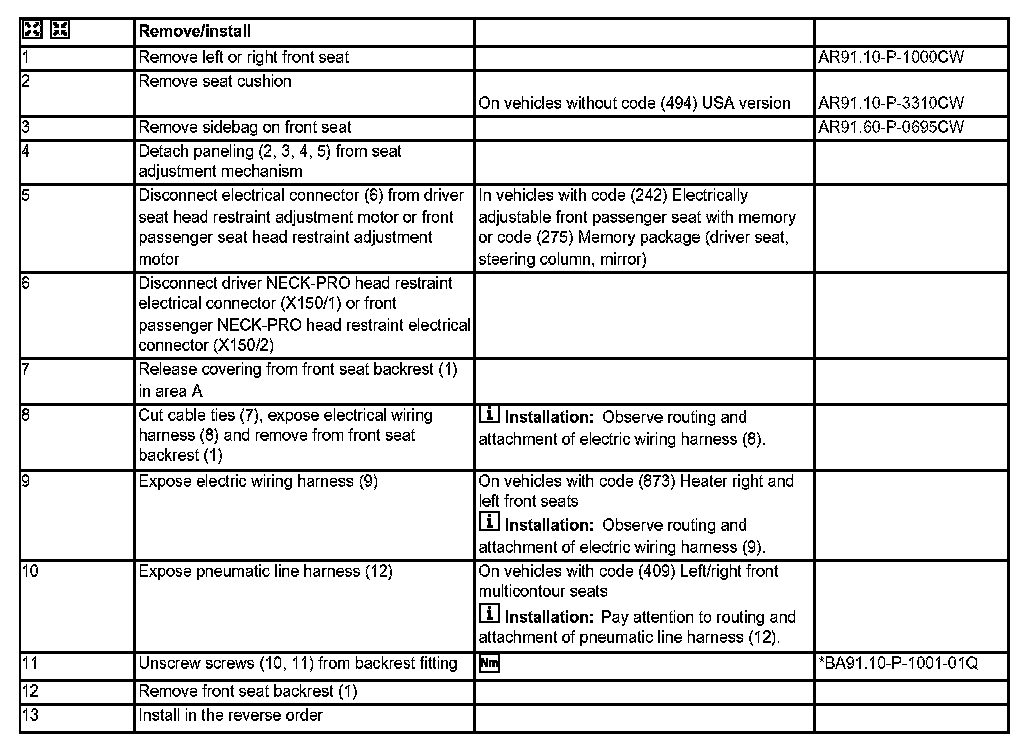

Steps 1 - 13:

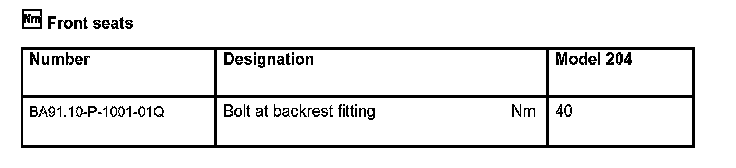

Front seats:
