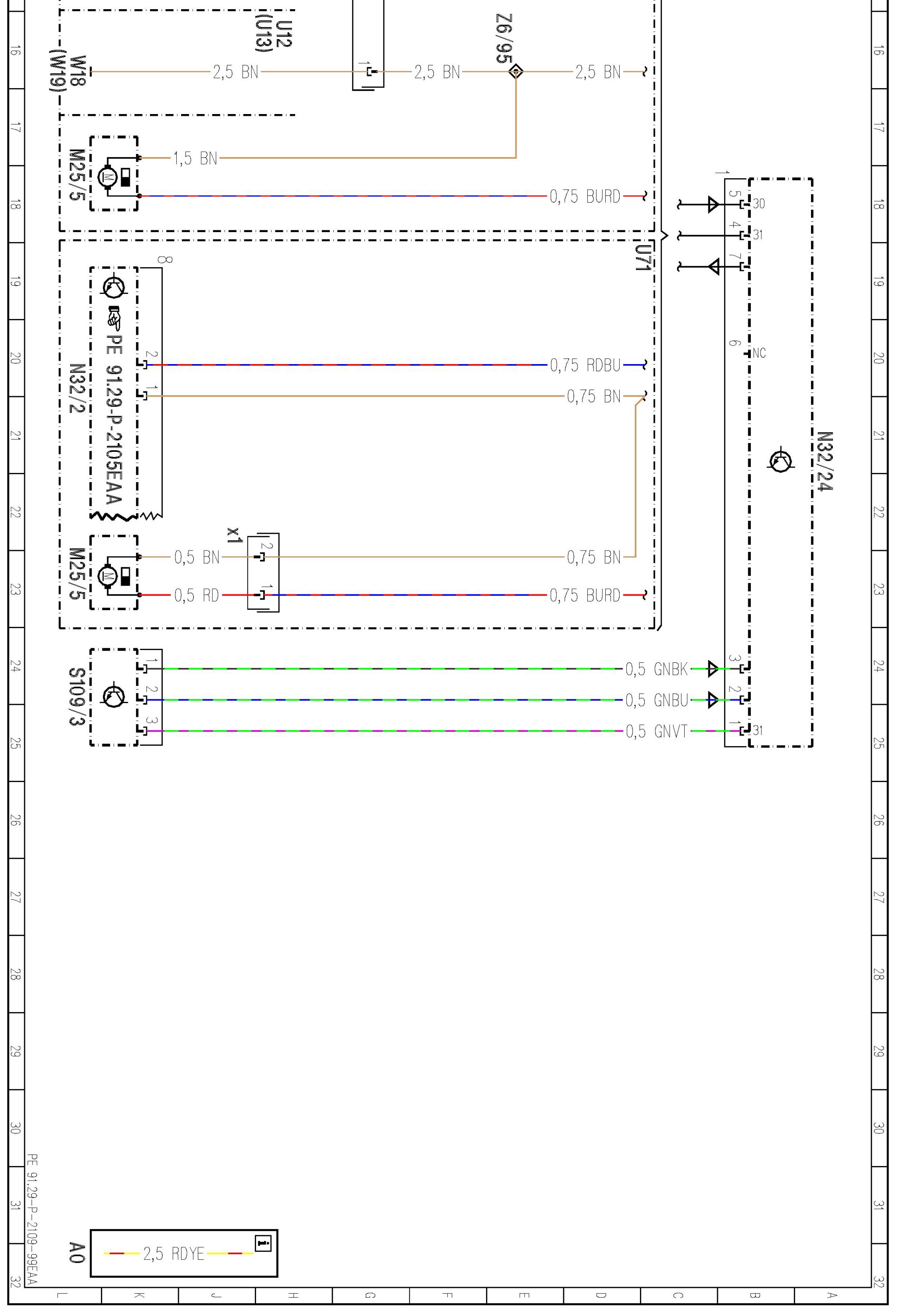

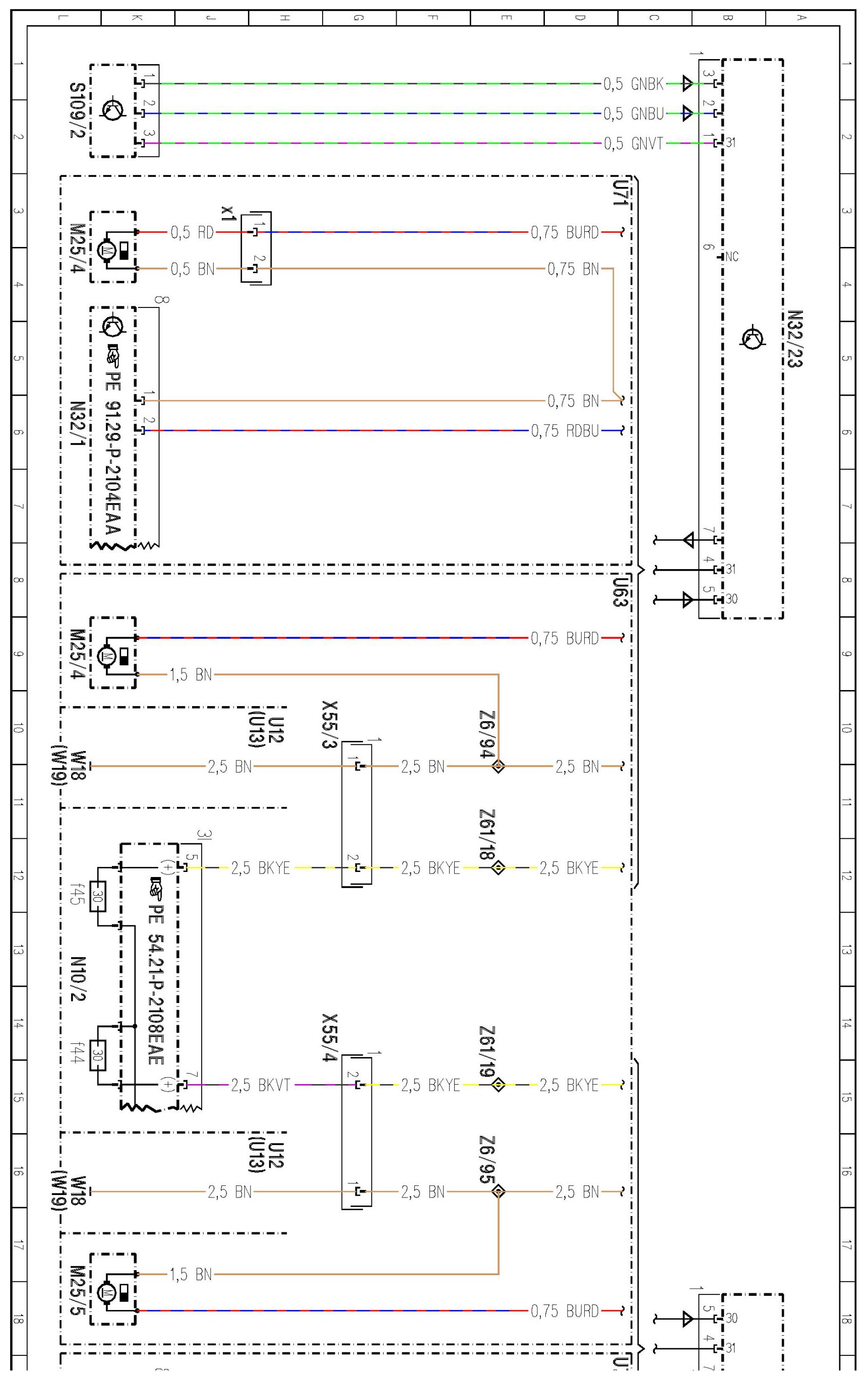

PE91.29-P-2109EAA Lumbar Support Wiring Diagram

PE91.29-P-2109EAA Lumbar Support Wiring Diagram

Model 207
- control units N32/23, N32/24

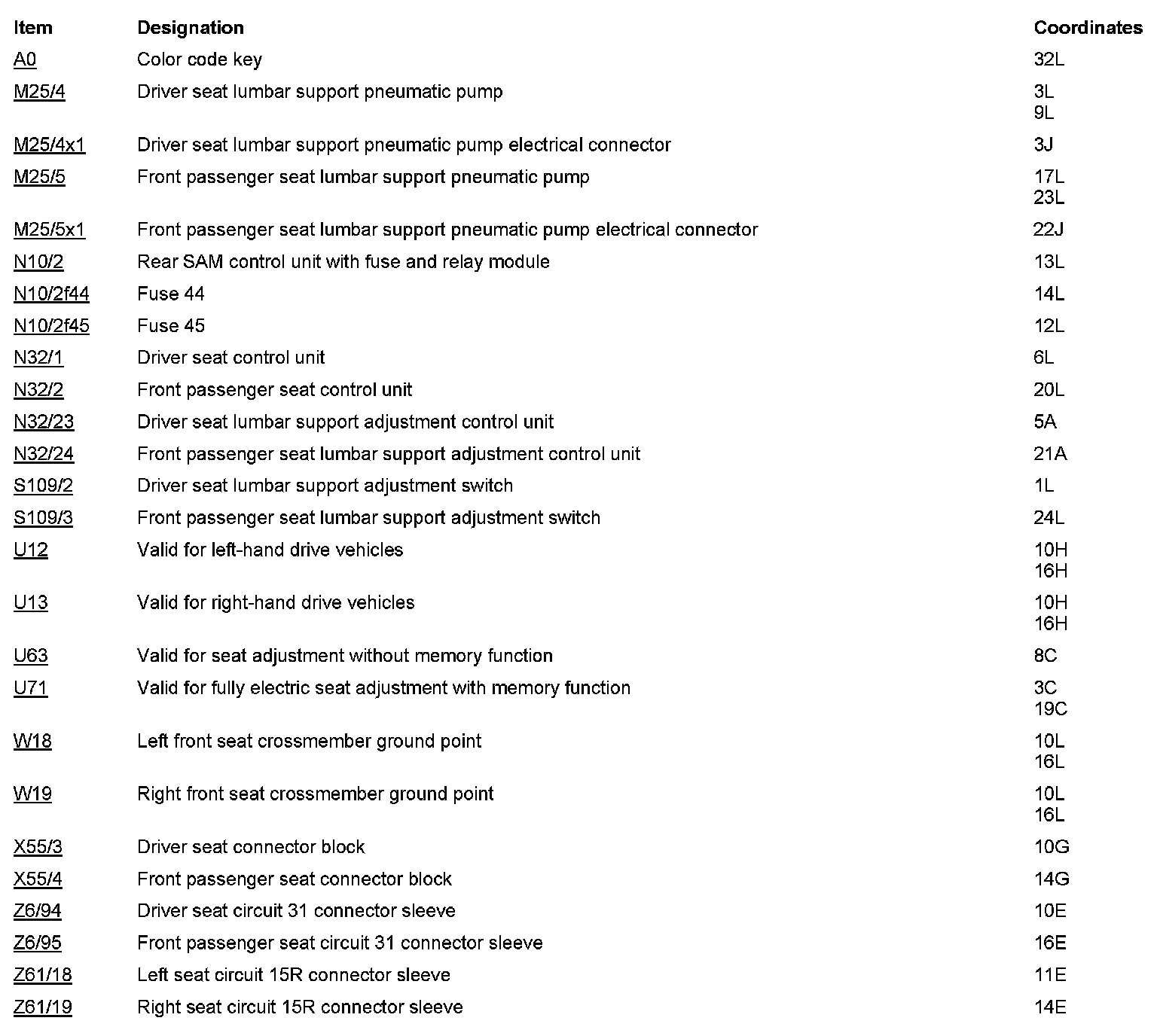

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
