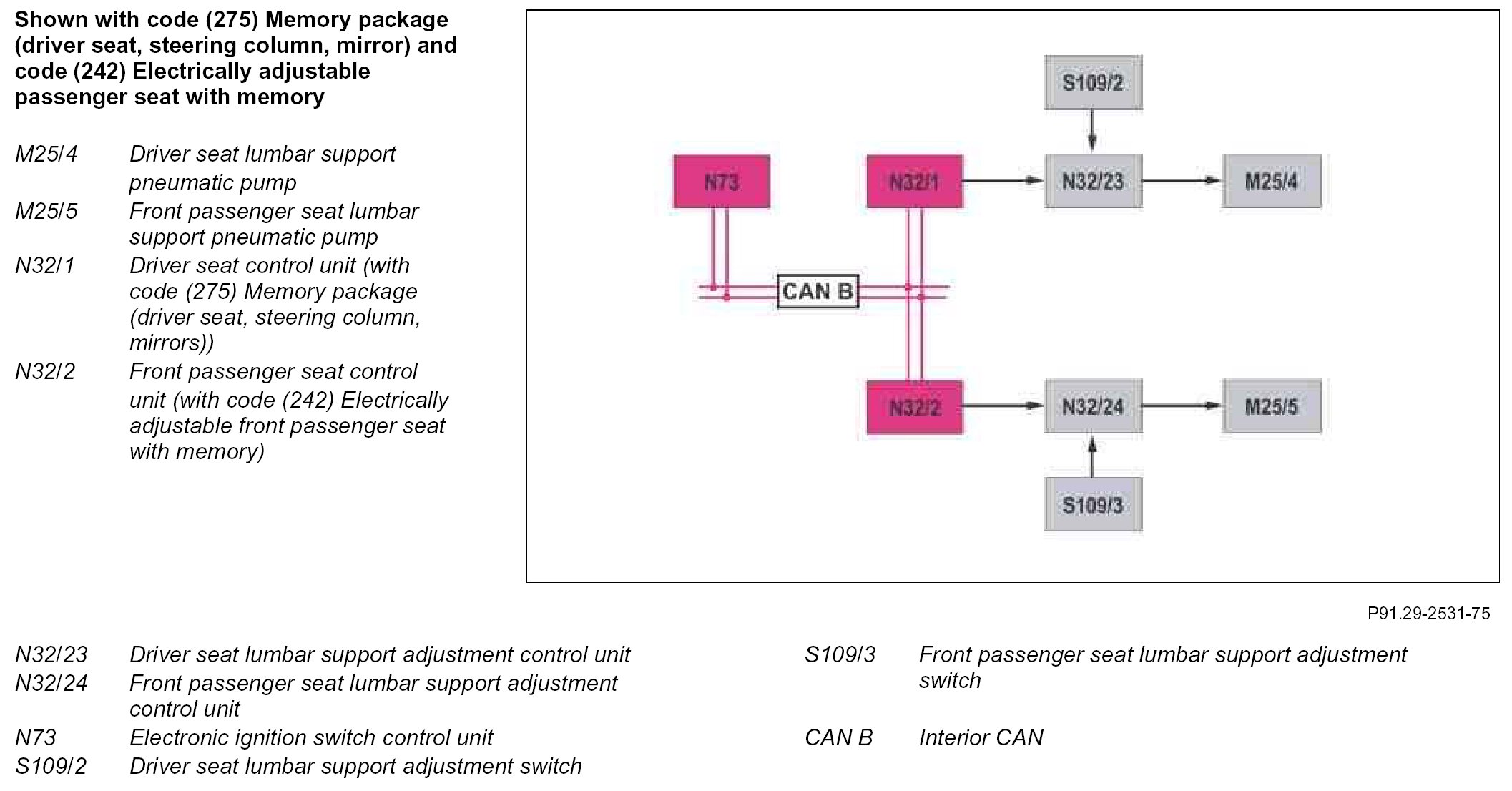

GF91.29-P-0011-02CA Lumbar Support Adjusting Facility, Block Diagram



GF91.29-P-0011-02CA Lumbar Support Adjusting Facility, Block Diagram
- except CODE (409) Left/right front multicontour seat
