Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> GF91.29-P-0011-01CA Lumbar Support Adjusting Facility, Location of Components

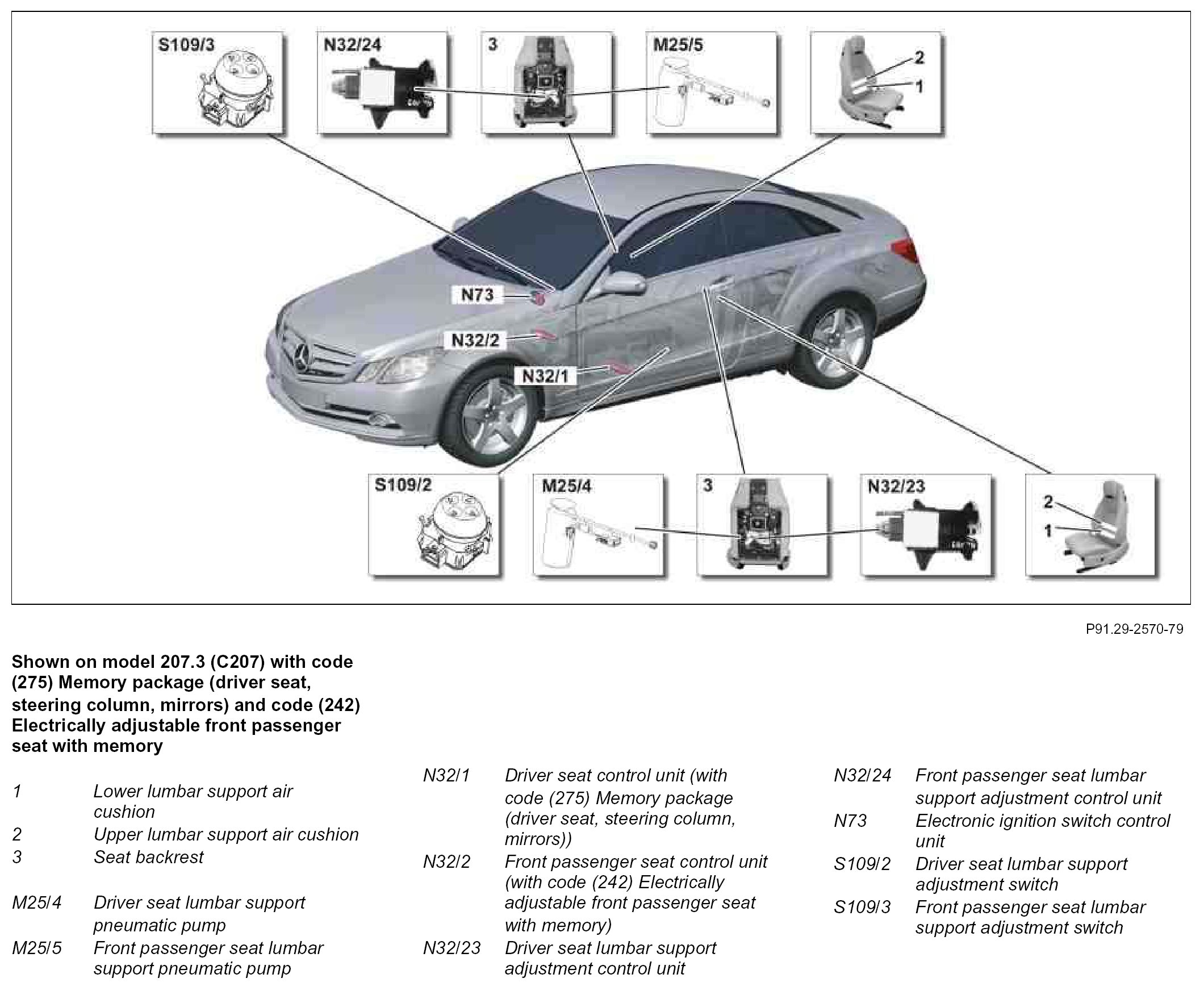

GF91.29-P-0011-01CA Lumbar Support Adjusting Facility, Location of Components



GF91.29-P-0011-01CA Lumbar Support Adjusting Facility, Location Of Components
- except CODE (409) Left/right front multicontour seat

Component Identification:
