AR77.21-P-0230EC Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind



AR77.21-P-0230EC Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind
- with CODE (413) Panoramic glass roof with top sliding roof

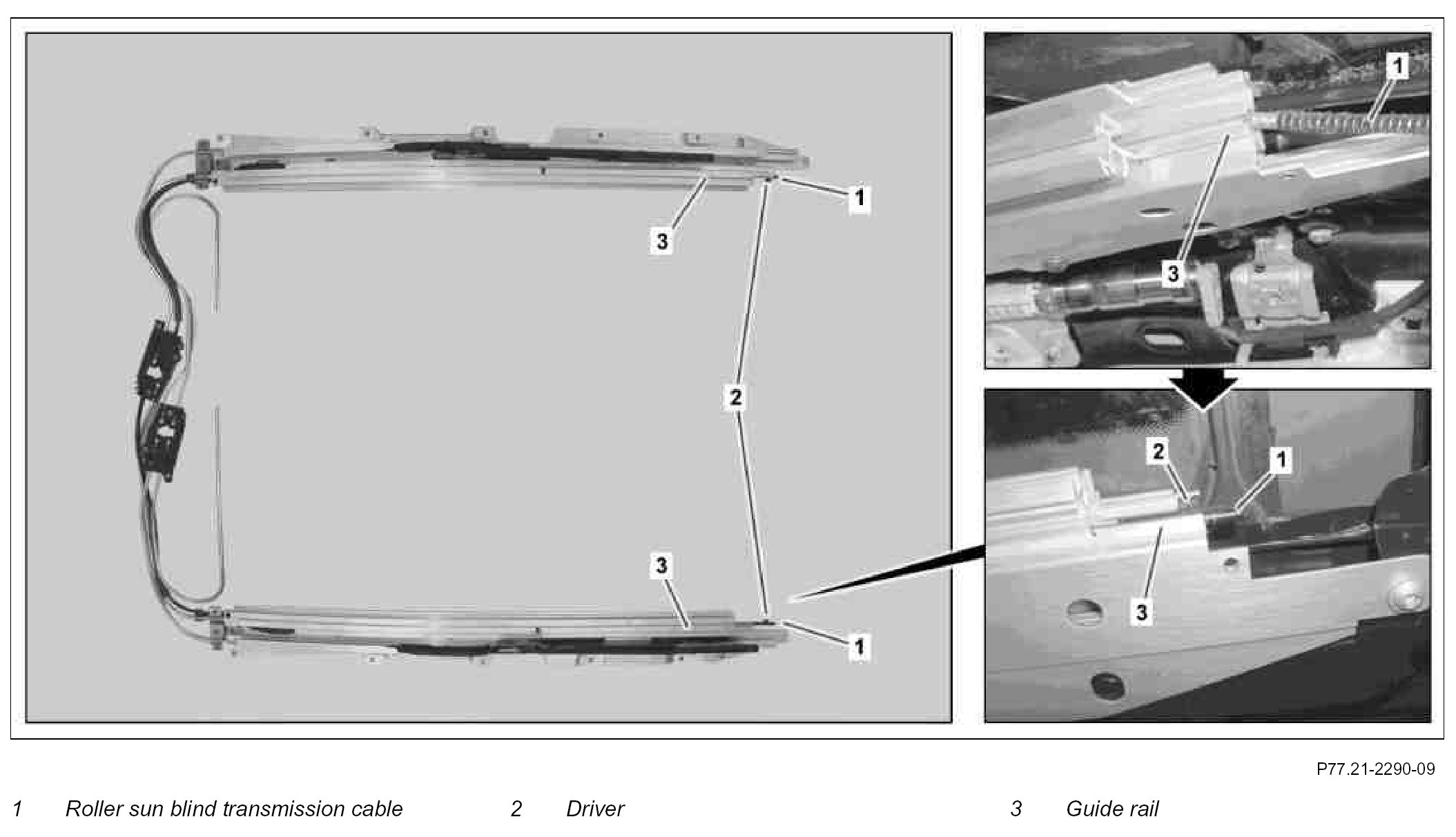

Component Identification:

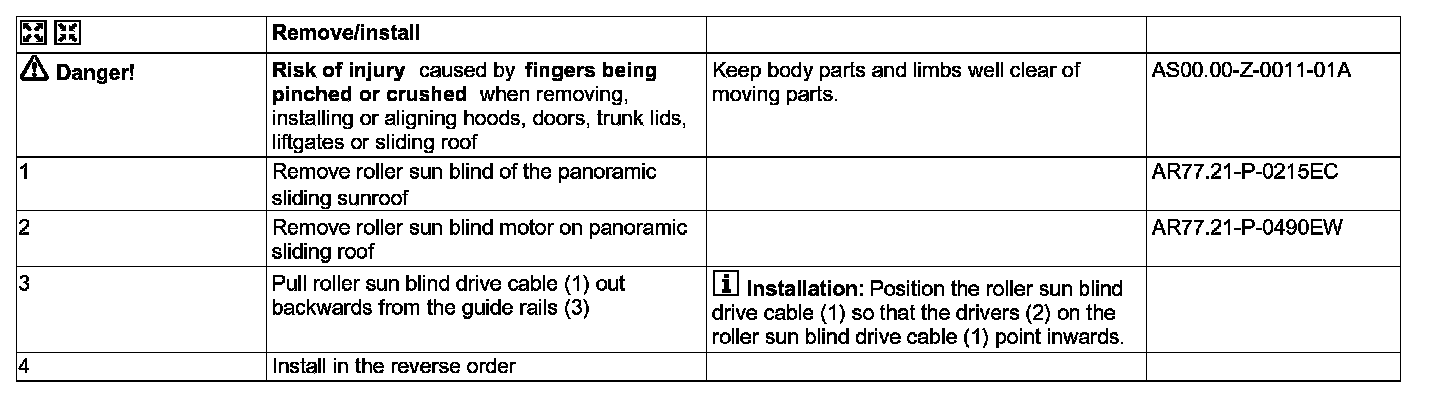

Steps 1 - 4:
