Function Diagrams

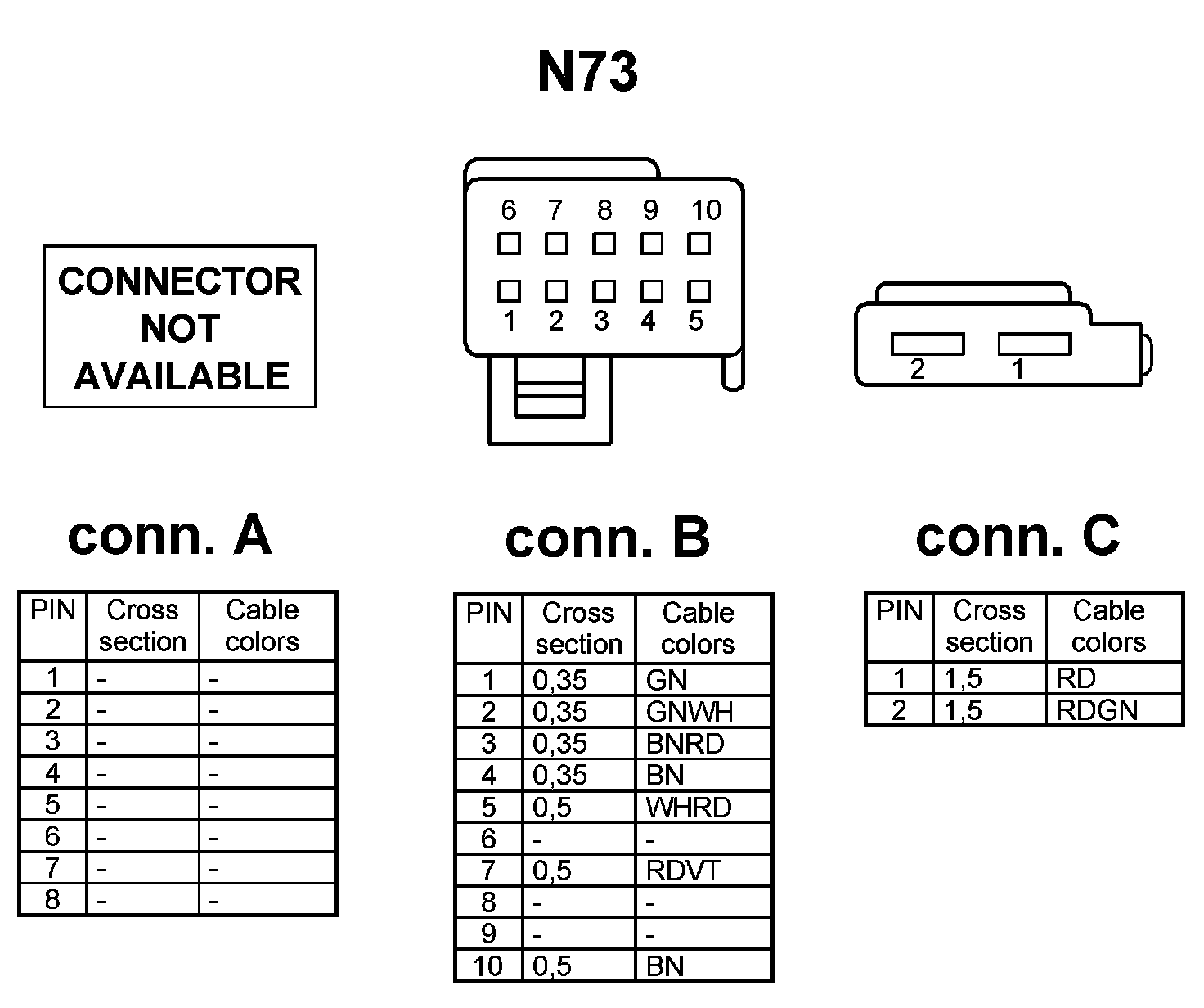

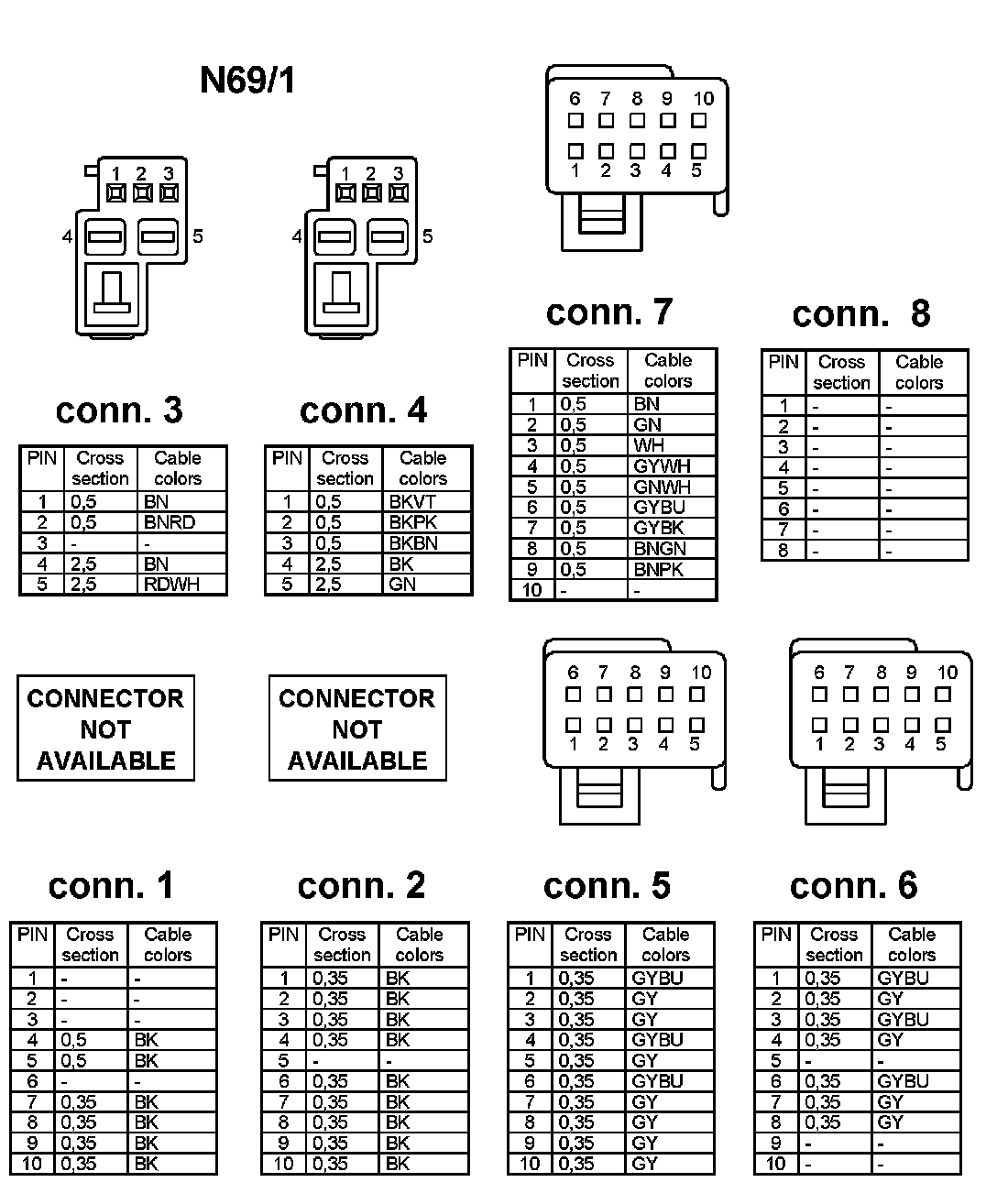

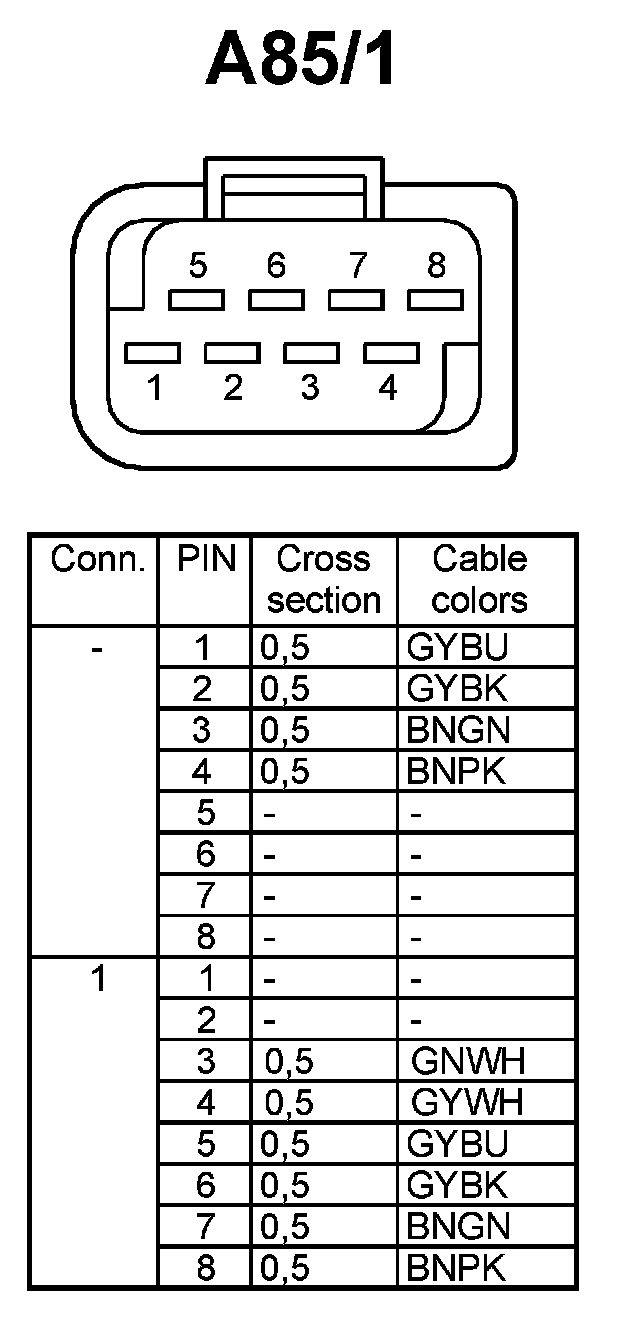

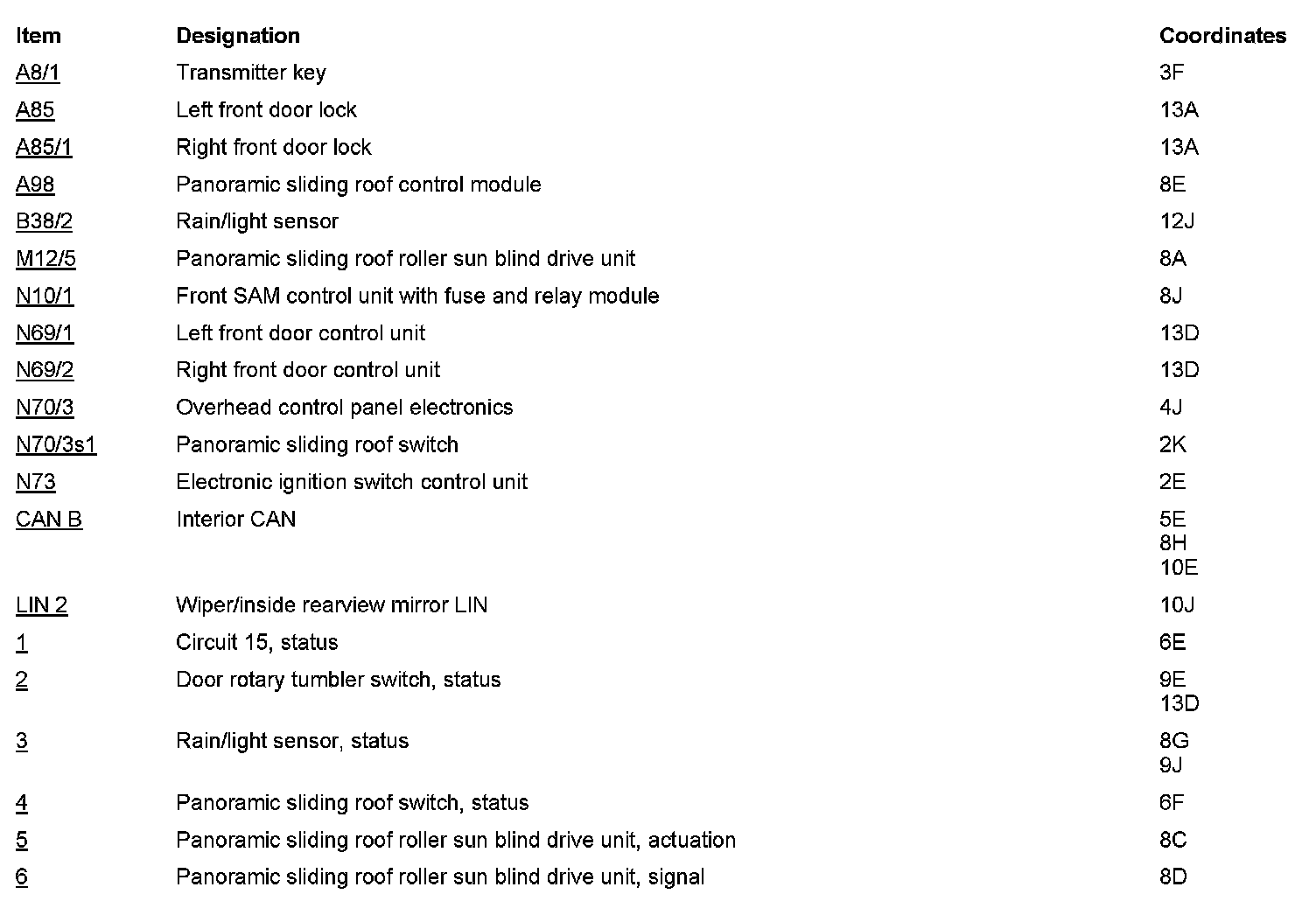

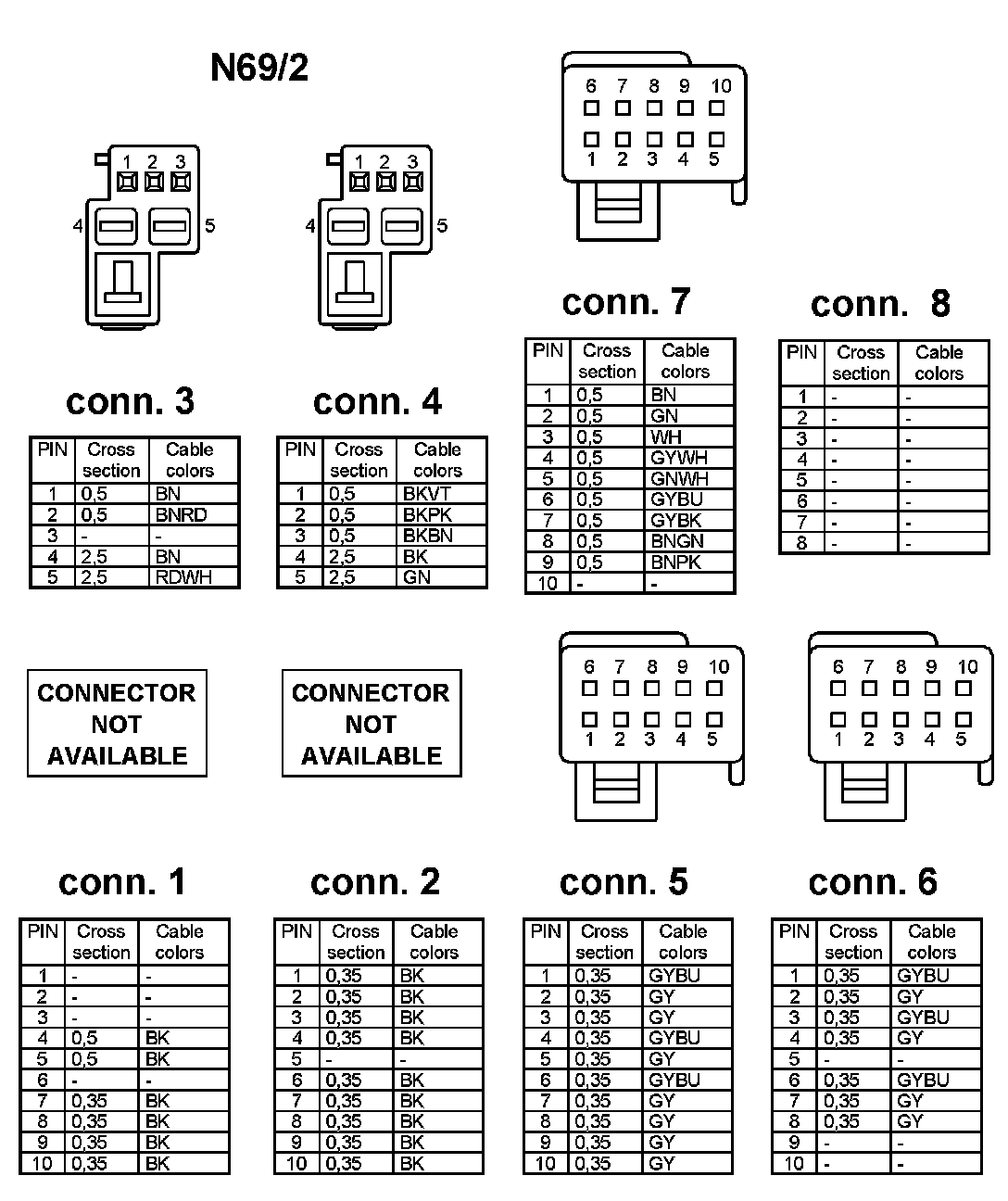

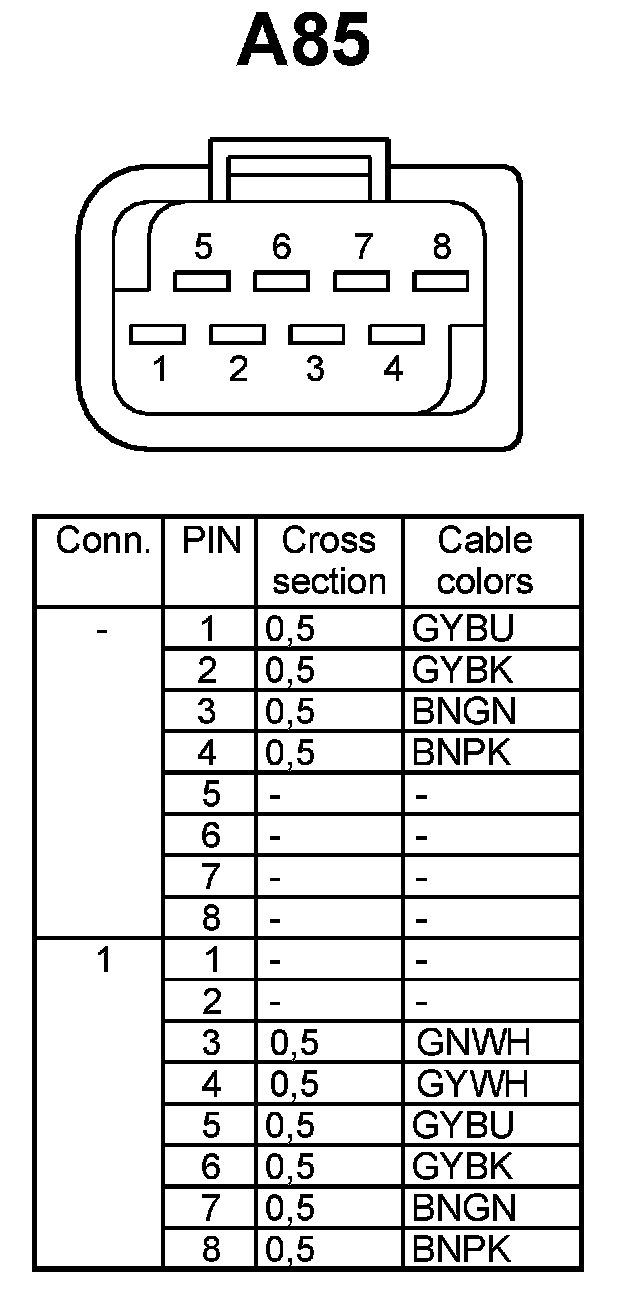

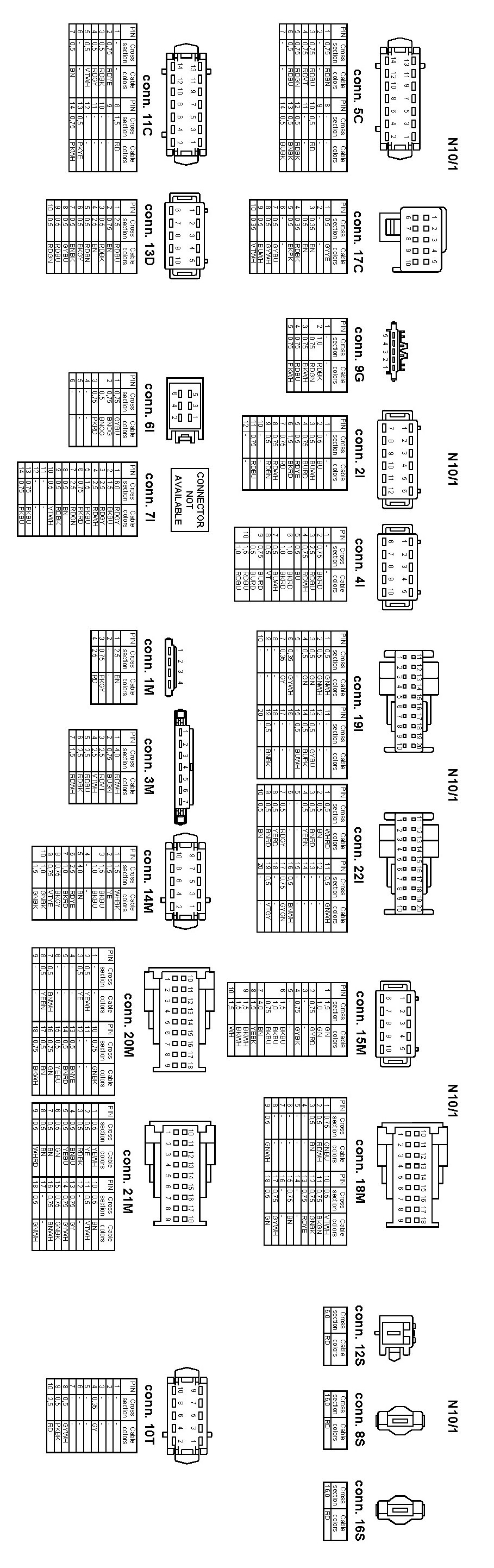

PE77.20-P-2052EAA Electrical Function Schematic For Panoramic Sliding Roof

MODEL 207.3
- with CODE (413)
- Panoramic glass roof with top sliding roof


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
