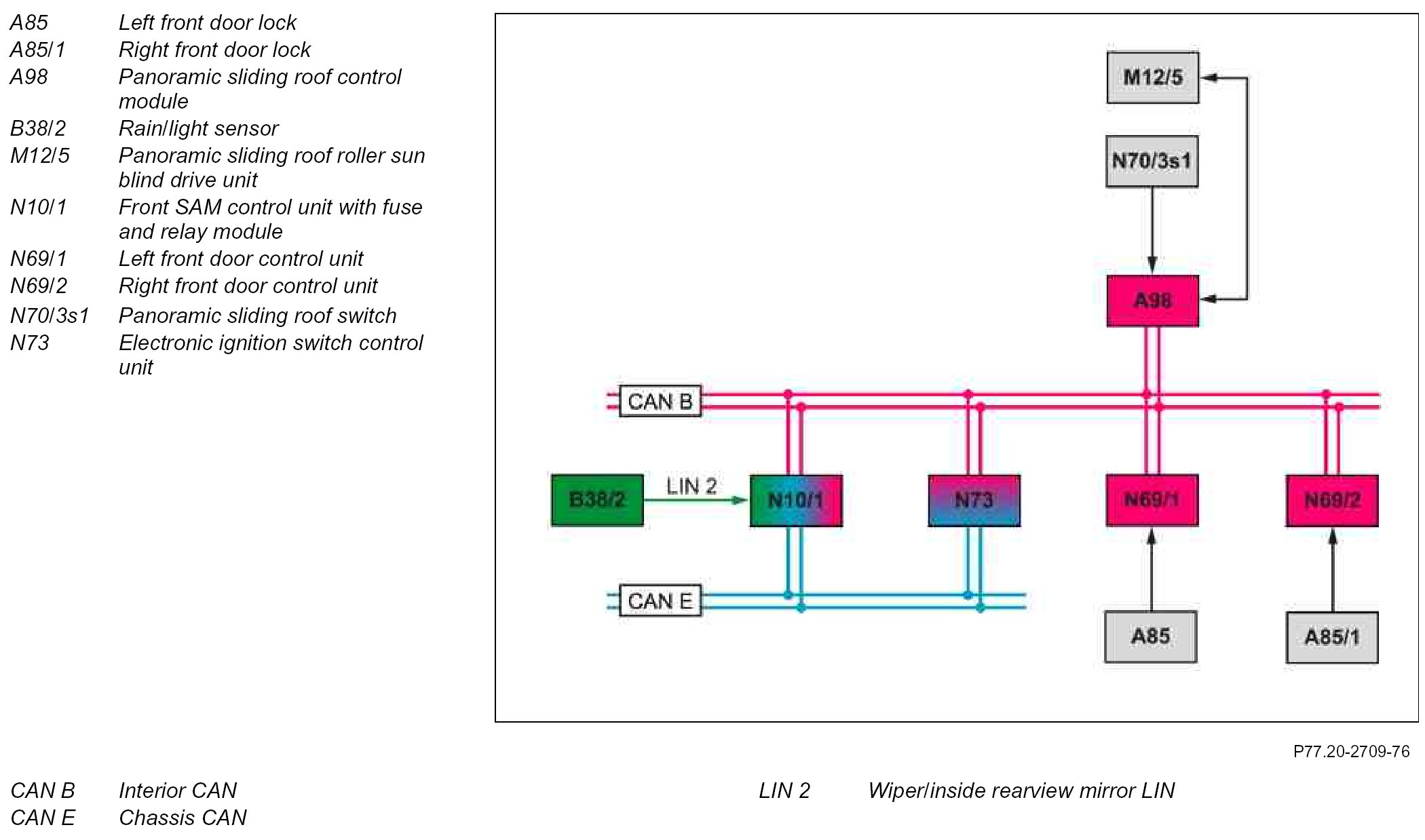

GF77.20-P-0003-03CA Electric Panoramic Sliding Sunroof, Block Diagram



GF77.20-P-0003-03CA Electric Panoramic Sliding Sunroof, Block Diagram
- with CODE (413) Panoramic glass roof with top sliding roof



Component Identification:
