AR88.70-P-9040EC Remove/Install Outside Mirror Trim



AR88.70-P-9040EC Remove/Install Outside Mirror Trim
- model 207.### ## up to 032554

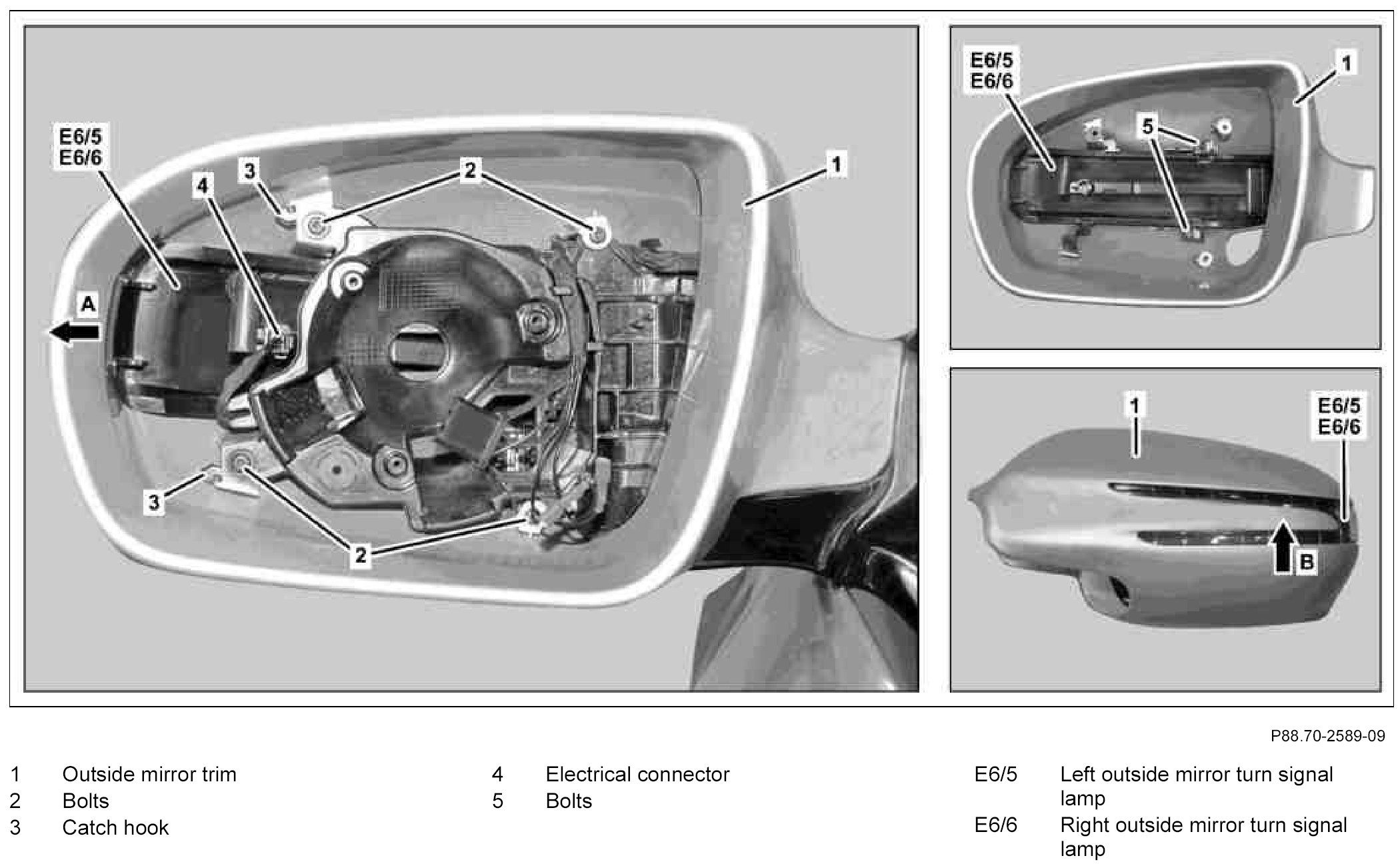

Component Identification:

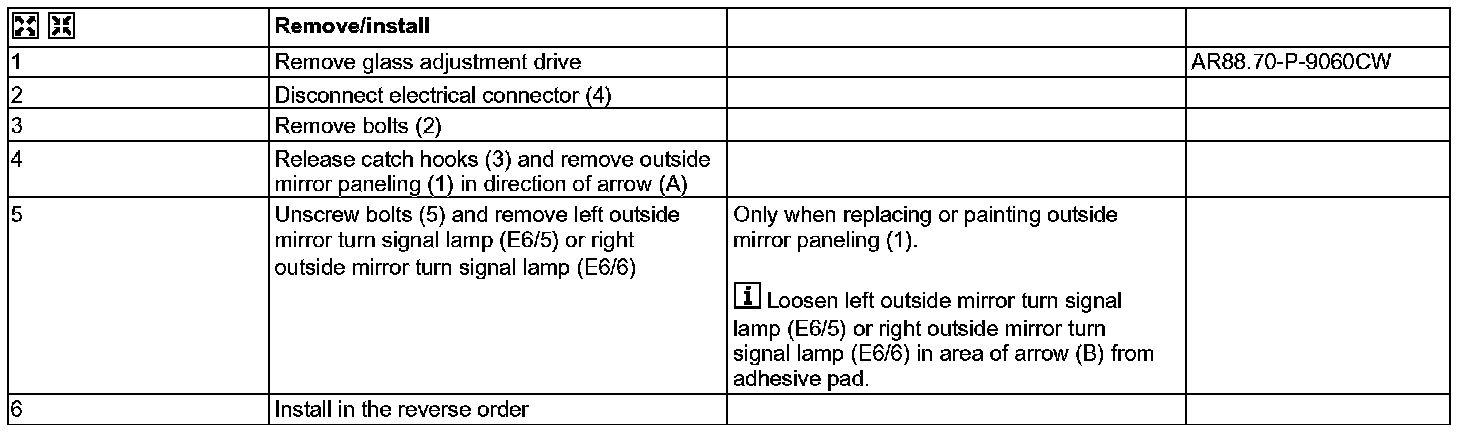

Steps 1 - 6:
