AR68.30-P-4785EC Remove/Install Paneling on Rear Center Section
AR68.30-P-4785EC Remove/Install Paneling on Rear Center Section
AR68.30-P-4785EC Remove/Install Paneling on Rear Center Section

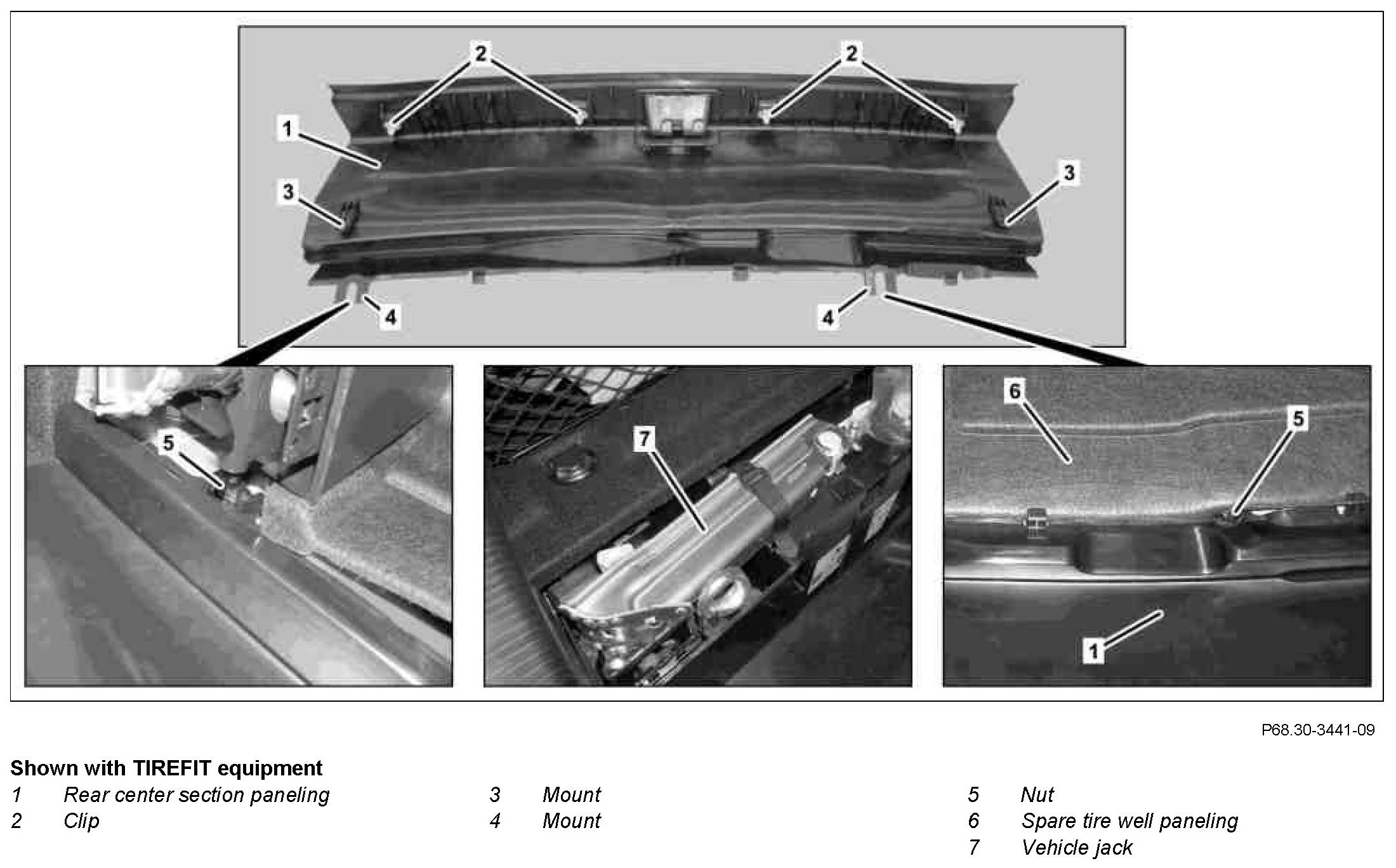

Component Identification:

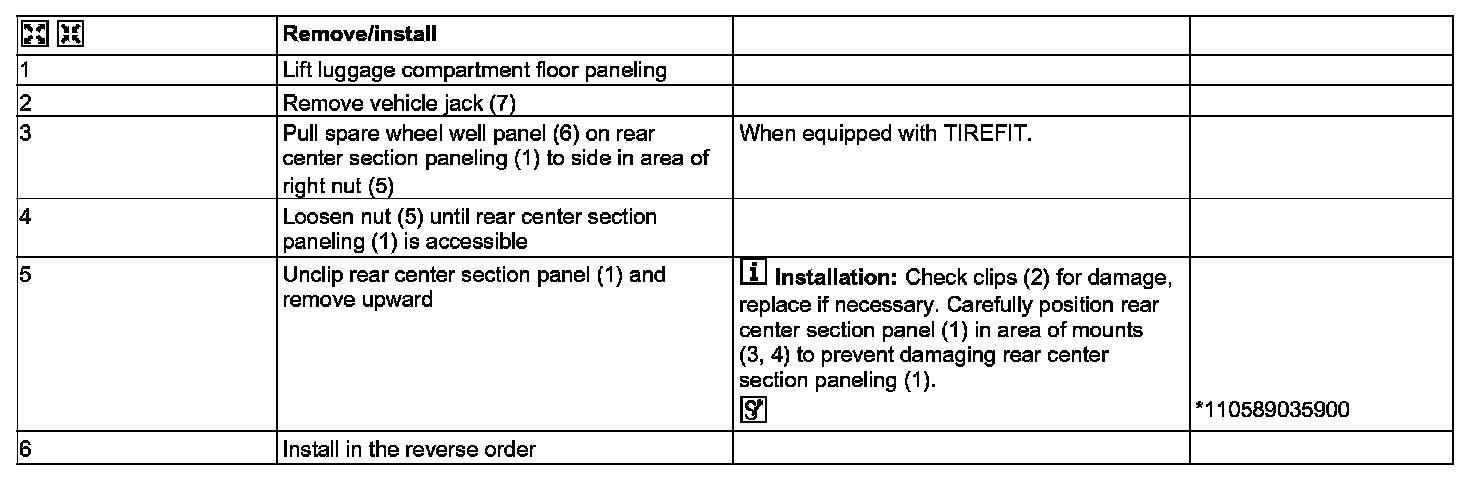

Steps 1 - 6:

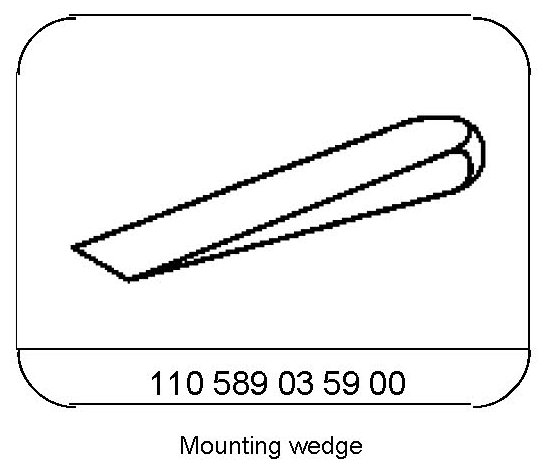

Special Tools:
