AR68.30-P-4780ED Remove/Install Side Paneling In Rear



AR68.30-P-4780ED Remove/Install Side Paneling In Rear
- Lower side paneling

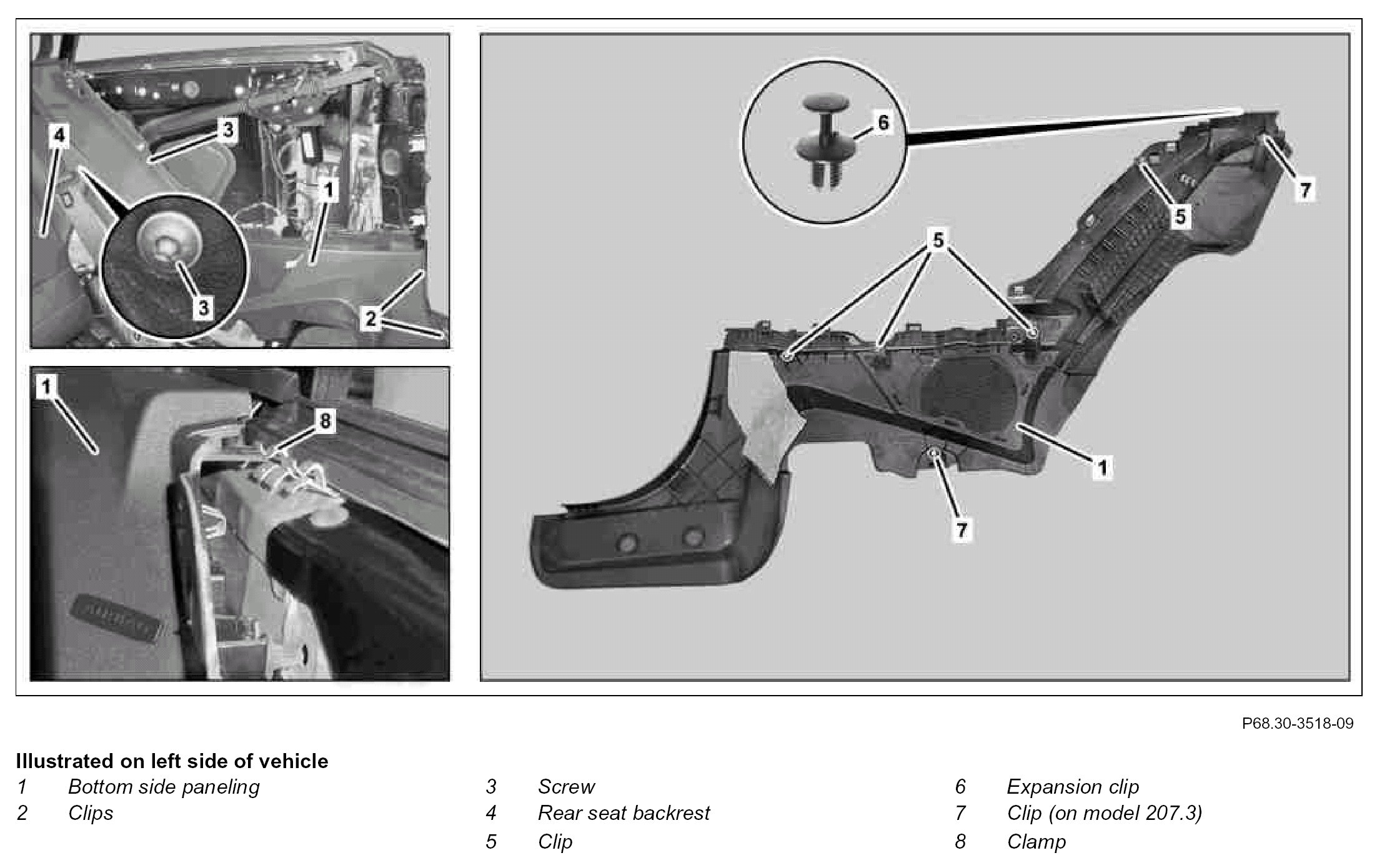

Component Identification:

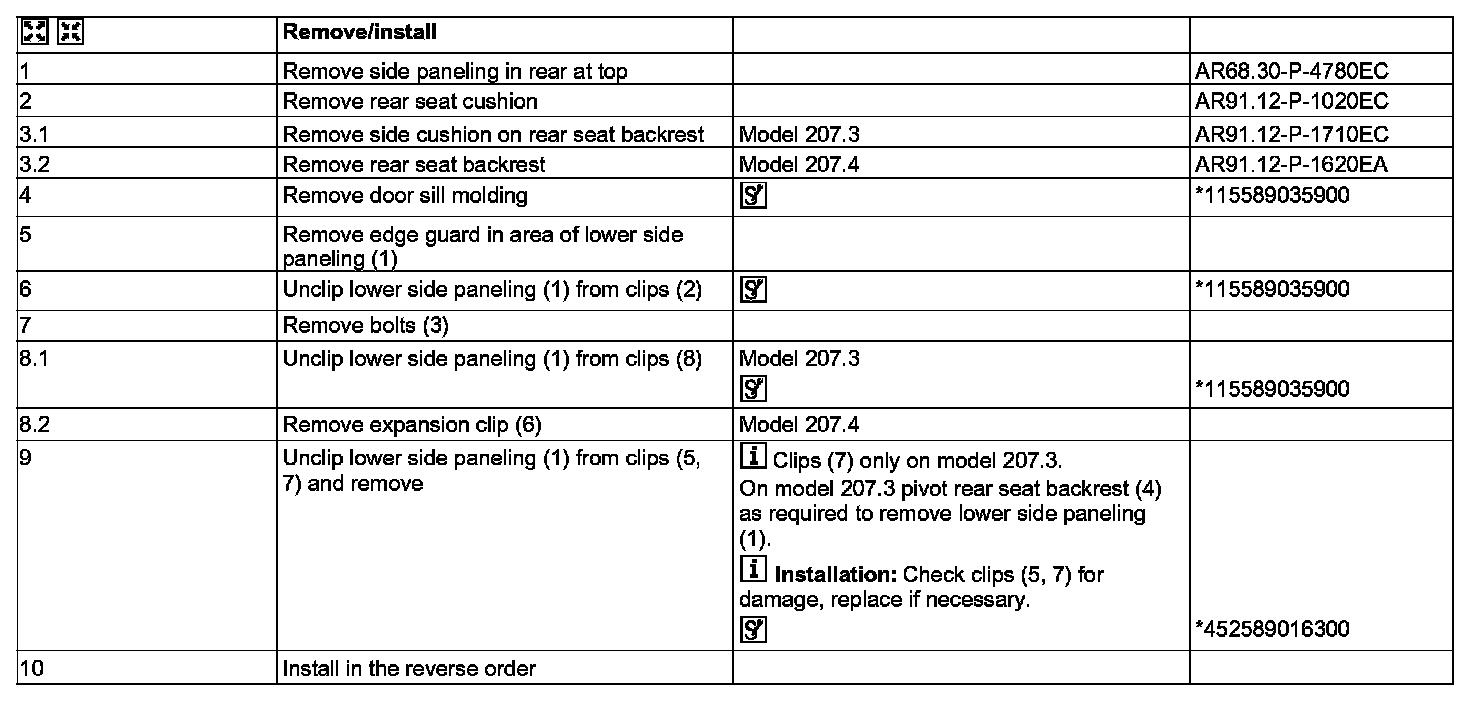

Steps 1 - 10:

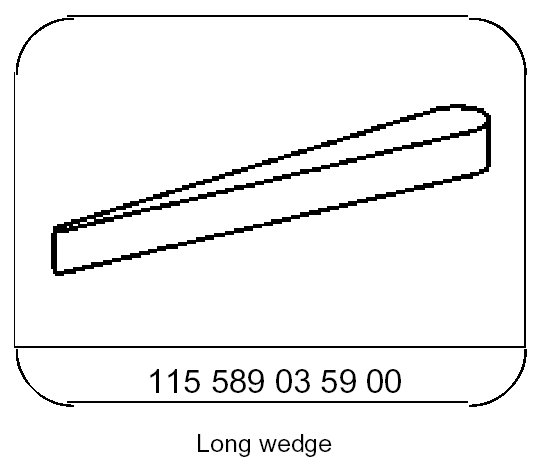

Special Tools:

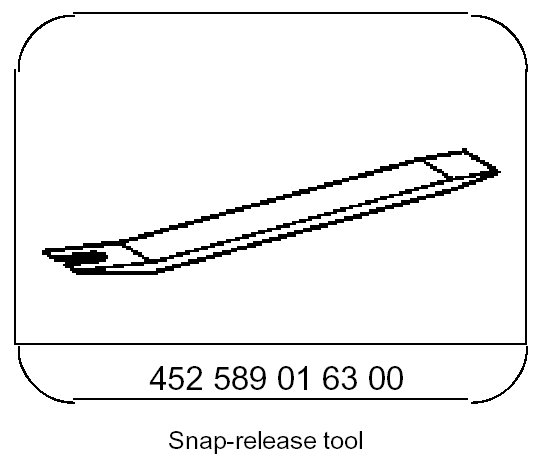

Special Tools:
