AR68.30-P-4780EC Remove/Install Side Paneling In Rear



AR68.30-P-4780EC Remove/Install Side Paneling In Rear
- Upper side paneling

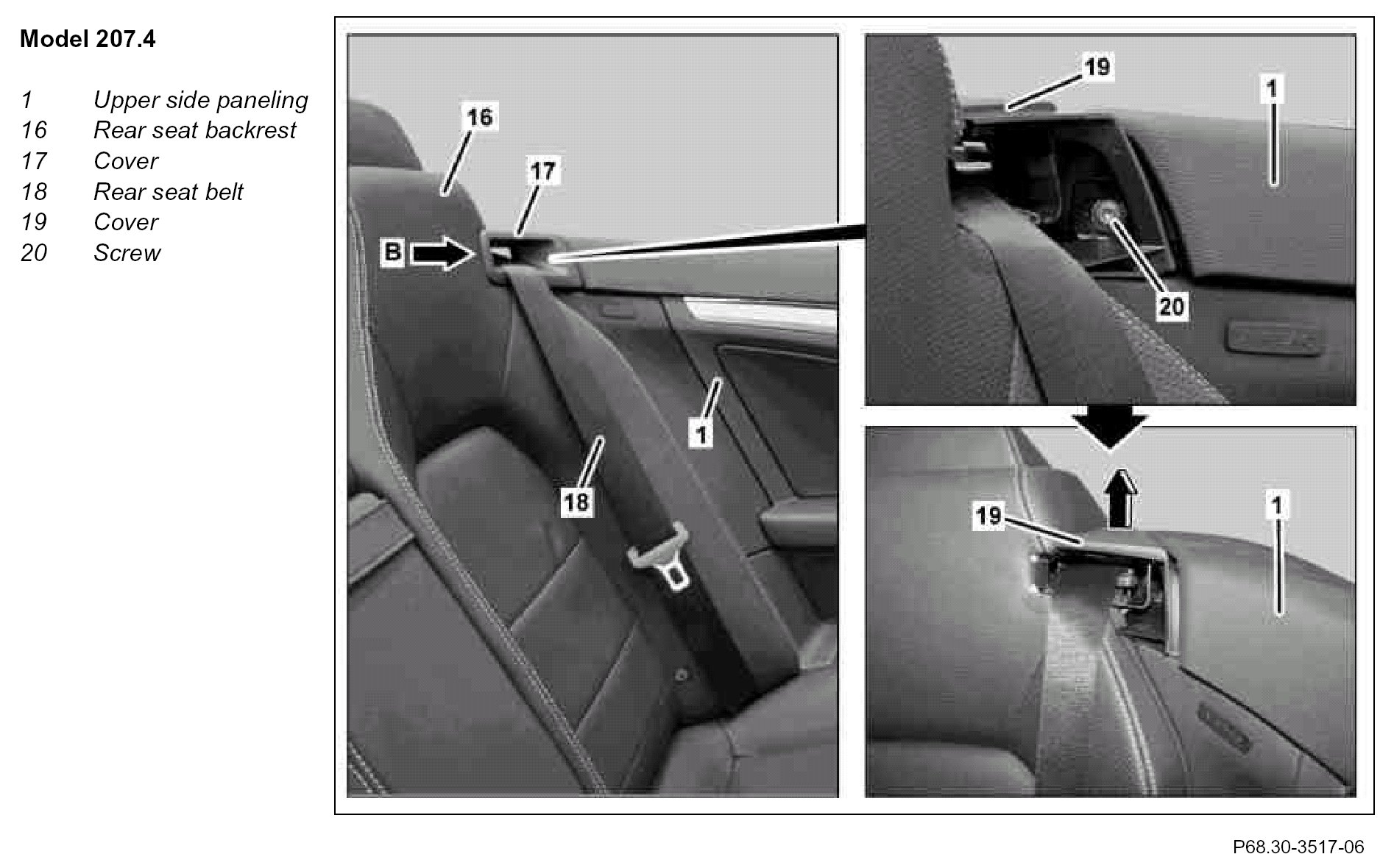

Component Identification:

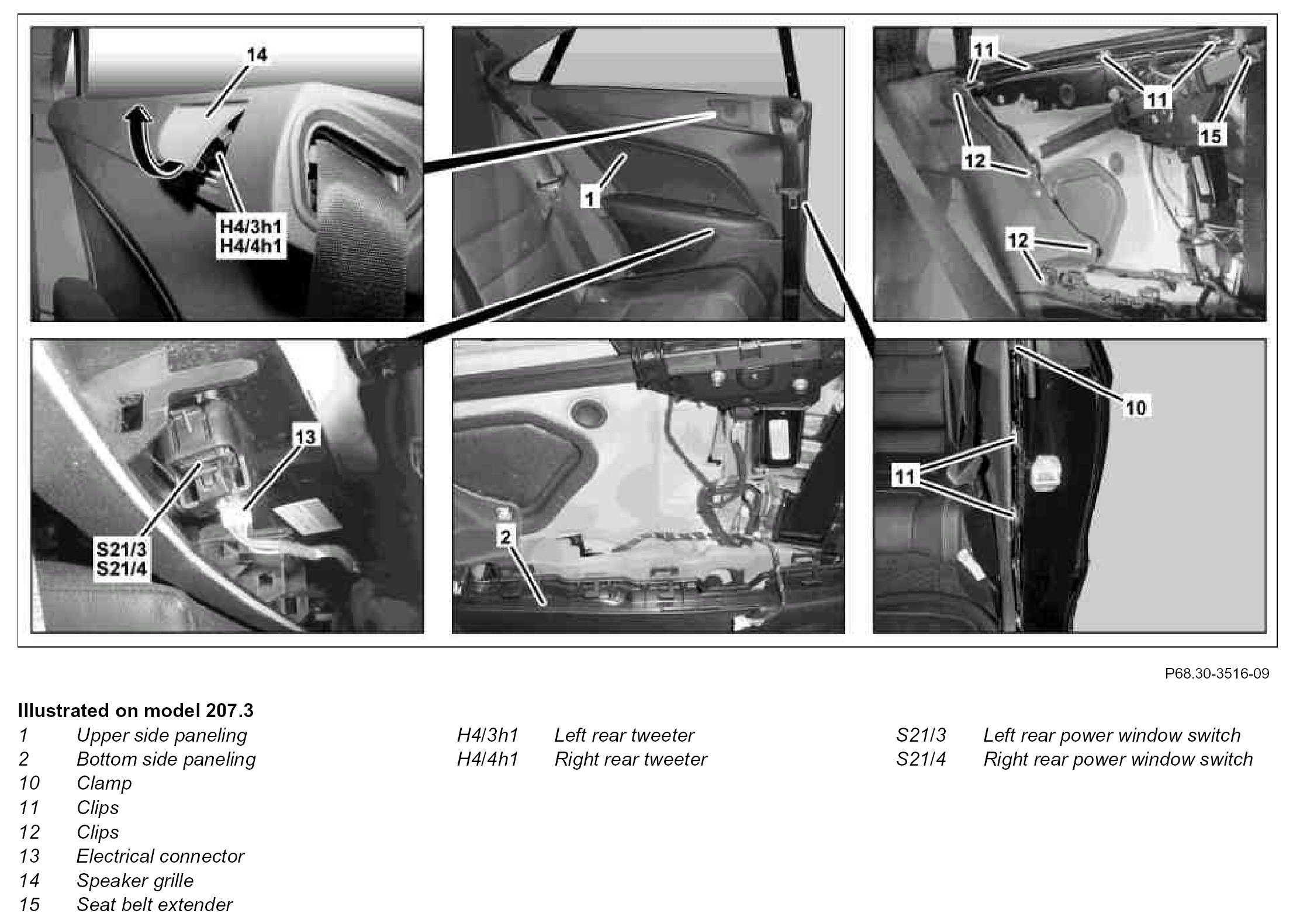

Component Identification:





Component Identification:

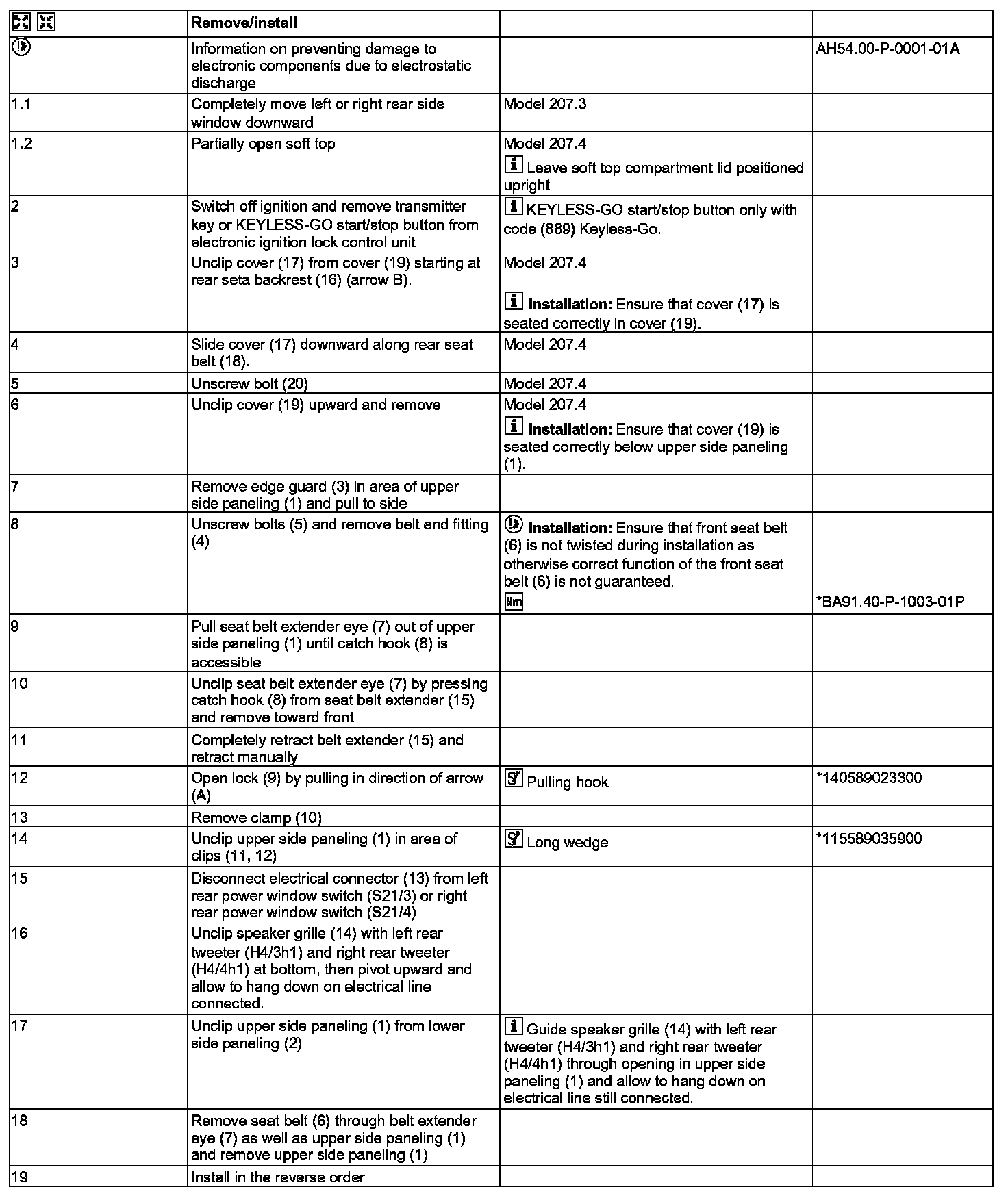

Steps 1.1 - 19:

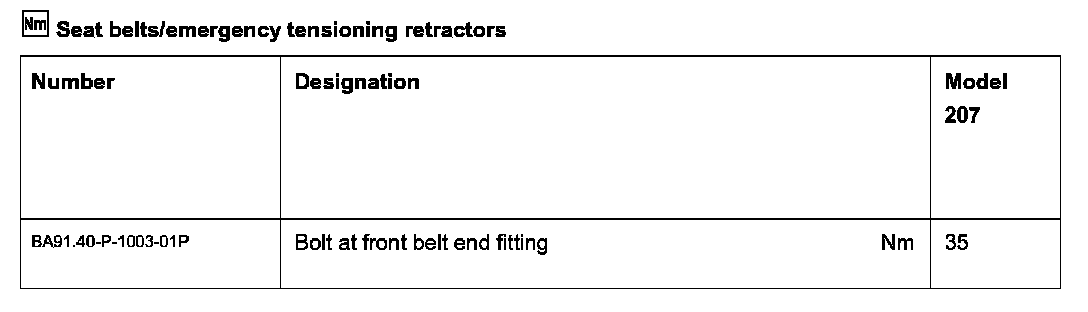

Seat Belts/Emergency Tensioning Retractors:

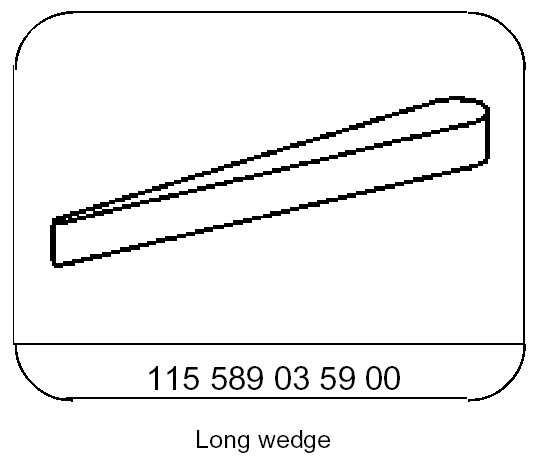

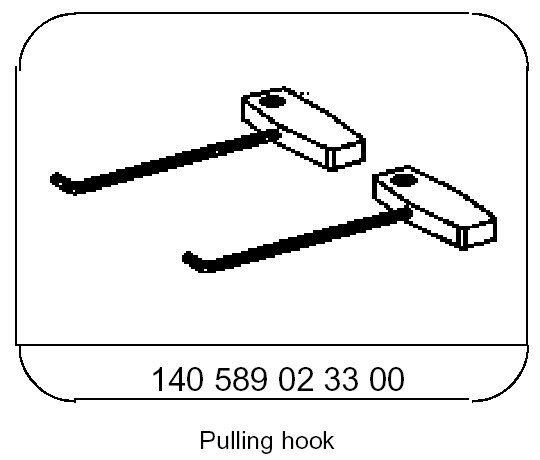

Special Tools:





Special Tools:
