Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Trim Panel >> Service and Repair >> AR68.30-P-4600EC Remove Paneling In Trunk

AR68.30-P-4600EC Remove Paneling In Trunk



AR68.30-P-4600EC Remove Paneling In Trunk

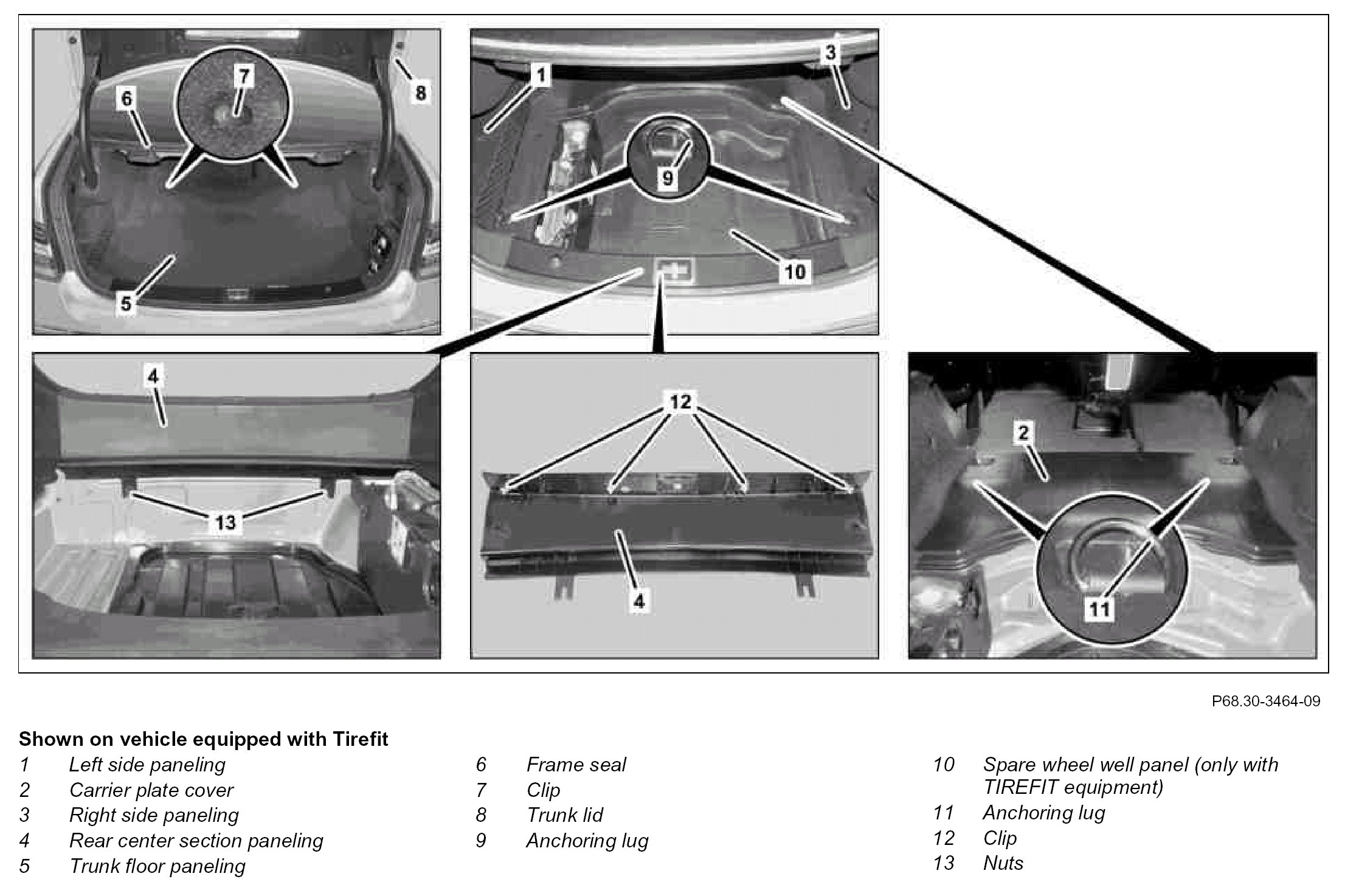

Component Identification:

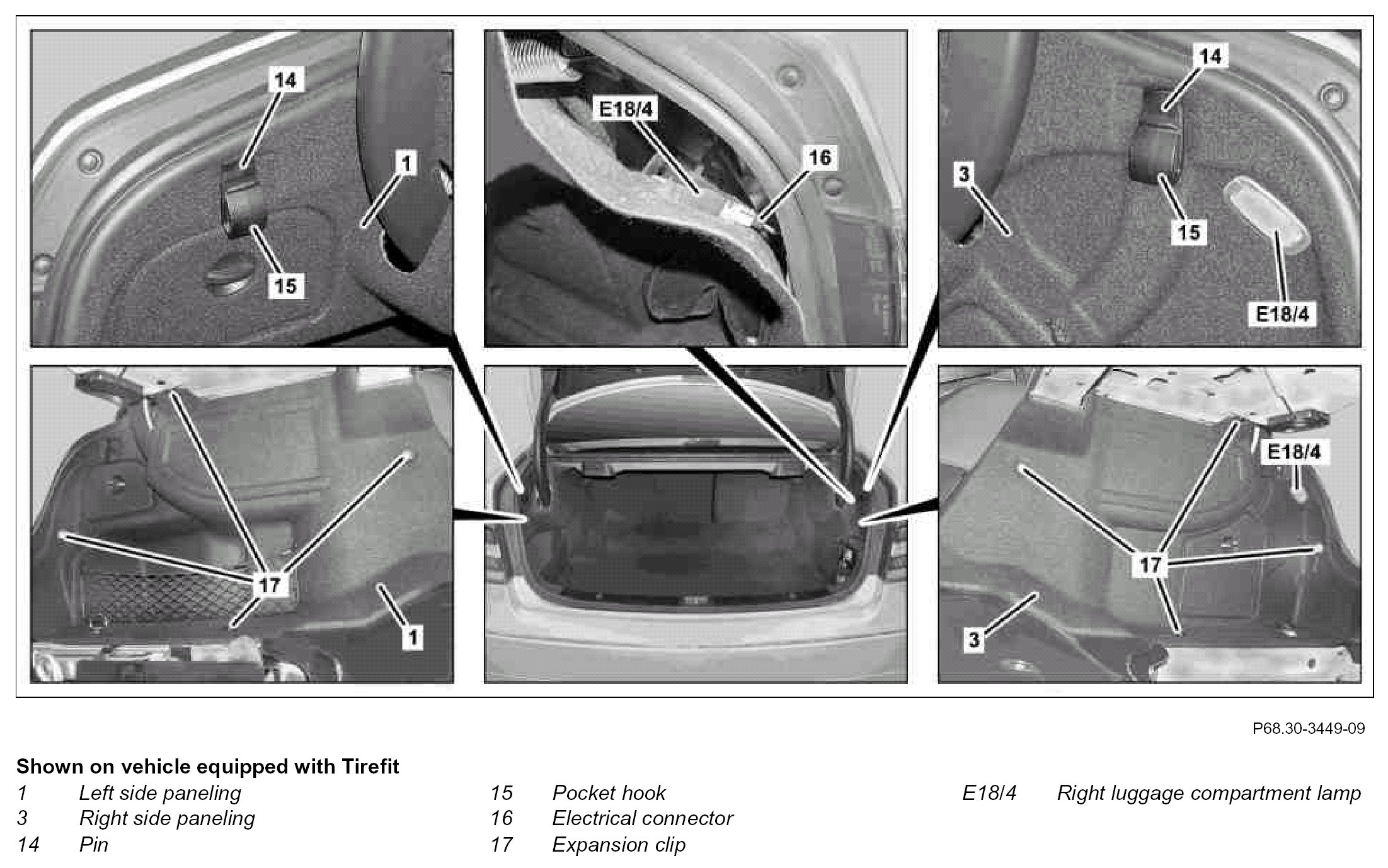

Component Identification:

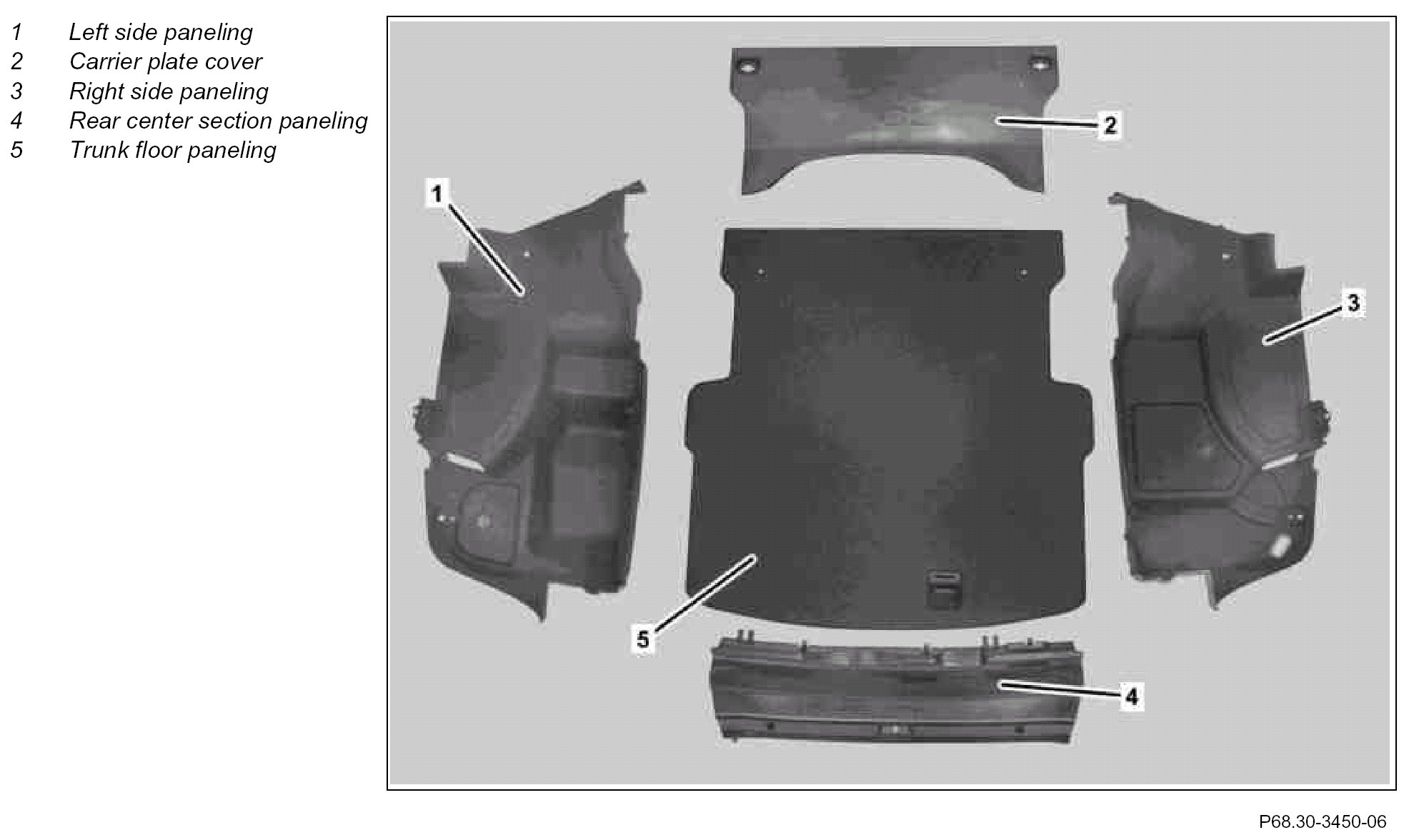

Component Identification:

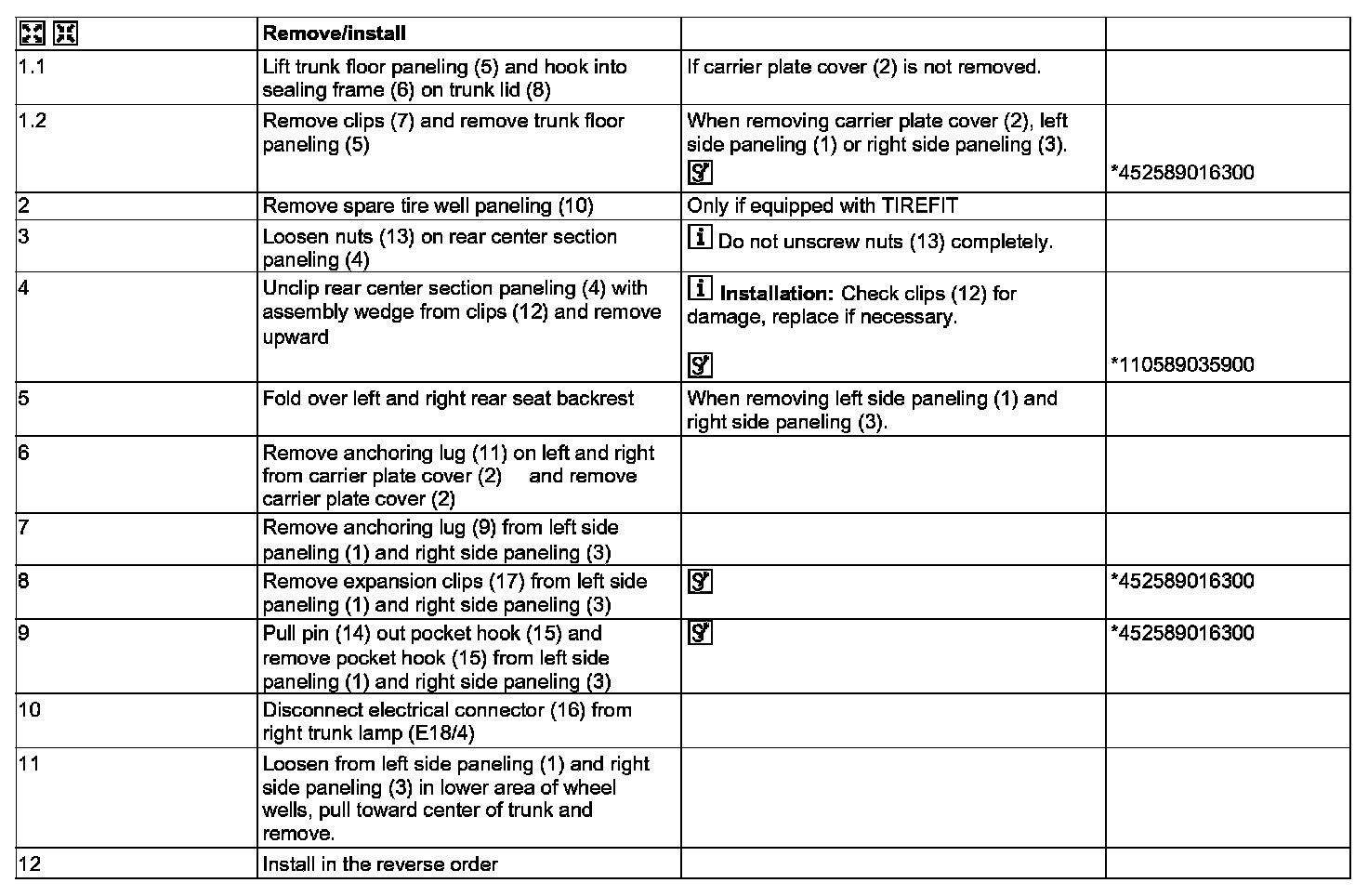

Steps 1.1 - 12:

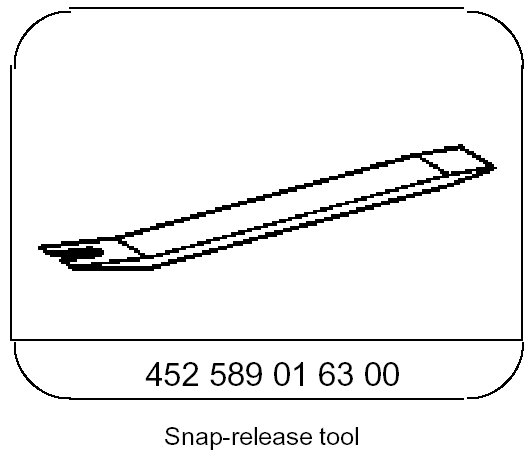

Special Tools:

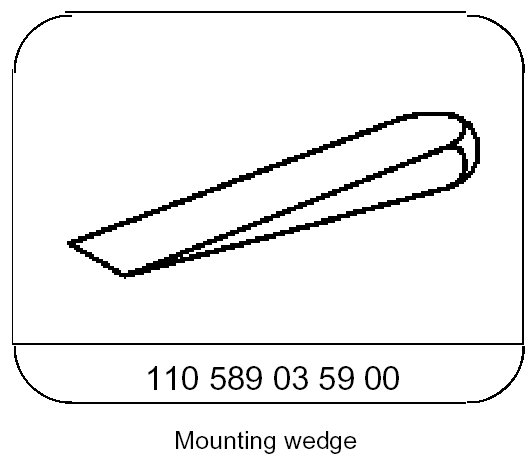

Special Tools:
