AR68.30-P-4050WX Remove/Install Paneling on A-Pillar

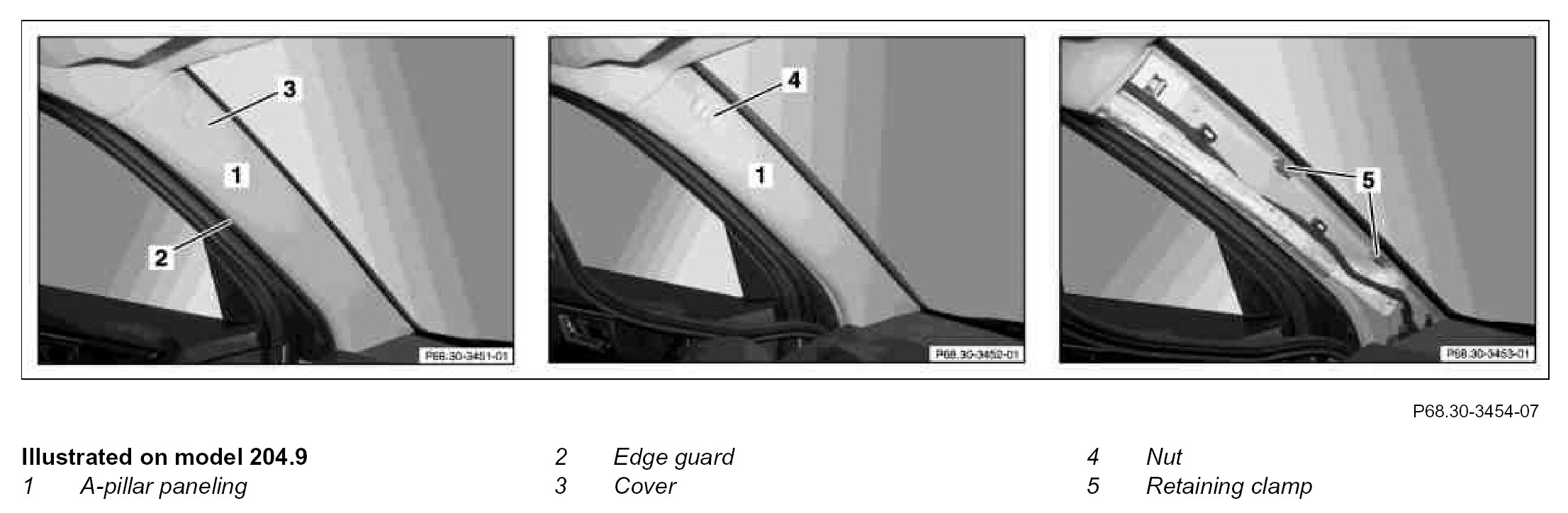

Component Identification:

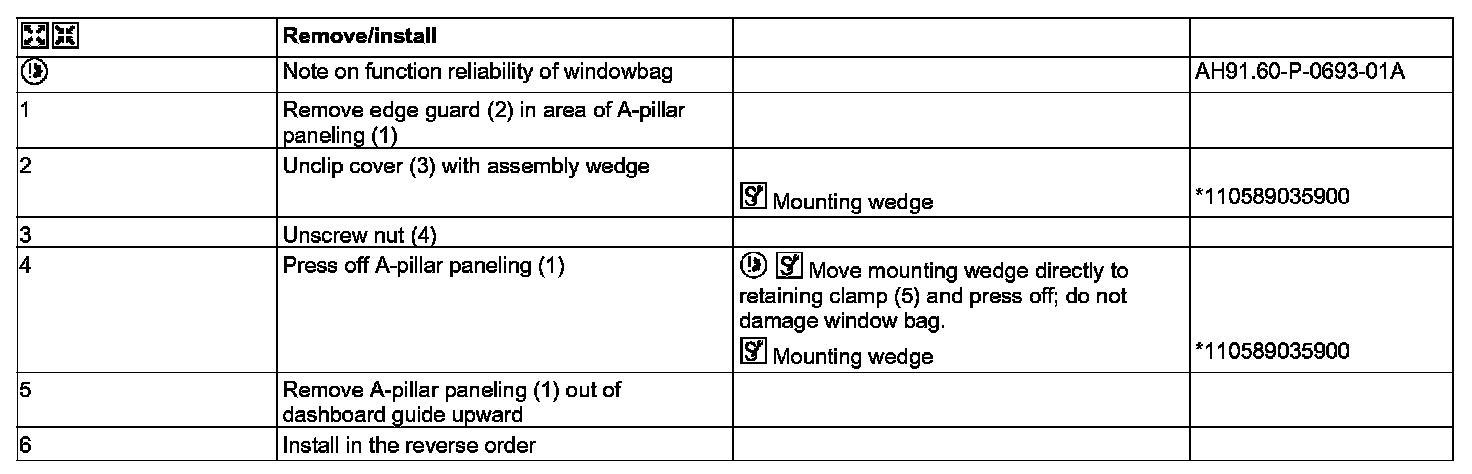

Steps 1 - 6:

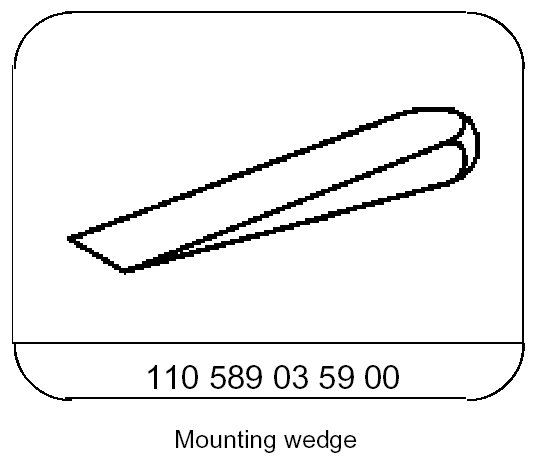

Special Tools:
