Rear Shelf: Service and Repair
AR68.30-P-4580EC Remove/Install and Disassemble Rear Shelf

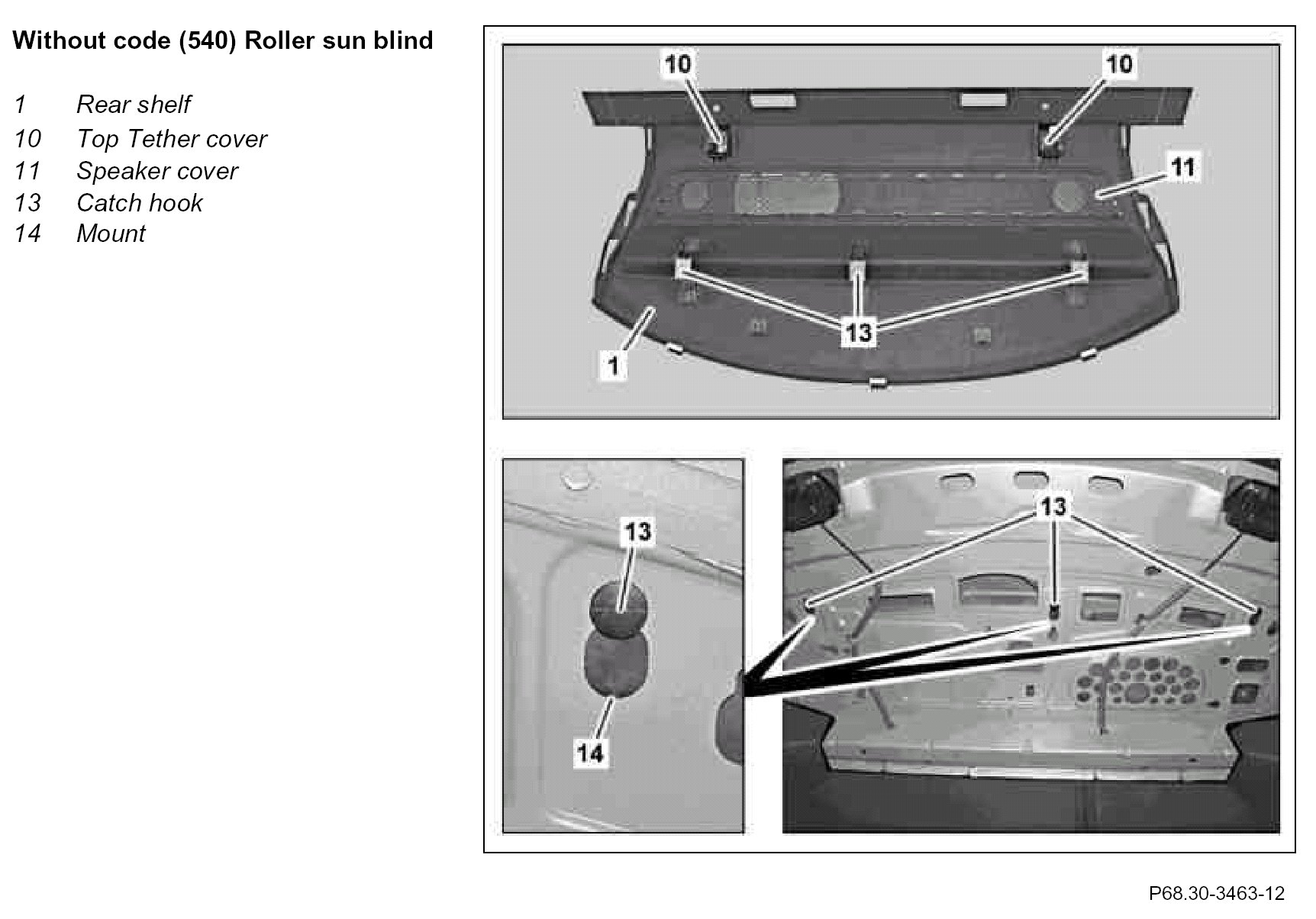

Component Identification:

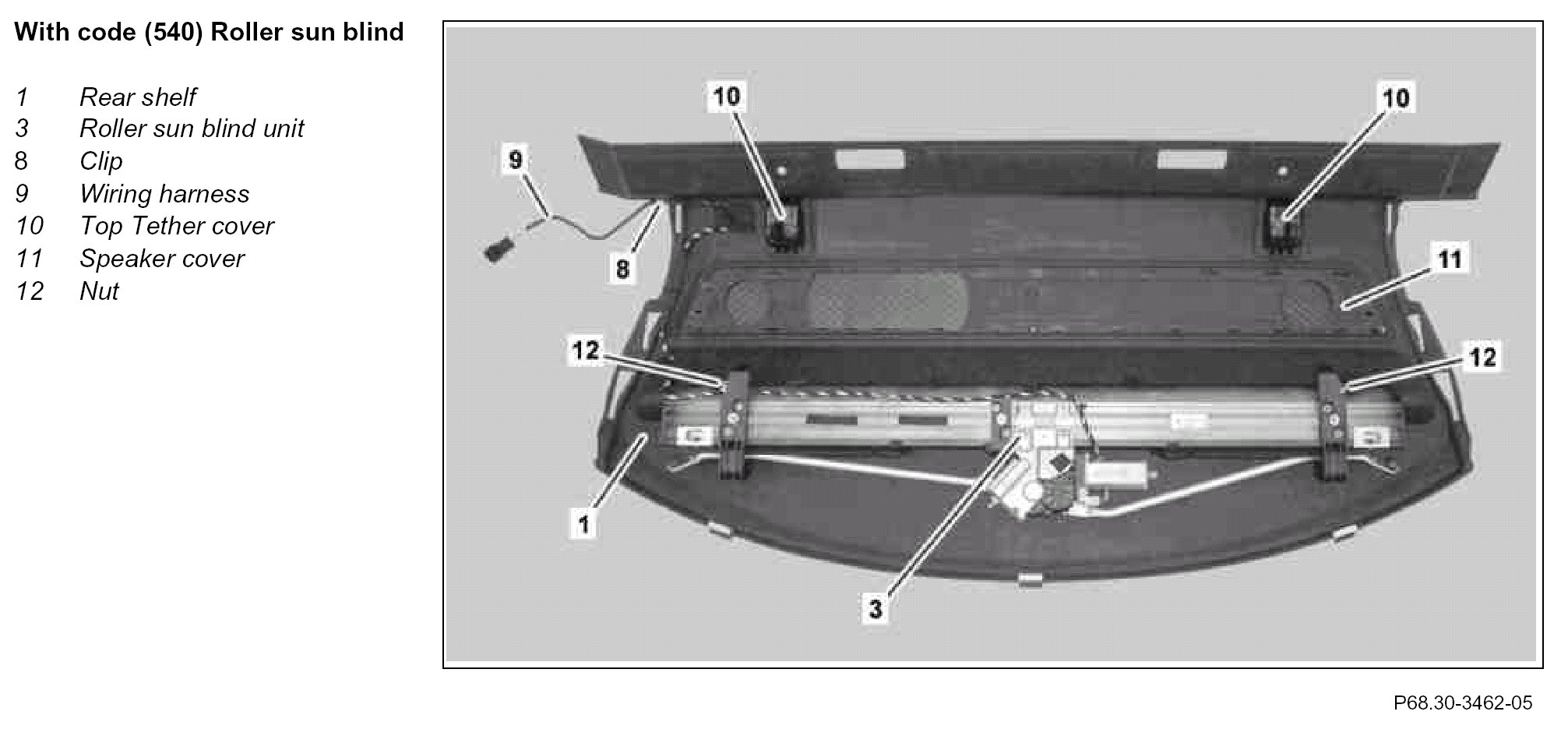

Component Identification:

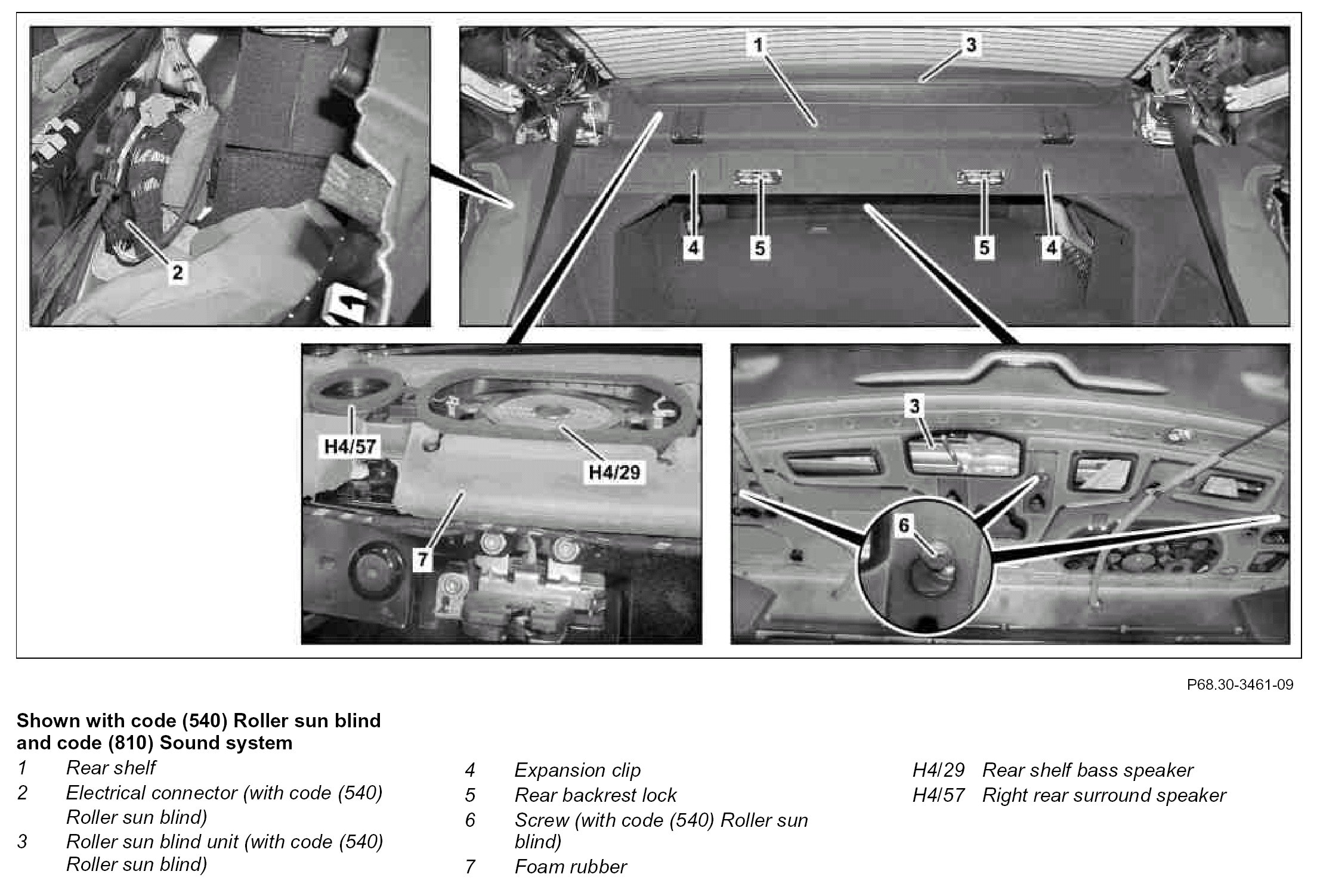

Component Identification:

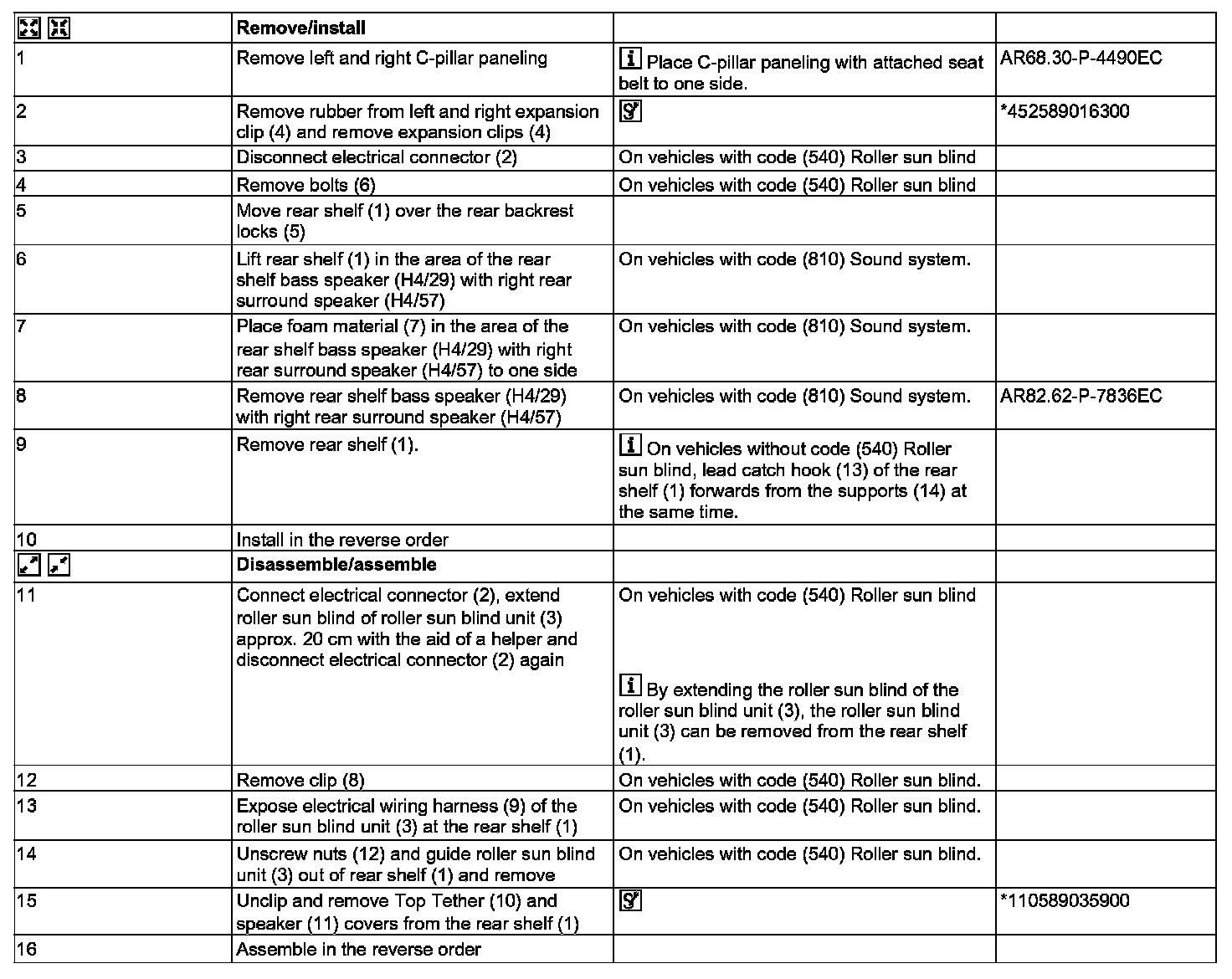

Steps 1 - 16:

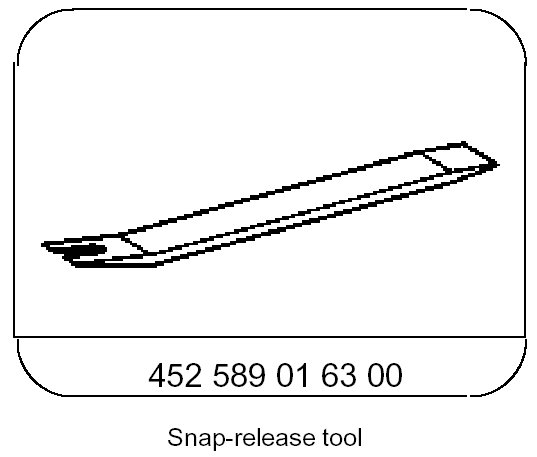

Special Tools:

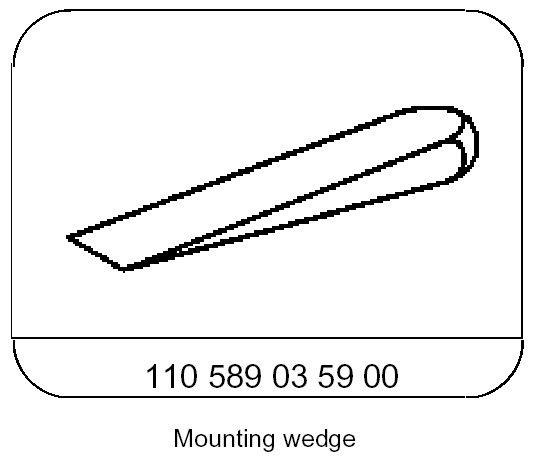

Special Tools:
AR68.30-P-4580EC Remove/Install and Disassemble Rear Shelf
