FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Headliner
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR68.30-P-4300EC Remove/Install
Headliner

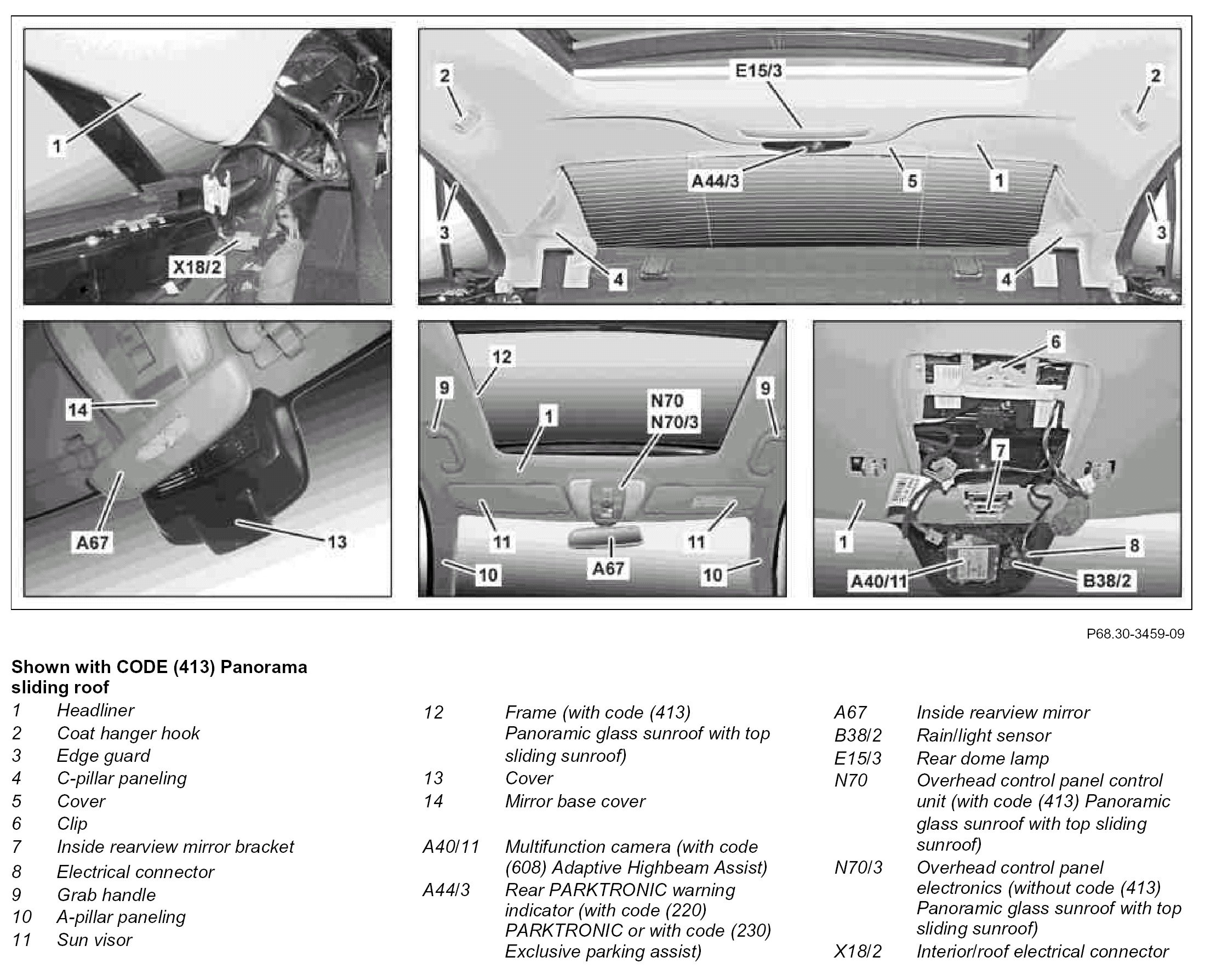

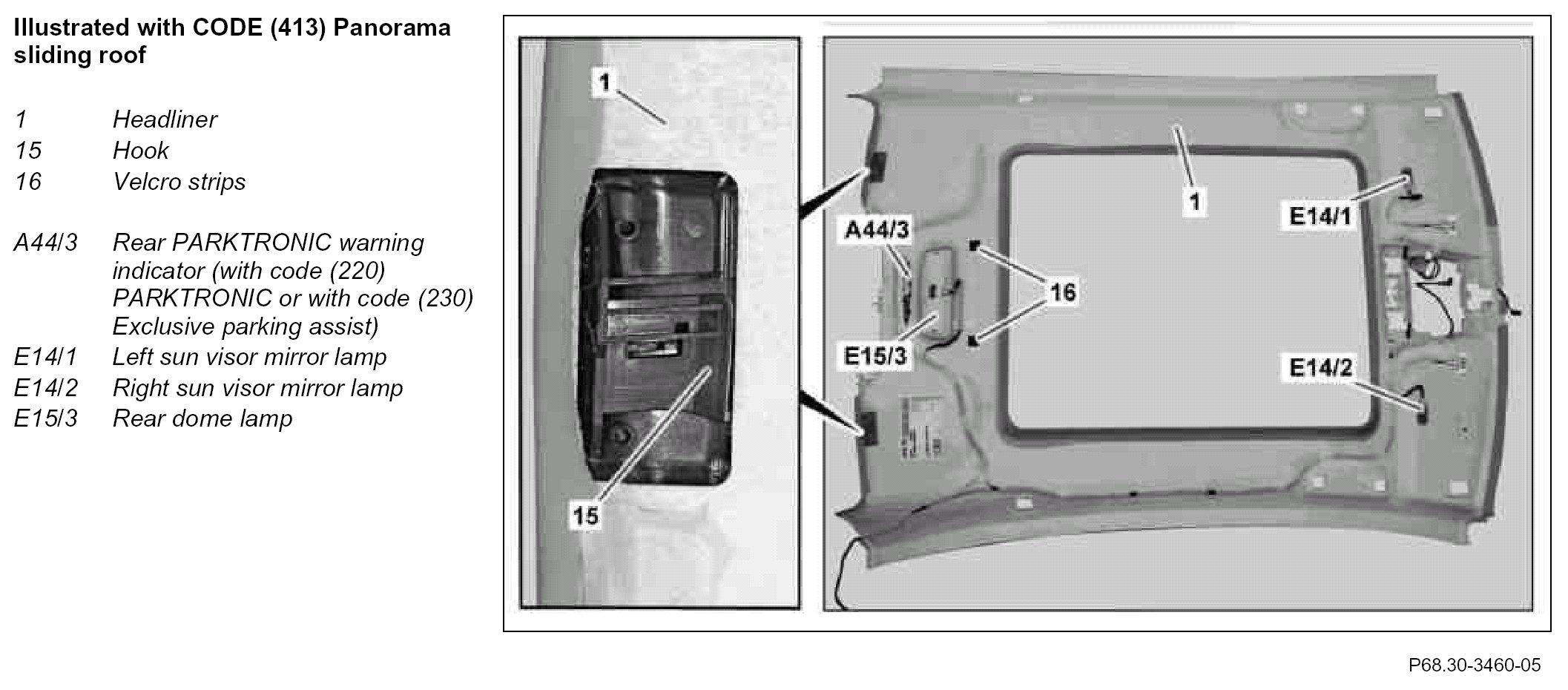

Component Identification:
Component Identification:

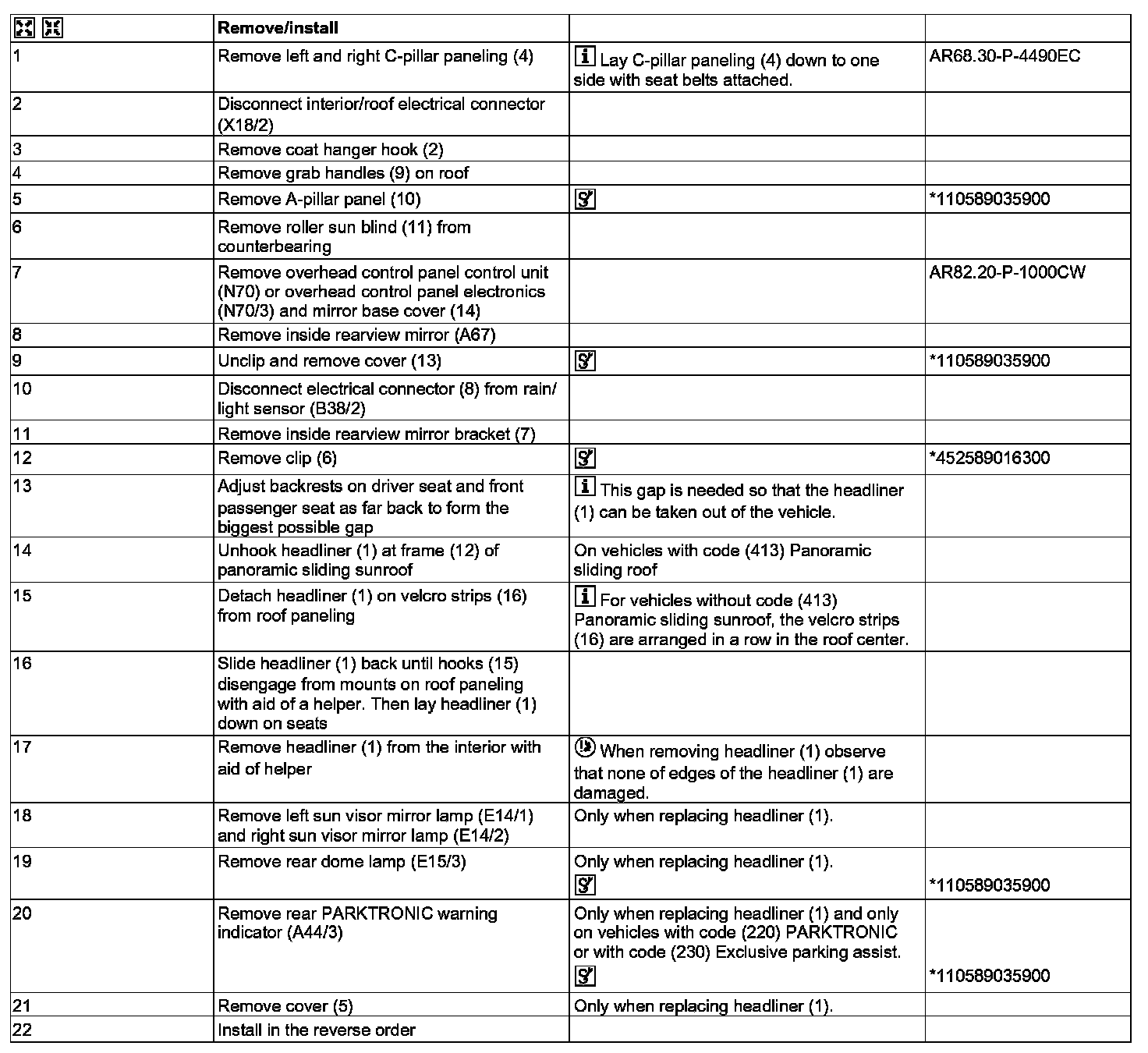

Steps 1 - 22:

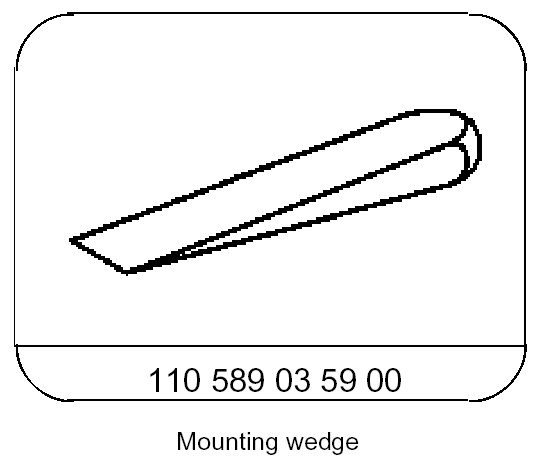

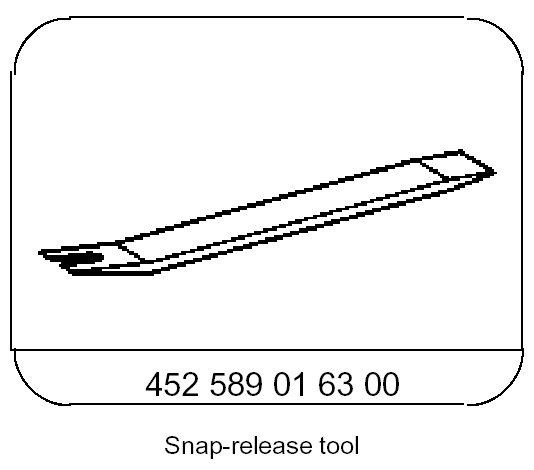

Special Tools:
Special Tools:
