AR68.10-P-1400EC Remove/Install Glove Box
AR68.10-P-1400EC Remove/Install Glove Box
AR68.10-P-1400EC Remove/Install Glove Box

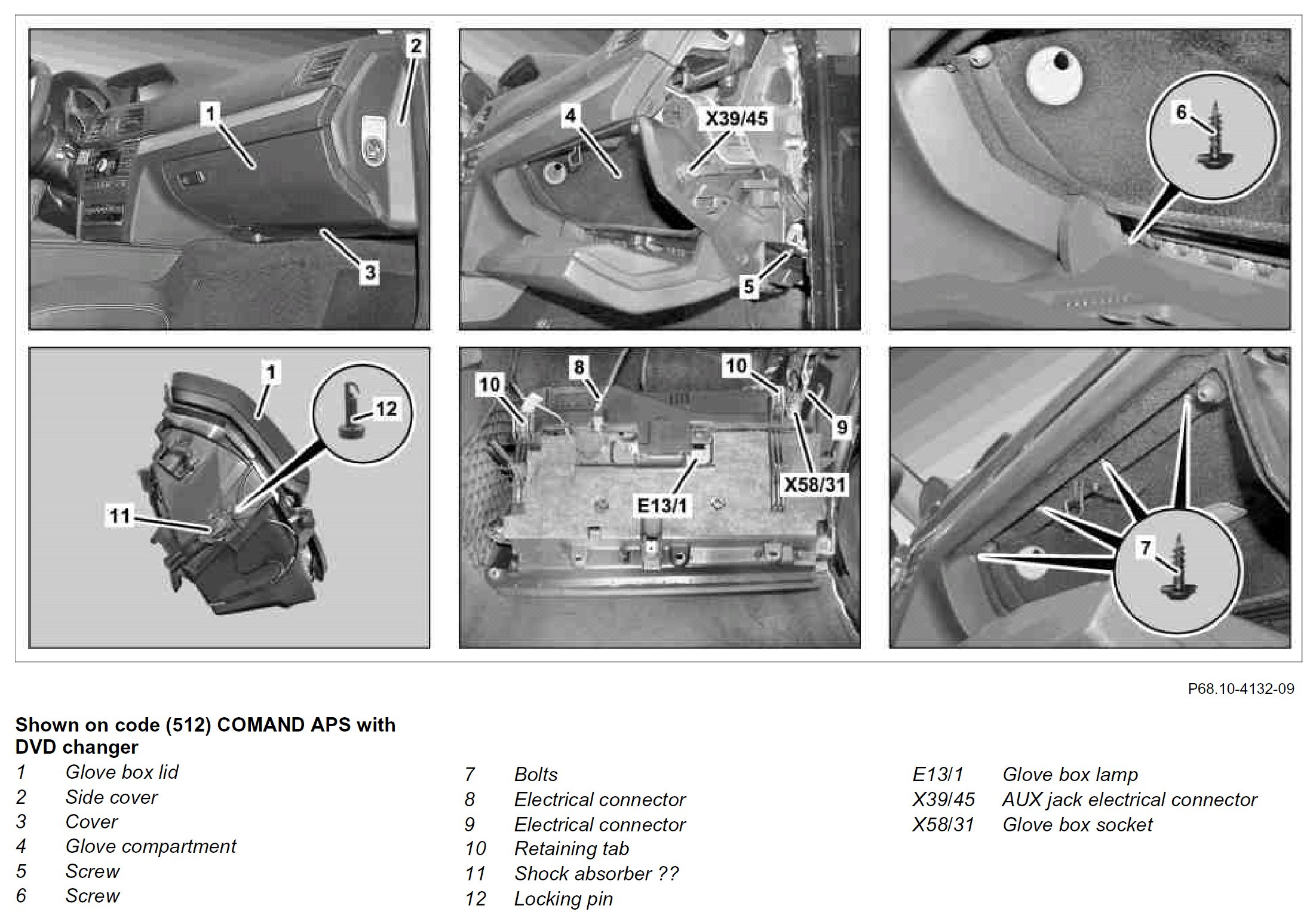

Component Identification:

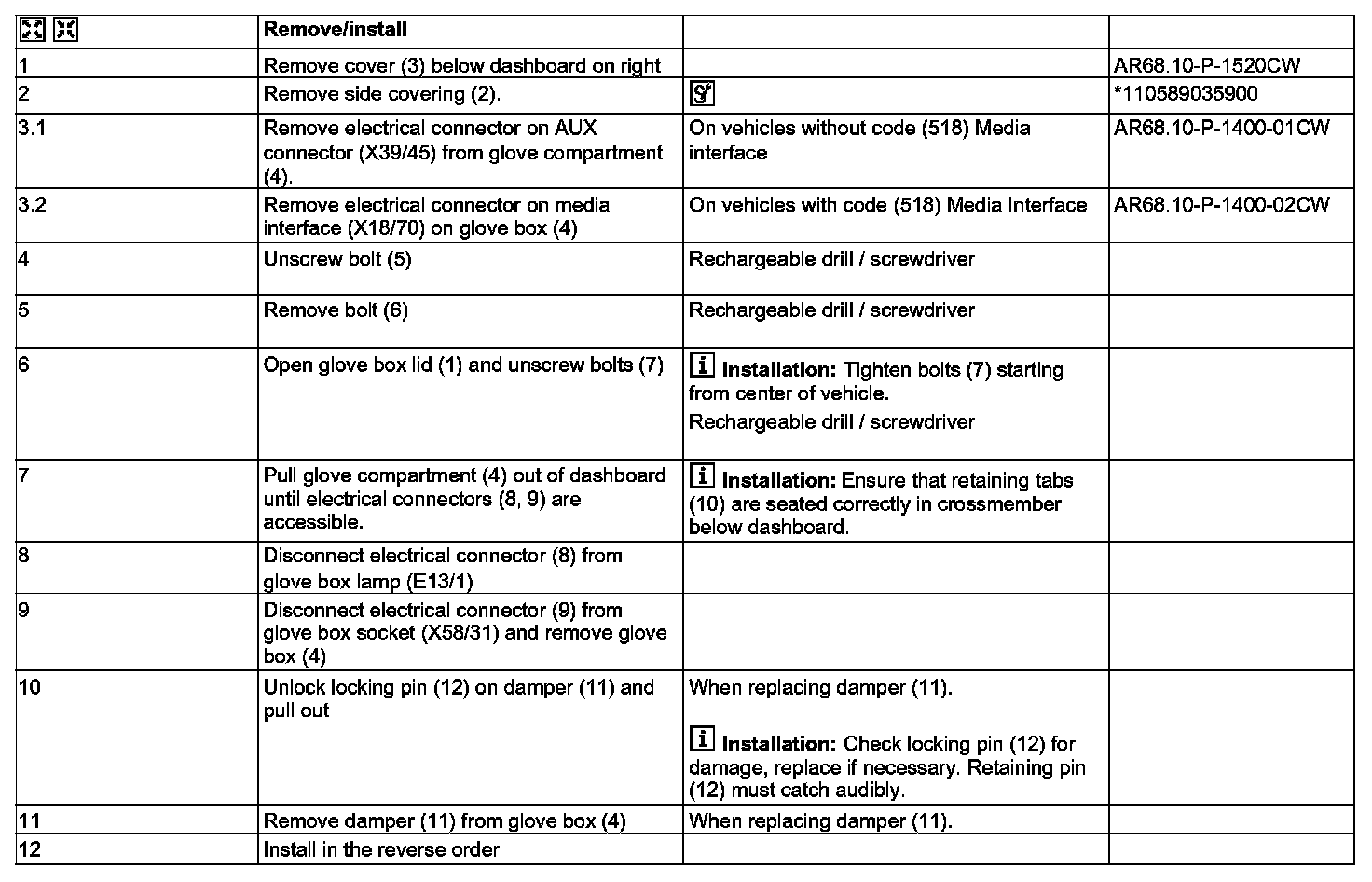

Steps 1 - 12:

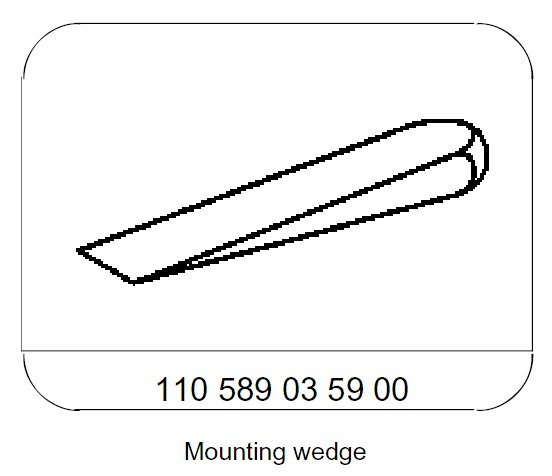

Special Tools:
