E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR68.20-P-2000CW Remove/install Center Console

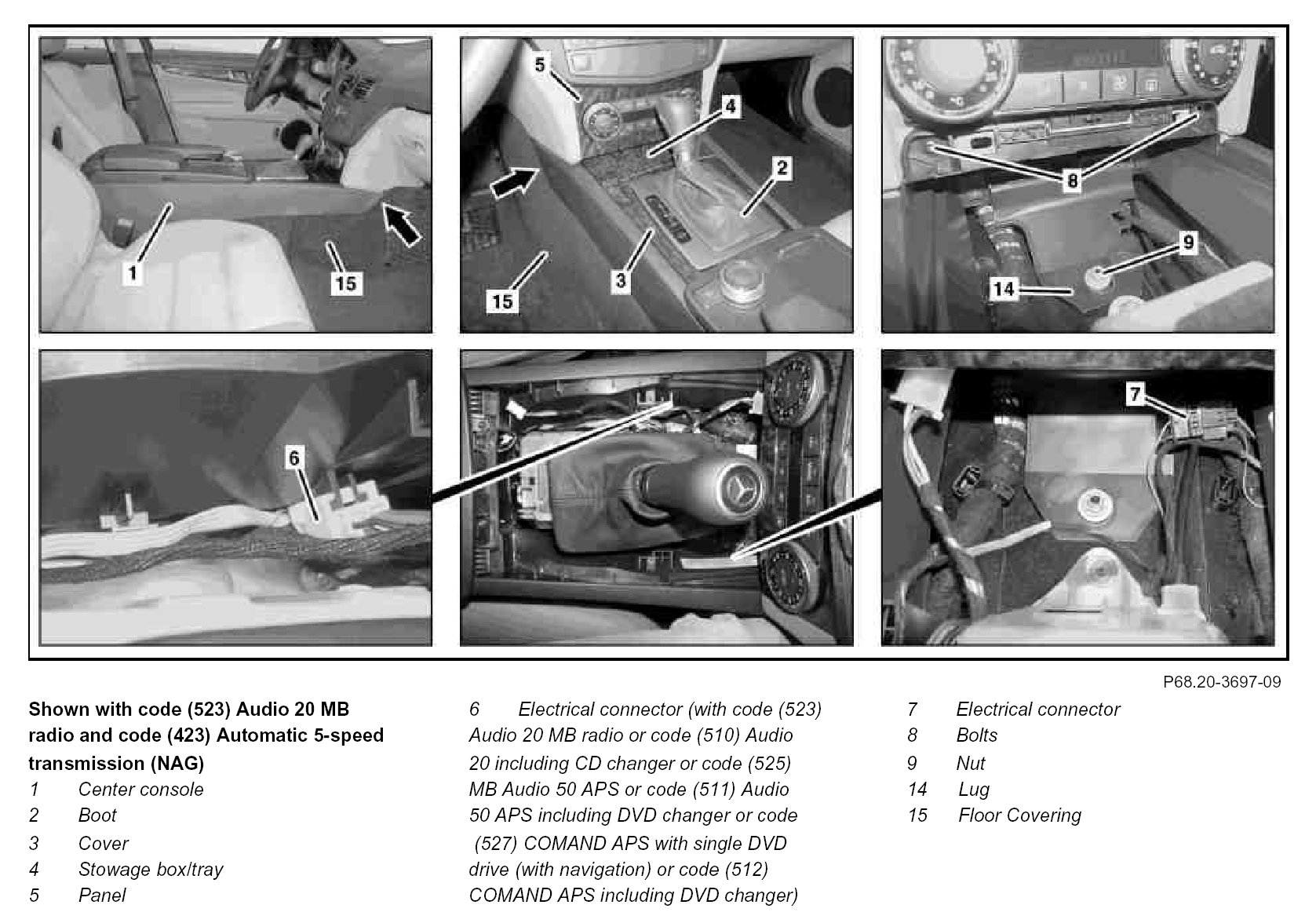

Component Identification:

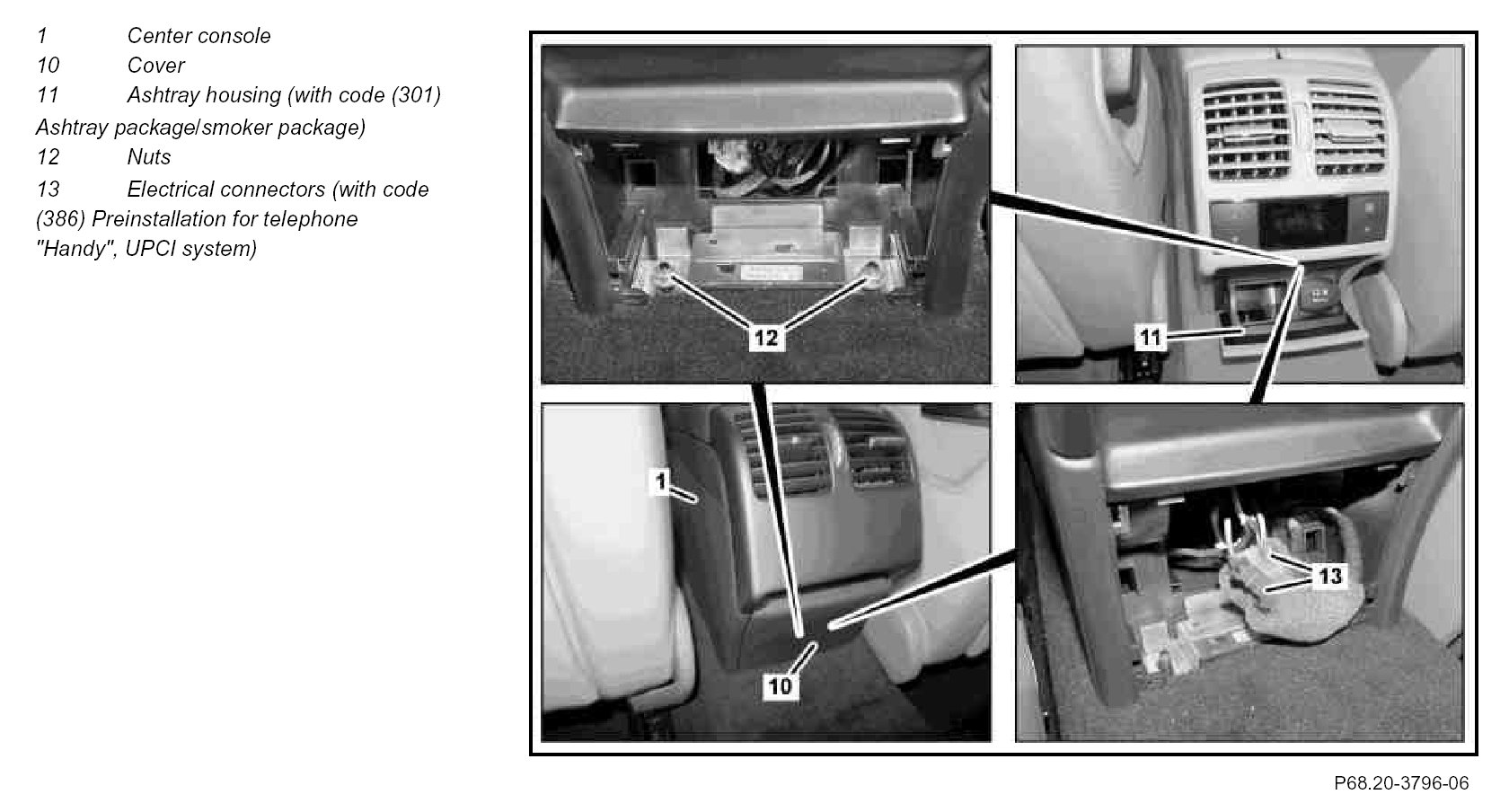

Component Identification:

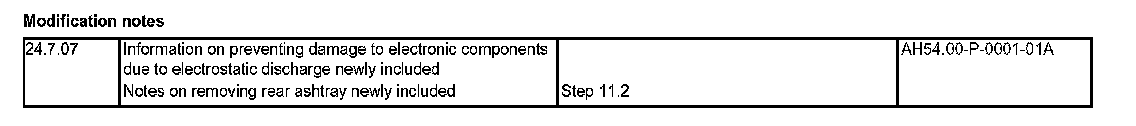

Modification Notes:

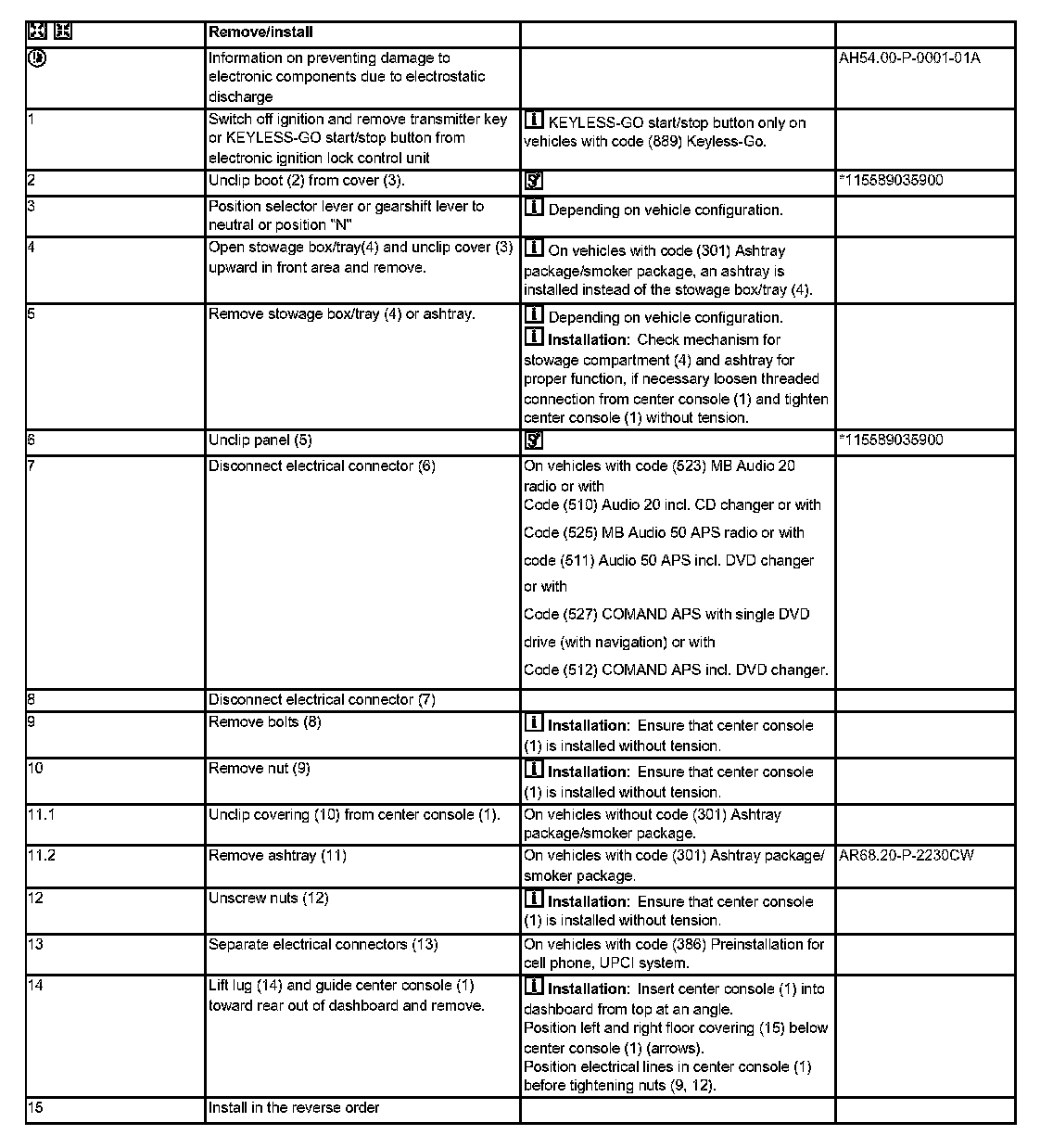

Steps 1 - 15:

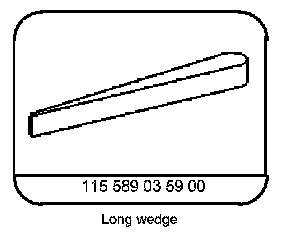

Special Tools:
