Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Grille
>>
Service and Repair
Grille: Service and Repair
AR88.40-P-4001EC Remove/Install Radiator Grille

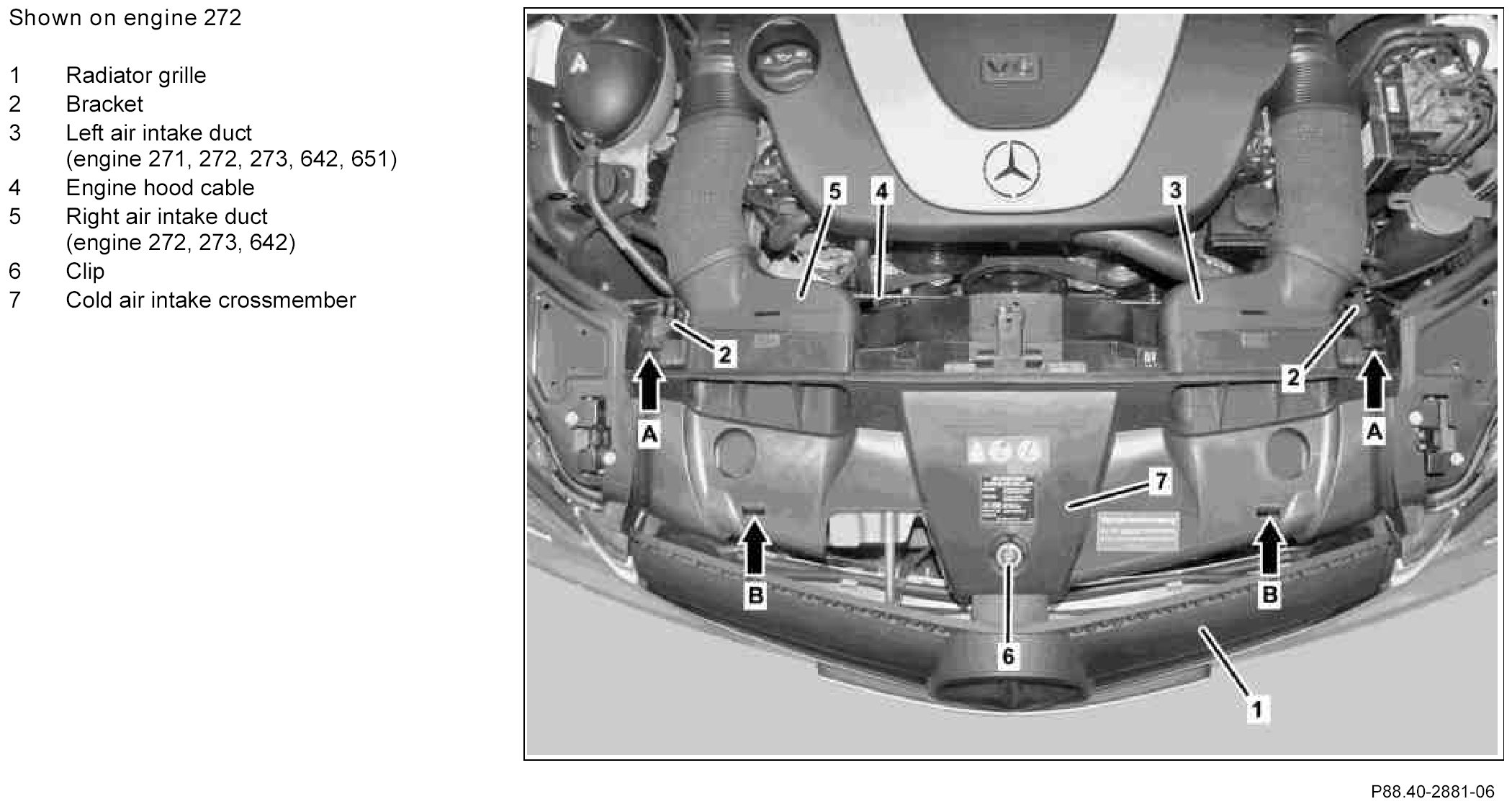

Component Identification:

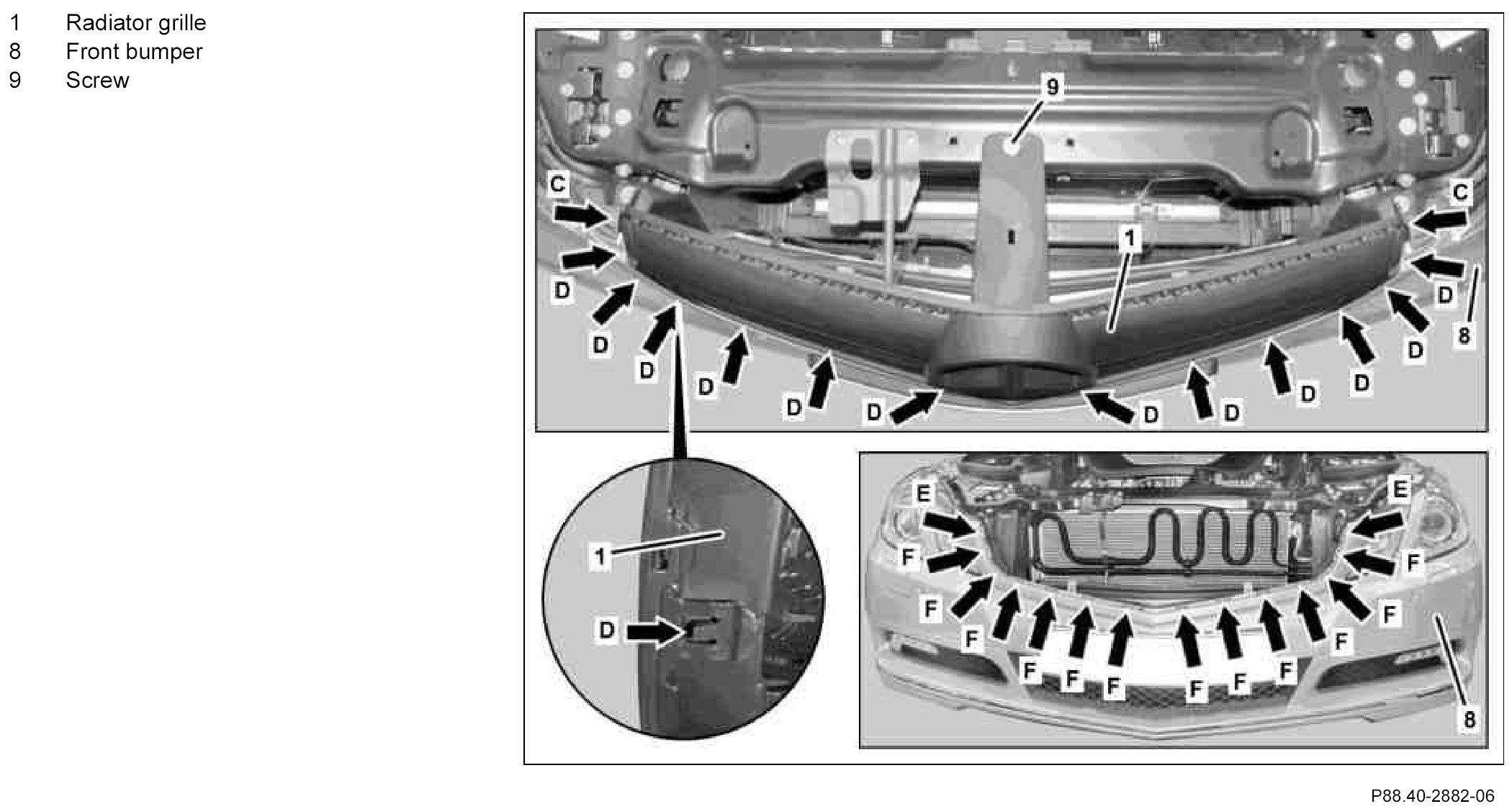

Component Identification:

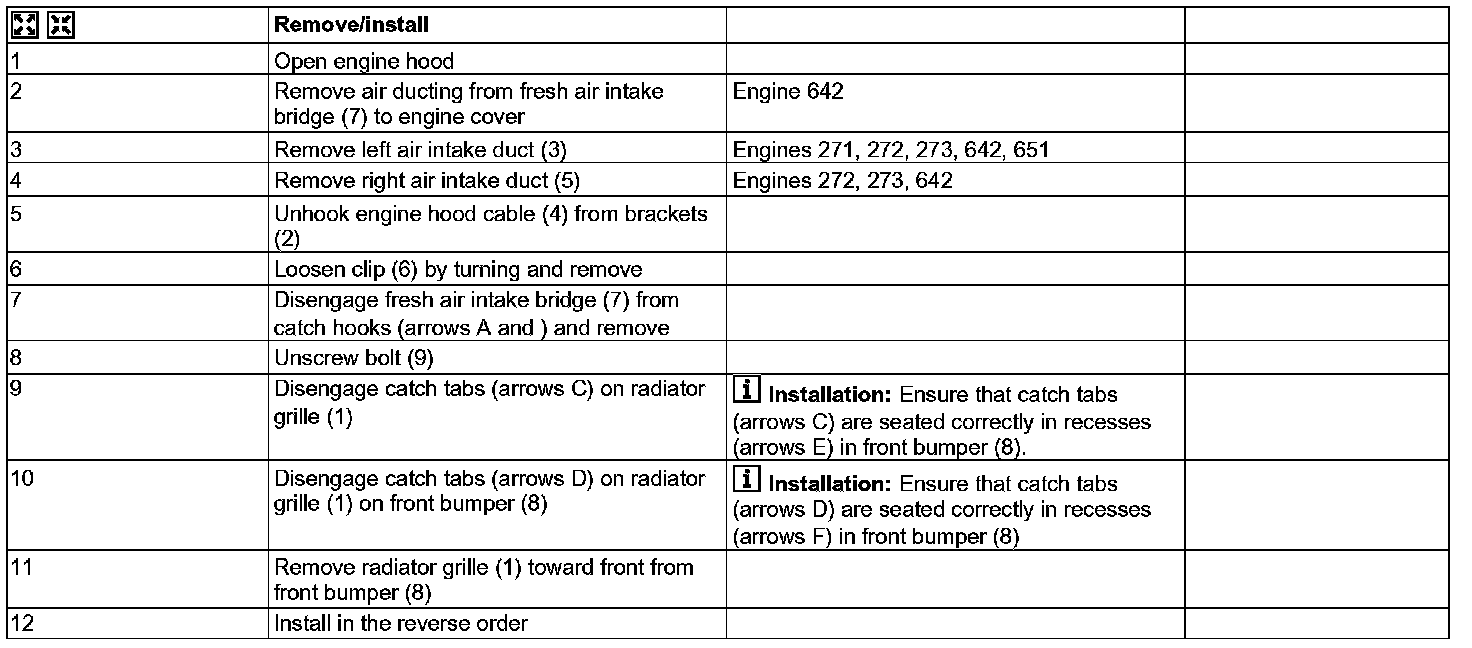

Steps 1 - 12:
