FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Hood Hinge
>>
Service and Repair
Hood Hinge: Service and Repair
AR88.40-P-3060EW Remove/Install
Hood Hinge

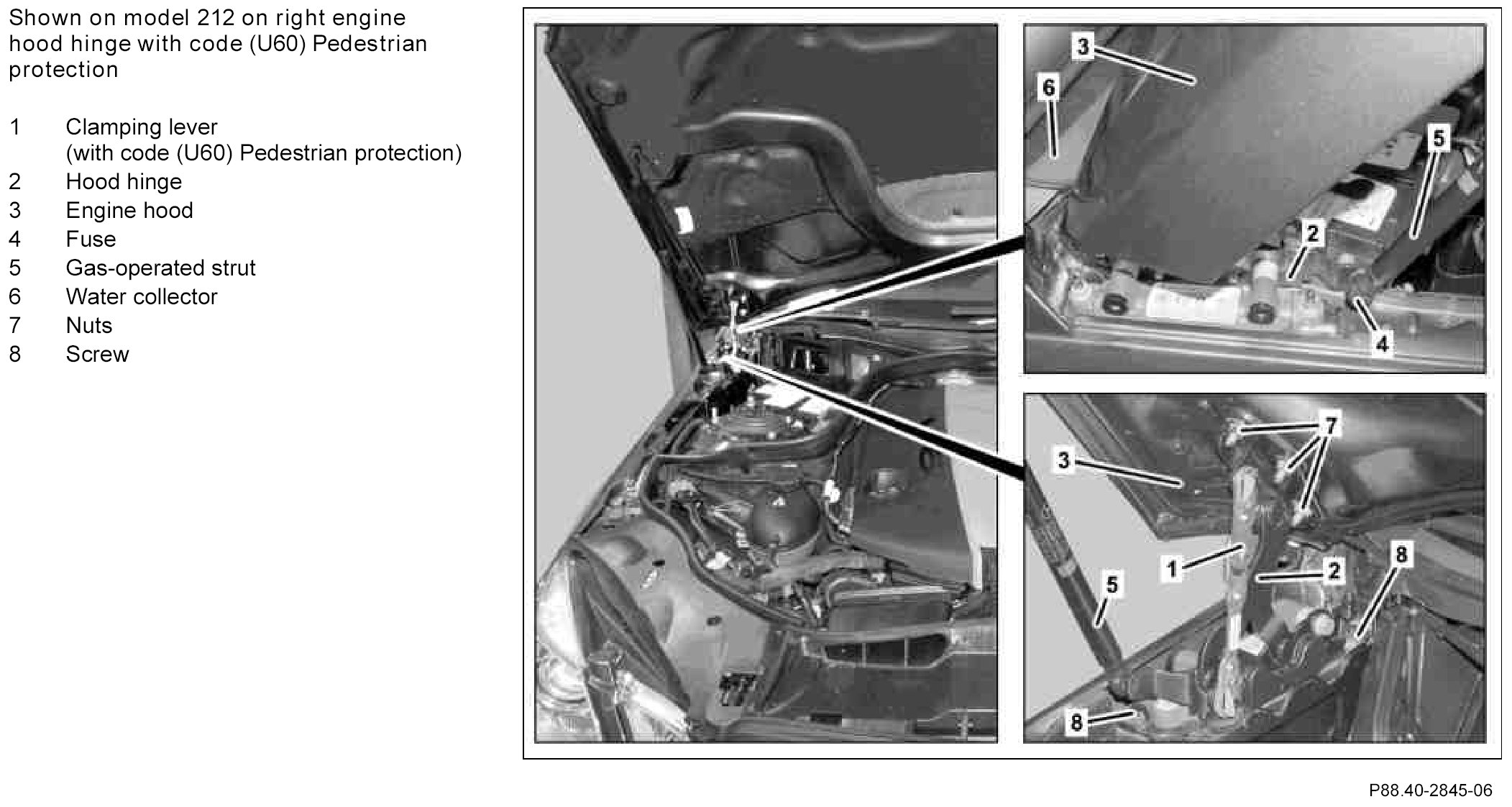

Component Identification:

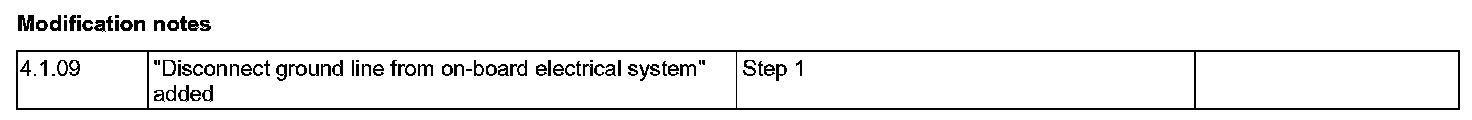

Modification Notes:

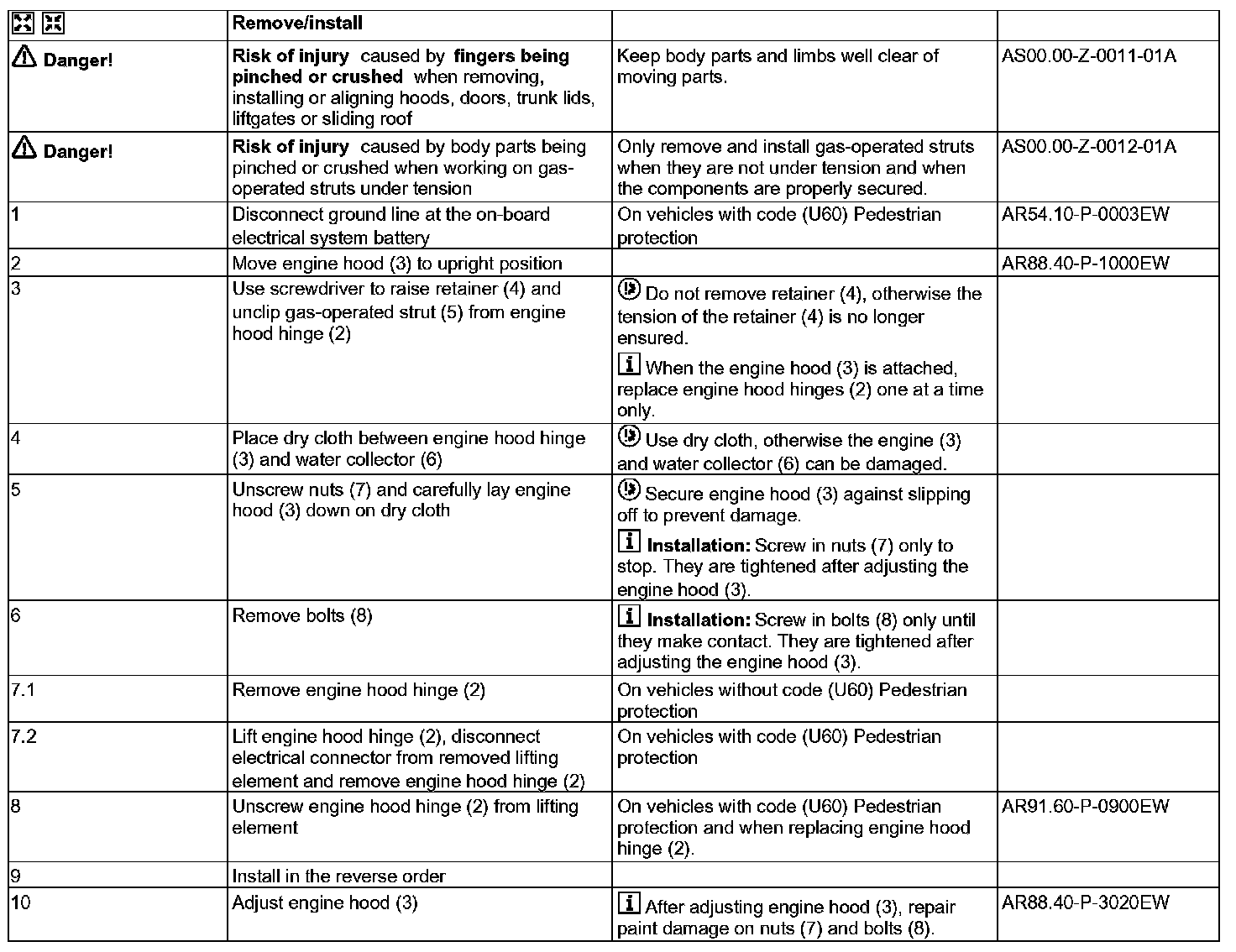

Steps 1 - 10:
