Front Door Latch: Service and Repair

AR72.10-P-4011EC Remove/Install Front Door Lock

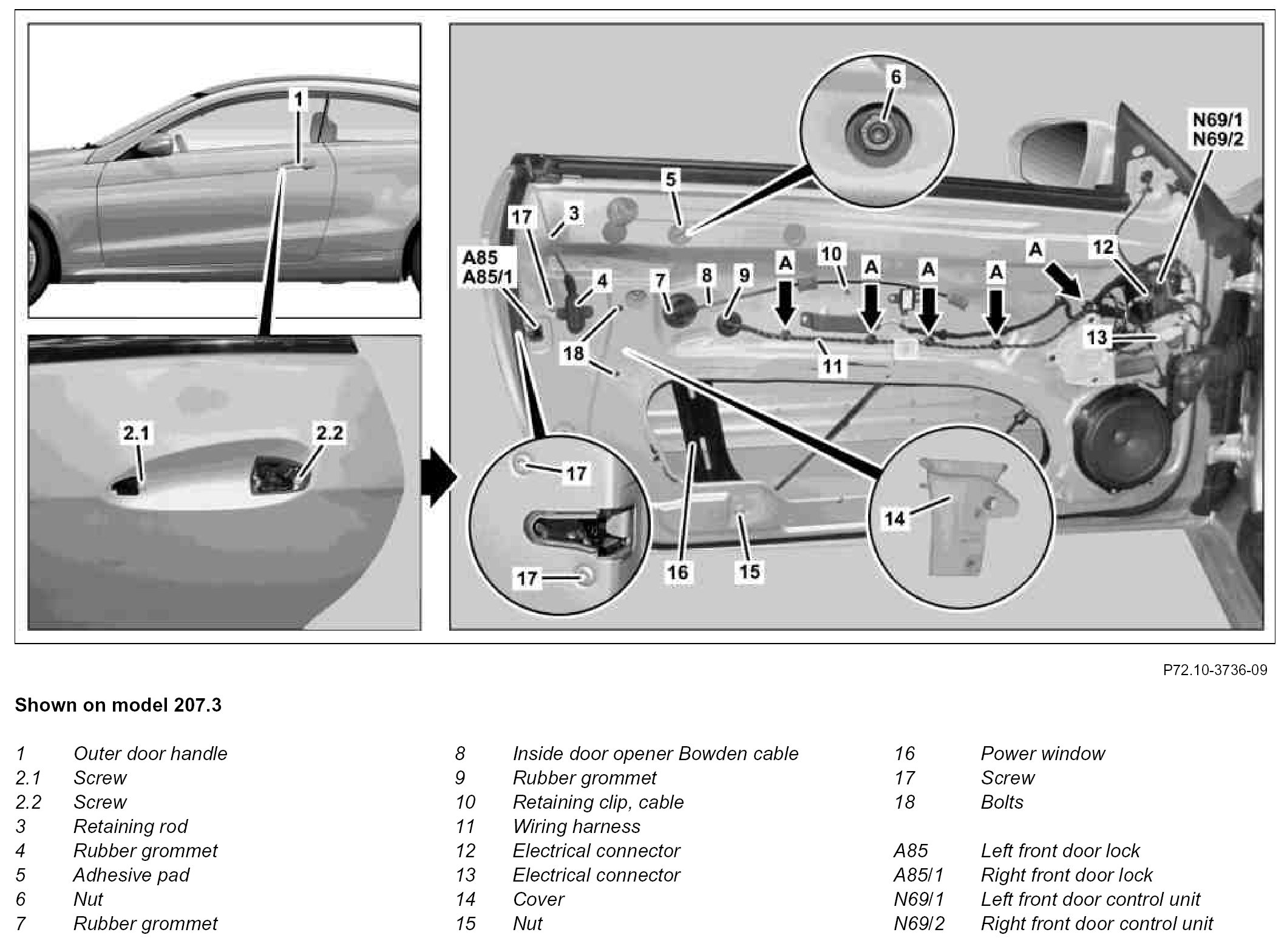

Component Identification:

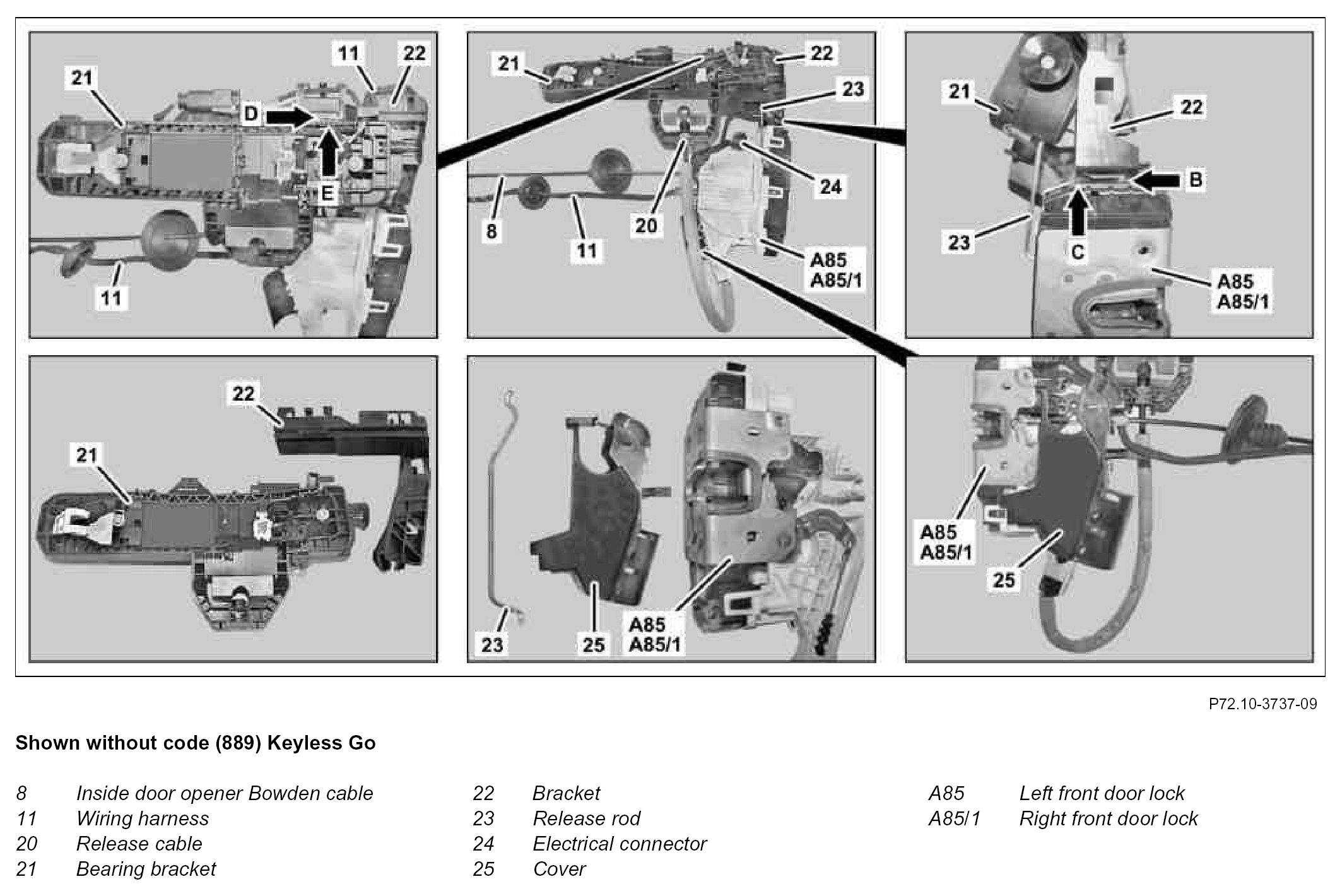

Component Identification:

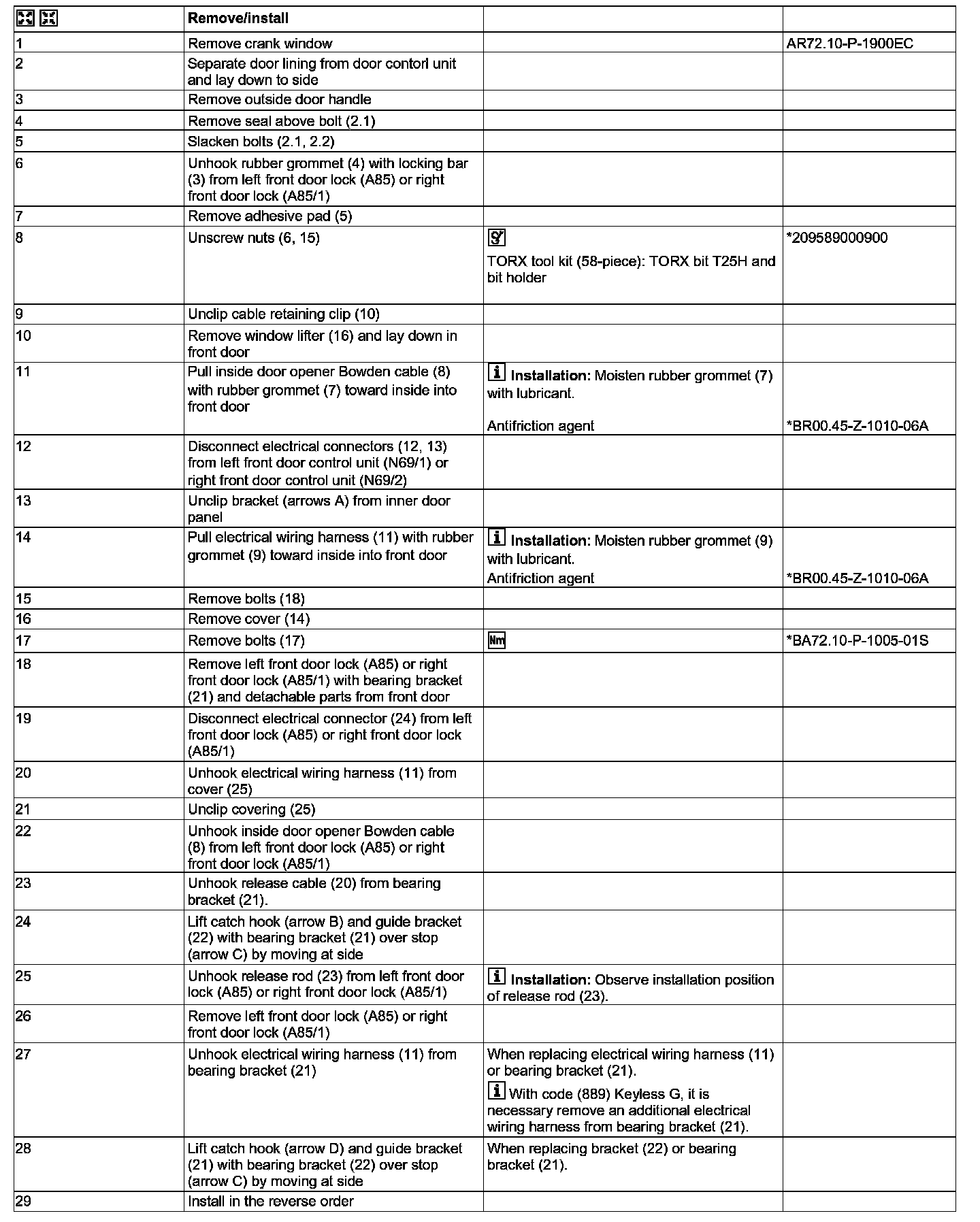

Steps 1 - 29:

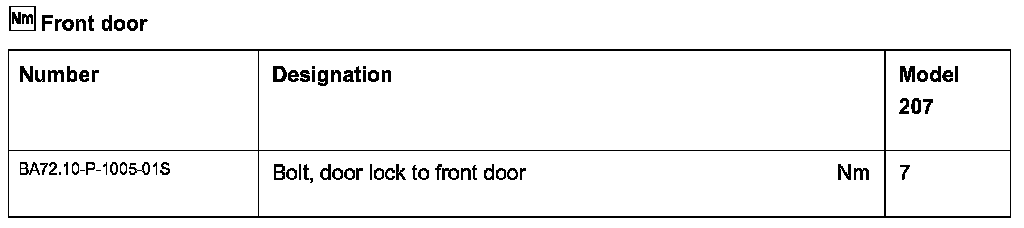

Front Door:

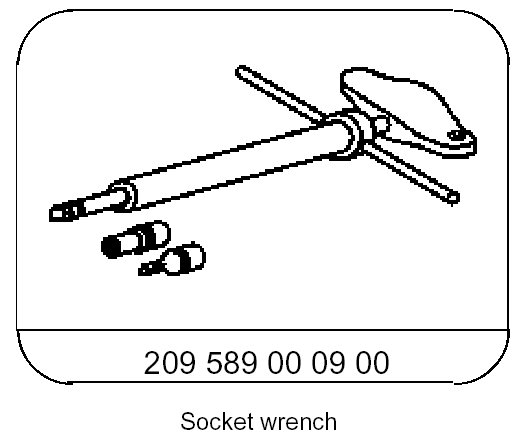

Special Tool:

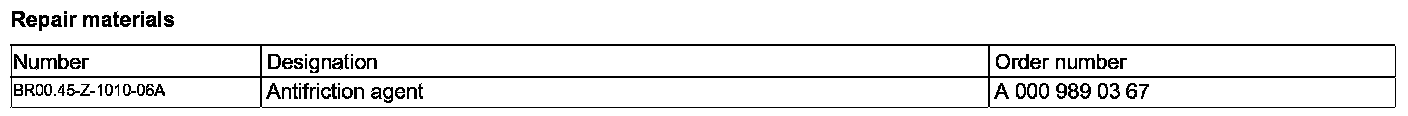

Repair materials:
