Procedures

AZ88.00-P-0001-03CA Converting Rear Bumper

Check components removed from standard bumper before assembly and replace if damaged.

Pay attention to paint damage.

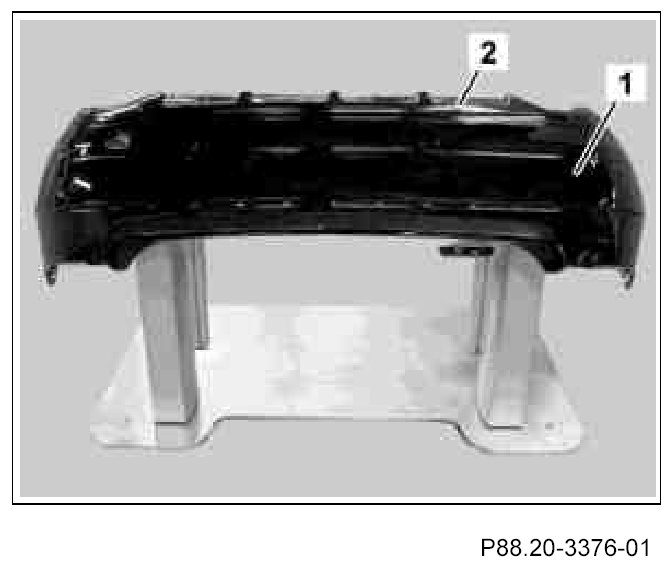

1. Insert paneling lower section (2) into rear bumper paneling (1) and arrest.

The lower section of the paneling (2) should arrest correctly in the rear bumper paneling (1).







2. Insert center basic carrier (3) into rear bumper paneling (1) and arrest.

The center basic carrier (3) should arrest properly in the rear bumper paneling (1).

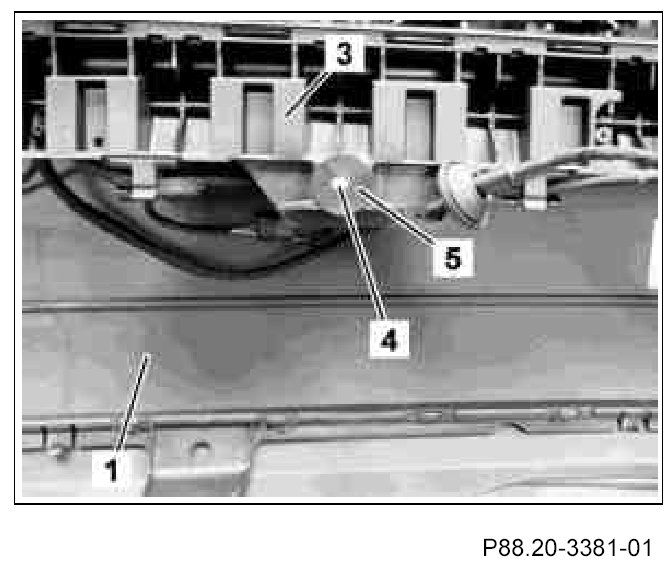

3. Install plate with bolts (4) and sealing washer (5) on right and left in center basic carrier (3).







Vehicles with Parktronic system (PTS) code 220

4. Insert PTS wiring harness (6) removed from standard bumper into rear bumper paneling (1) and fix in place in specified brackets.
5. Insert outer left rear, left inner, right inner and right outer PARKTRONIC spacer sensors (B8/10) into brackets on rear bumper paneling (1).

Before inserting sensors, check decoupling rings, replace if damaged.

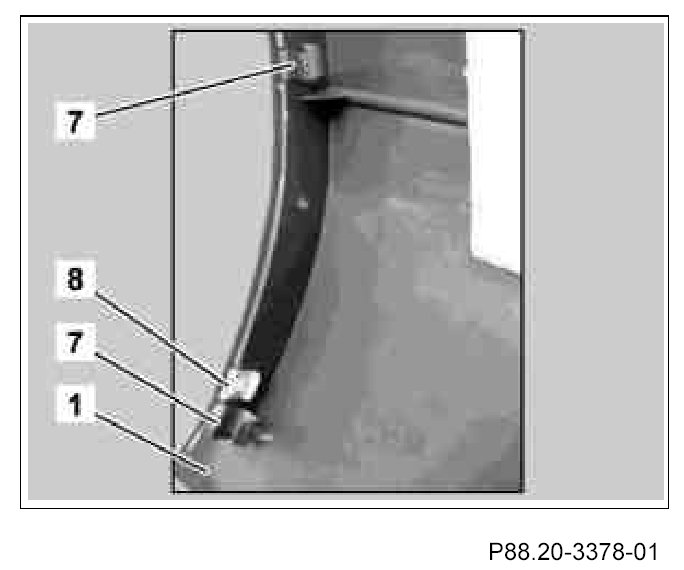

6. Install one insert clip nut (8) and two hose clamps (7) on right and left on rear bumper paneling (1).

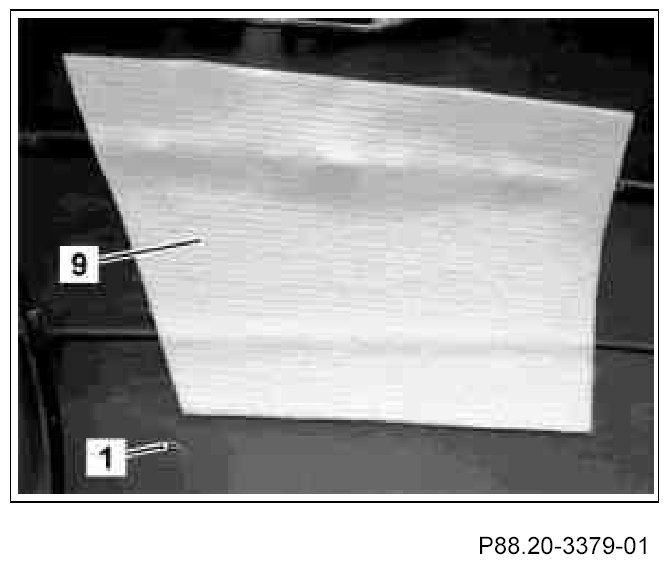

7. Bond damping mat (9) on right and left into rear bumper paneling (1).

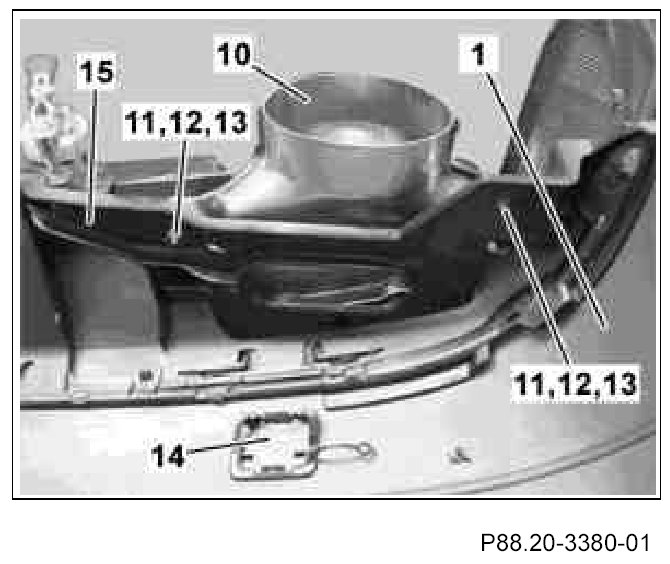

8. Install AGA covers (10) on right and right lower basic carrier (15) with three stainless steel bolts (12), three washers (13) and three plastic nuts (11) each on right and left.
9. Hook check strap on towing eye cover (14) into rear bumper paneling (1) and insert towing eye cover (14).

The towing eye cover (14) should arrest correctly in the rear bumper paneling (1).
