AR54.21-P-2009EC Remove/Install Rear Control Unit
AR54.21-P-2009EC Remove/Install Rear Control Unit
AR54.21-P-2009EC Remove/install Rear Control Unit

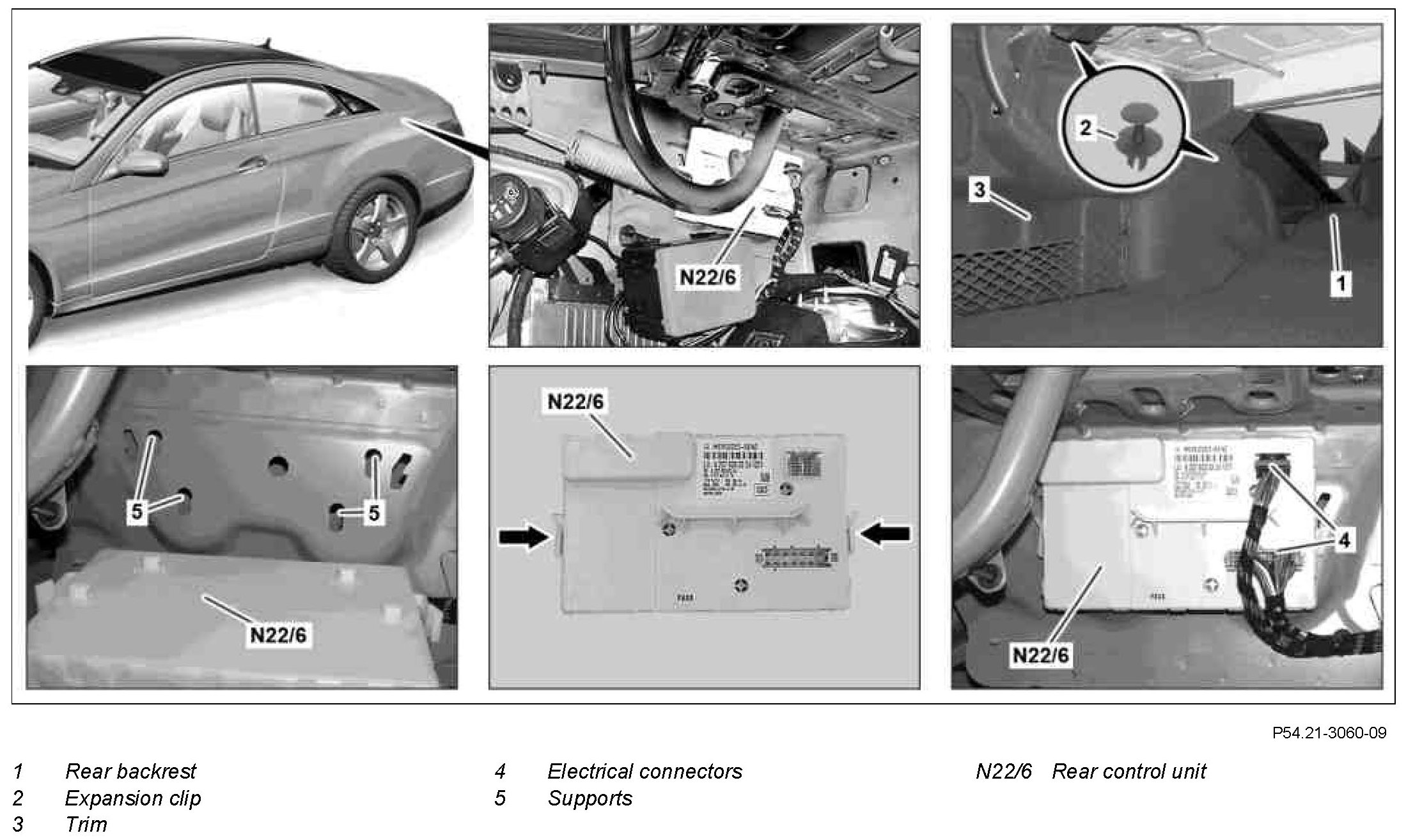

Component Identification:

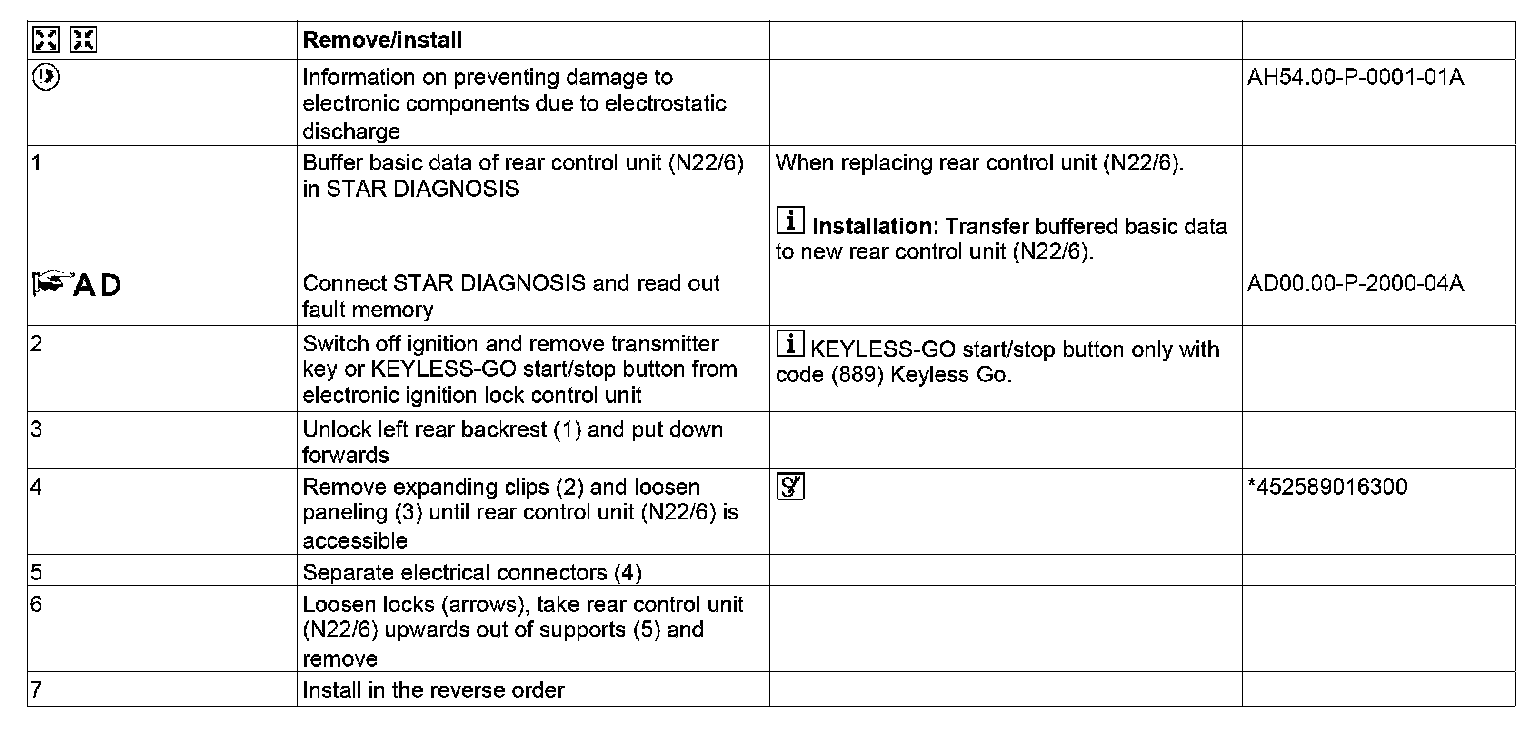

Steps 1-7:

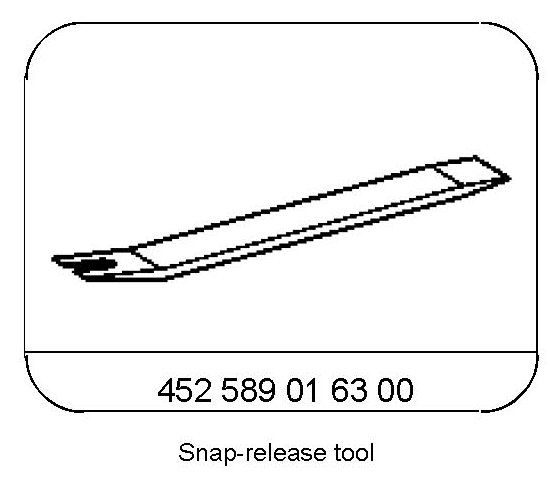

Special Tools:
