Speaker: Service and Repair
AR82.62-P-7836EC Remove/Install Speaker In Rear Shelf
- with CODE (810) Sound system

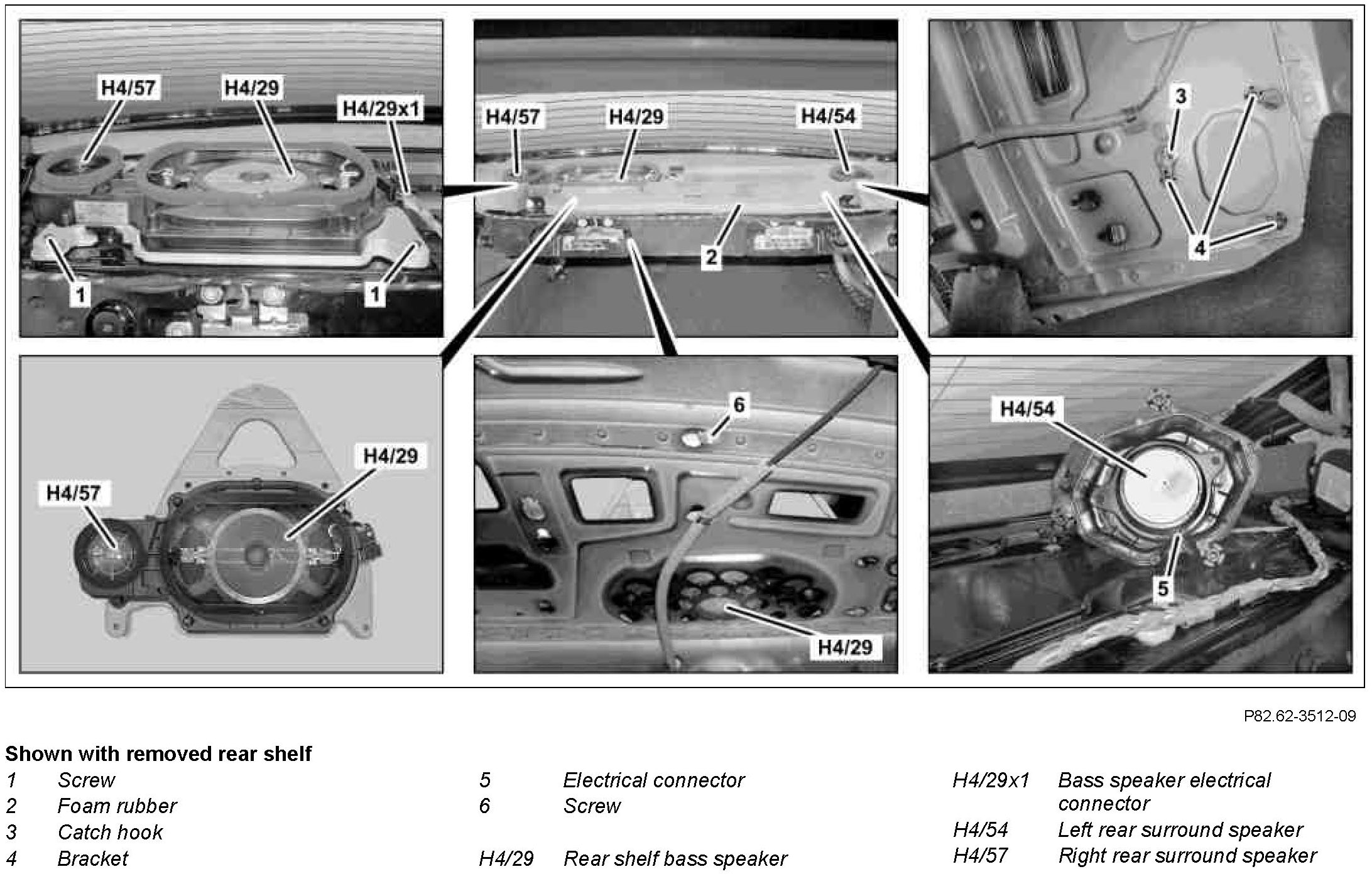

Component Identification:

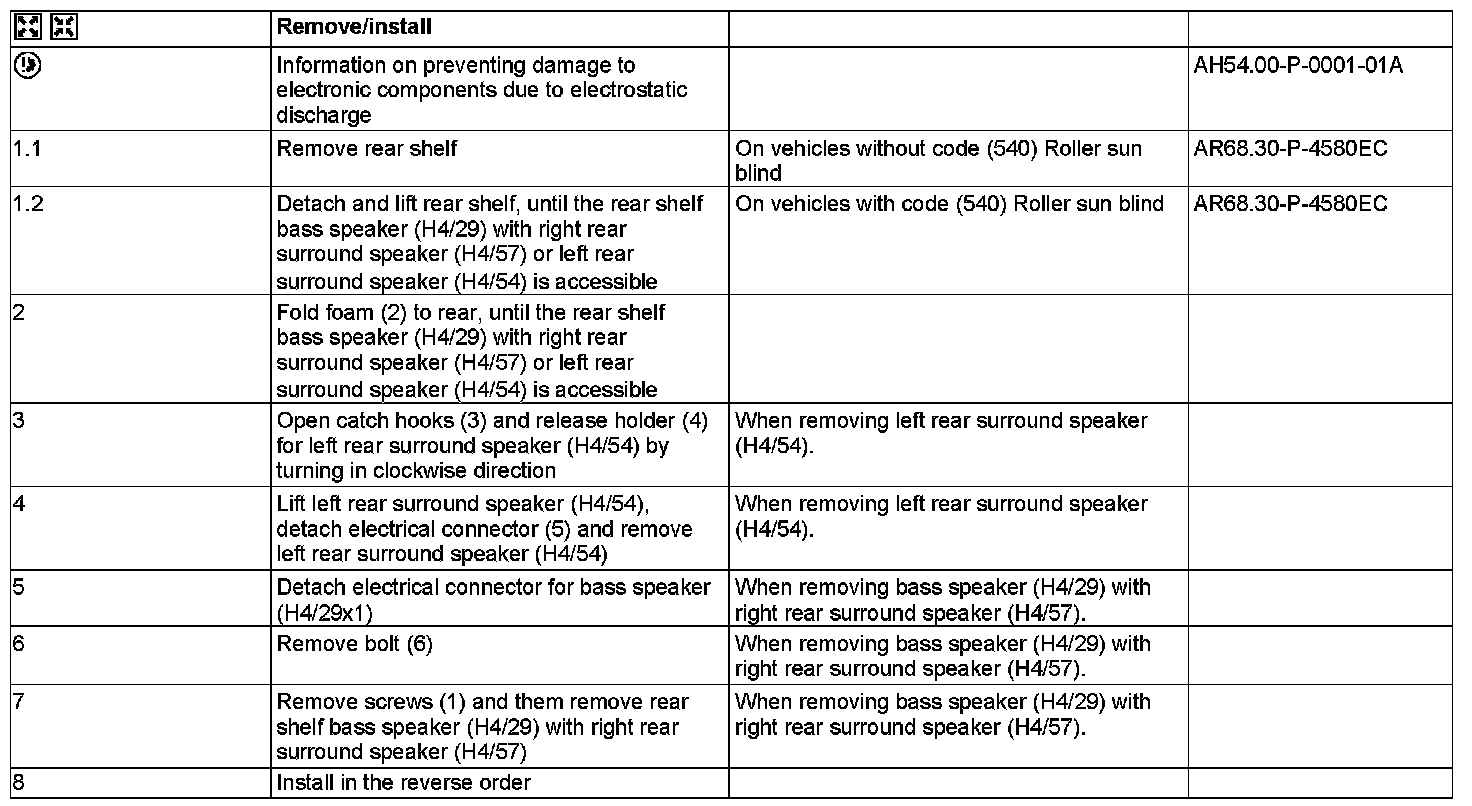

Steps 1.1 - 8:
