GF82.60-P-0004-01CA Audio System, Location of Components
GF82.60-P-0004-01CA Audio System, Location of Components

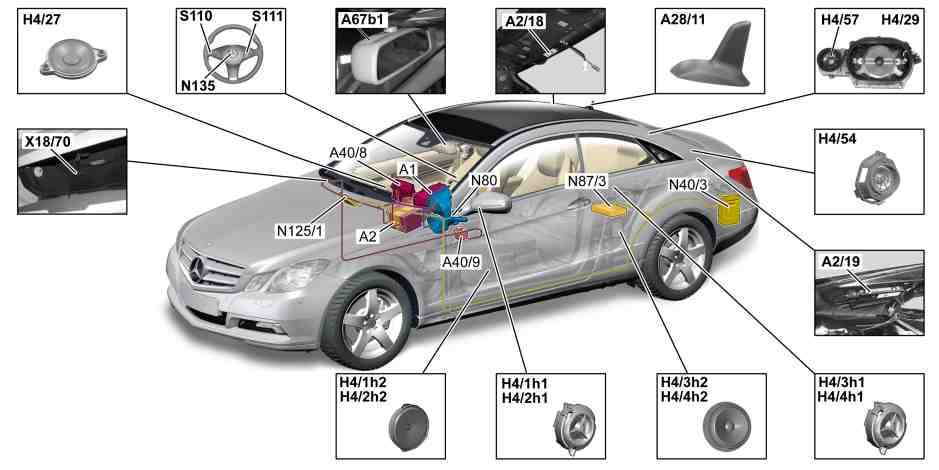

MODEL 207.3 /4
- with CODE (510) Audio 20 with CD changer
- with CODE (523) MB Audio 20 radio
Model 207.3 up to 31.5.2011
A1 Instrument cluster
A2 Radio
A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 Rear window antenna FM antenna amplifier
A28/11 Multifunction antenna (with code (386) Comfort telephony or code (537) Digital radio)
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)

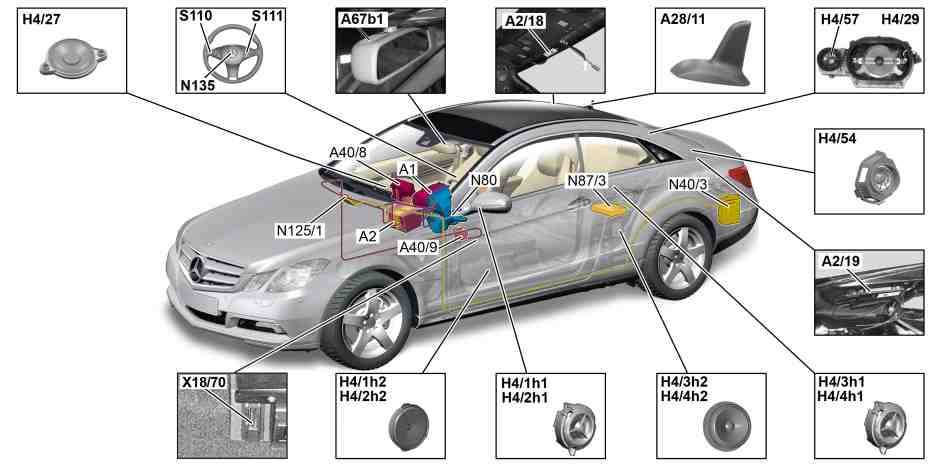

Model 207.3 as of 1.6.2011
A1 Instrument cluster
A2 Radio
A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 Rear window antenna FM antenna amplifier
A28/11 Multifunction antenna (with code (386) Comfort telephony or code (537) Digital radio)
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)

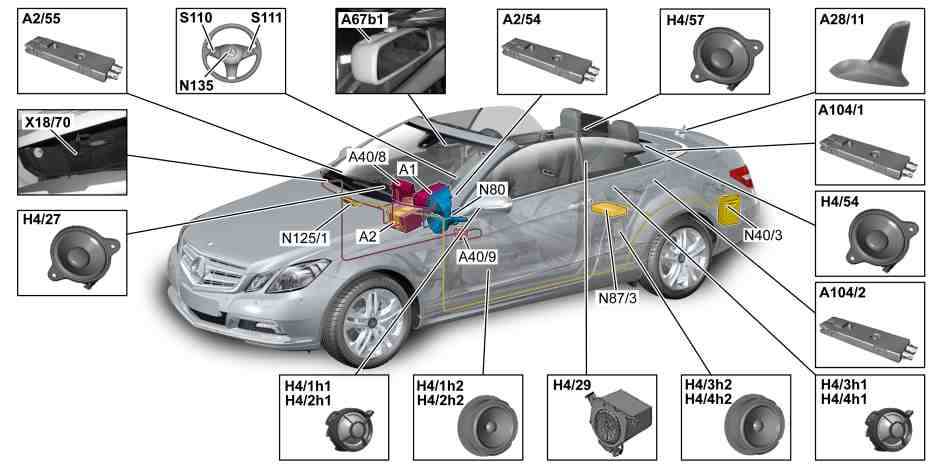

Model 207.4 up to 31.5.2011
A1 Instrument cluster
A2 Radio
A2/54 TV 3, FM2 and DAB band III antenna amplifier
A2/55 FM, AM and CL [ZV] antenna amplifier
A28/11 Multifunction antenna (with code (386) Comfort telephony or code (537) Digital radio)
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A104/1 AM amplifier
A104/2 AM amplifier with selection switch
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)

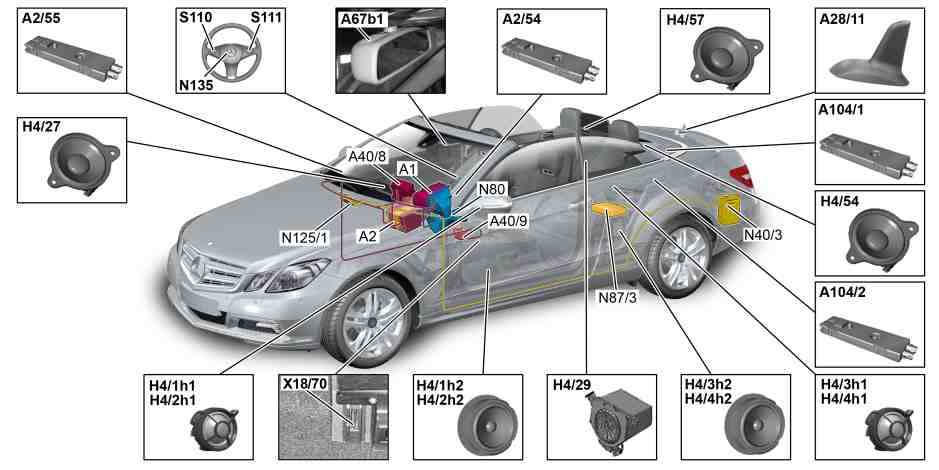

Model 207.4 as of 1.6.2011
A1 Instrument cluster
A2 Radio
A2/54 TV 3, FM2 and DAB band III antenna amplifier
A2/55 FM, AM and CL [ZV] antenna amplifier
A28/11 Multifunction antenna (with code (386) Comfort telephony or code (537) Digital radio)
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A104/1 AM amplifier
A104/2 AM amplifier with selection switch
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)
