Amplifier: Service and Repair



AR82.62-P-7720EF Remove/Install Loudspeaker Amplifier Control Unit
- with CODE (810) Sound system

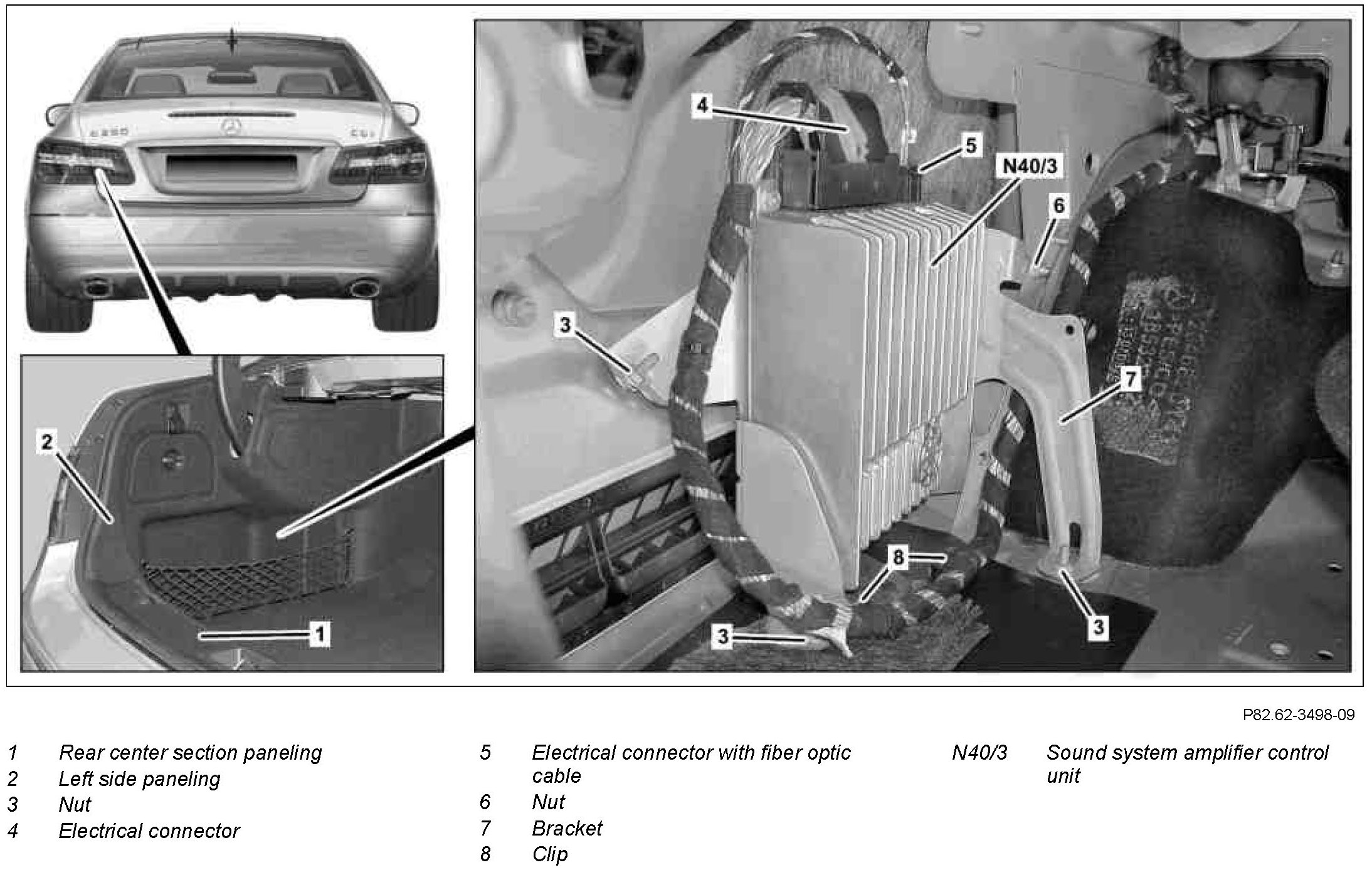

Component Identification:

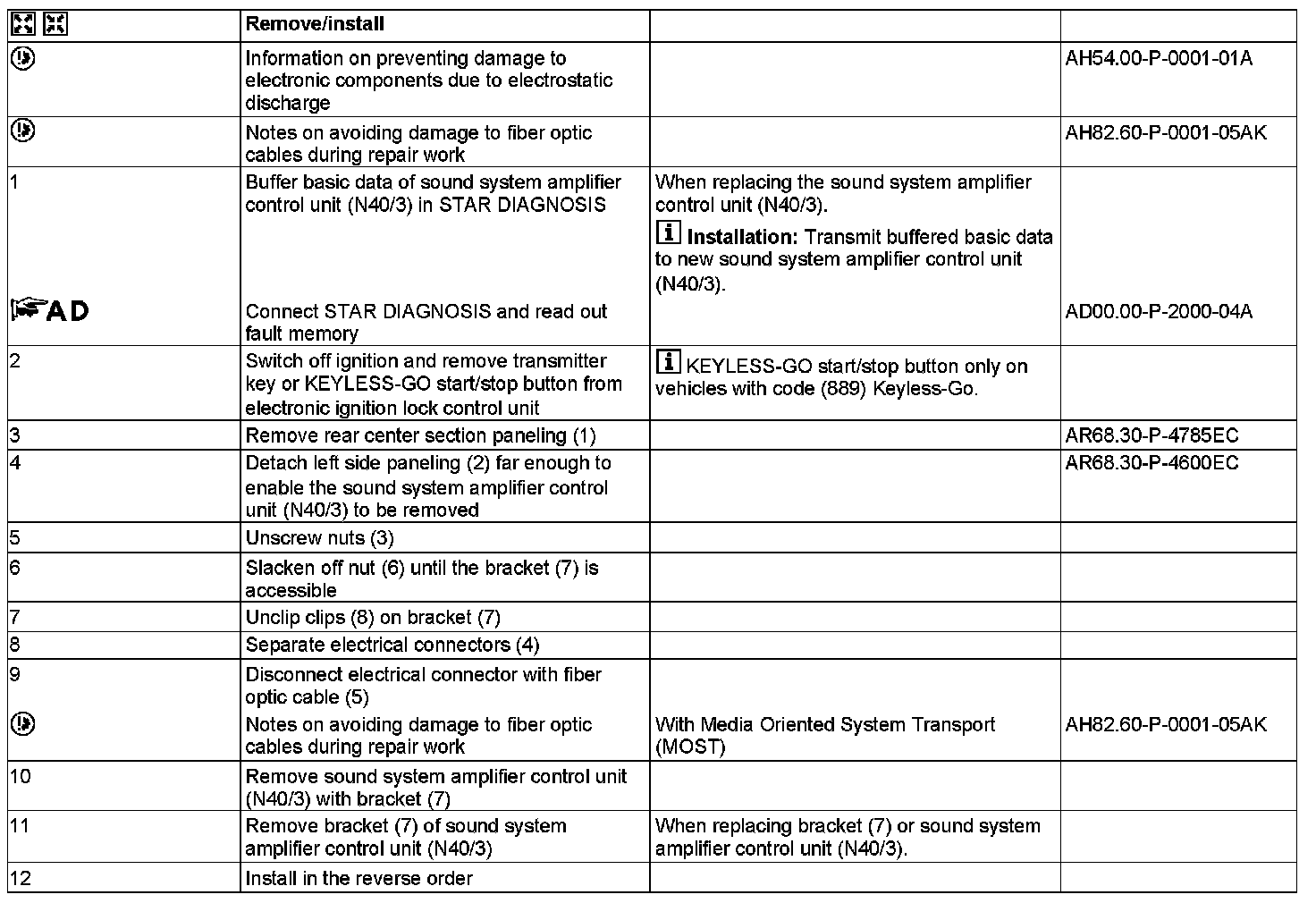

Steps 1 - 12:
