Television / Monitor: Service and Repair
AR82.85-P-7366EC Remove/Install TV Tuner
- with CODE (863) Digital/anlog TV tuner

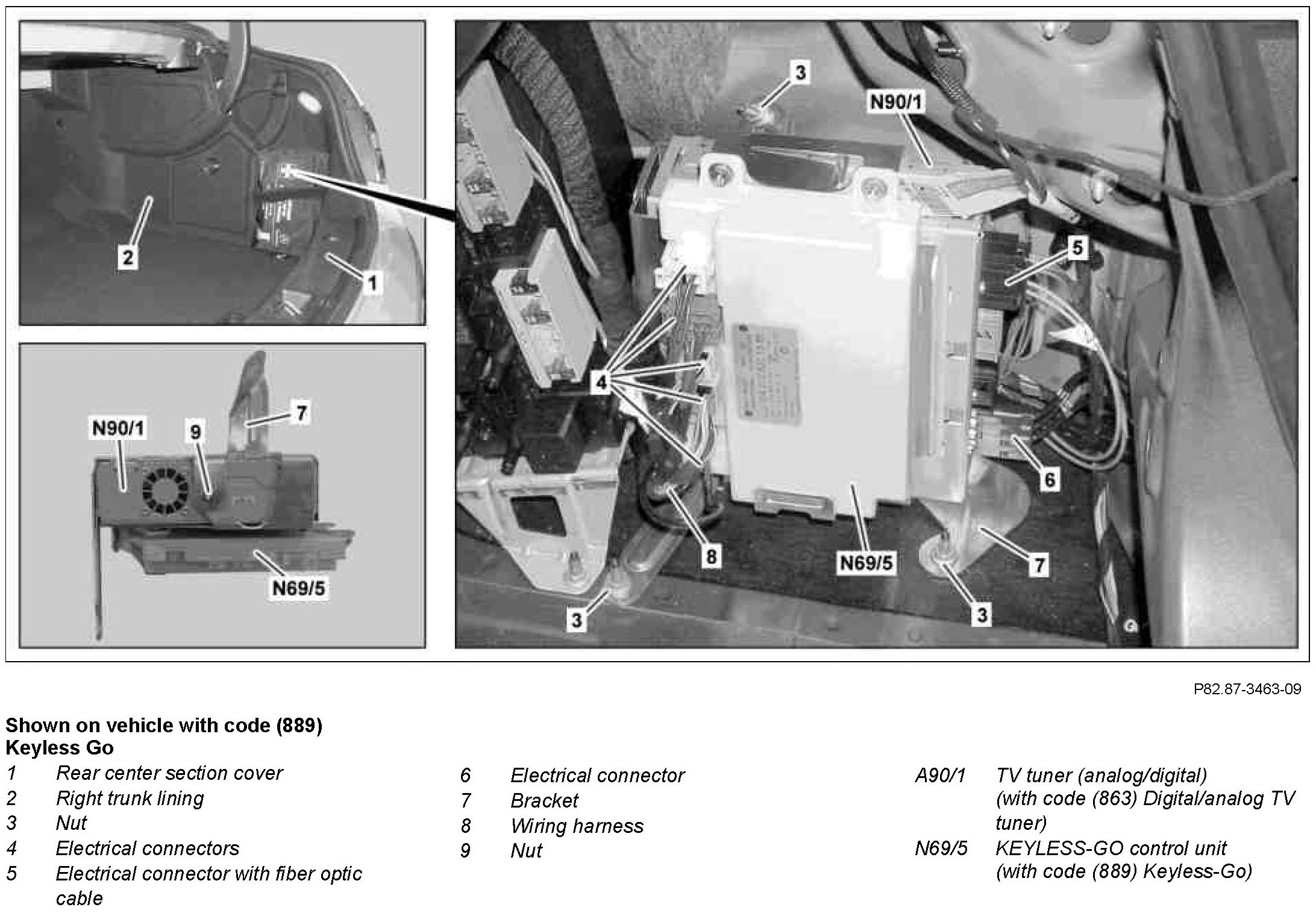

Component Identification:

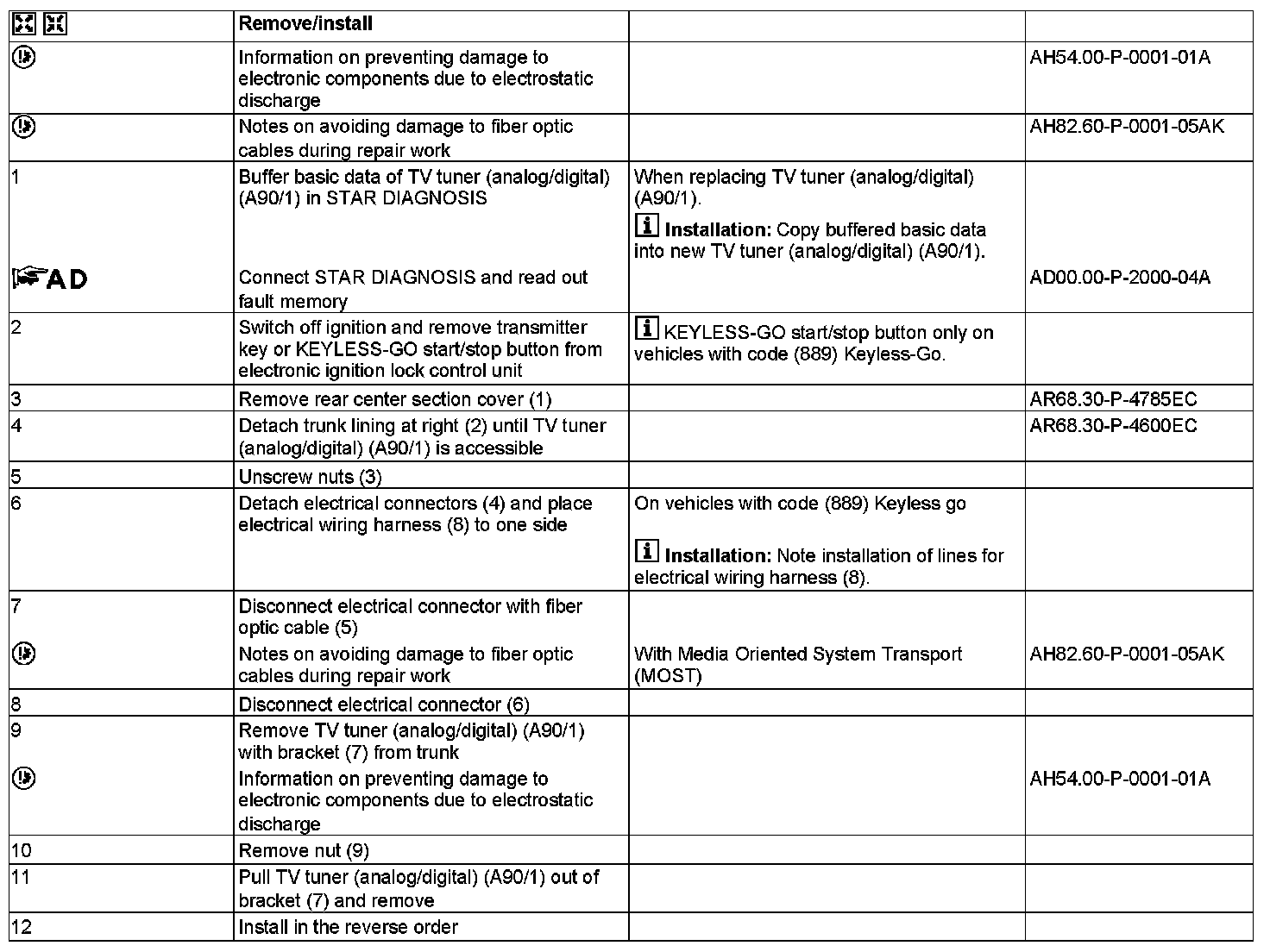

Steps 1 - 12:
