AZ82.85-P-0005-05EC Retrofit Mercedes-Benz InCar Internet Connecting Cable

AZ82.85-P-0005-05EC Retrofit Mercedes-Benz InCar Internet Connecting Cable
- MODEL 207.3## /4## 1#

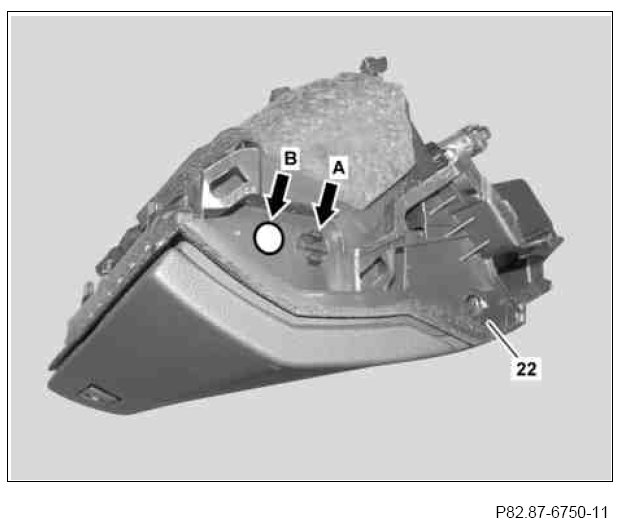

1 Open lid of glove box (22).
2 Remove stop plug (arrow A).
3 Drill hole (arrow B) with a diameter of 19 mm, as shown, on the glove box (22).
Cordless drill/driver
gotis://G_58.0_01.1
In vehicles with code (518) Media Interface.






4.1 Place InCar Internet connecting cable (2) into glove box (22) and route outwards through the hole.
On vehicles without code (518) Media interface.

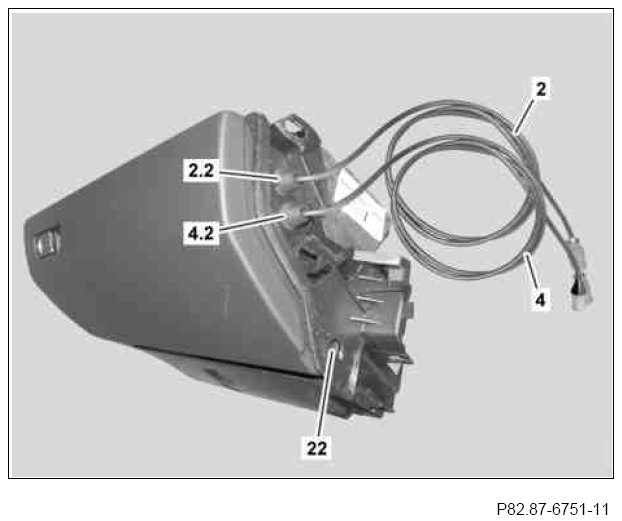

4.2 Place InCar Internet connecting cable (2) and InCar Internet adapter line (4) into the glove box (22) and route outwards through the holes.
In vehicles with code (518) Media Interface.

5.1 Insert grommet (2.2) into hole.
On vehicles without code (518) Media interface.

5.2 Insert grommets (2.2 and 4.2) into the holes.
In vehicles with code (518) Media Interface.
