GF82.85-P-2003CA DVD Changer Function
GF82.85-P-2003CA DVD Changer Function
MODEL 207.3 /4
- with CODE (510) Audio 20 with CD changer
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND with DVD changer
Changer function requirements
^ Circuit 30g ON

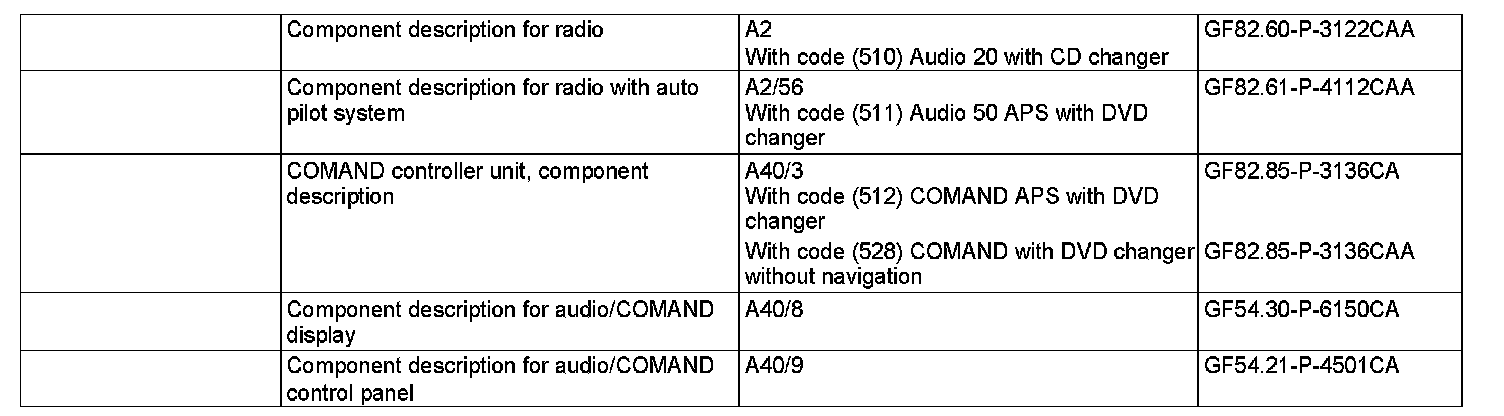

In the following, the control units that are installed depending on the equipment are referred to as "audio equipment":
- Radio (A2) (with code (510) Audio 20 incl. CD changer)
- Radio with auto pilot system (A2/56) (with code (511) Audio 50 APS incl. DVD changer)
- COMAND controller unit (A40/3) (with code (512) COMAND APS with DVD changer or with code (528) COMAND incl. DVD changer)
Changer, general
The changer integrated into each piece of audio equipment contains a cartridge for up to six data storage devices and is operated using the following components:
- Audio/COMAND control panel (A40/9)
- Button panels of the audio equipment
With code (510) Audio 20 with CD changer, a CD changer is installed instead of a DVD changer. The function is identical, with the exception of reading-in the data storage device (CD only).
The terms CD and DVD shall be referred to as follows by the term "data storage device".

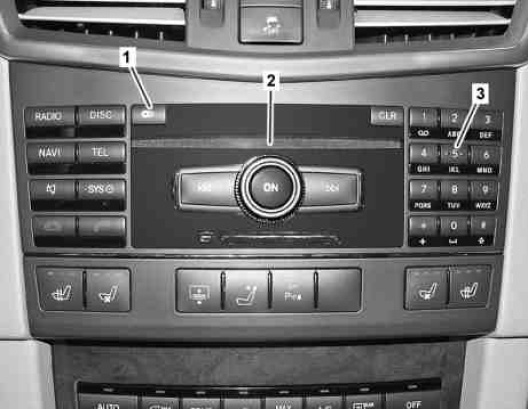

Shown on code (512) COMAND APS with DVD changer
1 Load button
2 Drive slot
3 Telephone keyboard
The changer enables the following function sequences to be performed:
^ Function sequence for loading data storage device
^ Function sequence for ejecting data storage device

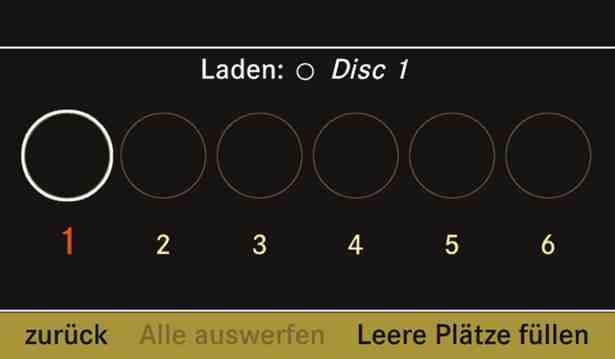

View of the submenu "Changer"
The submenu "Changer" is called up by pressing the charge button and shows the current magazine equipping.
The last selected compartment is marked with a red character.
Function sequence for loading data storage device
Pressing the load button on the audio equipment causes the Audio/COMAND display (A40/8) to show "Cartridge menu" and the last selected slot in the changer.
Using the Audio/COMAND control panel the required slot can be selected by turning or pressing to the left or right, and confirmed by vertically pressing the Audio/COMAND control panel.
The telephone keypad (1 to 6) on the audio equipment can also be used to directly select the desired slot.
Do not insert a data storage device until prompted on the Audio/ COMAND display by a message, e.g. "Please insert disk 2". Once the data storage device is inserted, a message is shown in the Audio/COMAND display, e.g. "Disk 2 being loaded...".
The loading process can vary depending on the type of data storage device involved.
Once the data storage device is loaded, the display changes back to the "Cartridge menu". If a data storage device is not inserted, the display also changes after t = 20 s back to "Cartridge menu". A loaded data storage device is shown in the "Cartridge menu".
The "Fill up empty spaces" menu enables several data storage devices to be loaded one after the other. Do not insert a data storage device until prompted on the Audio/COMAND display by a message, e.g. "Please insert disk 3". The "audio equipment" then starts to load the empty DVD slots.
The data exchange between the "audio equipment" and the Audio/ COMAND display and the Audio/COMAND control panel takes place through the telematics CAN (CAN A). Video signals are sent over a low voltage differential signaling (LVDS) line to the Audio/ COMAND display.
Function sequence for ejecting data storage device
Pressing the load button on the audio equipment causes the Audio/COMAND display to show "Cartridge menu" and the last selected DVD slot in the changer.
Using the Audio/COMAND control panel the required slot can be selected by turning or pressing to the left or right, and confirmed by vertically pressing the Audio/COMAND control panel.
The telephone keypad (1 to 6) on the audio equipment can also be used to directly select the desired slot.
While the data storage device is ejected, a message appears in the Audio/COMAND display, e.g. "Disk 2 being ejected...". As soon as the data storage device appears in the drive slot, a message is shown, e.g. "Please remove disk 2".
Once the data storage device has been removed, the display changes back to the "Cartridge menu". If the data storage device is not removed, it is drawn in again and loaded.
The "Eject all" menu enables all the data storage devices to be removed one after the other.
As soon as the data storage device appears in the drive slot, a message appears, e.g. "Please remove Disk 3". Once the data storage device is removed from the drive slot, the next one is removed until the cartridge is empty.
An ejected data storage device is shown on the "Cartridge menu" as an empty slot.
The ejection procedure can be stopped at any time by pressing the load button on the "audio equipment" or the "Back" button (A40/9s2) of the Audio/COMAND control panel.
