AN54.65-P-0030-03EC Retrofit Backup Camera Wiring Harness

AN54.65-P-0030-03EC Retrofit Backup Camera Wiring Harness
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)

Special Tools:

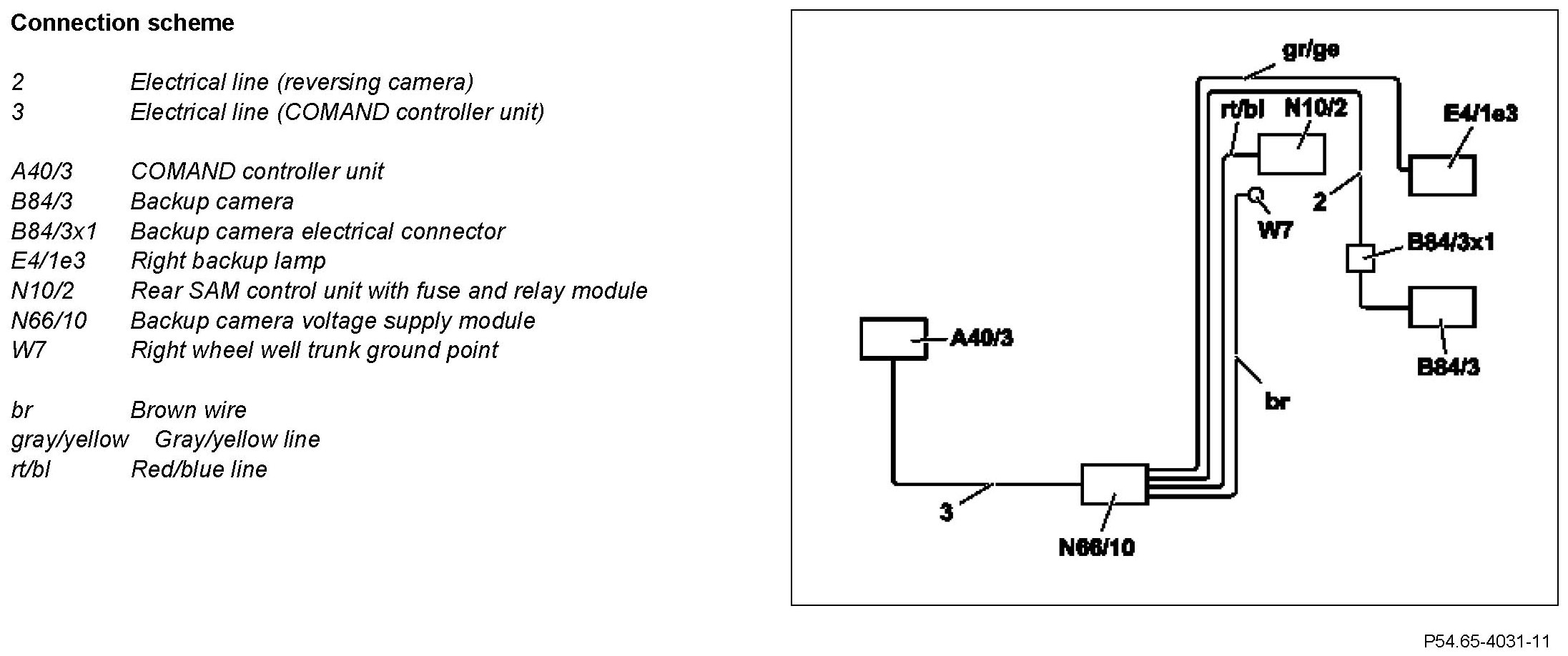

Component Identification:

Ensure that the wiring harnesses are not damaged by chafing or being trapped otherwise the appropriate wiring harness must be replaced.

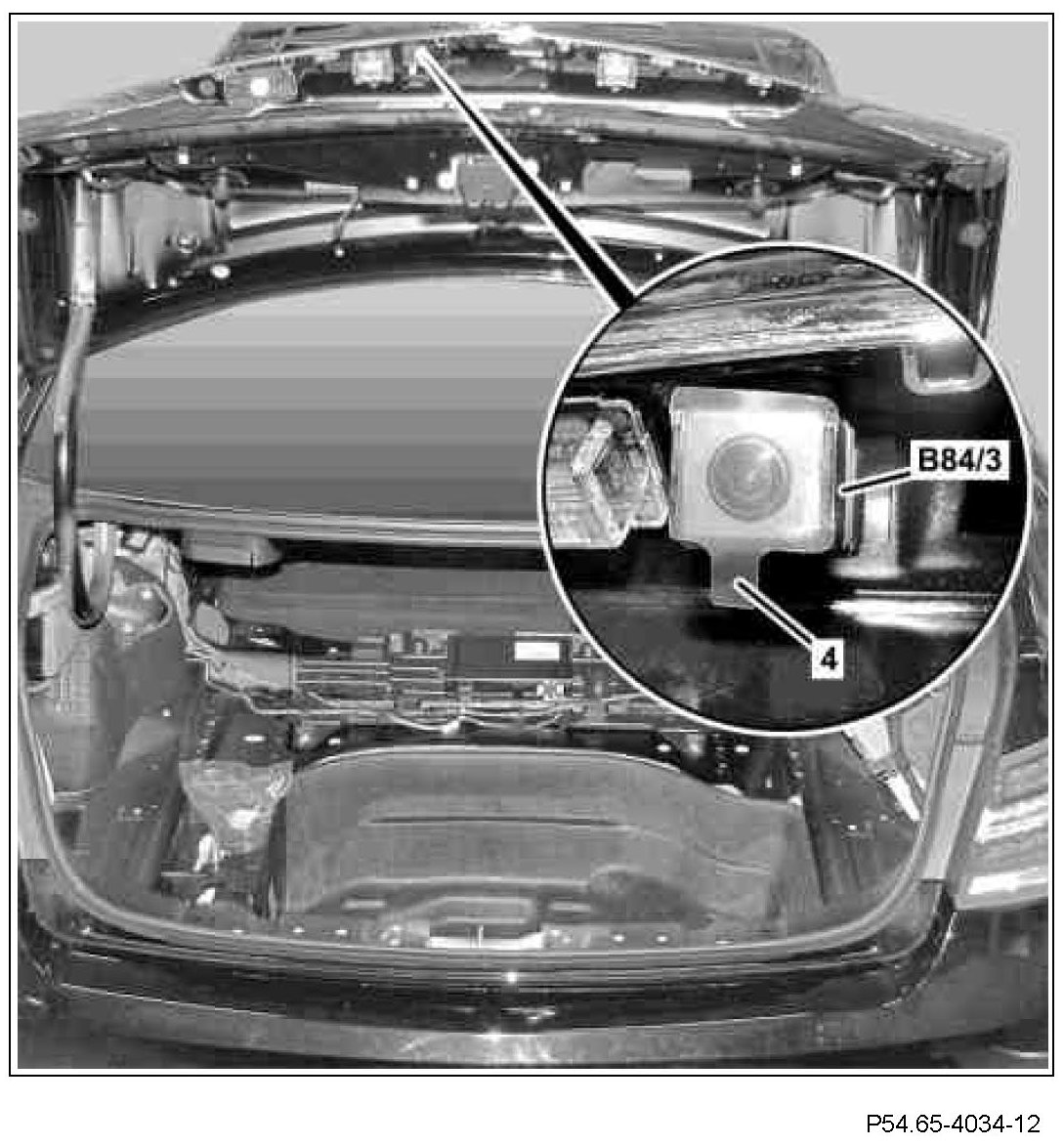

1. Clip reversing camera (B84/3), as shown, into the cutout in the trunk lid provided for this and detach protective foil (4).
Guide the electrical line through into the interior of the trunk lid.

2. Connect black 4-pin coupling and white 6-pin coupling to the reversing camera power supply module (N66/10).

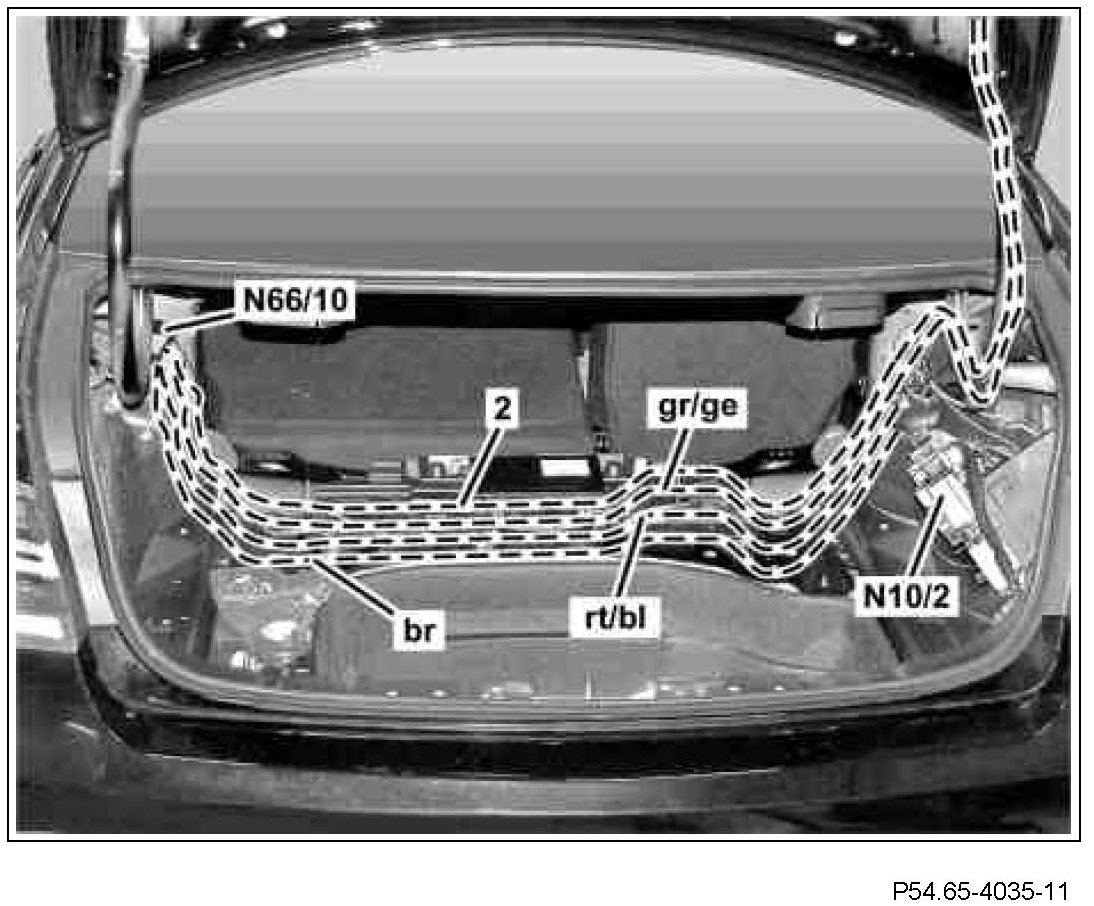

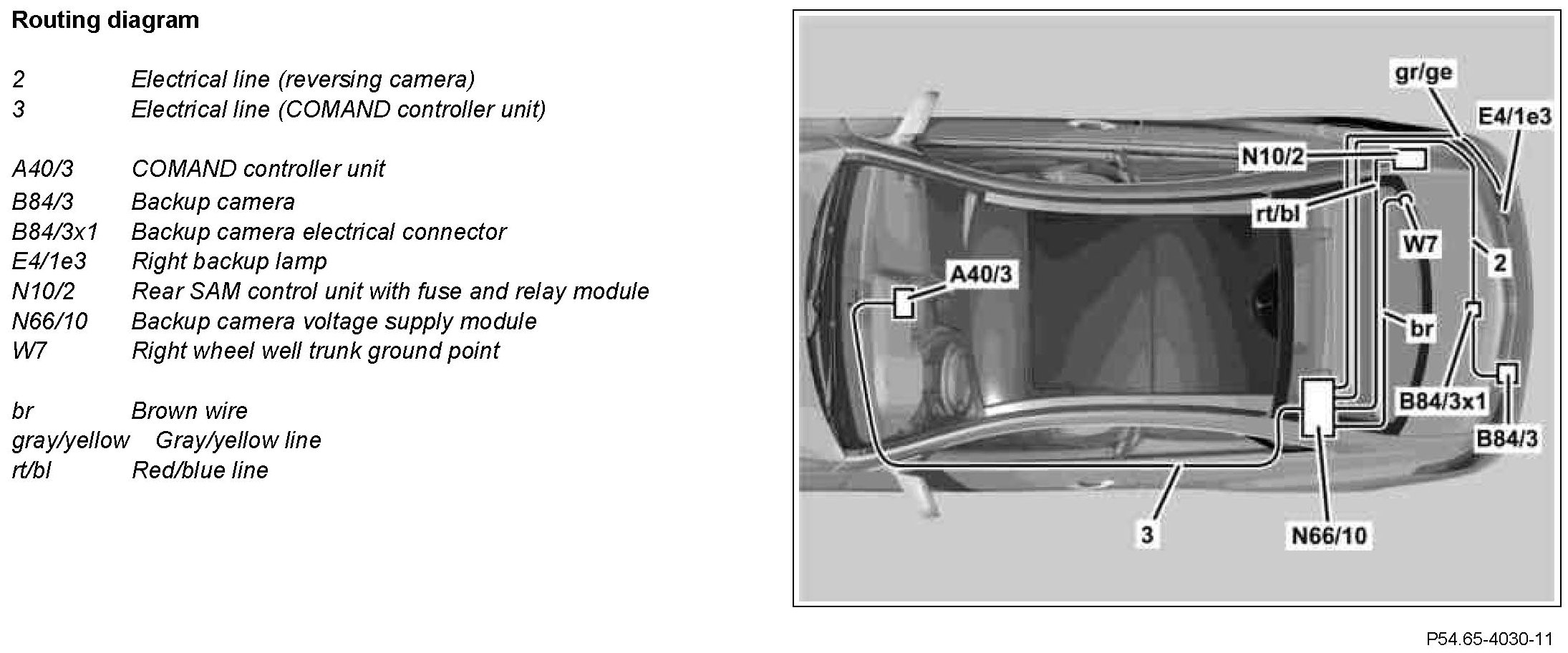

3. Route electrical line (2) and gray/yellow line (gr/yellow) along existing wiring harnesses to the right side of the trunk lid and fix in place with cable ties.
Observe wiring in the area of the trunk lid hinge. The gray/yellow line (gr/yellow) and the electrical line (2) must be routed with adequate clearance.
4. Route brown line (br) and red/blue line (rt/bl) along existing wiring harnesses to the rear SAM control unit with fuse and relay module (N10/2) and fix in place with cable ties.

5. Route electrical line (2), as shown, to the reversing camera and fix in place on existing wiring harnesses with cable ties.

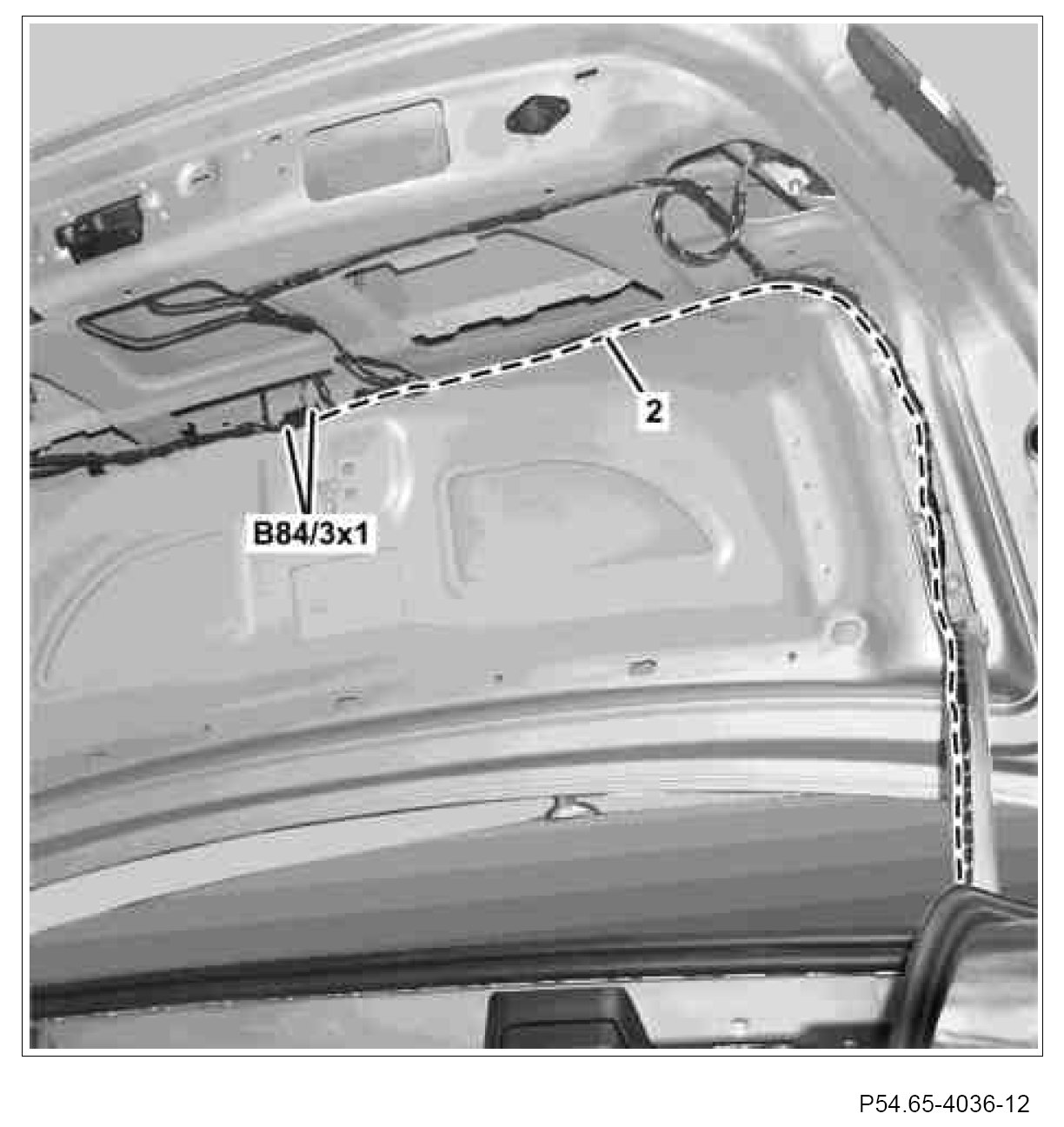

6. Make electrical connector for reversing camera (B84/3x1).
To do this, connect black 4-pin coupling of electrical line (2) and black 4-pin connector of reversing camera.

7. Route gray/yellow line (gray/yellow) along existing wiring harnesses to right backup lamp (E4/1e3) and fix in place with cable ties.

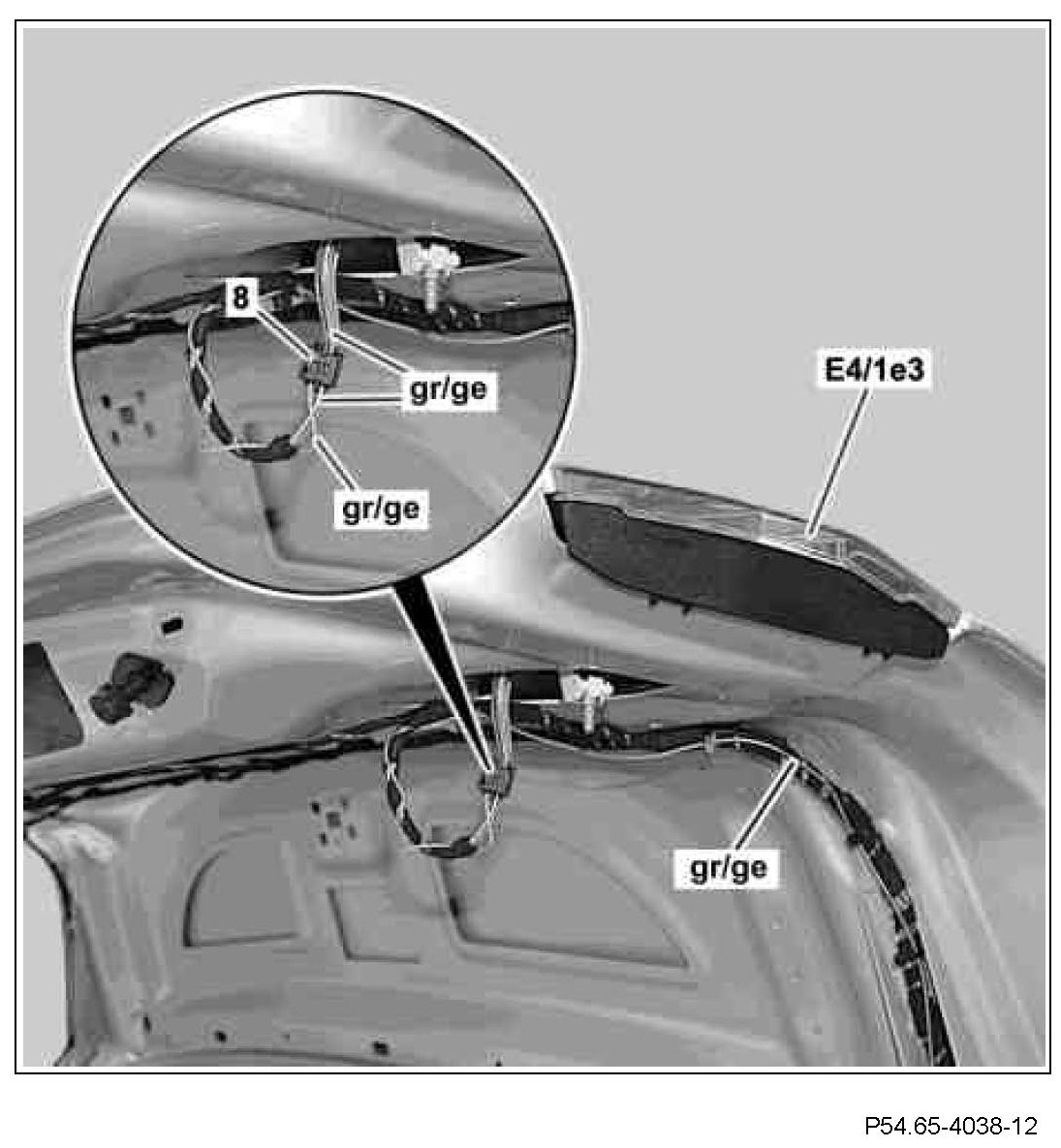

8. Connect gray/yellow line (gr/ge) of reversing camera wiring harness to the gray/yellow line (gr/yellow) of the right backup lamp (E4/1e3) by means of potential distributor (8).
The potential distributor (8) can be obtained from the wiring harness repair kit.
9. Wrap felt tape round potential distributor (8).

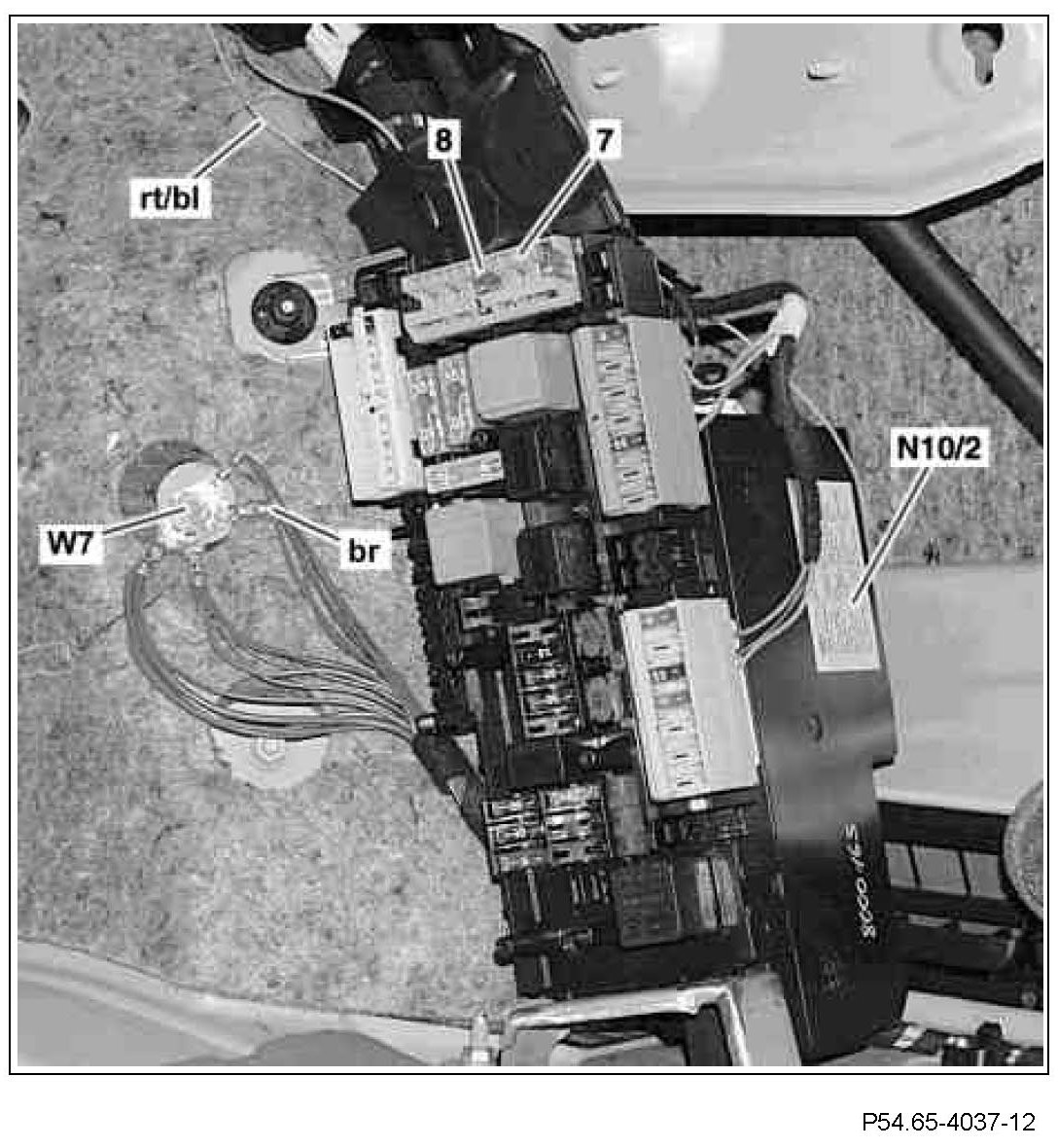

10. Remove green fuse carrier (7) from rear SAM control unit with fuse and relay module (N10/2).
11. Mount red/blue line (red/blue) in chamber 4 of green fuse carrier (7).
12. Check fuse assignment of green fuse carrier (7).
If necessary, replace fuse (8) or insert a fuse (8) with 7.5 amp(s).
13. Mount green fuse carrier (7) on the rear SAM control unit with fuse and relay module (N10/2).
14. Connect brown line (br) to the ground point of the right wheel arch (trunk) (W7).

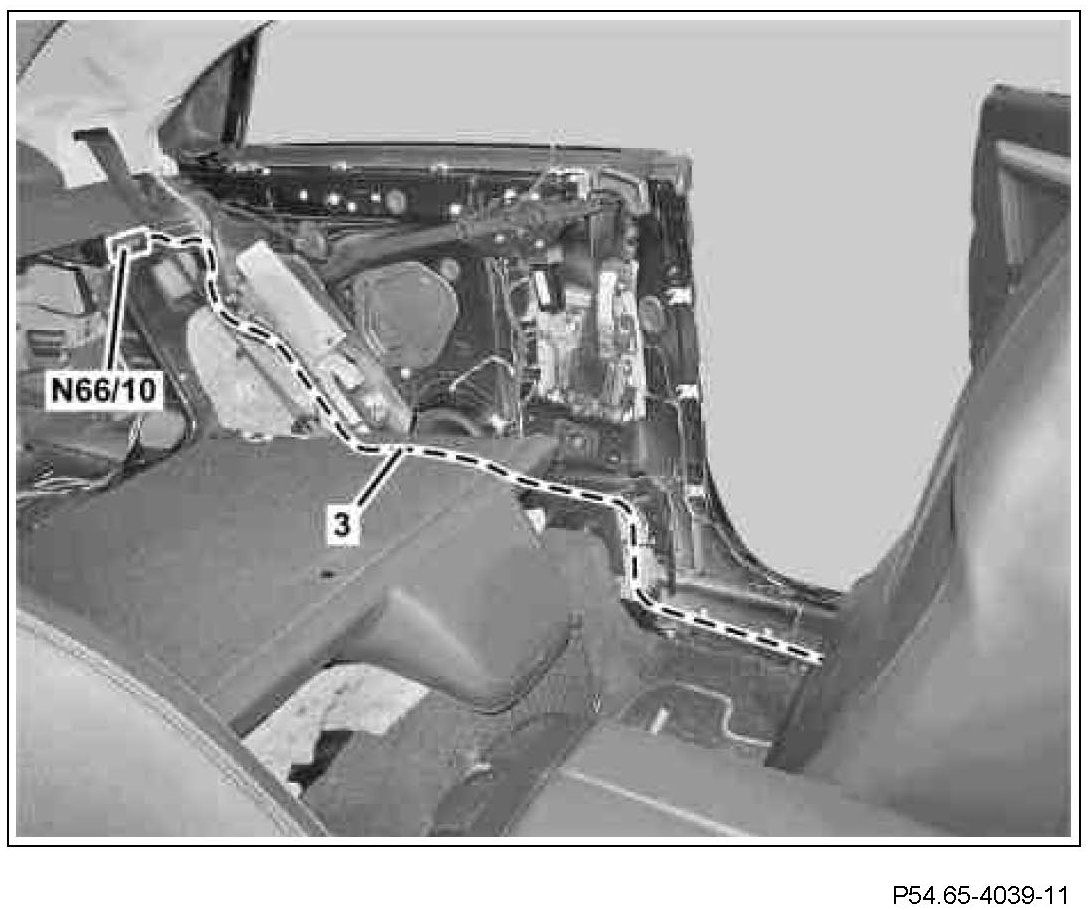

15. Starting from the trunk, route electrical line (3) from reversing camera power supply module (N66/10), in existing cable ducts along existing wiring harnesses to the A-pillar and fix in place.

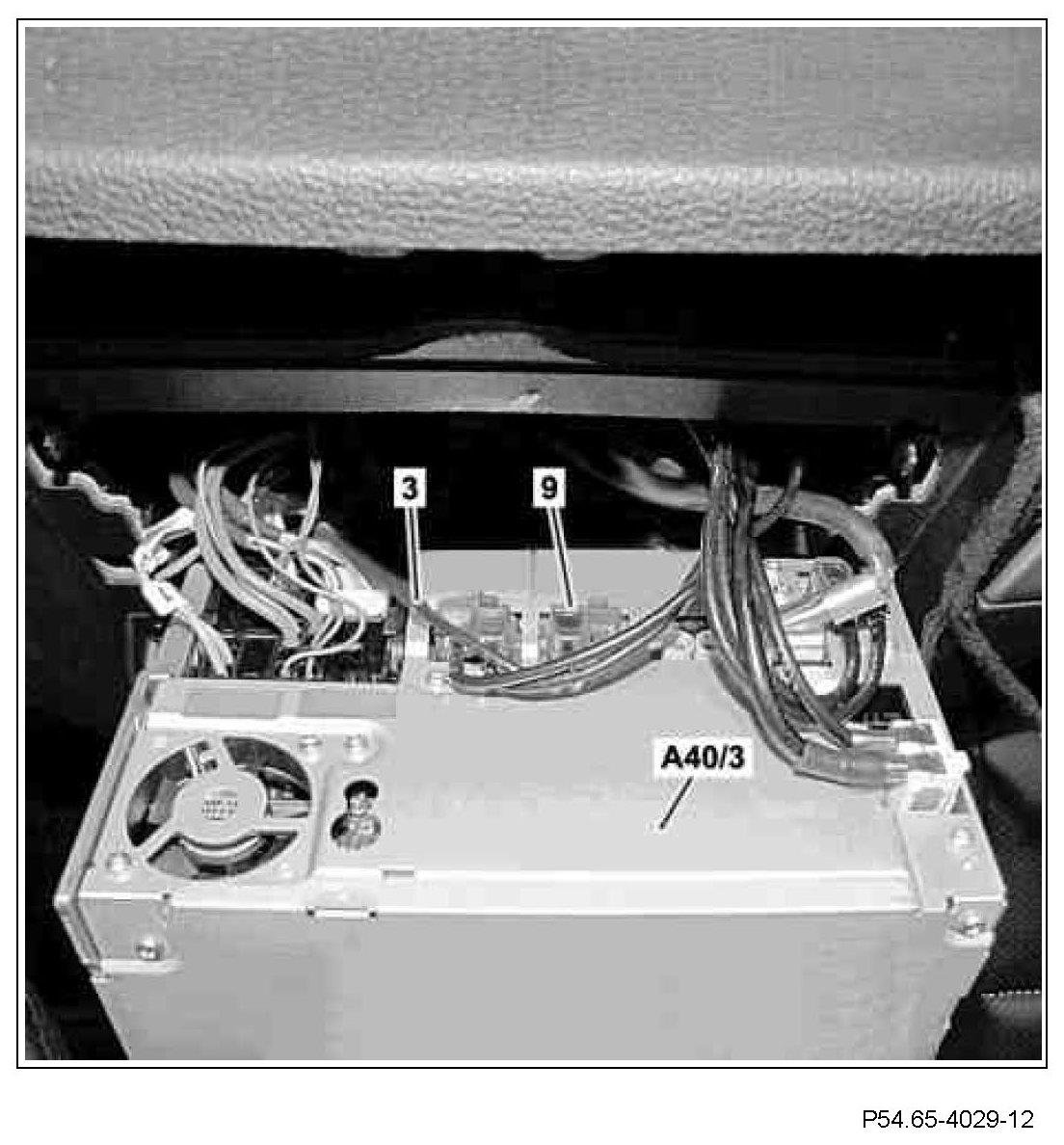

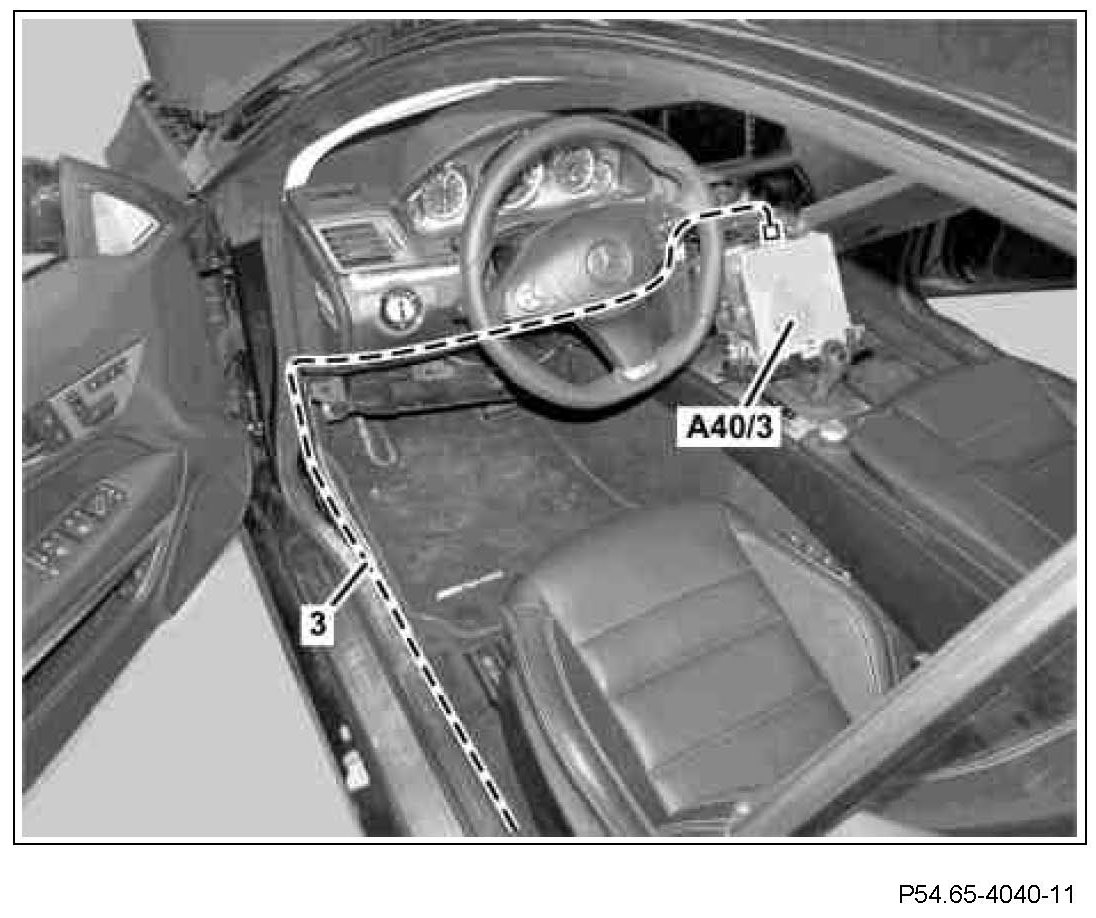

16. Route electrical line (3) from the A-pillar along existing wiring harnesses to the COMAND controller unit (A40/3) and fix in place.

17. Mount green 2-pin connector (9) of electrical line (3) on the green slot of the COMAND controller unit (A40/3).
