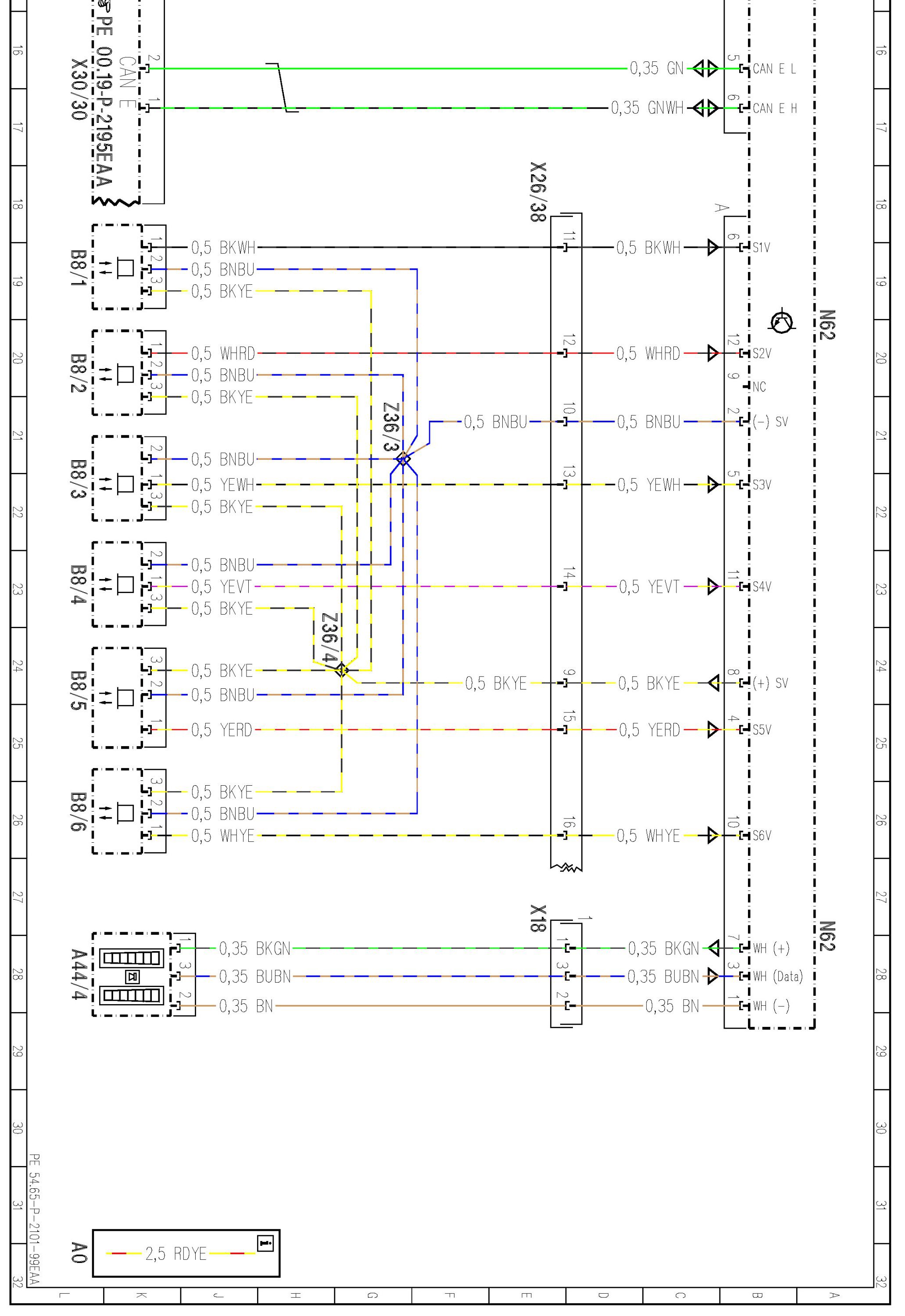

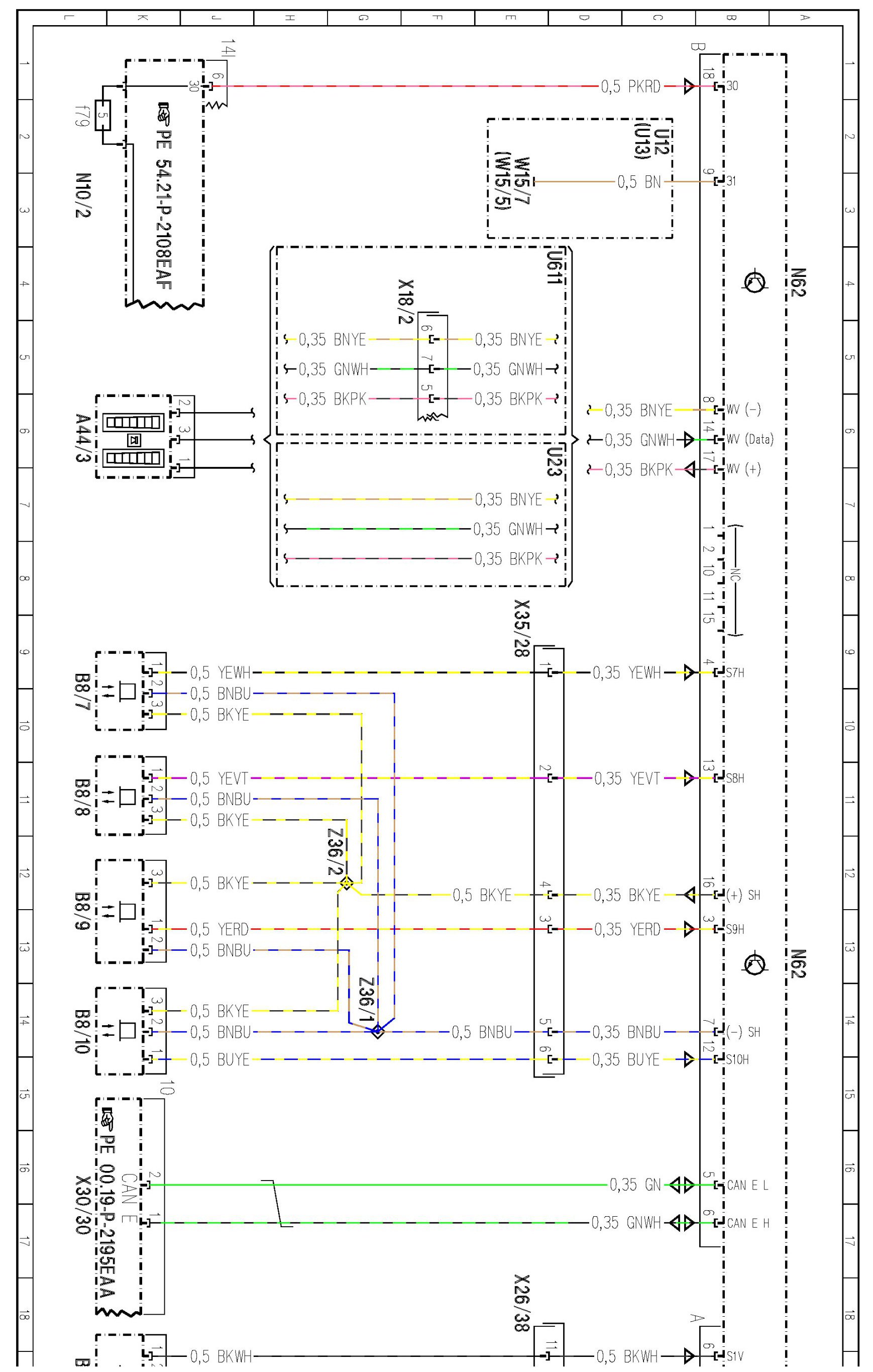

PE54.65-P-2101EAA Parktronic System (PTS) Control Unit

PE54.65-P-2101EAA Parktronic System (PTS) Control Unit

MODEL 207
- with CODE (230) Exclusive parking assist
- except CODE (498) Japan version

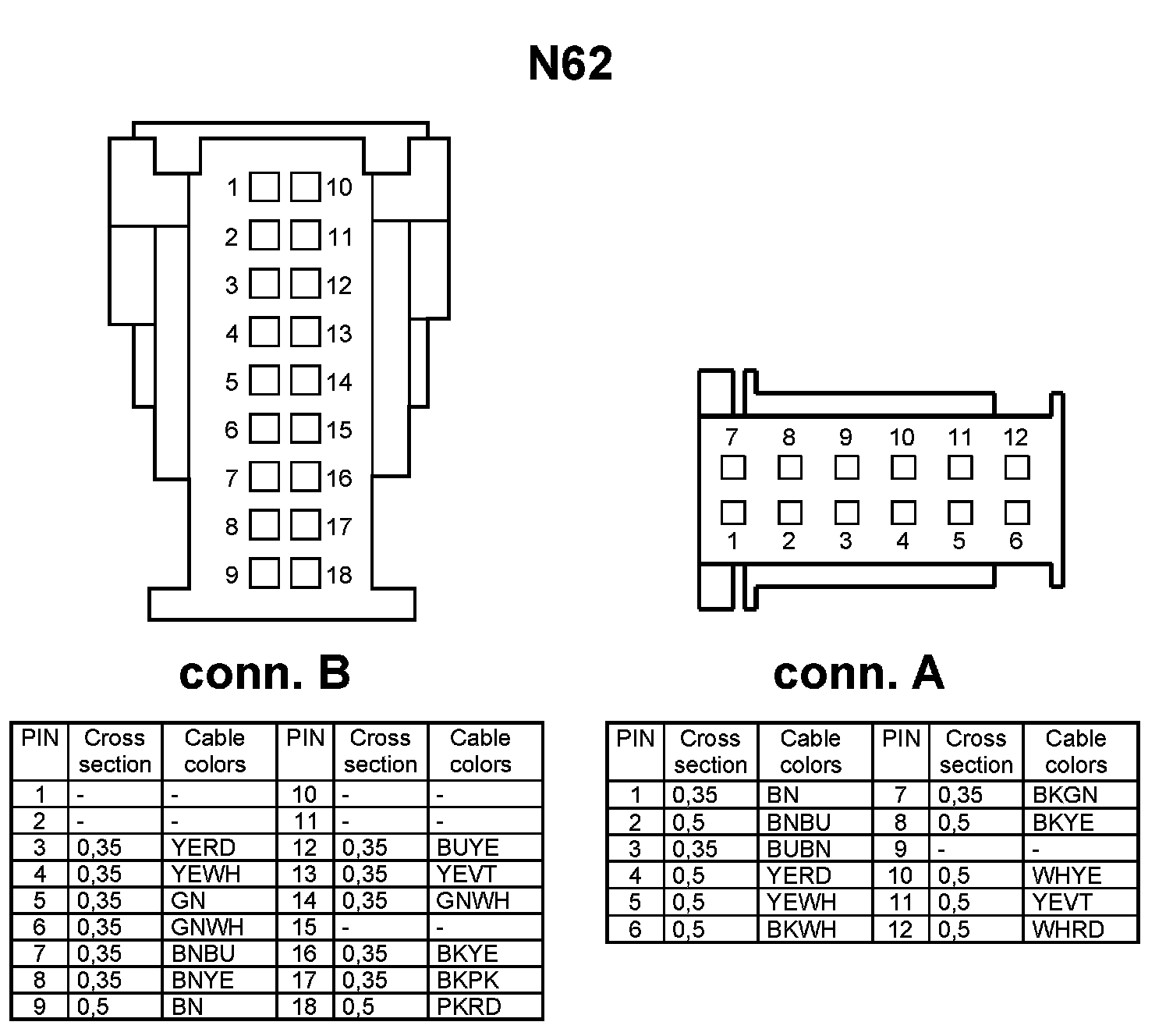

- control unit N62
MODEL 207
- with CODE (220) PARKTRONIC
- with CODE (498) Japan version
- control unit N62


























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
