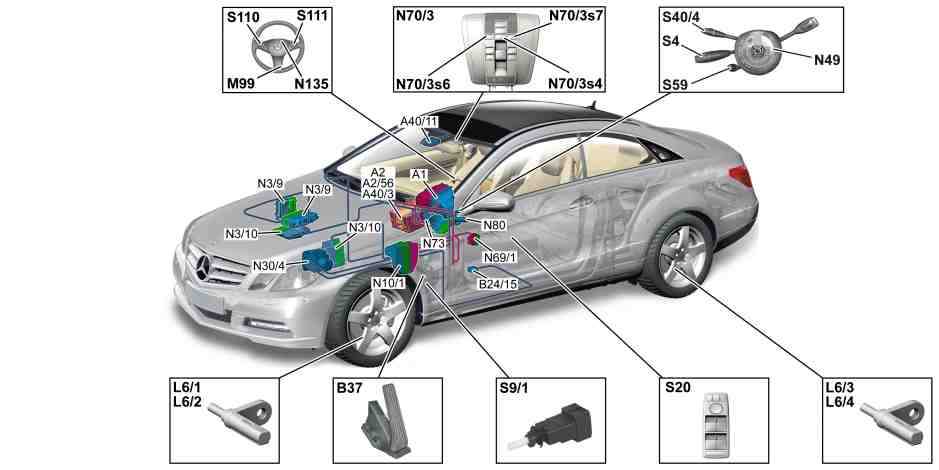

GF54.71-P-0002-01CA Automatic Lane Recognition, Location of Components

GF54.71-P-0002-01CA Automatic Lane Recognition, Location of Components
- with CODE (476) Automatic lane recognition





Illustrated on model 207.3
A1 Instrument cluster
A2 Radio (with code (523) MB Audio 20 radio or code (510) Audio 20 with CD changer)
A2/56 Radio with auto pilot system (with code (525) MB Audio 50 APS radio or code (511) Audio 50 APS with DVD changer)
A40/3 COMAND controller unit (with code (512) COMAND APS with DVD changer or code (527 COMAND APS with single DVD drive (with navigation) or code (528) COMAND with DVD changer)
A40/11 Multifunction camera
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
B37 Accelerator pedal sensor
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
M99 Steering wheel vibration motor
N3/9 CDI control unit (diesel engine, with engine 642 positioned on right, with engine 651 positioned at center)
N3/10 ME-SFI [ME] control unit (gasoline engine, on engine 271, 276 located on left, on engine 272, 273, 278 located centrally)
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit
N49 Steering angle sensor
N69/1 Left front door control unit
N70/3 Overhead control panel electronics
N70/3s4 Front dome lamp switch
N70/3s6 Left front reading lamp switch
N70/3s7 Right front reading lamp switch
N73 Electronic ignition switch control unit
N80 Steering column module control unit
N135 Steering wheel electronics
S4 Combination switch
S9/1 Stop lamp switch
S20 Driver-side power window and outside mirror adjustment switch group
S40/4 Cruise control lever
S59 Steering column adjustment switch (with code (275) Memory package for electrically adjustable front seats)
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
