AZ82.85-P-0004-04EC Retrofit Universal Media Interface Control Unit

AZ82.85-P-0004-04EC Retrofit Universal Media Interface Control Unit

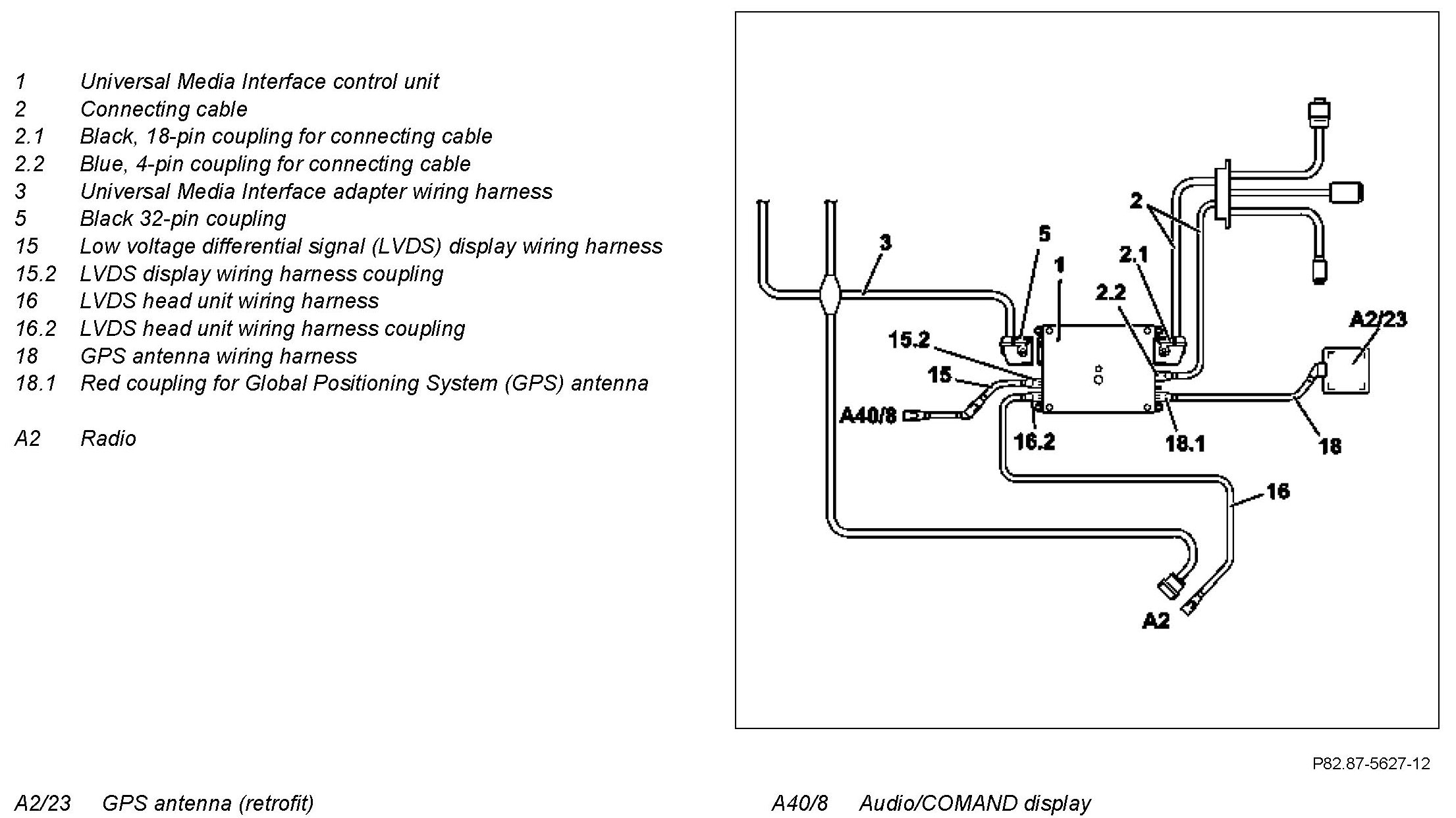

Universal Media Interface (1) control unit wiring diagram

Component Identification:

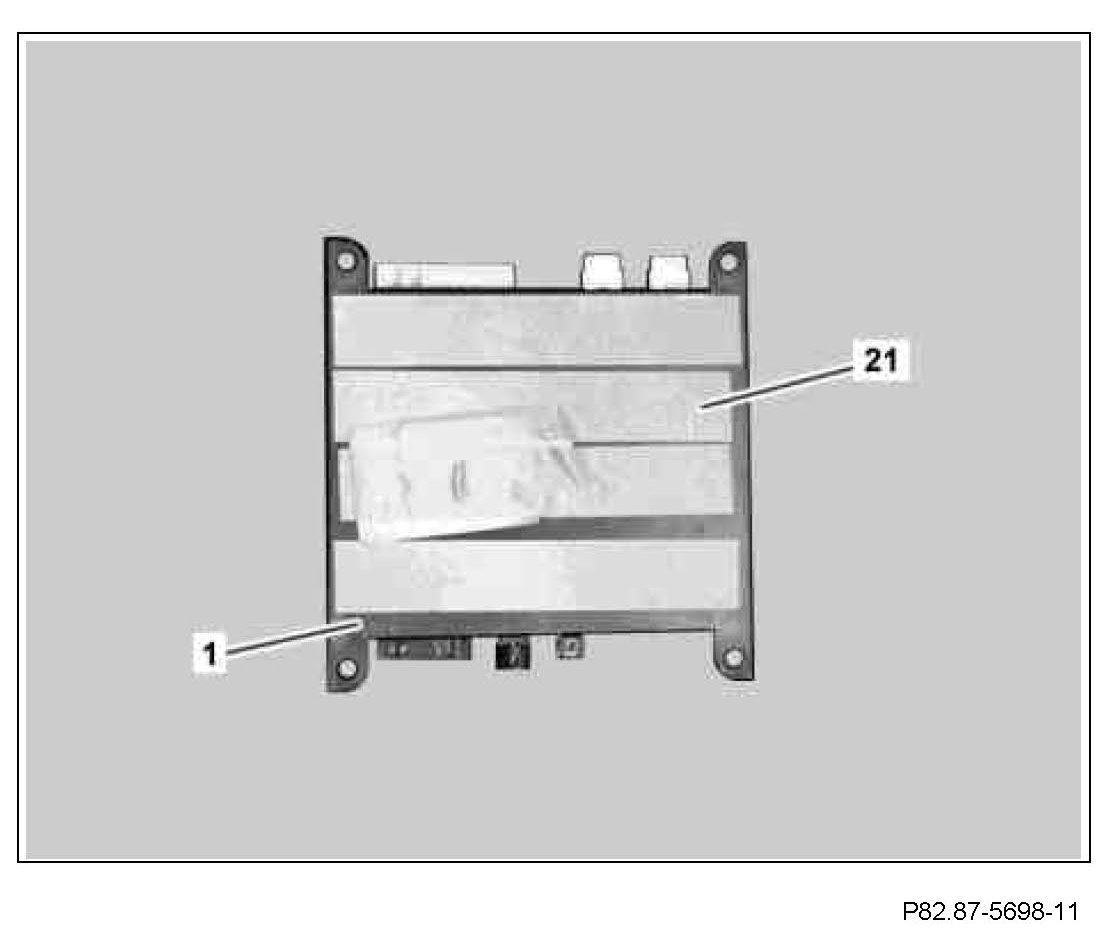

1 Attach the double-sided adhesive tape (21) included in the package contents, as shown, onto the Universal Media Interface control unit (1).

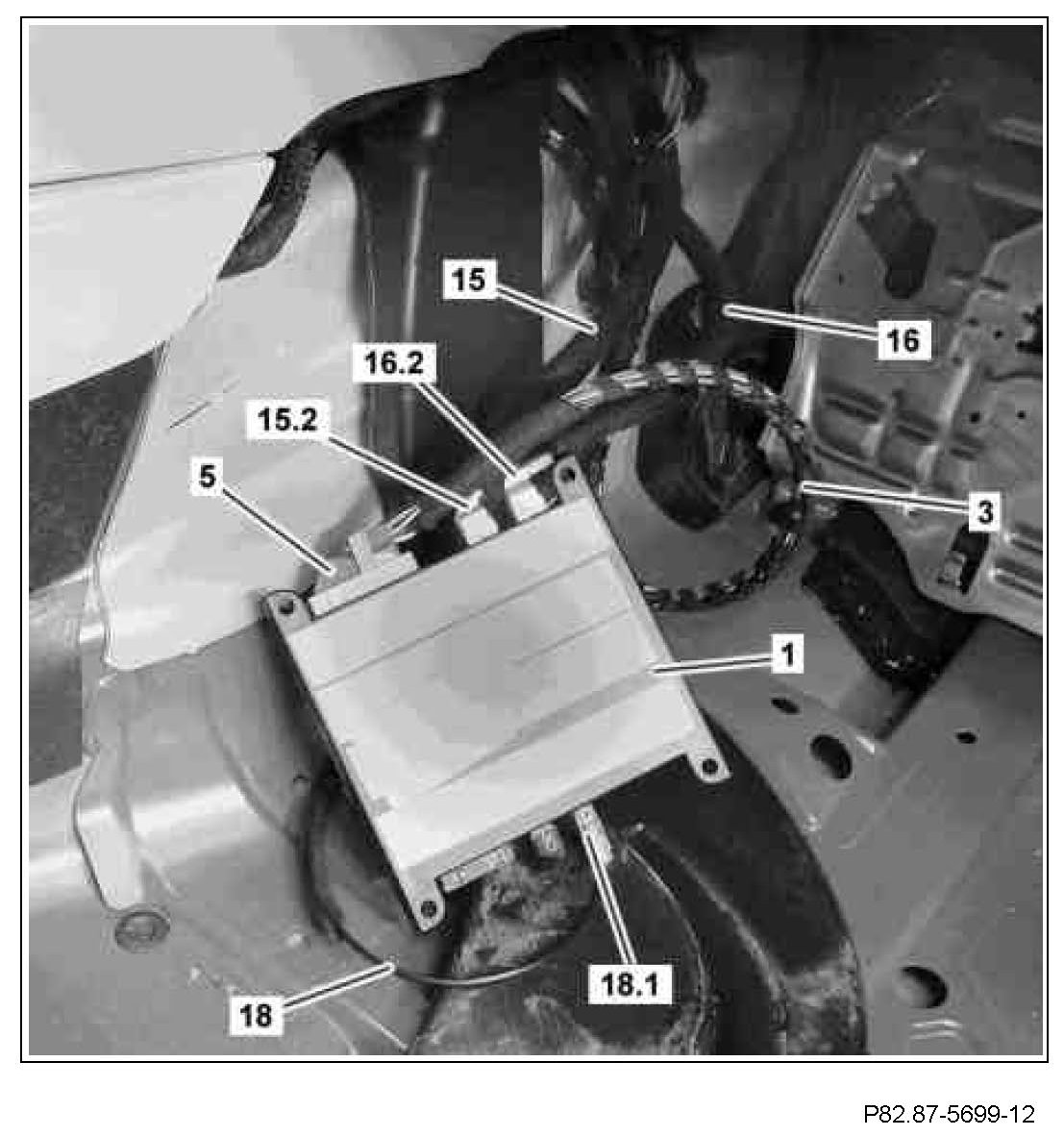

2 Connect black, 32-pin coupling (5) of Universal Media Interface adapter wiring harness (3) and red coupling for GPS antenna (18.1) for GPS antenna wiring harness (18), as shown, onto the Universal Media Interface control unit (1).
3 Connect coupling for LVDS display wiring harness (15.2) of LVDS display wiring harness (15) and coupling for LVDS head unit wiring harness (16.2) of LVDS head unit wiring harness (16), as shown, to the Universal Media Interface control unit (1).







4 Attach Universal Media Interface control unit (1), as shown, into front passenger footwell.

The Universal Media Interface control unit (1) must be fixed and aligned such that any clattering is ruled out and the installation of the floor covering is not impeded.

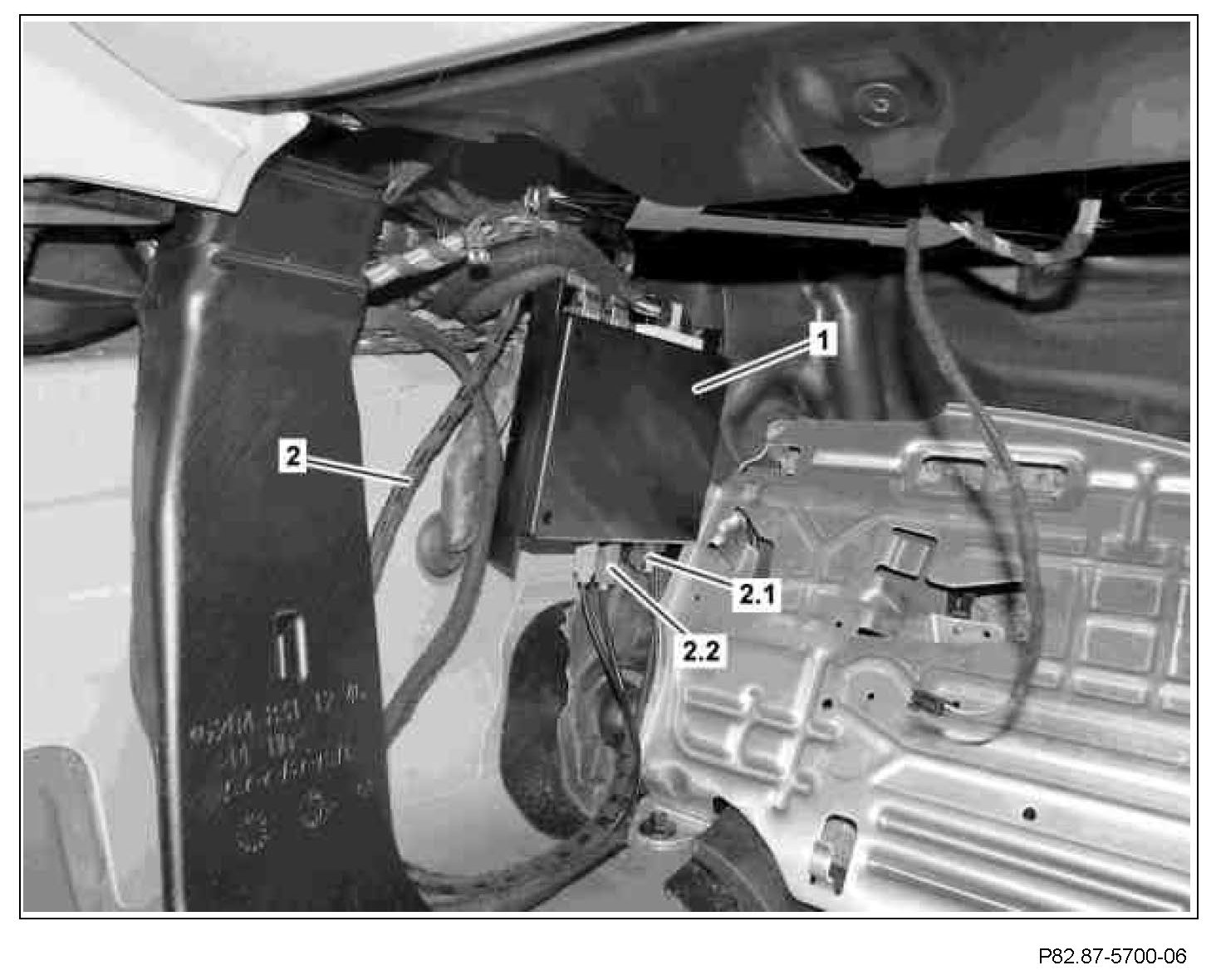

5 Connect blue, 4-pin coupling for connecting cable (2.2) and black, 18-pin coupling for connecting cable (2.1) of connecting cable (2) to Universal Media Interface control unit (1).
6 Route and attach all wiring harnesses connected to the Universal Media Interface control unit (1) so that the installation of the floor covering is not impeded.
