AZ82.85-P-0004-02EC Retrofit Universal Media Interface Adapter Wiring Harness

AZ82.85-P-0004-02EC Retrofit Universal Media Interface Adapter Wiring Harness

Special Tools:

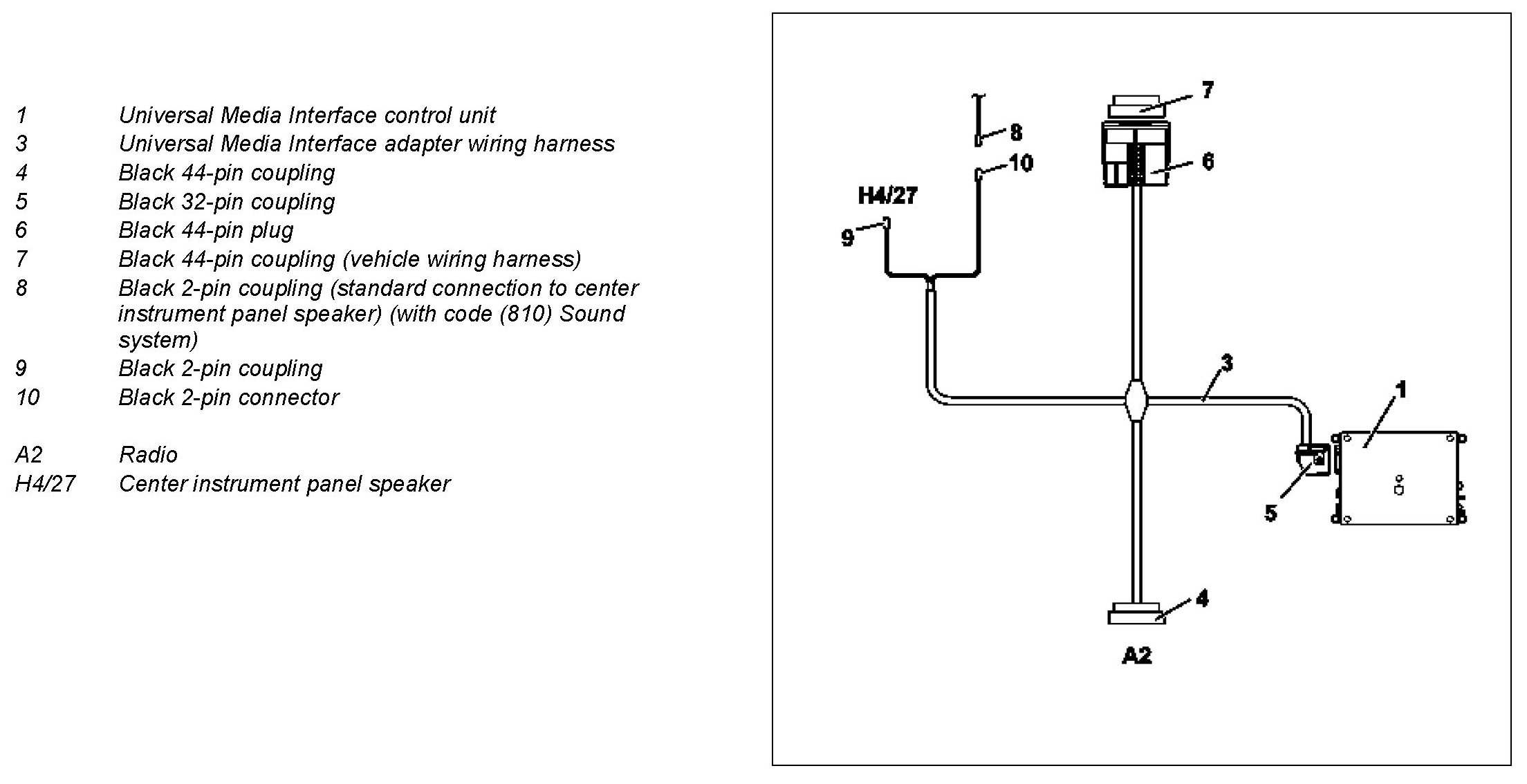

Connection scheme Universal Media Interface adapter wiring harness (3)

Component Identification:

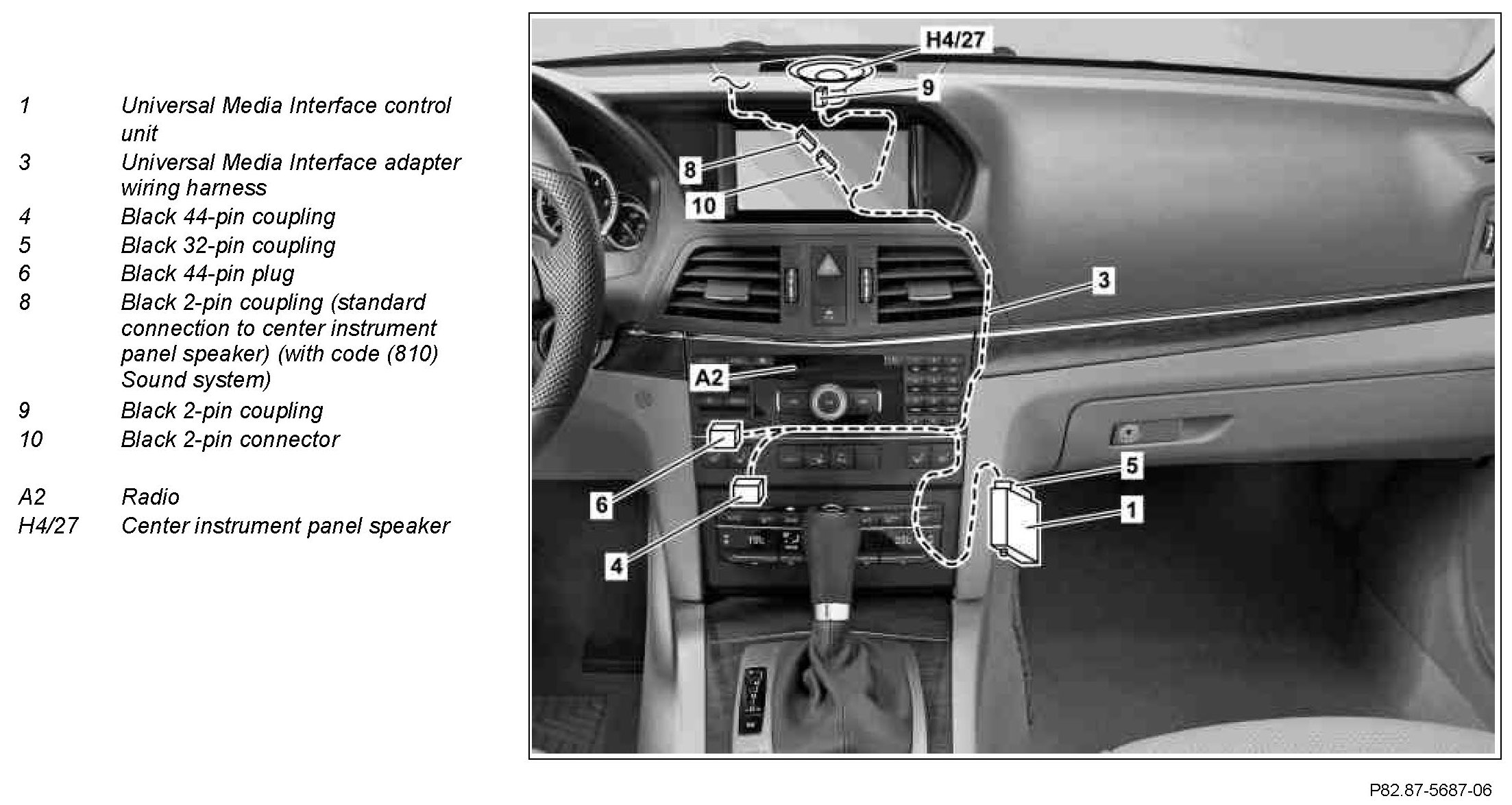

Connection scheme Universal Media Interface adapter wiring harness (3)

Component Identification:

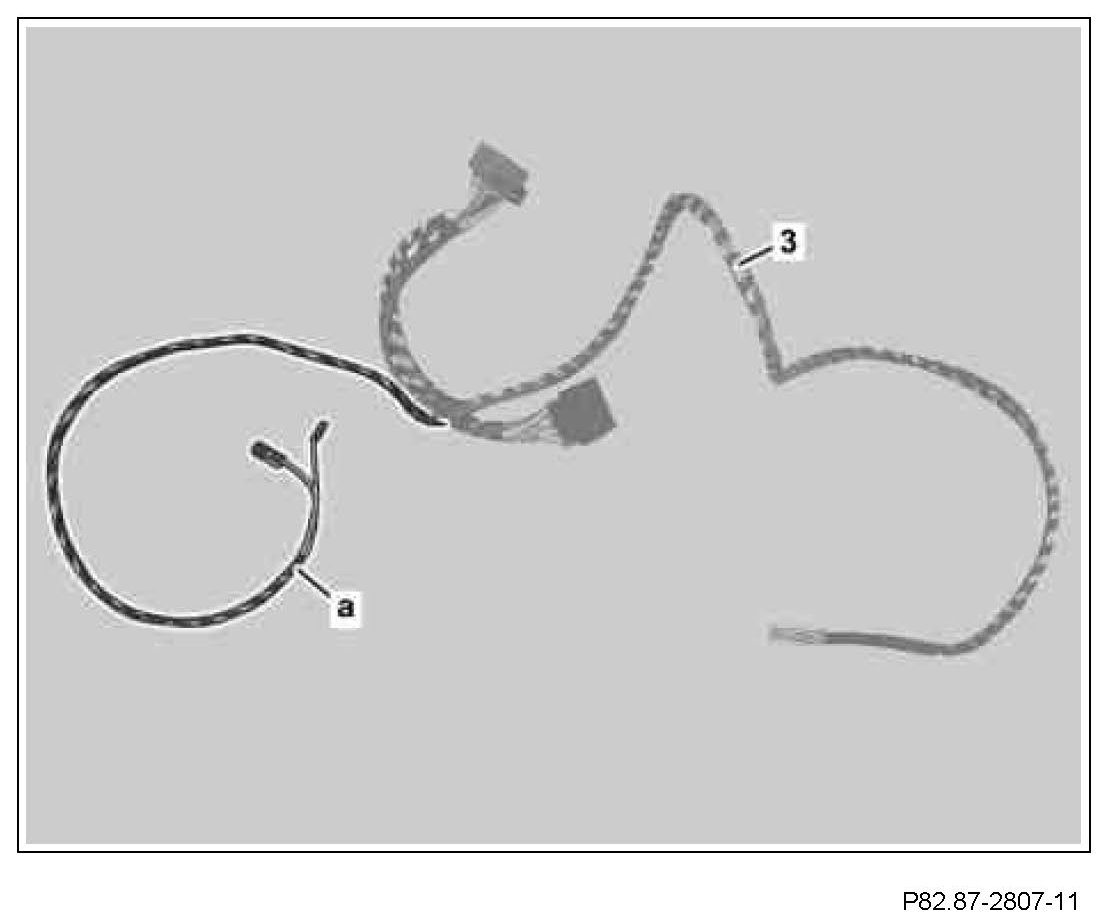

1 Wrap felt tape around branch-off line of center instrument panel speaker (a) of the Universal Media Interface adapter wiring harness (3).

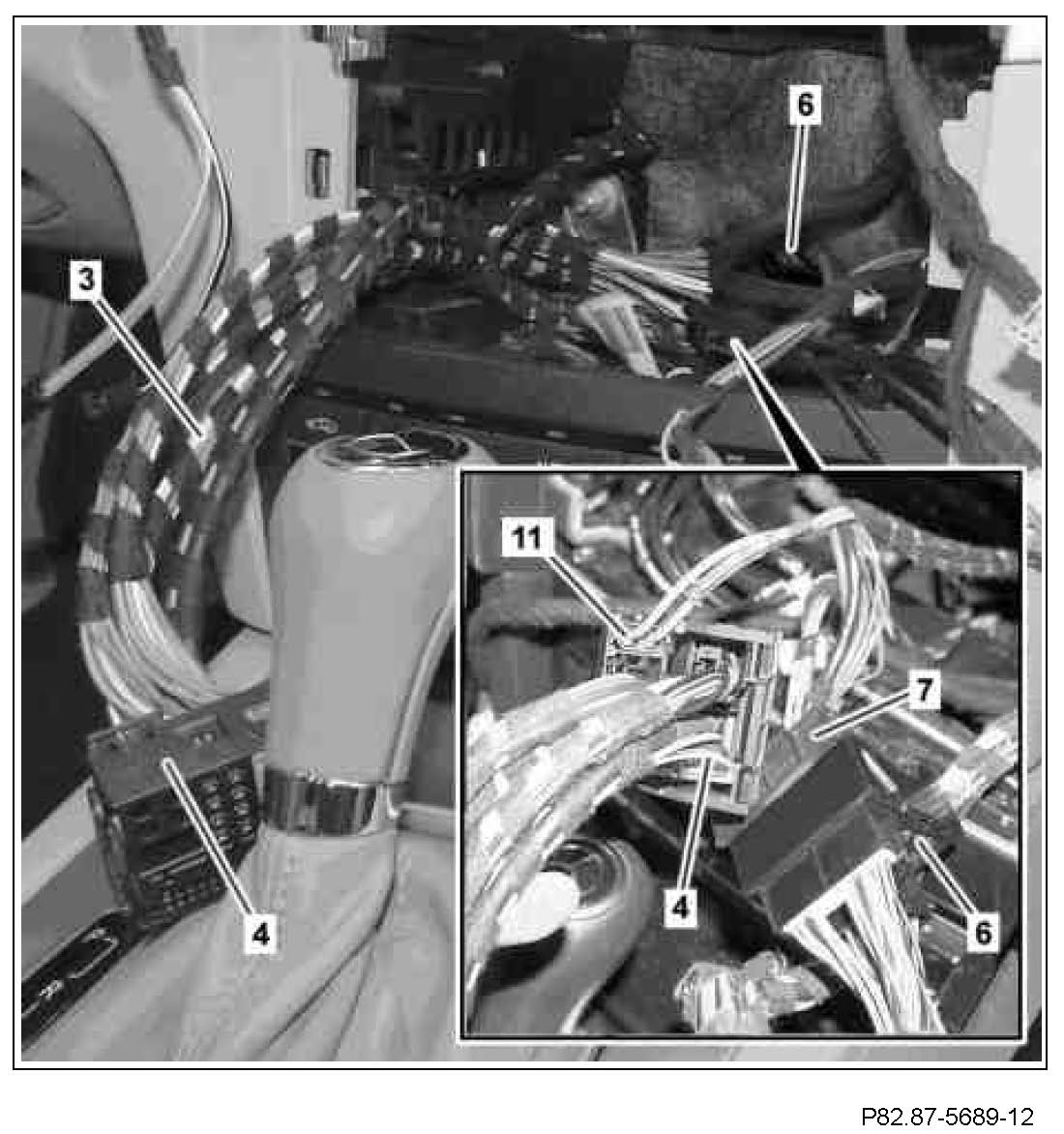

2 Connect black 44-pin plug (6) of Universal Media Interface adapter wiring harness (3) to black 44-pin coupling (7) of vehicle wiring harness.
3 Remove black, 2-pin coupling for optical fiber (11) from black, 44-pin coupling (7), and install in black, 44-pin coupling (4).

Only for vehicles with one of the following codes:
- Code (518) Media interface
- code (537) Digital radio
- Code (810) Sound system

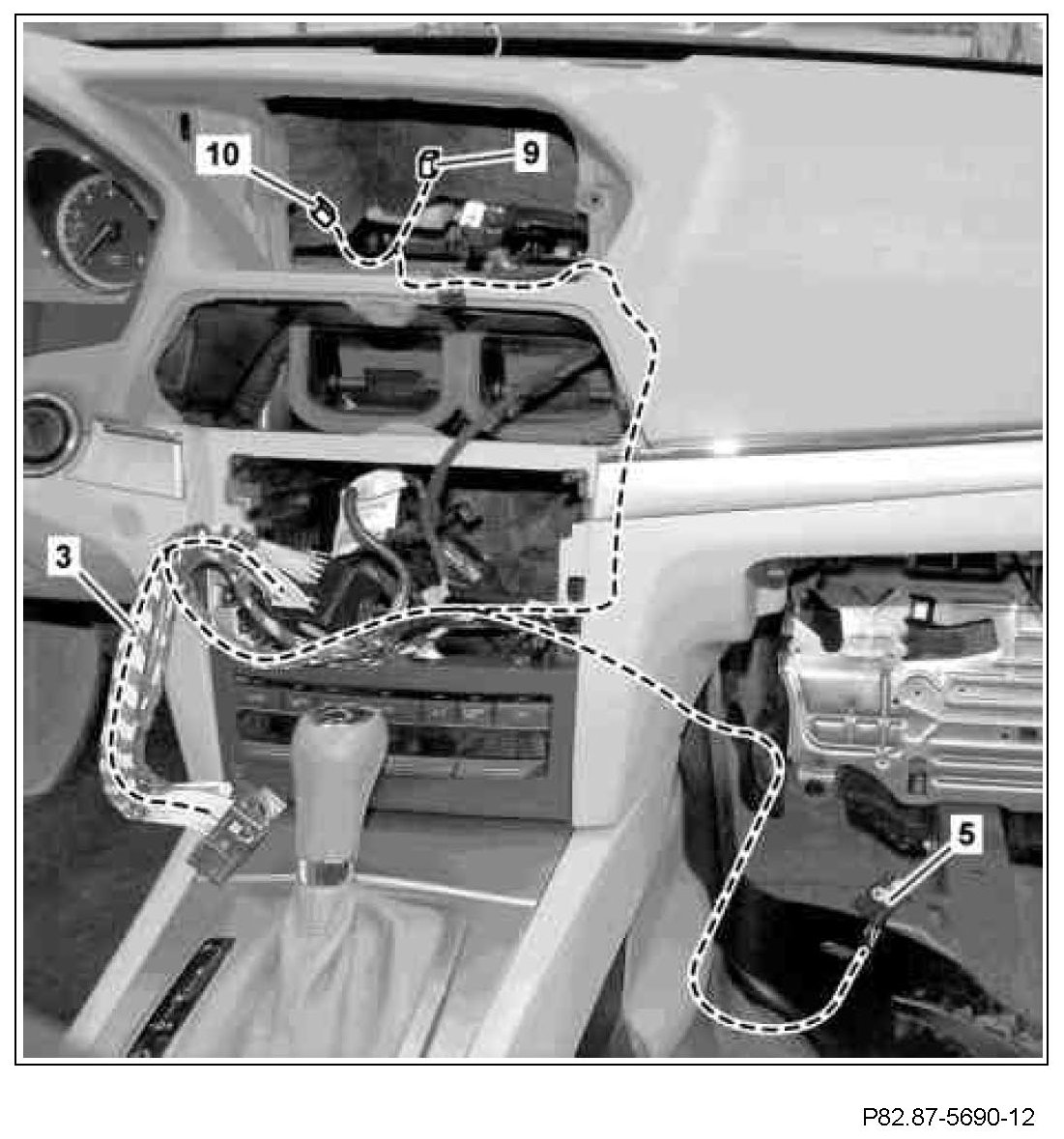

4 Route Universal Media Interface adapter wiring harness (3) to left lower radio recess.







The black, 44-pin coupling (4) is connected to the radio at a later stage. The Universal Media Interface adapter wiring harness (3) obstructs the installation of the radio because of its size.
The radio can only be installed if the Universal Media Interface adapter wiring harness (3) is as low down as possible in the rear area of the automatic air conditioning control and operating unit.

5 Route black, 32-pin coupling (5) of Universal Media Interface adapter wiring harness (3) into the front passenger footwell.

The black, 32-pin coupling (5) is connected to the Universal Media Interface control unit at a later stage.

6 Route black, 2-pin plug (10) and black, 2-pin coupling (9) of Universal Media Interface adapter wiring harness (3), as shown, through the cable duct of the Low Voltage Differential Signal (LVDS) display wiring harness to the installation location of the center instrument panel speaker.

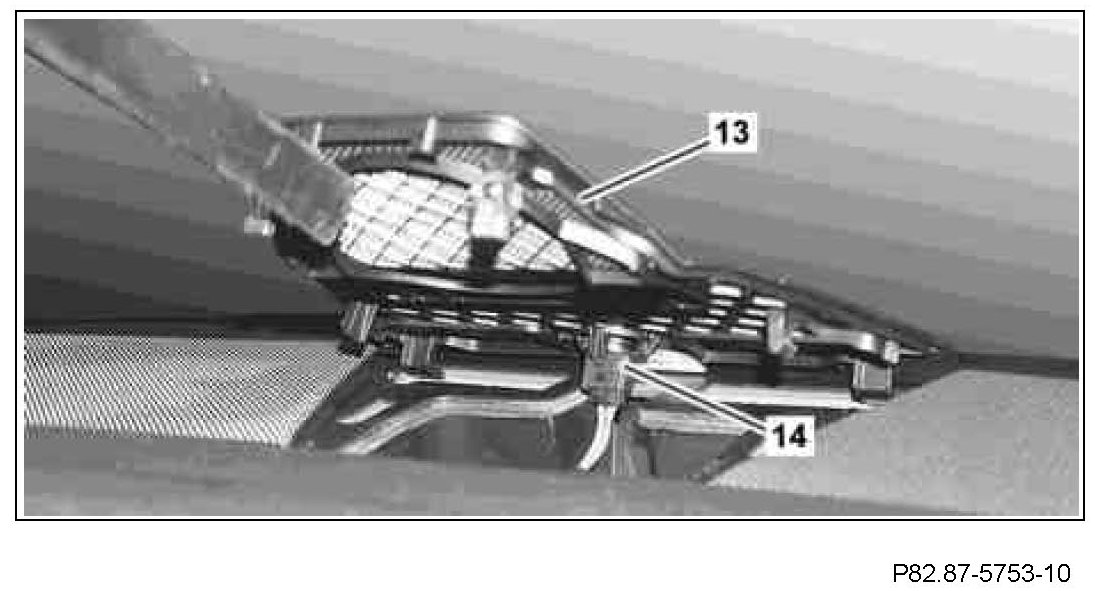

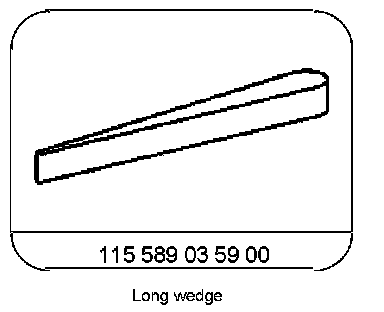

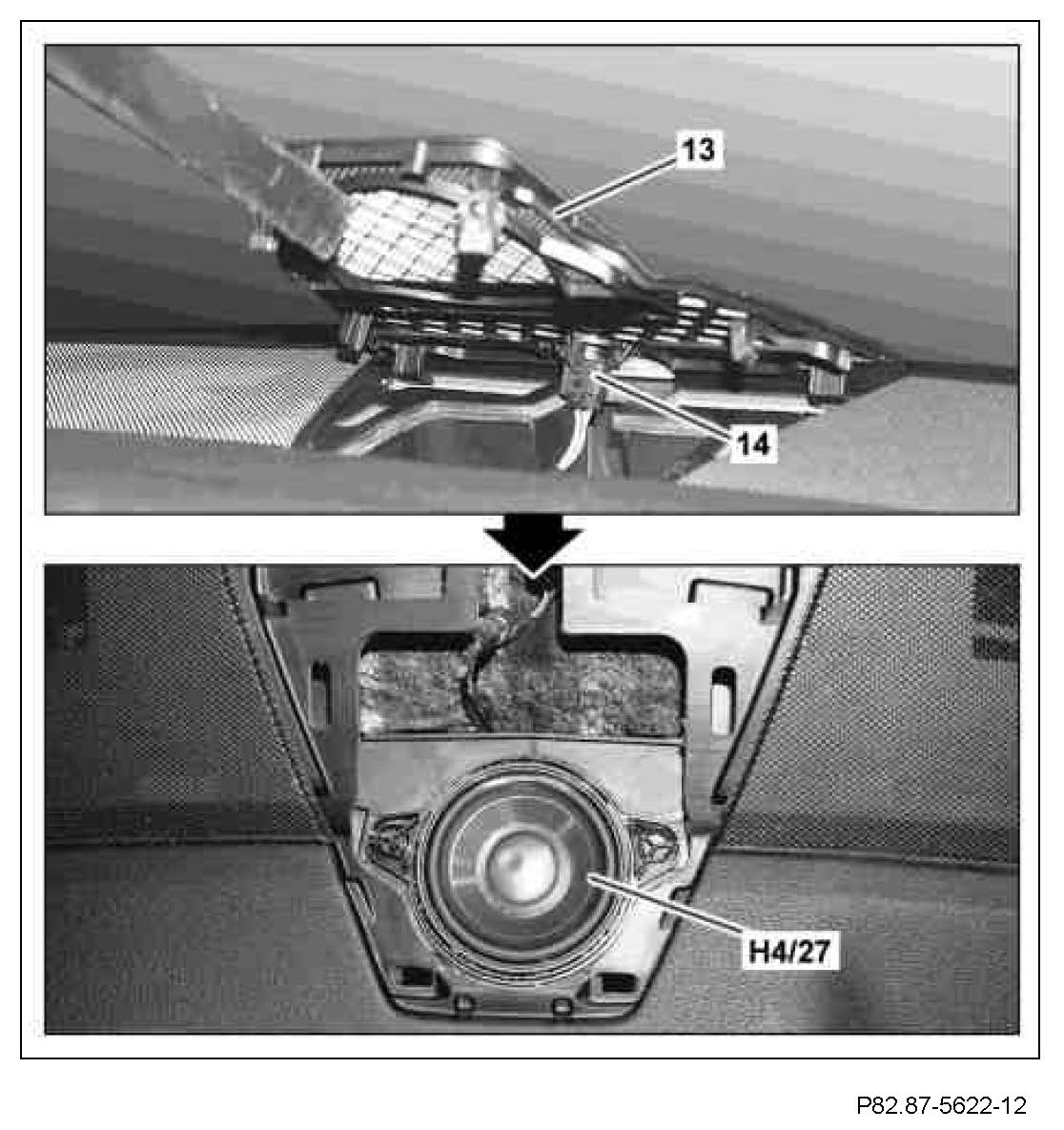

7 Use long wedge to carefully unclip cover (13) until the black, 3-pin coupling (14) is accessible.
8 Remove cover (13).
9 Unclip center instrument panel speaker (H4/27)

On vehicles with code (810) Sound system.

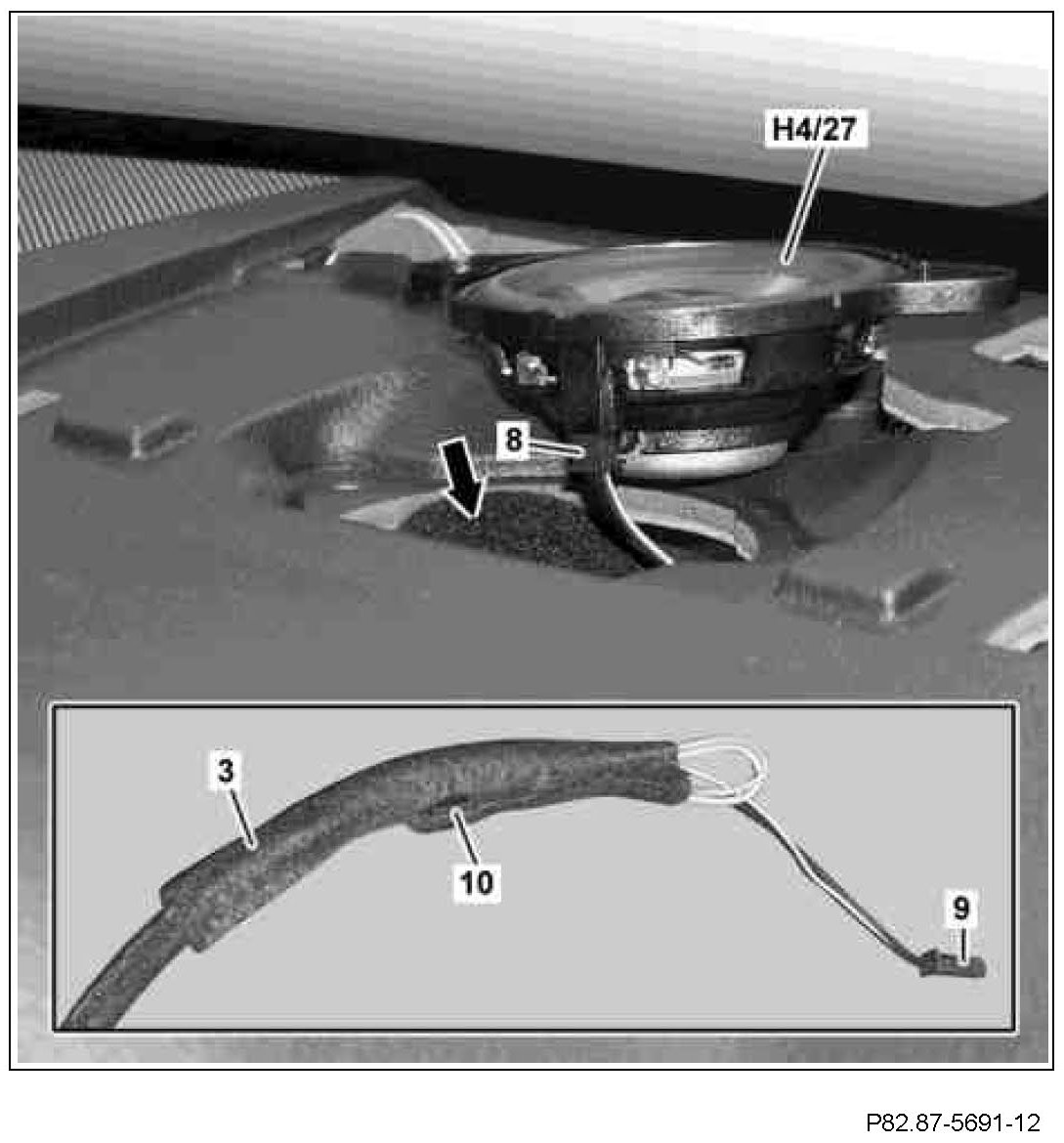

10 Detach black, 2-pin coupling (8) from center instrument panel speaker (H4/27).

On vehicles with code (810) Sound system.

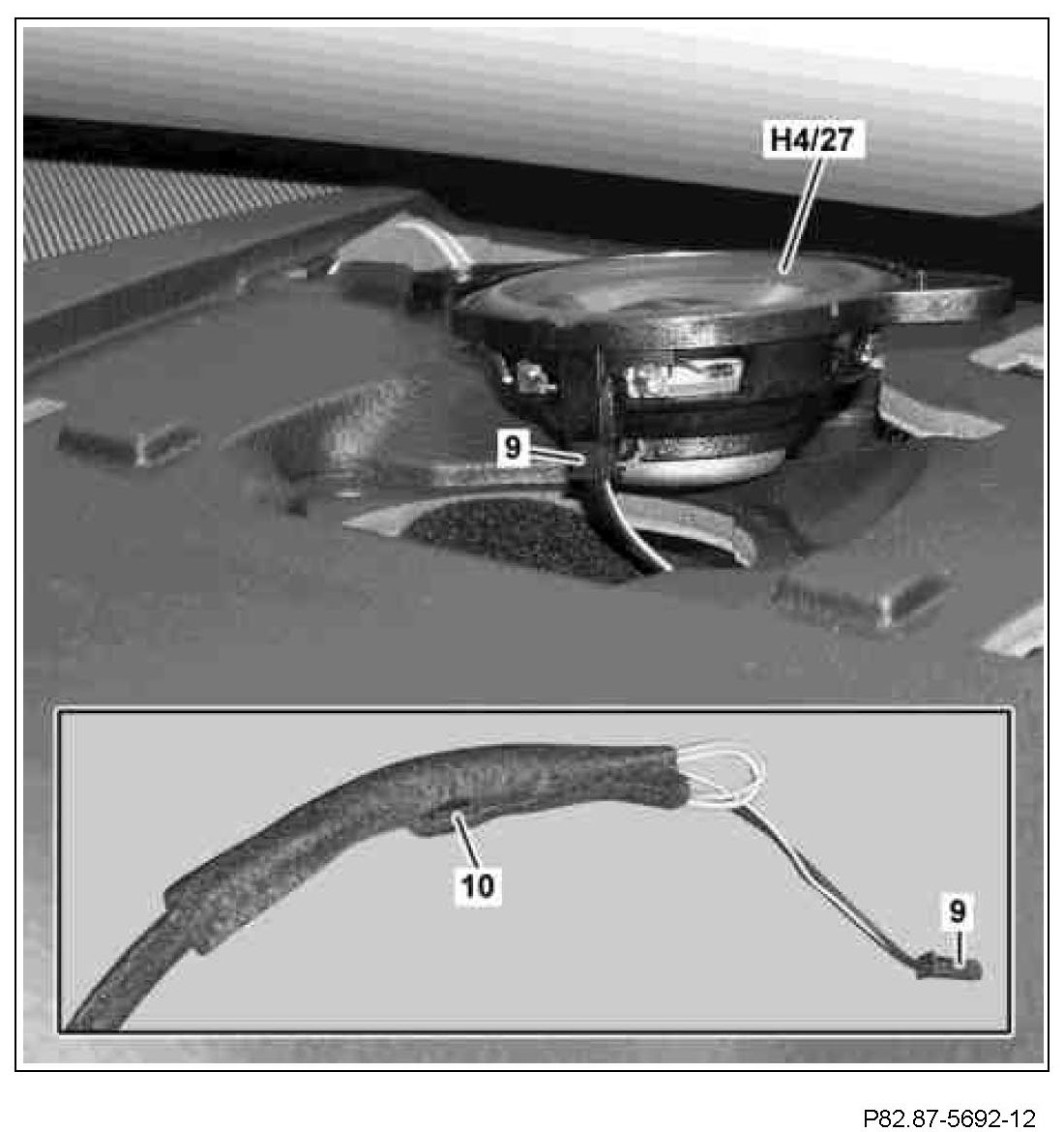

11 Route black 2-pin plug (10) and black 2-pin coupling (9) of Universal Media Interface adapter wiring harness (3) out of opening (arrow) at the instrument panel.
12.1 Connect black 2-pin plug (10) to black 2-pin coupling (8) of vehicle wiring harness.

On vehicles with code (810) Sound system.

12.2 Strap down black 2-pin plug (10) to branch-off line of Universal Media Interface adapter wiring harness (3) and wrap with felt tape.

In vehicles without code (810) Sound system.







13 Connect black 2-pin coupling (9) to center instrument panel speaker (H4/27).
14 Clip in center instrument panel speaker (H4/27)







15 Connect black, 3-pin coupling (14) to the sun sensor.
16 Carefully clip in the cover (13).
