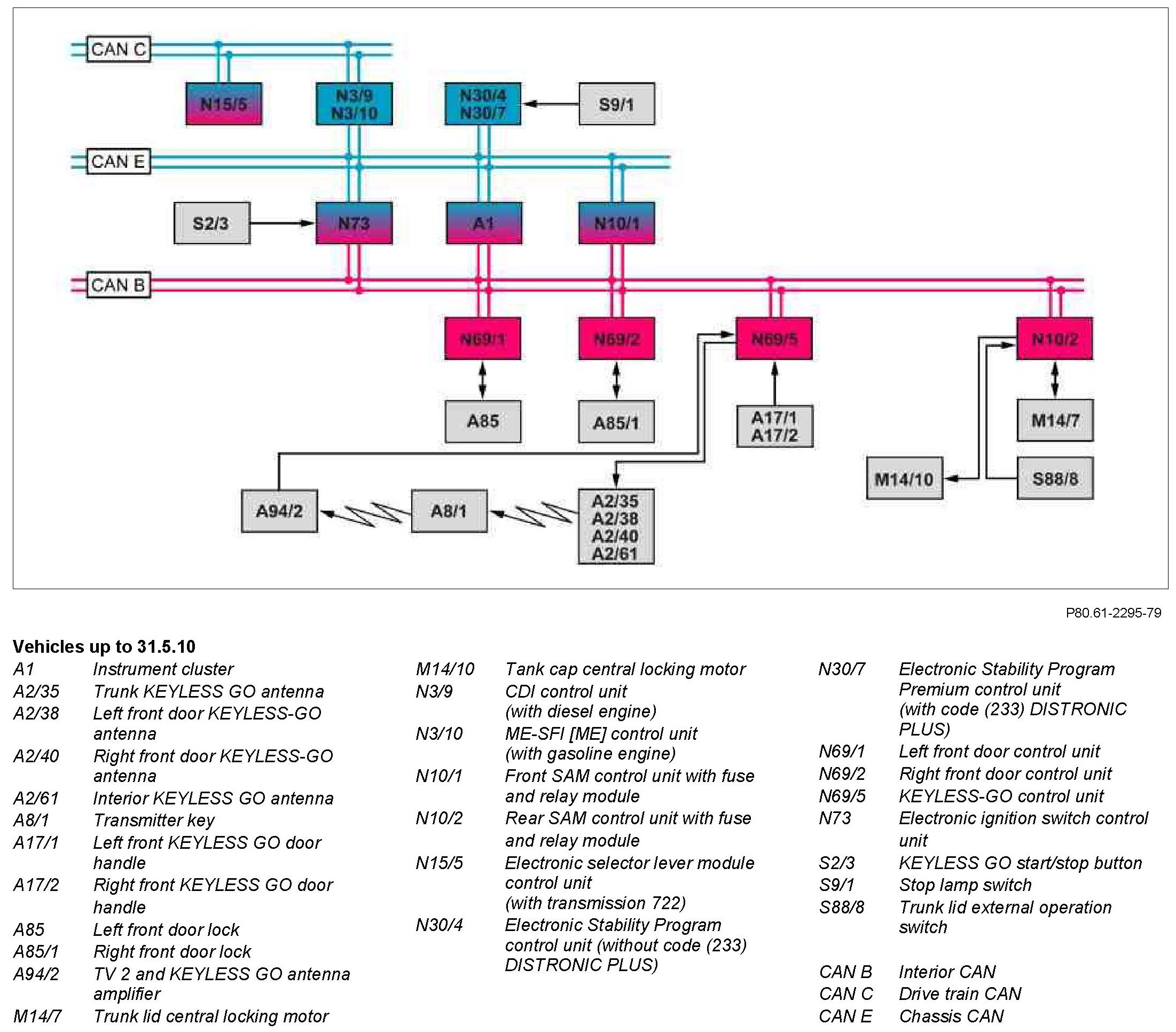

GF80.61-P-0005-02CA Keyless Go, Block Diagram

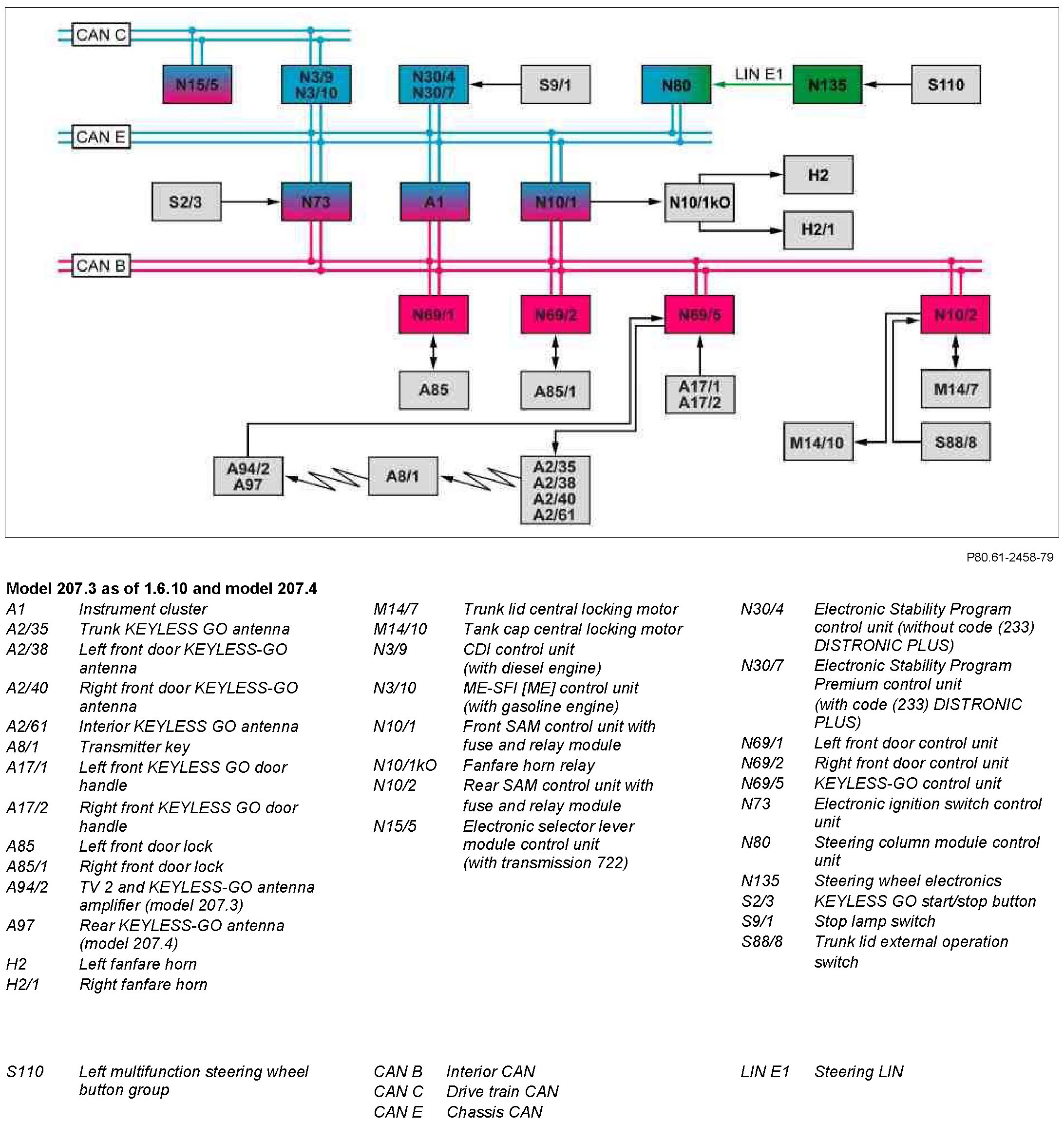

GF80.61-P-0005-02CA Keyless Go, Block Diagram
GF80.61-P-0005-02CA Keyless Go, Block Diagram
- with CODE (889) Keyless Go
Component Identification:
Component Identification:
