AR82.70-P-8951EC Remove/Install Antenna



AR82.70-P-8951EC Remove/Install Antenna
- mock-up multifunction antenna and multifunction antenna

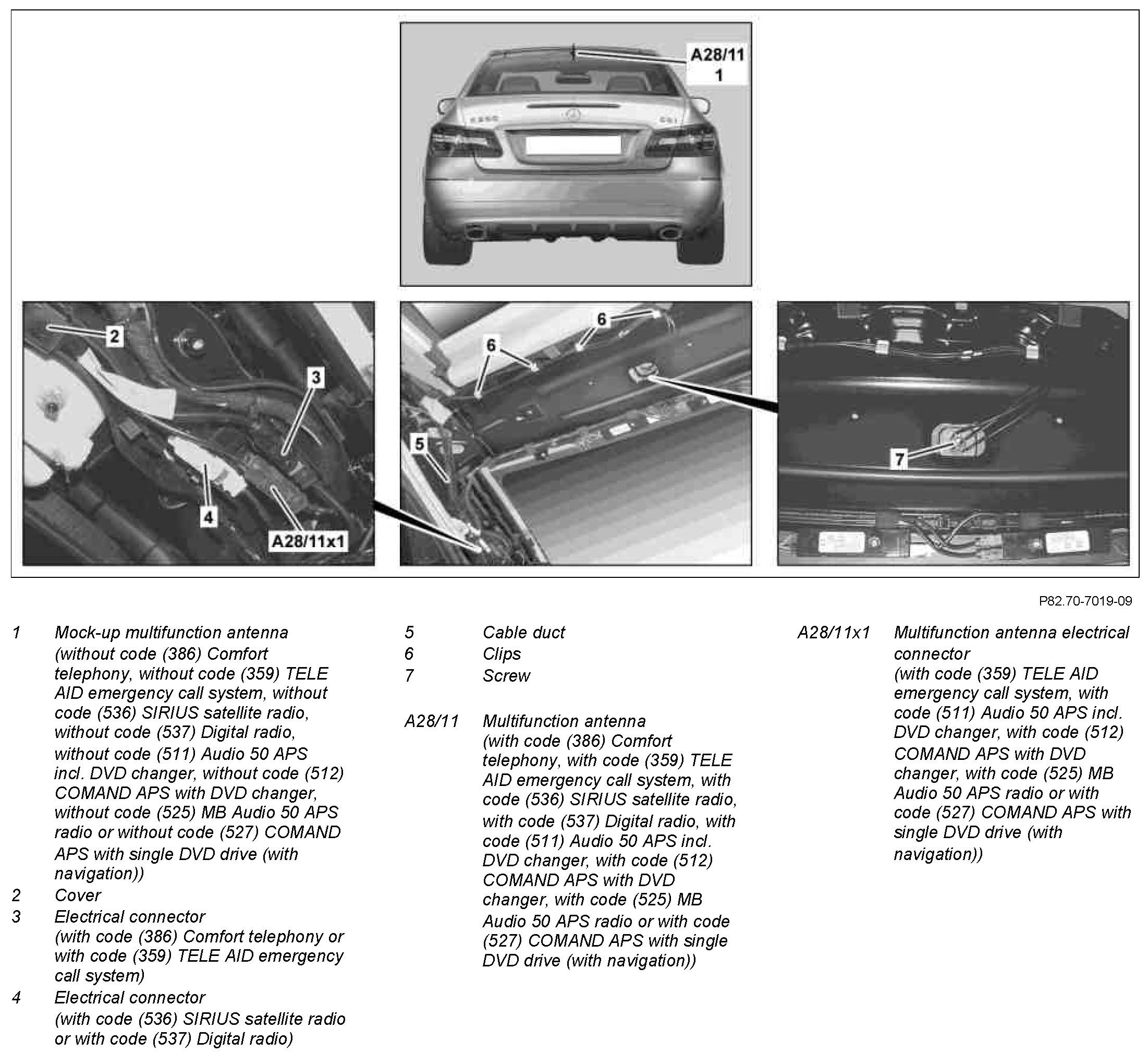

Component Identification:

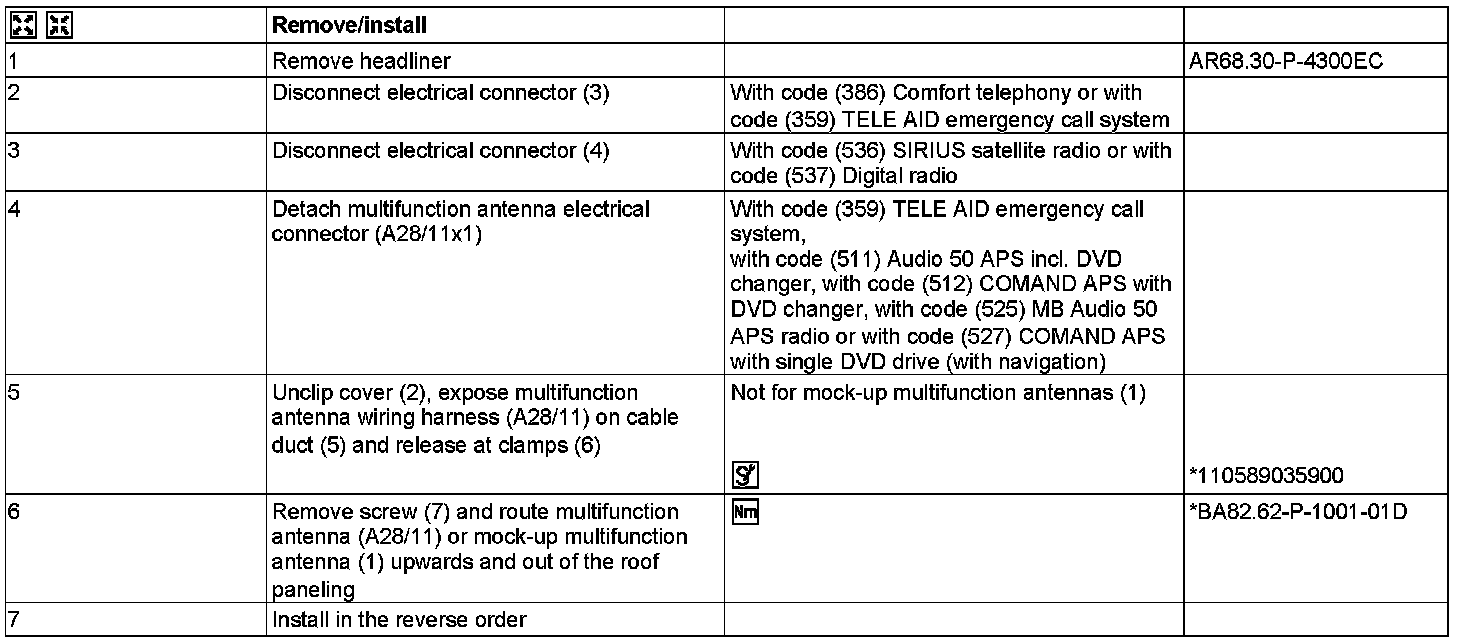

Steps 1 - 7:

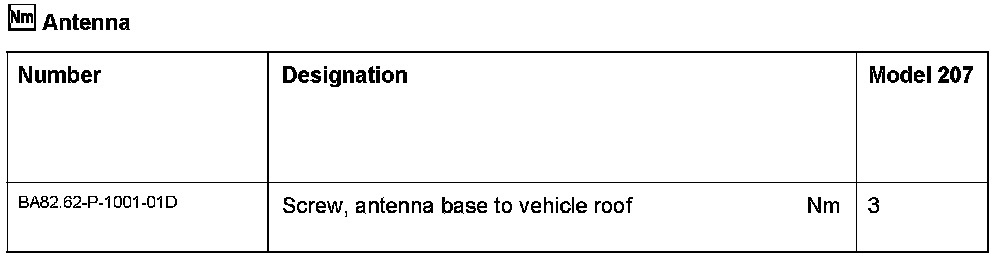

Antenna:

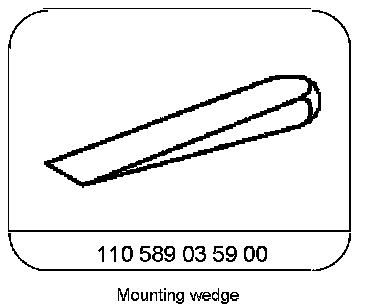

Special Tools:
