AZ82.61-P-0003-02EC Retrofit GPS Antenna

AZ82.61-P-0003-02EC Retrofit GPS Antenna

1 Wrap felt tape around Global Positioning System (GPS) antenna wiring harness (18) of GPS antenna (retrofit) (A2/23).
2 Affix the Velcro tape (19) included in the scope of supply to the top of the GPS antenna (retrofit) (A2/23).

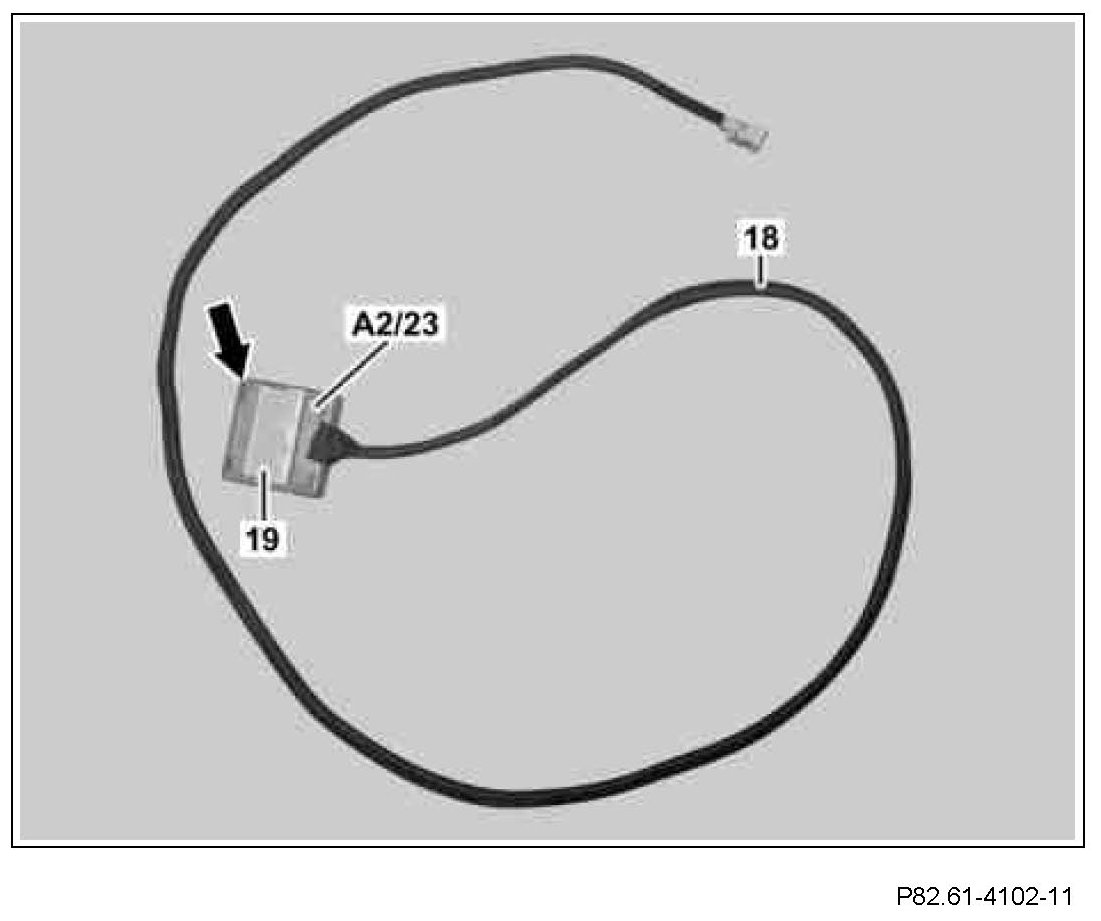

The top of the GPS antenna (retrofit) (A2/23) can be recognized by the lettering "TOP" or by the spacer (arrow). The area of the GPS antenna (retrofit) (A2/23) to which the tape is going to be affixed must be free of dust and grease.

3 Wrap felt tape around GPS antenna (retrofit) (A2/23).







4 Remove protective foil from Velcro strip of GPS antenna (retrofit) (A2/23) and stick GPS antenna (retrofit) (A2/23) from the rear between the instrument cluster (A1) and instrument panel.

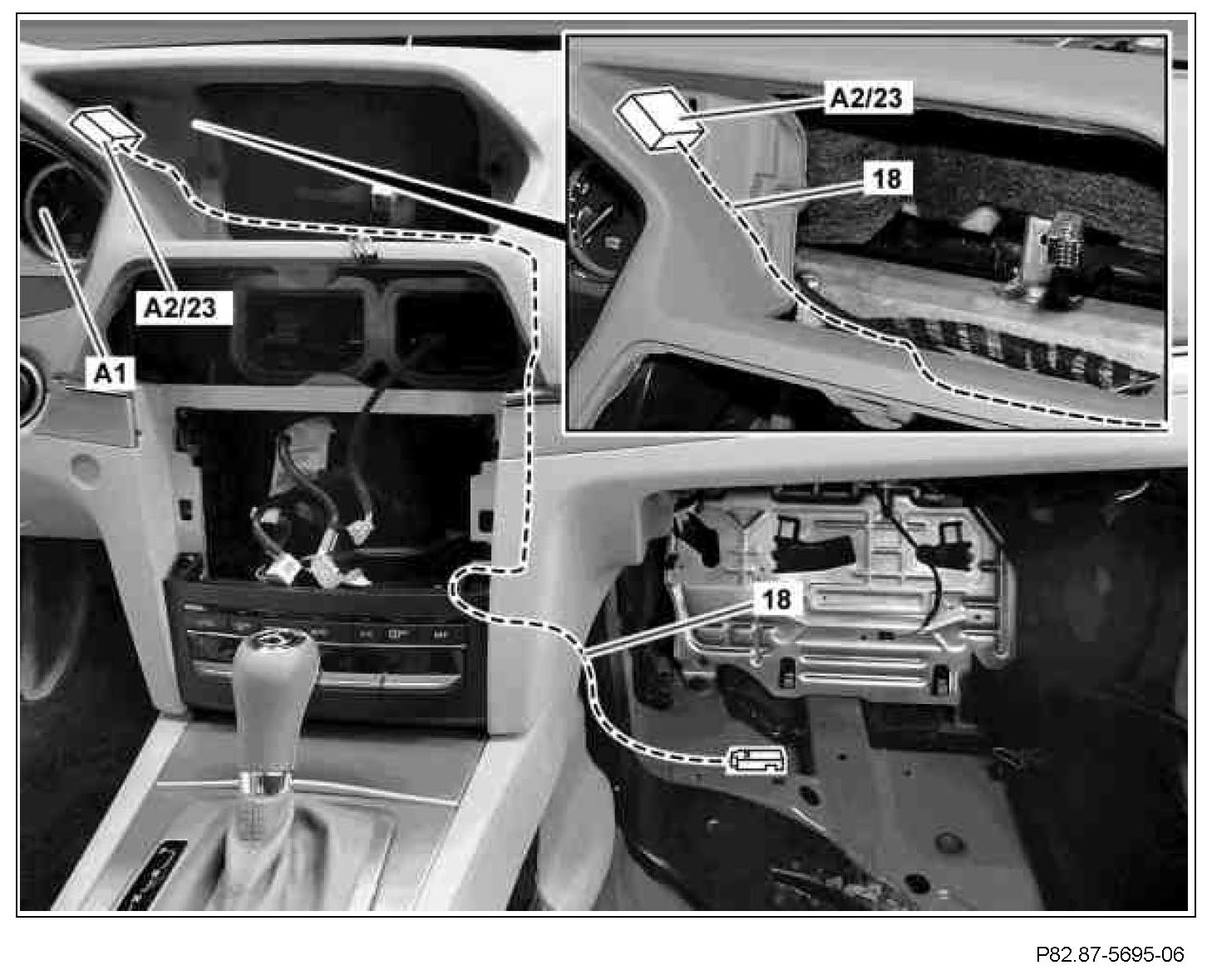

5 Route GPS antenna wiring harness (18) through the cable duct of the Low Voltage Differential Signal (LVDS) display wiring harness into the radio slot and then onward, as shown, into the front passenger footwell.
