AN82.85-P-0005-02EC Install Wiring Harness of Additional Fan For Comand

AN82.85-P-0005-02EC Install Wiring Harness Of Additional Fan For COMAND

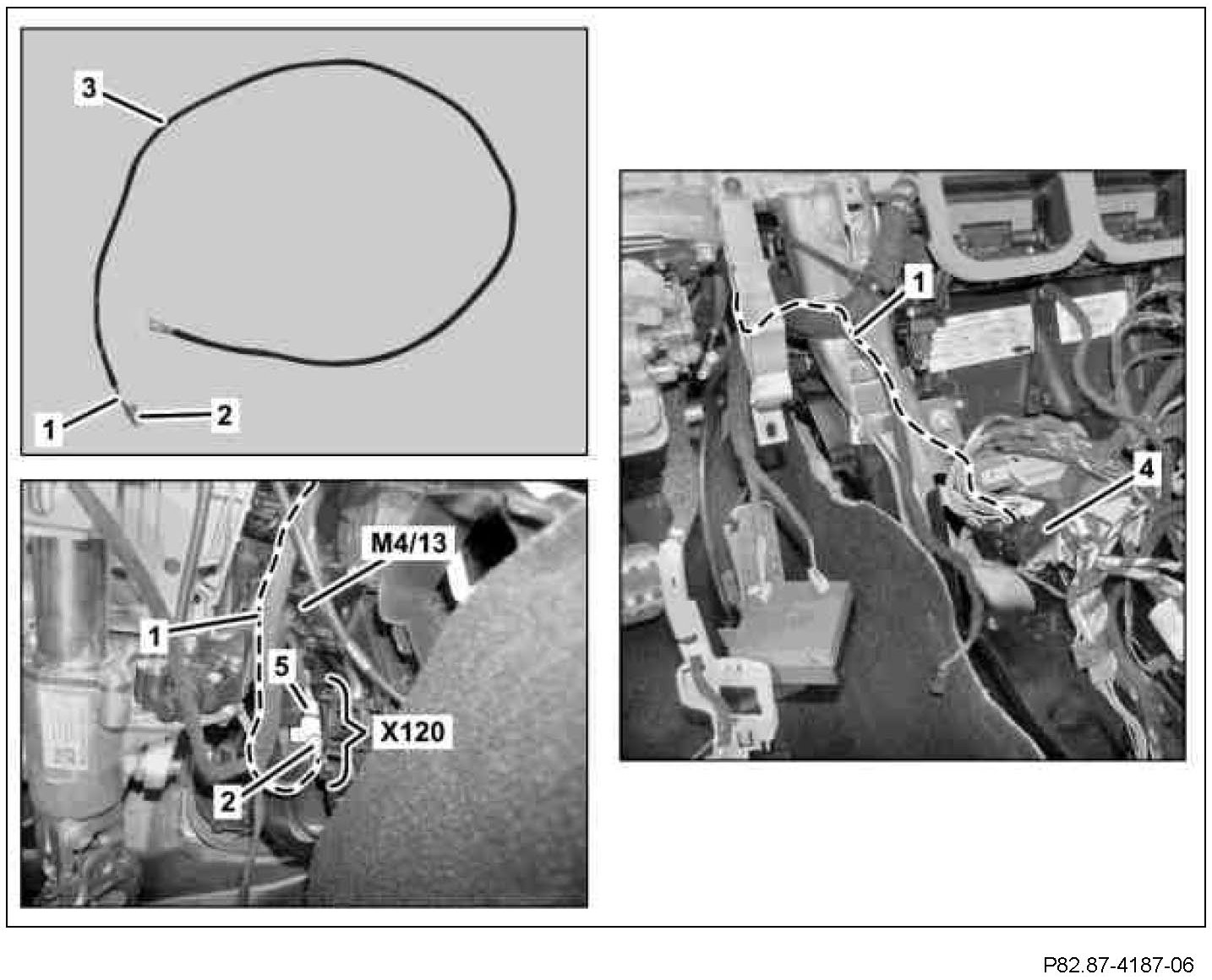

1 Wrap felt tape (3) around wiring harness for COMAND fan motor (1).
2 Using the white 4-pin coupling (2) of the COMAND fan motor wiring harness (1) and the white 4-pin plug (5) of the COMAND fan motor (M4/13), make the radio fan electrical connection (X120).
3 Route wiring harness for COMAND fan motor (1), as shown, from the radio fan electrical connection (X120) to the black, 42-pin coupling (4) of the COMAND controller unit.

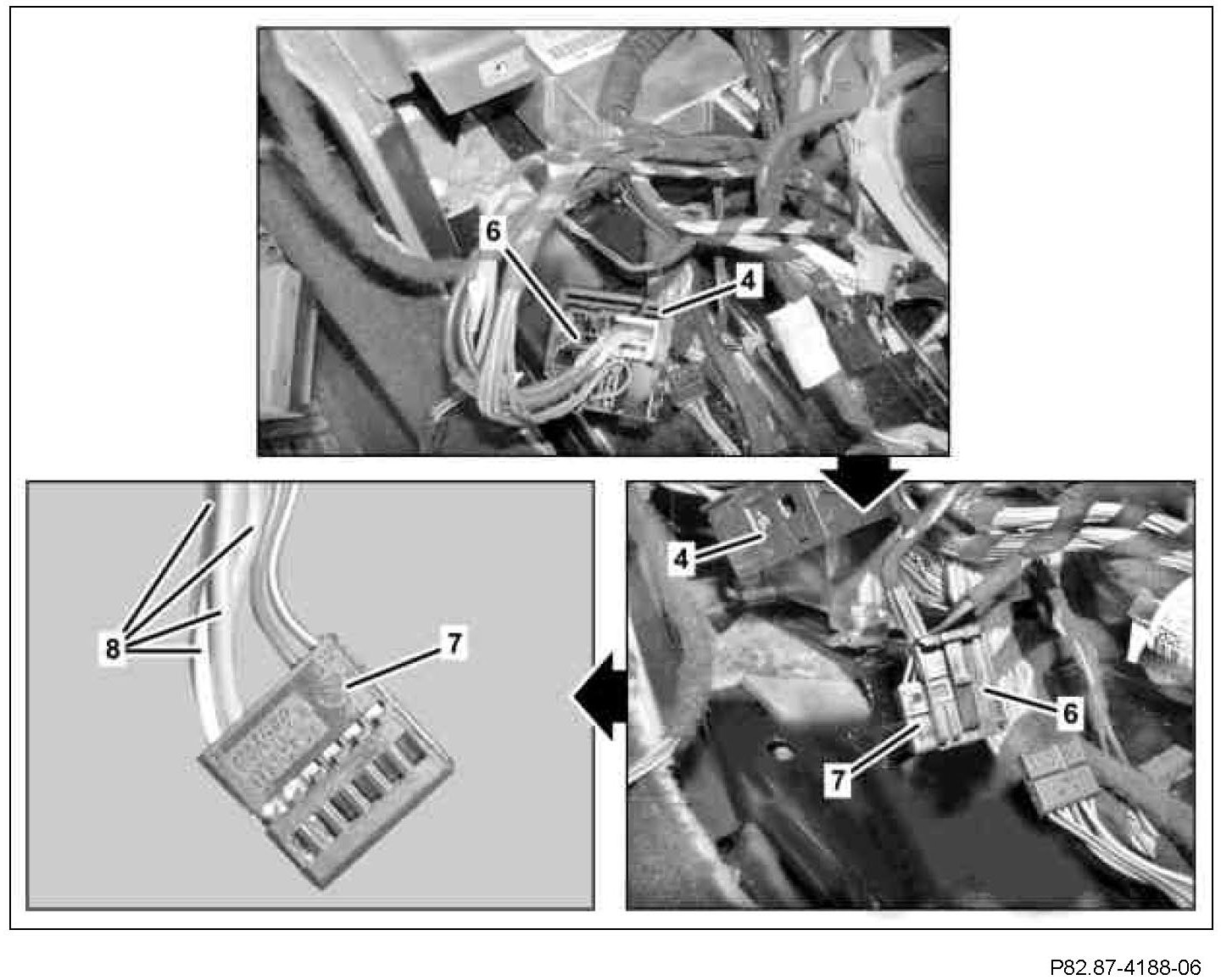

4 Remove black 12-pin coupling (6) from black, 42-pin coupling (4).
5 Remove insert (7) from black 12-pin coupling (6).
6 Install electrical lines (8) of installed COMAND fan motor wiring harness into insert (7).

Assignment:
Contact cavity 1 = gray/yellow line
Contact cavity 2 = brown/yellow line
Contact cavity 7 = gray line
Contact cavity 8 = red/yellow line







7 Install insert (7) into black, 12-pin coupling (6).
8 Install black 12-pin coupling (6) onto black, 42-pin coupling (4).
