AN82.85-P-0005-01EC Install Additional Fan For Comand

AN82.85-P-0005-01EC Install Additional Fan For COMAND

Jacket Tube:

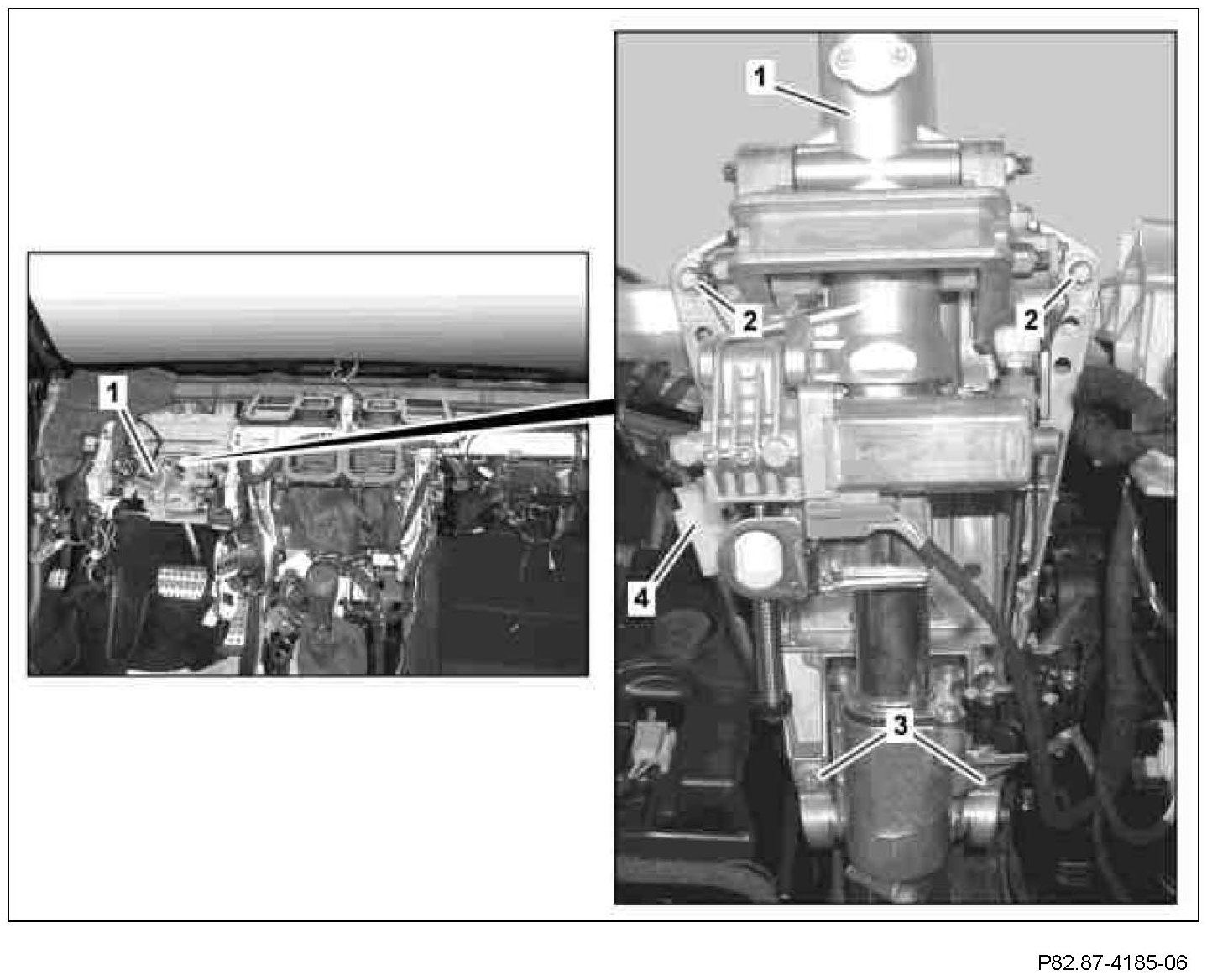

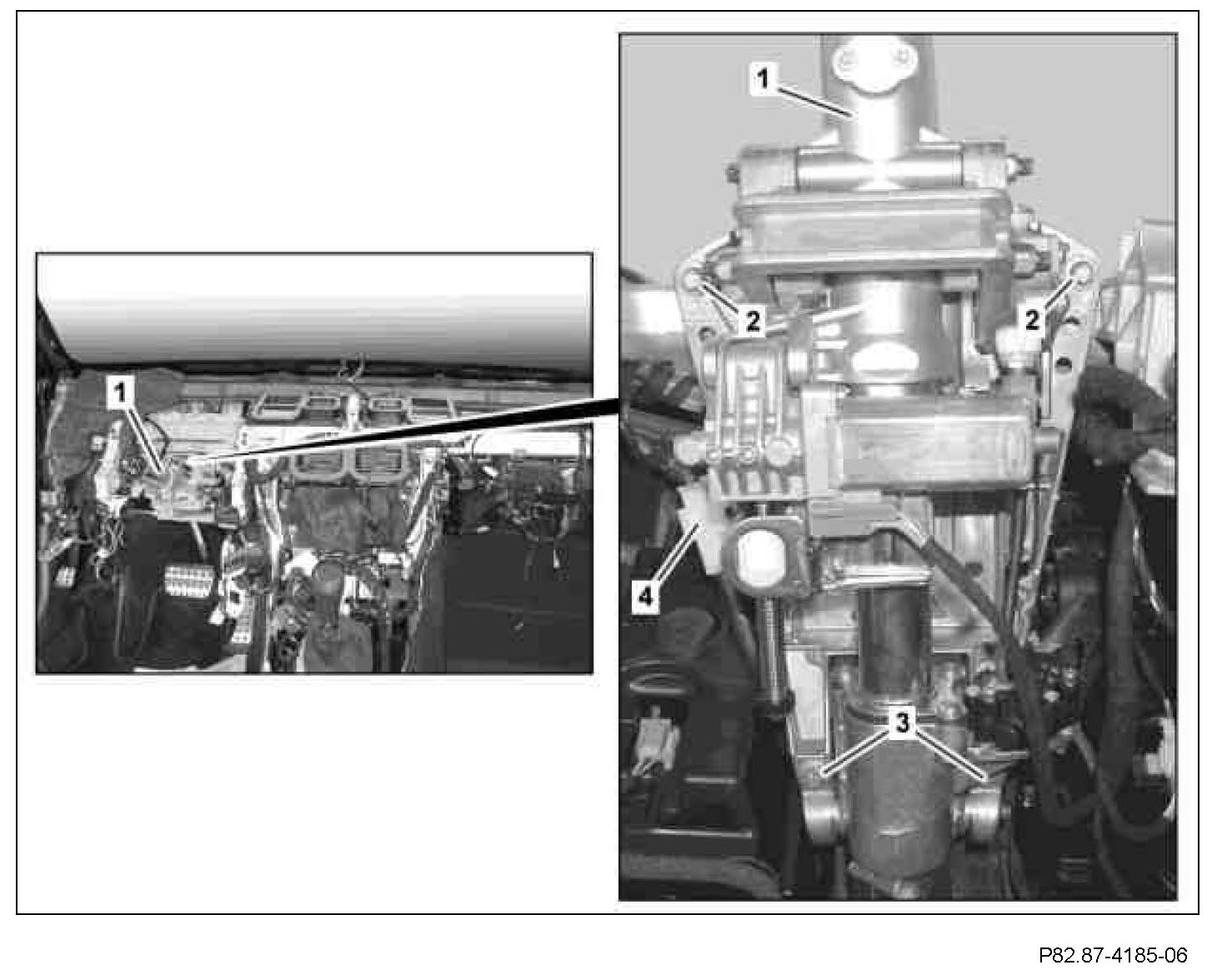

1 Unclip electrical connector (4) from steering column module (1)
2 Remove bolts (2, 3) and place steering column tube (1) in driver footwell.







3 Position COMAND fan motor (M4/13) onto supports (8) on air conditioner housing (7) and secure using bolts (5).
4 Clip plug (6) for COMAND fan motor (M4/13) into bracket (9) on air conditioner housing (7).







5 Screw-on steering column tube (1) using bolts (2, 3).

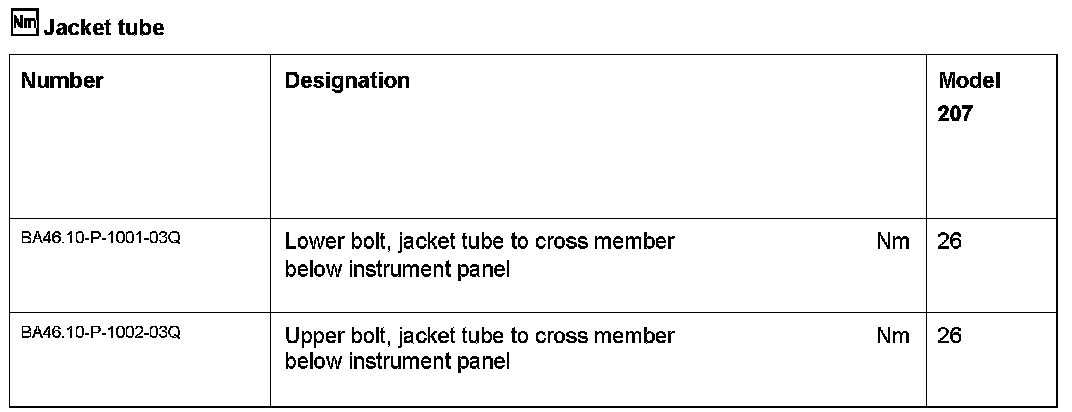

Observe tightening torque.

6 Clip electrical connector (4) onto steering column tube (1).
